SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

IBM Corporation

IBM Power 740 Express (3.55 GHz, 16 core)

CPU2006 license: 11 Test date: Aug-2010
Test sponsor: IBM Corporation Hardware Availability: Sep-2010
Tested by: IBM Corporation Software Availability: Sep-2010

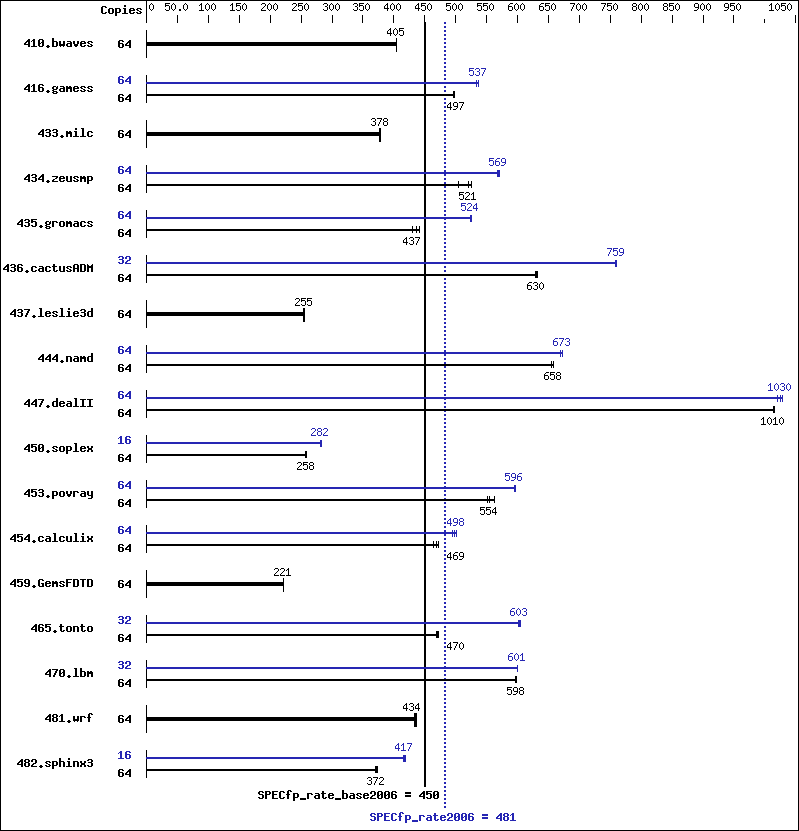

Benchmark results graph
Hardware
CPU Name: POWER7
CPU Characteristics: Intelligent Energy Optimization
enabled, up to 3.86 GHz
CPU MHz: 3556
FPU: Integrated
CPU(s) enabled: 16 cores, 2 chips, 8 cores/chip, 4 threads/core
CPU(s) orderable: 16 cores
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 4 MB I+D on chip per core
Other Cache: None
Memory: 256 GB (32x8 GB) DDR3 1066 MHz
Disk Subsystem: 2x146.8 GB SAS SFF 15K RPM
Other Hardware: None
Software
Operating System: IBM AIX V7.1
Compiler: IBM XL C/C++ for AIX, V11.1
Version: 11.01.0000.0002
IBM XL Fortran for AIX, V13.1
Version: 13.01.0000.0002
Auto Parallel: No
File System: AIX/JFS2
System State: Multi-user
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 64 2148 405 2148 405 2148 405 64 2148 405 2148 405 2148 405
416.gamess 64 2519 497 2523 497 2516 498 64 2335 537 2333 537 2349 533
433.milc 64 1561 376 1553 378 1554 378 64 1561 376 1553 378 1554 378
434.zeusmp 64 1108 526 1153 505 1118 521 64 1027 567 1020 571 1023 569
435.gromacs 64 1045 437 1036 441 1064 429 64 871 524 868 526 872 524
436.cactusADM 64 1216 629 1213 630 1210 632 32 504 759 503 761 504 759
437.leslie3d 64 2361 255 2356 255 2372 254 64 2361 255 2356 255 2372 254
444.namd 64 781 658 780 658 784 655 64 763 673 767 669 763 673
447.dealII 64 722 1010 722 1010 721 1020 64 717 1020 714 1030 711 1030
450.soplex 64 2071 258 2065 259 2065 258 16 472 282 473 282 473 282
453.povray 64 614 554 605 562 618 551 64 572 596 573 595 571 596
454.calculix 64 1126 469 1118 472 1138 464 64 1053 502 1060 498 1066 495
459.GemsFDTD 64 3070 221 3068 221 3069 221 64 3070 221 3068 221 3069 221
465.tonto 64 1345 468 1334 472 1339 470 32 523 602 523 603 520 605
470.lbm 64 1470 598 1472 597 1471 598 32 733 600 732 601 732 601
481.wrf 64 1646 434 1648 434 1639 436 64 1646 434 1648 434 1639 436
482.sphinx3 64 3346 373 3351 372 3362 371 16 748 417 749 416 744 419

Peak Tuning Notes

 fdpr binary optimization tool used for:
    450.soplex 470.lbm
  with options -O4 -sdp 9 -vrox -kr -m power7
 fdpr binary optimization tool used for:
    435.gromacs 444.namd
  with options -O3 -lu -1 -nodp -sdp 9 -m power7
 fdpr binary optimization tool used for 434.zeusmp
  with options -RD -O4 -sdp 9 -vrox -nodp -m power7
 fdpr binary optimization tool used for 436.cactusADM
  with options -O3 -m power7
 fdpr binary optimization tool used for:
    453.povray 454.calculix
  with options -O4 -sdp 9 -vrox -rtb -nodp -m power7
 fdpr binary optimization tool used for 447.dealII
  with options -O4 -sdp 9 -vrox -m power7 -RD -dp
 fdpr binary optimization tool used for 482.sphinx3
  with options -O4 -nodp -m power7 -vrox

Submit Notes

 The config file option 'submit' was used
 to assign benchmark copy to specific kernel thread using
 the "bindprocessor" command (see flags file for details).

Operating System Notes

Environment variables set by runspec before the start of the run:
  MALLOCOPTIONS = "pool"
  MEMORY_AFFINITY = "MCM"
  XLFRTEOPTS = "intrinthds=1"

All ulimits set to unlimited.
12800 16M large pages defined with vmo command

See the flags file for details on settings.

Base Compiler Invocation

C benchmarks:

 /usr/vac/bin/xlc   -qlanglvl=extc99

C++ benchmarks:

 /usr/vacpp/bin/xlC

Fortran benchmarks:

 /usr/bin/xlf95

Benchmarks using both Fortran and C:

 /usr/vac/bin/xlc   -qlanglvl=extc99   /usr/bin/xlf95

Base Portability Flags

410.bwaves:  -qfixed
416.gamess:  -qfixed
434.zeusmp:  -qfixed
435.gromacs:  -qfixed   -qextname
436.cactusADM:  -qfixed   -qextname
437.leslie3d:  -qfixed
454.calculix:  -qfixed   -qextname
481.wrf:  -DSPEC_CPU_AIX   -DNOUNDERSCORE
482.sphinx3:  -qchars=signed

Base Optimization Flags

C benchmarks:

 -qipa=threads   -bmaxdata:0x40000000   -O5   -qlargepage   -O4   -D_ILS_MACROS   -blpdata

C++ benchmarks:

 -qipa=threads   -bmaxdata:0x50000000   -O5   -qlargepage   -O4   -D_ILS_MACROS   -qrtti=all   -D__IBM_FAST_VECTOR   -D__IBM_FAST_SET_MAP_ITERATOR   -blpdata

Fortran benchmarks:

 -qipa=threads   -bmaxdata:0x60000000   -O5   -qlargepage   -O4   -qsmallstack=dynlenonheap   -qalias=nostd   -blpdata

Benchmarks using both Fortran and C:

 -qipa=threads   -bmaxdata:0x60000000   -O5   -qlargepage   -O4   -D_ILS_MACROS   -qsmallstack=dynlenonheap   -qalias=nostd   -blpdata

Base Other Flags

C benchmarks:

 -qipa=noobject   -qsuppress=1500-036

C++ benchmarks:

 -qipa=noobject   -qsuppress=1500-036

Fortran benchmarks:

 -qipa=noobject   -qsuppress=1500-010   -qsuppress=cmpmsg   -qsuppress=1500-036

Benchmarks using both Fortran and C:

 -qipa=noobject   -qsuppress=1500-010   -qsuppress=cmpmsg   -qsuppress=1500-036

Peak Compiler Invocation

C benchmarks:

 /usr/vac/bin/xlc   -qlanglvl=extc99

C++ benchmarks:

 /usr/vacpp/bin/xlC

Fortran benchmarks:

 /usr/bin/xlf95

Benchmarks using both Fortran and C:

 /usr/vac/bin/xlc   -qlanglvl=extc99   /usr/bin/xlf95

Peak Portability Flags

410.bwaves:  -qfixed
416.gamess:  -qfixed
434.zeusmp:  -qfixed
435.gromacs:  -qfixed   -qextname
436.cactusADM:  -qfixed   -qextname   -DSPEC_CPU_LP64
437.leslie3d:  -qfixed
454.calculix:  -qfixed   -qextname
481.wrf:  -DSPEC_CPU_AIX   -DNOUNDERSCORE
482.sphinx3:  -qchars=signed

Peak Optimization Flags

C benchmarks:

433.milc:  basepeak = yes
470.lbm:  -qipa=threads   -bmaxdata:0x30000000   -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qlargepage   -D_ILS_MACROS   -blpdata   -btextpsize:64K
482.sphinx3:  -qipa=threads   -qpdf1(pass 1)   -qpdf2(pass 2)   -O4   -qlargepage   -D_ILS_MACROS   -bdatapsize:64K   -bstackpsize:64K   -btextpsize:64K

C++ benchmarks:

444.namd:  -qipa=threads   -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qsimd   -qvecnvol   -qlargepage   -D_ILS_MACROS   -bdatapsize:64K   -bstackpsize:64K   -btextpsize:64K
447.dealII:  -qipa=threads   -bmaxdata:0x50000000   -O4   -D_ILS_MACROS   -qrtti=all   -D__IBM_FAST_VECTOR   -D__IBM_FAST_SET_MAP_ITERATOR   -blpdata   -btextpsize:64K
450.soplex:  -bmaxdata:0x40000000   -qpdf1(pass 1)   -qpdf2(pass 2)   -O3   -qarch=auto   -qtune=auto   -q64   -qlargepage   -D_ILS_MACROS   -blpdata   -btextpsize:64K
453.povray:  -qipa=threads   -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -q64   -qsimd   -qvecnvol   -qlargepage   -D_ILS_MACROS   -qalign=natural   -blpdata   -btextpsize:64K

Fortran benchmarks:

410.bwaves:  basepeak = yes
416.gamess:  -qipa=threads   -bmaxdata:0x40000000   -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qsimd   -qvecnvol   -qarch=pwr5   -qlargepage   -qalias=nostd   -blpdata   -btextpsize:64K
434.zeusmp:  -bmaxdata:0x40000000   -qpdf1(pass 1)   -qpdf2(pass 2)   -O3   -qarch=auto   -qtune=auto   -qlargepage   -qxlf90=nosignedzero   -blpdata   -btextpsize:64K
437.leslie3d:  basepeak = yes
459.GemsFDTD:  basepeak = yes
465.tonto:  -qipa=threads   -bmaxdata:0x50000000   -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qsimd   -qvecnvol   -blpdata   -btextpsize:64K

Benchmarks using both Fortran and C:

435.gromacs:  -qipa=threads   -qpdf1(pass 1)   -qpdf2(pass 2)   -O4   -qsimd   -qvecnvol   -D_ILS_MACROS   -bdatapsize:64K   -bstackpsize:64K   -btextpsize:64K
436.cactusADM:  -qipa=threads   -O4   -q64   -qsimd   -qvecnvol   -D_ILS_MACROS   -qnostrict   -blpdata   -btextpsize:64K
454.calculix:  -qipa=threads   -O5   -qsimd   -qvecnvol   -qlargepage   -D_ILS_MACROS   -blpdata   -btextpsize:64K
481.wrf:  basepeak = yes

Peak Other Flags

C benchmarks (except as noted below):

 -qipa=noobject   -qsuppress=1500-036
470.lbm:  -qsuppress=1500-036

C++ benchmarks (except as noted below):

 -qipa=noobject   -qsuppress=1500-036
450.soplex:  -qsuppress=1500-036

Fortran benchmarks (except as noted below):

 -qipa=noobject   -qsuppress=1500-010   -qsuppress=cmpmsg   -qsuppress=1500-036
434.zeusmp:  -qsuppress=1500-010   -qsuppress=cmpmsg   -qsuppress=1500-036

Benchmarks using both Fortran and C:

 -qipa=noobject   -qsuppress=1500-010   -qsuppress=cmpmsg   -qsuppress=1500-036

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/IBM-XL.20100901.html,
http://www.spec.org/cpu2006/flags/IBM-AIX.20100303.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/IBM-XL.20100901.xml,
http://www.spec.org/cpu2006/flags/IBM-AIX.20100303.xml.

SPEC and SPECfp are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.1.
Report generated on Wed Jul 23 12:18:32 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 31 August 2010.
