SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

IBM Corporation

IBM Power 740 Express (3.55 GHz, 16 core)

CPU2006 license: 11 Test date: Aug-2010
Test sponsor: IBM Corporation Hardware Availability: Sep-2010
Tested by: IBM Corporation Software Availability: Sep-2010

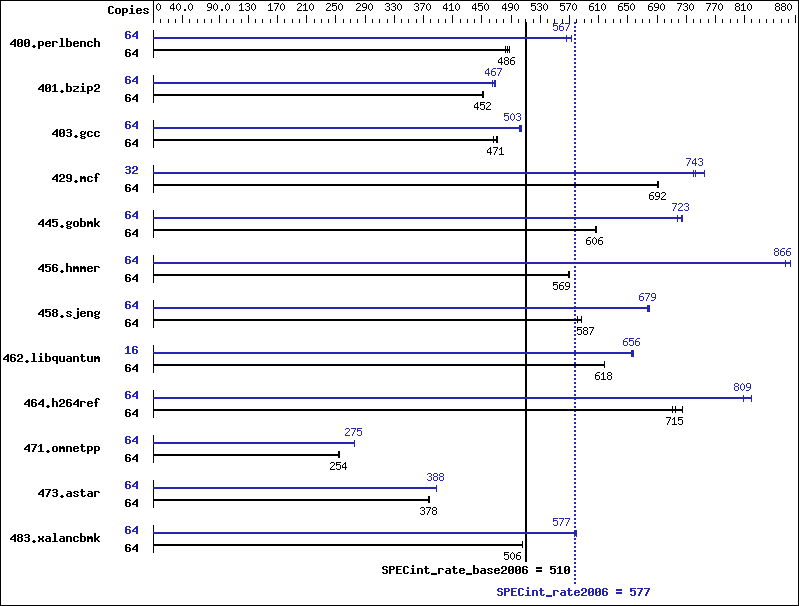

Benchmark results graph
Hardware
CPU Name: POWER7
CPU Characteristics: Intelligent Energy Optimization
enabled, up to 3.86 GHz
CPU MHz: 3556
FPU: Integrated
CPU(s) enabled: 16 cores, 2 chips, 8 cores/chip, 4 threads/core
CPU(s) orderable: 16 cores
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 4 MB I+D on chip per core
Other Cache: None
Memory: 256 GB (32x8 GB) DDR3 1066 MHz
Disk Subsystem: 2x146.8 GB SAS SFF 15K RPM
Other Hardware: None
Software
Operating System: IBM AIX V7.1
Compiler: IBM XL C/C++ for AIX, V11.1
Version: 11.01.0000.0002
Auto Parallel: No
File System: AIX/JFS2
System State: Multi-user
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 64 1282 488 1288 486 1298 482 64 1092 573 1106 565 1104 567
401.bzip2 64 1367 452 1365 453 1369 451 64 1322 467 1328 465 1318 468
403.gcc 64 1105 466 1095 471 1094 471 64 1022 504 1027 502 1024 503
429.mcf 64 844 692 845 691 844 692 32 387 754 394 741 393 743
445.gobmk 64 1107 606 1108 606 1107 606 64 927 724 934 719 929 723
456.hmmer 64 1051 568 1049 569 1047 570 64 685 872 689 866 690 866
458.sjeng 64 1320 587 1332 581 1319 587 64 1141 679 1145 677 1140 679
462.libquantum 64 2144 618 2147 618 2146 618 16 504 658 506 655 505 656
464.h264ref 64 1954 725 1980 715 1993 711 64 1751 809 1753 808 1729 819
471.omnetpp 64 1575 254 1572 254 1574 254 64 1452 276 1454 275 1454 275
473.astar 64 1187 379 1190 377 1190 378 64 1157 388 1158 388 1161 387
483.xalancbmk 64 873 506 874 505 873 506 64 766 577 766 577 762 580

Peak Tuning Notes

 fdpr binary optimization tool used for 401.bzip2
  with options -O4 -sdp 9 -rtb -vrox -nodp -m power7
 fdpr binary optimization tool used for:
    403.gcc 429.mcf 445.gobmk 458.sjeng
  with options -O3 -m power7
 fdpr binary optimization tool used for 456.hmmer
  with options -O3 -lu -1 -nodp -sdp 9 -m power7
 fdpr binary optimization tool used for 462.libquantum
  with options -O4 -nodp -m power7
 fdpr binary optimization tool used for 471.omnetpp
  with options -O4 -nodp -m power7 -vrox
 fdpr binary optimization tool used for 473.astar
  with options -O4 -sdp 9 -vrox -dp -m power7

Submit Notes

 The config file option 'submit' was used
 to assign benchmark copy to specific kernel thread using
 the "bindprocessor" command (see flags file for details).

Operating System Notes

Environment variables set by runspec before the start of the run:
  MALLOCOPTIONS = "pool"
  MEMORY_AFFINITY = "MCM"
  XLFRTEOPTS = "intrinthds=1"

All ulimits set to unlimited.
12800 16M large pages defined with vmo command

See the flags file for details on settings.

Base Compiler Invocation

C benchmarks:

 /usr/vac/bin/xlc   -qlanglvl=extc99

C++ benchmarks:

 /usr/vacpp/bin/xlC

Base Portability Flags

400.perlbench:  -DSPEC_CPU_AIX
462.libquantum:  -DSPEC_CPU_AIX
464.h264ref:  -DSPEC_CPU_AIX   -qchars=signed
483.xalancbmk:  -DSPEC_CPU_AIX

Base Optimization Flags

C benchmarks:

 -qipa=threads   -bmaxdata:0x50000000   -O5   -qlargepage   -qsimd   -qvecnvol   -D_ILS_MACROS   -qalias=noansi   -qalloca   -blpdata

C++ benchmarks:

 -qipa=threads   -bmaxdata:0x20000000   -O5   -qlargepage   -D_ILS_MACROS   -qrtti=all   -D__IBM_FAST_SET_MAP_ITERATOR   -blpdata

Base Other Flags

C benchmarks:

 -qipa=noobject   -qsuppress=1500-036

C++ benchmarks:

 -qipa=noobject   -qsuppress=1500-036

Peak Compiler Invocation

C benchmarks:

 /usr/vac/bin/xlc   -qlanglvl=extc99

C++ benchmarks:

 /usr/vacpp/bin/xlC

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_AIX
462.libquantum:  -DSPEC_CPU_AIX
464.h264ref:  -DSPEC_CPU_AIX   -qchars=signed
483.xalancbmk:  -DSPEC_CPU_AIX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -qipa=threads   -bmaxdata:0x50000000   -qpdf1(pass 1)   -qpdf2(pass 2)   -O2   -qarch=auto   -qtune=auto   -D_ILS_MACROS   -qalias=noansi   -blpdata   -btextpsize:64K
401.bzip2:  -qipa=threads   -bmaxdata:0x50000000   -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qsimd   -qvecnvol   -qlargepage   -D_ILS_MACROS   -blpdata   -btextpsize:64K
403.gcc:  -qipa=threads   -bmaxdata:0x50000000   -qpdf1(pass 1)   -qpdf2(pass 2)   -O3   -qarch=auto   -qtune=auto   -qlargepage   -D_ILS_MACROS   -qalloca   -blpdata   -btextpsize:64K
429.mcf:  Same as 401.bzip2
445.gobmk:  -qipa=threads   -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qsimd   -qvecnvol   -qlargepage   -D_ILS_MACROS   -blpdata   -btextpsize:64K
456.hmmer:  -qipa=threads   -O5   -qsimd   -qvecnvol   -qassert=refalign   -D_ILS_MACROS   -bdatapsize:64K   -bstackpsize:64K   -btextpsize:64K
458.sjeng:  -qipa=threads   -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -D_ILS_MACROS   -blpdata   -btextpsize:64K
462.libquantum:  -O5   -q64   -qlargepage   -D_ILS_MACROS   -blpdata   -btextpsize:64K
464.h264ref:  -qipa=threads   -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qsimd   -qvecnvol   -D_ILS_MACROS   -blpdata   -btextpsize:64K

C++ benchmarks:

471.omnetpp:  -qipa=threads   -bmaxdata:0x20000000   -qpdf1(pass 1)   -qpdf2(pass 2)   -O4   -D_ILS_MACROS   -qalign=natural   -qrtti=all   -qinlglue   -D__IBM_FAST_SET_MAP_ITERATOR   -blpdata   -btextpsize:64K
473.astar:  -qipa=threads   -bmaxdata:0x20000000   -qpdf1(pass 1)   -qpdf2(pass 2)   -O4   -qlargepage   -D_ILS_MACROS   -qinlglue   -qalign=natural   -blpdata   -btextpsize:64K
483.xalancbmk:  -qipa=threads   -bmaxdata:0x20000000   -qpdf1(pass 1)   -qpdf2(pass 2)   -O4   -qsimd   -qvecnvol   -qarch=pwr5   -qtune=pwr5   -qlargepage   -D_ILS_MACROS   -qinlglue   -D__IBM_FAST_VECTOR   -blpdata   -btextpsize:64K

Peak Other Flags

C benchmarks (except as noted below):

 -qipa=noobject   -qsuppress=1500-036
400.perlbench:  -qsuppress=1500-036
403.gcc:  -qsuppress=1500-036
462.libquantum:  -qsuppress=1500-036

C++ benchmarks (except as noted below):

 -qipa=noobject   -qsuppress=1500-036
471.omnetpp:  -qsuppress=1500-036

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/IBM-XL.20100901.html,
http://www.spec.org/cpu2006/flags/IBM-AIX.20100303.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/IBM-XL.20100901.xml,
http://www.spec.org/cpu2006/flags/IBM-AIX.20100303.xml.
