SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

IBM Corporation

IBM Power 730 Express (3.7 GHz, 12 core)

CPU2006 license: 11 Test date: Aug-2010
Test sponsor: IBM Corporation Hardware Availability: Sep-2010
Tested by: IBM Corporation Software Availability: Sep-2010

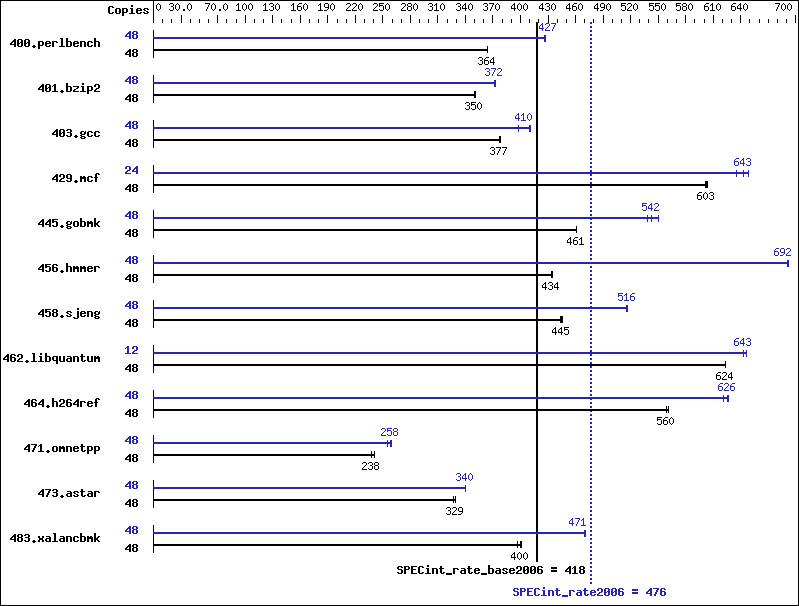

Benchmark results graph
Hardware
CPU Name: POWER7
CPU Characteristics: Intelligent Energy Optimization
enabled, up to 3.92 GHz
CPU MHz: 3724
FPU: Integrated
CPU(s) enabled: 12 cores, 2 chips, 6 cores/chip, 4 threads/core
CPU(s) orderable: 12 cores
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 4 MB I+D on chip per core
Other Cache: None
Memory: 128 GB (16x8 GB) DDR3 1066 MHz
Disk Subsystem: 2x146.8 GB SAS SFF 15K RPM
Other Hardware: None
Software
Operating System: IBM AIX V7.1
Compiler: IBM XL C/C++ for AIX, V11.1
Version: 11.01.0000.0002
Auto Parallel: No
File System: AIX/JFS2
System State: Multi-user
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 48 1288 364 1288 364 1290 364 48 1098 427 1099 427 1099 427
401.bzip2 48 1320 351 1325 350 1324 350 48 1245 372 1247 371 1242 373
403.gcc 48 1026 377 1025 377 1022 378 48 943 410 939 411 970 398
429.mcf 48 727 602 726 603 724 604 24 345 635 337 649 341 643
445.gobmk 48 1092 461 1091 461 1093 461 48 935 538 928 542 915 551
456.hmmer 48 1032 434 1030 435 1033 433 48 648 691 648 692 647 692
458.sjeng 48 1304 445 1306 445 1308 444 48 1125 516 1125 516 1126 516
462.libquantum 48 1594 624 1594 624 1594 624 12 387 643 385 646 387 643
464.h264ref 48 1893 561 1898 560 1899 559 48 1695 627 1709 621 1697 626
471.omnetpp 48 1262 238 1248 240 1264 237 48 1178 255 1161 258 1155 260
473.astar 48 1024 329 1025 329 1030 327 48 992 340 990 340 991 340
483.xalancbmk 48 827 400 834 397 827 401 48 704 471 705 470 704 471

Peak Tuning Notes

 fdpr binary optimization tool used for 401.bzip2
  with options -O4 -sdp 9 -rtb -vrox -nodp -m power7
 fdpr binary optimization tool used for:
    403.gcc 429.mcf 445.gobmk 458.sjeng
  with options -O3 -m power7
 fdpr binary optimization tool used for 456.hmmer
  with options -O3 -lu -1 -nodp -sdp 9 -m power7
 fdpr binary optimization tool used for 462.libquantum
  with options -O4 -nodp -m power7
 fdpr binary optimization tool used for 471.omnetpp
  with options -O4 -nodp -m power7 -vrox
 fdpr binary optimization tool used for 473.astar
  with options -O4 -sdp 9 -vrox -dp -m power7

Submit Notes

 The config file option 'submit' was used
 to assign benchmark copy to specific kernel thread using
 the "bindprocessor" command (see flags file for details).

Operating System Notes

Environment variables set by runspec before the start of the run:
  MALLOCOPTIONS = "pool"
  MEMORY_AFFINITY = "MCM"
  XLFRTEOPTS = "intrinthds=1"

All ulimits set to unlimited.
12800 16M large pages defined with vmo command

See the flags file for details on settings.

Base Compiler Invocation

C benchmarks:

 /usr/vac/bin/xlc   -qlanglvl=extc99

C++ benchmarks:

 /usr/vacpp/bin/xlC

Base Portability Flags

400.perlbench:  -DSPEC_CPU_AIX
462.libquantum:  -DSPEC_CPU_AIX
464.h264ref:  -DSPEC_CPU_AIX   -qchars=signed
483.xalancbmk:  -DSPEC_CPU_AIX

Base Optimization Flags

C benchmarks:

 -qipa=threads   -bmaxdata:0x50000000   -O5   -qlargepage   -qsimd   -qvecnvol   -D_ILS_MACROS   -qalias=noansi   -qalloca   -blpdata

C++ benchmarks:

 -qipa=threads   -bmaxdata:0x20000000   -O5   -qlargepage   -D_ILS_MACROS   -qrtti=all   -D__IBM_FAST_SET_MAP_ITERATOR   -blpdata

Base Other Flags

C benchmarks:

 -qipa=noobject   -qsuppress=1500-036

C++ benchmarks:

 -qipa=noobject   -qsuppress=1500-036

Peak Compiler Invocation

C benchmarks:

 /usr/vac/bin/xlc   -qlanglvl=extc99

C++ benchmarks:

 /usr/vacpp/bin/xlC

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_AIX
462.libquantum:  -DSPEC_CPU_AIX
464.h264ref:  -DSPEC_CPU_AIX   -qchars=signed
483.xalancbmk:  -DSPEC_CPU_AIX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -qipa=threads   -bmaxdata:0x50000000   -qpdf1(pass 1)   -qpdf2(pass 2)   -O2   -qarch=auto   -qtune=auto   -D_ILS_MACROS   -qalias=noansi   -blpdata   -btextpsize:64K
401.bzip2:  -qipa=threads   -bmaxdata:0x50000000   -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qsimd   -qvecnvol   -qlargepage   -D_ILS_MACROS   -blpdata   -btextpsize:64K
403.gcc:  -qipa=threads   -bmaxdata:0x50000000   -qpdf1(pass 1)   -qpdf2(pass 2)   -O3   -qarch=auto   -qtune=auto   -qlargepage   -D_ILS_MACROS   -qalloca   -blpdata   -btextpsize:64K
429.mcf:  Same as 401.bzip2
445.gobmk:  -qipa=threads   -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qsimd   -qvecnvol   -qlargepage   -D_ILS_MACROS   -blpdata   -btextpsize:64K
456.hmmer:  -qipa=threads   -O5   -qsimd   -qvecnvol   -qassert=refalign   -D_ILS_MACROS   -blpdata   -btextpsize:64K
458.sjeng:  -qipa=threads   -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -D_ILS_MACROS   -blpdata   -btextpsize:64K
462.libquantum:  -O5   -q64   -qlargepage   -D_ILS_MACROS   -blpdata   -btextpsize:64K
464.h264ref:  -qipa=threads   -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qsimd   -qvecnvol   -D_ILS_MACROS   -blpdata   -btextpsize:64K

C++ benchmarks:

471.omnetpp:  -qipa=threads   -bmaxdata:0x20000000   -qpdf1(pass 1)   -qpdf2(pass 2)   -O4   -D_ILS_MACROS   -qalign=natural   -qrtti=all   -qinlglue   -D__IBM_FAST_SET_MAP_ITERATOR   -blpdata   -btextpsize:64K
473.astar:  -qipa=threads   -bmaxdata:0x20000000   -qpdf1(pass 1)   -qpdf2(pass 2)   -O4   -qlargepage   -D_ILS_MACROS   -qinlglue   -qalign=natural   -blpdata   -btextpsize:64K
483.xalancbmk:  -qipa=threads   -bmaxdata:0x20000000   -qpdf1(pass 1)   -qpdf2(pass 2)   -O4   -qsimd   -qvecnvol   -qarch=pwr5   -qtune=pwr5   -qlargepage   -D_ILS_MACROS   -qinlglue   -D__IBM_FAST_VECTOR   -blpdata   -btextpsize:64K

Peak Other Flags

C benchmarks (except as noted below):

 -qipa=noobject   -qsuppress=1500-036
400.perlbench:  -qsuppress=1500-036
403.gcc:  -qsuppress=1500-036
462.libquantum:  -qsuppress=1500-036

C++ benchmarks (except as noted below):

 -qipa=noobject   -qsuppress=1500-036
471.omnetpp:  -qsuppress=1500-036

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/IBM-XL.20100901.html,
http://www.spec.org/cpu2006/flags/IBM-AIX.20100303.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/IBM-XL.20100901.xml,
http://www.spec.org/cpu2006/flags/IBM-AIX.20100303.xml.
