SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

IBM Corporation

IBM System x3690 X5 (Intel Xeon X7542)

SPECint®2006 = 32.0

CPU2006 license: 11 Test date: Jun-2010
Test sponsor: IBM Corporation Hardware Availability: Aug-2010
Tested by: IBM Corporation Software Availability: Jan-2010

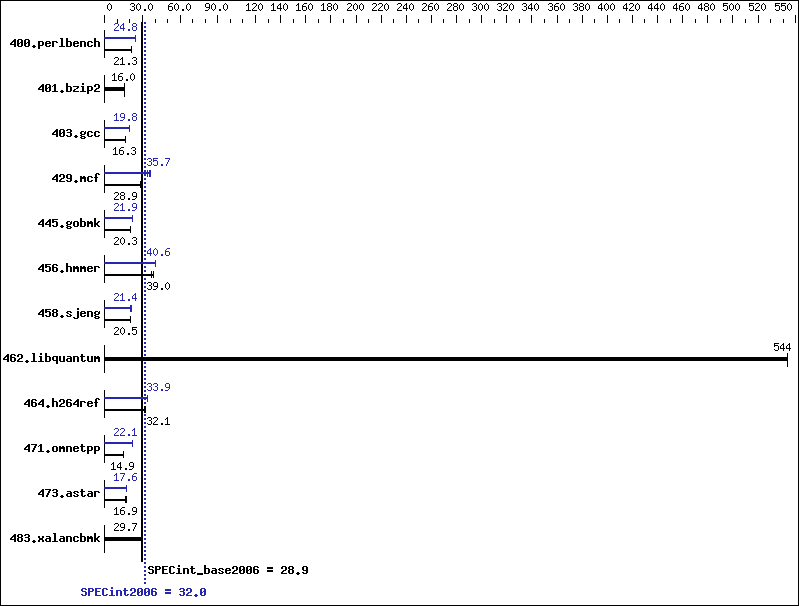

Benchmark results graph
Hardware
CPU Name: Intel Xeon X7542
CPU Characteristics: Intel Turbo Boost Technology up to 2.80 GHz
CPU MHz: 2667
FPU: Integrated
CPU(s) enabled: 12 cores, 2 chips, 6 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 18 MB I+D on chip per chip
Other Cache: None
Memory: 128 GB (32 x 4 GB PC3-8500R CL7, Quad Rank,
running at 978 MHz)
Disk Subsystem: 1 x 146 GB SAS, 15000 RPM
Other Hardware: None
Software
Operating System: SuSE Linux Enterprise Server 11 (x86_64), Kernel
2.6.27.19-5-default
Compiler: Intel C++ Professional Compiler for IA32 and
Intel 64, Version 11.1
Build 20091130 Package ID: l_cproc_p_11.1.064
Auto Parallel: Yes
File System: ext3
System State: Run level 3 (multi-user)
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: Microquill SmartHeap V8.1

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 463   21.1 459   21.3 456   21.4 393   24.8 394   24.8 395   24.7
401.bzip2 602   16.0 607   15.9 604   16.0 602   16.0 607   15.9 604   16.0
403.gcc 493   16.3 493   16.3 492   16.4 406   19.8 409   19.7 402   20.0
429.mcf 315   28.9 317   28.8 314   29.1 252   36.2 265   34.4 255   35.7
445.gobmk 517   20.3 515   20.4 516   20.3 479   21.9 479   21.9 479   21.9
456.hmmer 252   37.0 239   39.0 239   39.0 230   40.6 231   40.4 230   40.6
458.sjeng 591   20.5 593   20.4 592   20.5 566   21.4 566   21.4 581   20.8
462.libquantum 38.1 544   38.1 544   38.1 544   38.1 544   38.1 544   38.1 544
464.h264ref 693   32.0 690   32.1 688   32.2 658   33.6 652   33.9 652   34.0
471.omnetpp 421   14.8 418   14.9 414   15.1 282   22.2 284   22.0 283   22.1
473.astar 426   16.5 415   16.9 415   16.9 406   17.3 398   17.6 398   17.6
483.xalancbmk 236   29.2 232   29.7 232   29.7 236   29.2 232   29.7 232   29.7

Platform Notes

 Turbo Boost set to Traditional

General Notes

 'ulimit -s unlimited' was used to set the stack size to unlimited prior to run
 Binaries were compiled on SLES 10 with Binutils 2.18.50.0.7.20080502
 OMP_NUM_THREADS set to number of cores
 KMP_AFFINITY set to granularity=fine,scatter

Base Compiler Invocation

C benchmarks:

 icc -m64

C++ benchmarks:

 icpc -m64

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX_X64
401.bzip2:  -DSPEC_CPU_LP64
403.gcc:  -DSPEC_CPU_LP64
429.mcf:  -DSPEC_CPU_LP64
445.gobmk:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX
464.h264ref:  -DSPEC_CPU_LP64
471.omnetpp:  -DSPEC_CPU_LP64
473.astar:  -DSPEC_CPU_LP64
483.xalancbmk:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -xSSE4.2   -ipo   -O3   -no-prec-div   -static   -parallel   -opt-prefetch

C++ benchmarks:

 -xSSE4.2   -ipo   -O3   -no-prec-div   -opt-prefetch   -Wl,-z,muldefs   -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-64bit -lsmartheap64

Base Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

Peak Compiler Invocation

C benchmarks (except as noted below):

 icc -m64
400.perlbench:  icc -m32
429.mcf:  icc -m32
445.gobmk:  icc -m32
464.h264ref:  icc -m32

C++ benchmarks (except as noted below):

 icpc -m64
471.omnetpp:  icpc -m32

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_IA32
401.bzip2:  -DSPEC_CPU_LP64
403.gcc:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX
473.astar:  -DSPEC_CPU_LP64
483.xalancbmk:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -static(pass 2)   -prof-use(pass 2)   -ansi-alias   -opt-prefetch
401.bzip2:  basepeak = yes
403.gcc:  -xSSE4.2   -ipo   -O3   -no-prec-div   -static   -inline-calloc   -opt-malloc-options=3   -auto-ilp32
429.mcf:  -xSSE4.2   -ipo   -O3   -no-prec-div   -static   -opt-prefetch
445.gobmk:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -prof-use(pass 2)   -O2   -ipo   -no-prec-div   -ansi-alias
456.hmmer:  -xSSE4.2   -ipo   -O3   -no-prec-div   -static   -unroll2   -ansi-alias   -auto-ilp32
458.sjeng:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -static(pass 2)   -prof-use(pass 2)   -unroll4
462.libquantum:  basepeak = yes
464.h264ref:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -static(pass 2)   -prof-use(pass 2)   -unroll2   -ansi-alias

C++ benchmarks:

471.omnetpp:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -prof-use(pass 2)   -ansi-alias   -opt-ra-region-strategy=block   -Wl,-z,muldefs   -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-32bit -lsmartheap
473.astar:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -prof-use(pass 2)   -ansi-alias   -opt-ra-region-strategy=routine   -Wl,-z,muldefs   -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-64bit -lsmartheap64
483.xalancbmk:  basepeak = yes

Peak Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic11.1-linux64-revE.20100603.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic11.1-linux64-revE.20100603.xml.
