CPU2006 license: | 11 | Test date: | Jul-2010 |
---|---|---|---|
Test sponsor: | IBM Corporation | Hardware Availability: | Jun-2010 |
Tested by: | IBM Corporation | Software Availability: | Jan-2010 |
Hardware | |
---|---|
CPU Name: | Intel Xeon X5550 |
CPU Characteristics: | Intel Turbo Boost Technology up to 3.06 GHz |
CPU MHz: | 2667 |
FPU: | Integrated |
CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip, 2 threads/core |
CPU(s) orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
L3 Cache: | 8 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 24 GB (6 x 4 GB PC3-10600R CL9, 2 Rank) |
Disk Subsystem: | 1 x 73 GB SAS, 15000 RPM |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SuSe Linux Enterprise Server 11 (x86_64), Kernel 2.6.27.19-5-default |
Compiler: | Intel C++ and Fortran Professional Compiler for IA32 and Intel 64, Version 11.1 Build 20091130 Package ID: l_cproc_p_11.1.064, l_cprof_p_11.1.064 |
Auto Parallel: | No |
File System: | ext3 |
System State: | Run level 3 (multi-user) |
Base Pointers: | 64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | None |

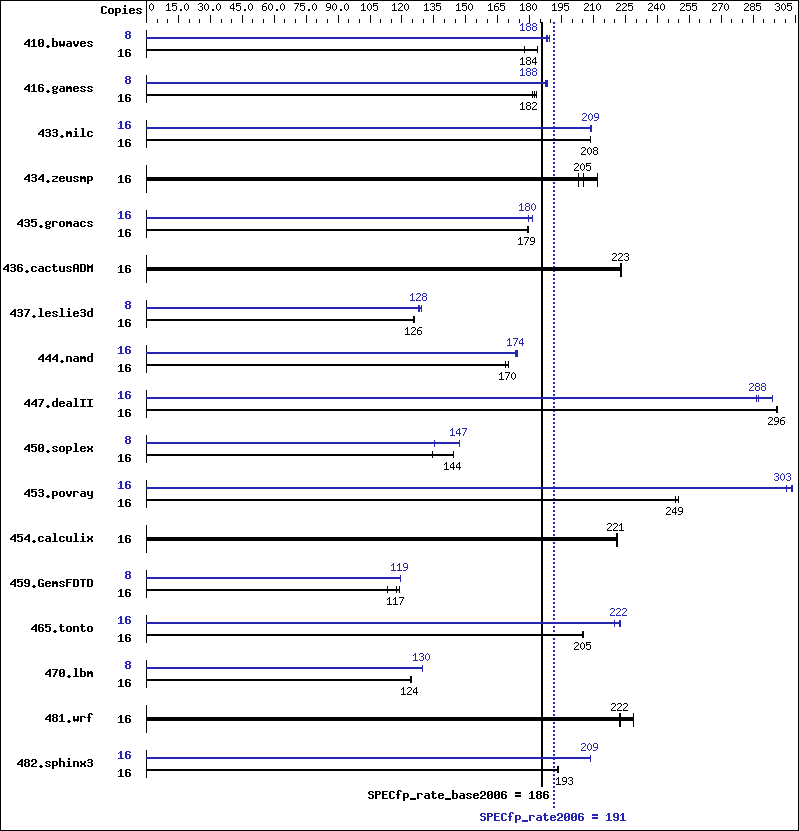

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
410.bwaves | 16 | 1223 | 178 | 1182 | 184 | 1183 | 184 | 8 | 578 | 188 | 575 | 189 | 577 | 188 |
416.gamess | 16 | 1710 | 183 | 1718 | 182 | 1730 | 181 | 8 | 835 | 188 | 834 | 188 | 832 | 188 |
433.milc | 16 | 705 | 208 | 705 | 208 | 705 | 208 | 16 | 703 | 209 | 704 | 209 | 703 | 209 |
434.zeusmp | 16 | 709 | 205 | 717 | 203 | 687 | 212 | 16 | 709 | 205 | 717 | 203 | 687 | 212 |
435.gromacs | 16 | 636 | 180 | 638 | 179 | 638 | 179 | 16 | 631 | 181 | 636 | 180 | 637 | 179 |
436.cactusADM | 16 | 857 | 223 | 859 | 223 | 857 | 223 | 16 | 857 | 223 | 859 | 223 | 857 | 223 |
437.leslie3d | 16 | 1198 | 126 | 1195 | 126 | 1194 | 126 | 8 | 585 | 128 | 588 | 128 | 582 | 129 |
444.namd | 16 | 762 | 168 | 754 | 170 | 755 | 170 | 16 | 737 | 174 | 740 | 173 | 738 | 174 |
447.dealII | 16 | 617 | 297 | 618 | 296 | 618 | 296 | 16 | 639 | 286 | 636 | 288 | 623 | 294 |
450.soplex | 16 | 994 | 134 | 924 | 144 | 924 | 144 | 8 | 493 | 135 | 454 | 147 | 454 | 147 |
453.povray | 16 | 343 | 248 | 342 | 249 | 341 | 250 | 16 | 283 | 301 | 281 | 303 | 280 | 304 |
454.calculix | 16 | 597 | 221 | 598 | 221 | 597 | 221 | 16 | 597 | 221 | 598 | 221 | 597 | 221 |
459.GemsFDTD | 16 | 1500 | 113 | 1447 | 117 | 1431 | 119 | 8 | 711 | 119 | 711 | 119 | 711 | 119 |
465.tonto | 16 | 767 | 205 | 769 | 205 | 767 | 205 | 16 | 707 | 223 | 709 | 222 | 716 | 220 |
470.lbm | 16 | 1772 | 124 | 1770 | 124 | 1769 | 124 | 8 | 848 | 130 | 848 | 130 | 847 | 130 |
481.wrf | 16 | 780 | 229 | 804 | 222 | 803 | 222 | 16 | 780 | 229 | 804 | 222 | 803 | 222 |
482.sphinx3 | 16 | 1616 | 193 | 1609 | 194 | 1616 | 193 | 16 | 1495 | 209 | 1494 | 209 | 1496 | 208 |
The config file option 'submit' was used. numactl was used to bind copies to the cores
Turbo Mode Enable Turbo Boost set to Traditional CPU C State Enable
Binaries were compiled on SLES 10 with Binutils 2.18.50.0.7.20080502 'ulimit -s unlimited' was used to set the stack size to unlimited prior to run
icc -m64 |
icpc -m64 |
ifort -m64 |
icc -m64 ifort -m64 |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
450.soplex: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
482.sphinx3: | -DSPEC_CPU_LP64 |
-xSSE4.2 -ipo -O3 -no-prec-div -static |
-xSSE4.2 -ipo -O3 -no-prec-div -static |
-xSSE4.2 -ipo -O3 -no-prec-div -static |
-xSSE4.2 -ipo -O3 -no-prec-div -static |
icc -m64 | |
482.sphinx3: | icc -m32 |
icpc -m64 | |
450.soplex: | icpc -m32 |
ifort -m64 |
icc -m64 ifort -m64 |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
433.milc: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -fno-alias -opt-prefetch |
470.lbm: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -opt-malloc-options=3 -ansi-alias -auto-ilp32 |
482.sphinx3: | -xSSE4.2 -ipo -O3 -no-prec-div -static -unroll2 |
444.namd: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -fno-alias -auto-ilp32 |
447.dealII: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias -scalar-rep- |
450.soplex: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -opt-malloc-options=3 |
453.povray: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll4 -ansi-alias |
410.bwaves: | -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch |
416.gamess: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -Ob0 -ansi-alias -scalar-rep- |
434.zeusmp: | basepeak = yes |
437.leslie3d: | -xSSE4.2 -ipo -O3 -no-prec-div -static |
459.GemsFDTD: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -Ob0 |
465.tonto: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll4 -auto -inline-calloc -opt-malloc-options=3 |
435.gromacs: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -opt-prefetch -auto-ilp32 |
436.cactusADM: | basepeak = yes |
454.calculix: | basepeak = yes |
481.wrf: | basepeak = yes |
