SPEC® CINT2006 Result

IBM Corporation

IBM System x3400 M3 (Intel Xeon E5540)

Hardware
CPU Name:	Intel Xeon E5540
CPU Characteristics:	Intel Turbo Boost Technology up to 2.80 GHz
CPU MHz:	2533
FPU:	Integrated
CPU(s) enabled:	8 cores, 2 chips, 4 cores/chip, 2 threads/core
CPU(s) orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	256 KB I+D on chip per core
L3 Cache:	8 MB I+D on chip per chip
Other Cache:	None
Memory:	48 GB (12 x 4 GB PC3-10600R CL9, 2 Rank)
Disk Subsystem:	1 x 73 GB SAS, 15000 RPM
Other Hardware:	None

Software
Operating System:	SuSe Linux Enterprise Server 11 (x86_64), Kernel 2.6.27.19-5-default
Compiler:	Intel C++ Professional Compiler for IA32 and Intel 64, Version 11.1 Build 20091130 Package ID: l_cproc_p_11.1.064
Auto Parallel:	No
File System:	ext3
System State:	Run level 3 (multi-user)
Base Pointers:	32-bit
Peak Pointers:	32/64-bit
Other Software:	Microquill SmartHeap V8.1

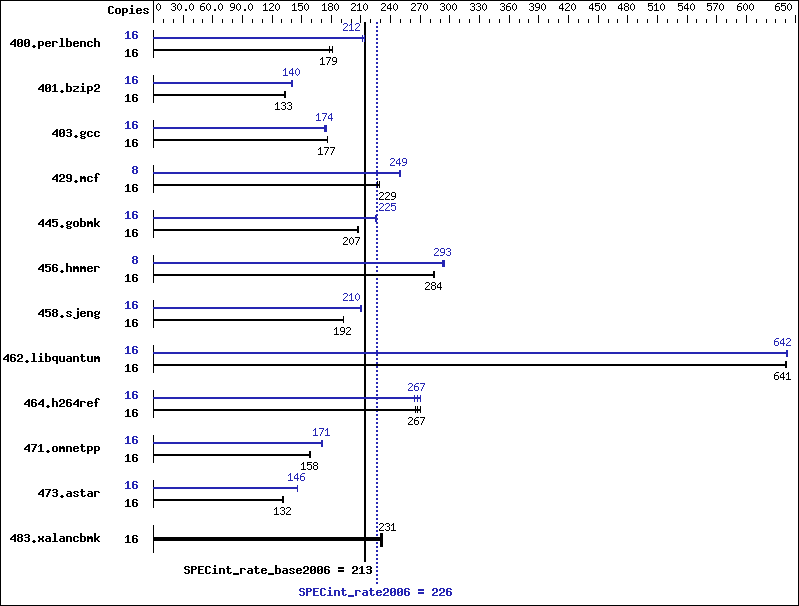

Results Table

Benchmark	Base							Peak
Benchmark	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench	16	864	181	875	179	880	178	16	740	211	738	212	733	213
401.bzip2	16	1160	133	1161	133	1157	133	16	1102	140	1099	140	1101	140
403.gcc	16	729	177	730	177	731	176	16	745	173	736	175	742	174
429.mcf	16	638	229	637	229	645	226	8	292	250	293	249	293	249
445.gobmk	16	812	207	811	207	810	207	16	745	225	748	224	746	225
456.hmmer	16	525	285	526	284	526	284	8	255	292	255	293	254	294
458.sjeng	16	1008	192	1007	192	1009	192	16	922	210	923	210	921	210
462.libquantum	16	518	640	518	641	517	641	16	517	642	517	642	518	640
464.h264ref	16	1337	265	1326	267	1310	270	16	1309	271	1342	264	1328	267
471.omnetpp	16	632	158	631	158	631	158	16	586	171	587	170	586	171
473.astar	16	852	132	853	132	860	131	16	771	146	772	146	770	146
483.xalancbmk	16	477	231	480	230	477	231	16	477	231	480	230	477	231

The config file option 'submit' was used.
 numactl was used to bind copies to the cores

 Turbo Mode Enable
 Turbo Boost set to Traditional
 CPU C State Enable

 Binaries were compiled on SLES 10 with Binutils 2.18.50.0.7.20080502
 'ulimit -s unlimited' was used to set the stack size to unlimited prior to run

icc -m32

icpc -m32

-xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch

403.gcc:

	icpc -m32
473.astar:	icpc -m64

400.perlbench:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -ansi-alias
401.bzip2:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -opt-prefetch -ansi-alias -auto-ilp32
403.gcc:	-xSSE4.2 -ipo -O3 -no-prec-div -static
429.mcf:	-xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch
445.gobmk:	-xSSE4.2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -O2 -ipo -no-prec-div -ansi-alias
456.hmmer:	-xSSE4.2 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias -auto-ilp32
458.sjeng:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32
462.libquantum:	-xSSE4.2 -ipo -O3 -no-prec-div -static -auto-ilp32 -opt-prefetch
464.h264ref:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias

471.omnetpp:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-32bit -lsmartheap
473.astar:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-64bit -lsmartheap64
483.xalancbmk:	basepeak = yes

403.gcc:

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic11.1-linux64-revE.20100601.xml.
