SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Oracle Corporation

Sun Fire X4170 M2 (Intel Xeon X5670 2.93GHz)

CPU2006 license: 6 Test date: Mar-2010
Test sponsor: Oracle Corporation Hardware Availability: Jun-2010
Tested by: Oracle Corporation Software Availability: Jun-2010

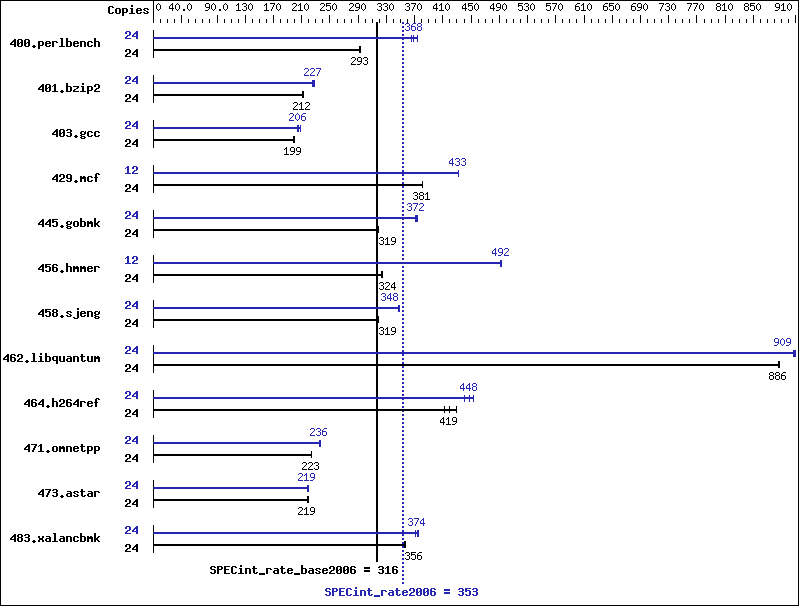

Benchmark results graph
Hardware
CPU Name: Intel Xeon X5670
CPU Characteristics: Intel Turbo Boost Technology up to 3.33 GHz
CPU MHz: 2933
FPU: Integrated
CPU(s) enabled: 12 cores, 2 chips, 6 cores/chip, 2 threads/core
CPU(s) orderable: 1 or 2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 12 MB I+D on chip per chip
Other Cache: None
Memory: 48 GB (12 x 4 GB DDR3-1333 CL9, 2 Rank, ECC)
Disk Subsystem: 1 x 300 GB, SAS, 10000 RPM
Other Hardware: None
Software
Operating System: Oracle Solaris 10 10/09
Compiler: Oracle Solaris Studio Express 6/10
Auto Parallel: No
File System: zfs
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: MicroQuill SmartHeap Library 9.01 for x64

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 24 803 292 800 293 800 293 24 638 368 627 374 642 365
401.bzip2 24 1093 212 1094 212 1094 212 24 1020 227 1031 225 1016 228
403.gcc 24 973 198 967 200 972 199 24 937 206 948 204 929 208
429.mcf 24 575 381 575 381 573 382 12 253 433 253 433 253 432
445.gobmk 24 790 319 789 319 791 318 24 678 372 673 374 676 372
456.hmmer 24 691 324 692 324 692 324 12 227 492 227 492 228 492
458.sjeng 24 911 319 913 318 912 319 24 836 348 834 348 835 348
462.libquantum 24 561 886 562 885 561 886 24 547 909 548 907 547 909
464.h264ref 24 1236 430 1268 419 1288 412 24 1171 454 1186 448 1207 440
471.omnetpp 24 672 223 672 223 672 223 24 636 236 635 236 636 236
473.astar 24 769 219 771 219 774 218 24 770 219 771 218 769 219
483.xalancbmk 24 465 356 464 357 465 356 24 446 371 442 374 442 375

Submit Notes

The config file option 'submit' was used.

Operating System Notes

 ulimit -s unlimited  (shell)

 /etc/system parameters
    tune_t_fsflushr=10
    autoup=900
    zfs:zfs_arc_max = 0x10000000
    lpg_alloc_prefer=1

Platform Notes


   Default BIOS settings used except:
     C-State                 : Disabled
     Data Reuse Optimization : Disabled

Base Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Base Portability Flags

400.perlbench:  -DSPEC_CPU_SOLARIS_IA32
403.gcc:  -DSPEC_CPU_SOLARIS
462.libquantum:  -DSPEC_CPU_SOLARIS
483.xalancbmk:  -DSPEC_CPU_SOLARIS

Base Optimization Flags

C benchmarks:

 -fast   -xtarget=nehalem   -xipo=2   -xpagesize=2M   -M /usr/lib/ld/map.bssalign

C++ benchmarks:

 -fast   -xtarget=nehalem   -xipo=2   -xpagesize=2M   -xvector=simd   -xalias_level=compatible   -L/data1/SmartHeap_9/lib -R/data1/SmartHeap_9/lib -lsmartheap   -library=stlport4

Base Other Flags

C benchmarks:

 -V   -#   -xjobs=24

C++ benchmarks:

 -verbose=diags,version   -xjobs=24

Peak Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_SOLARIS_X64   -DSPEC_CPU_LP64
403.gcc:  -DSPEC_CPU_SOLARIS
462.libquantum:  -DSPEC_CPU_SOLARIS
483.xalancbmk:  -DSPEC_CPU_SOLARIS

Peak Optimization Flags

C benchmarks:

400.perlbench:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xtarget=nehalem   -xipo=1   -m64   -xalias_level=std   -lbsdmalloc   -lumem
401.bzip2:  -fast   -xtarget=nehalem   -xipo=2   -m64   -xpagesize=2M   -xalias_level=std   -lumem
403.gcc:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xtarget=nehalem   -xipo=2   -xpagesize=2M   -W2,-Rujam   -W2,-Rtile
429.mcf:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xtarget=nehalem   -xipo=2   -m32   -xpagesize=2M   -xalias_level=strong   -xprefetch=no%auto   -lbsdmalloc
445.gobmk:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xtarget=nehalem   -m64   -xpagesize=2M   -xrestrict   -xalias_level=strong   -xdepend
456.hmmer:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xtarget=nehalem   -xipo=2   -m64
458.sjeng:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xtarget=nehalem   -xipo=2   -m64   -xpagesize=2M   -xalias_level=strong
462.libquantum:  -fast   -xtarget=nehalem   -xipo=2   -m64   -xalias_level=std
464.h264ref:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xtarget=nehalem   -xipo=2   -m64   -xalias_level=strong   -xrestrict

C++ benchmarks:

471.omnetpp:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xtarget=nehalem   -xipo=2   -xpagesize=2M   -library=stlport4   -L/data1/SmartHeap_9/lib -R/data1/SmartHeap_9/lib -lsmartheap
473.astar:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xtarget=nehalem   -xipo=2   -m64   -xpagesize=2M   -xalias_level=compatible   -library=stlport4   -L/data1/SmartHeap_9/lib -R/data1/SmartHeap_9/lib -lsmartheap64
483.xalancbmk:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xtarget=nehalem   -xipo=2   -xunroll=2   -xpagesize=2M   -xalias_level=compatible   -L/data1/SmartHeap_9/lib -R/data1/SmartHeap_9/lib -lsmartheap   -library=stlport4

Peak Other Flags

C benchmarks:

 -V   -#   -xjobs=24

C++ benchmarks:

 -verbose=diags,version   -xjobs=24

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Oracle-Solaris-Studio-x86_64.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Oracle-Solaris-Studio-x86_64.xml.

SPEC and SPECint are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.1.
Report generated on Wed Jul 23 13:26:37 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 8 July 2010.
