SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Oracle Corporation

Sun Fire X4170 M2 (Intel Xeon X5670 2.93GHz)

SPECfp®2006 = 57.6

CPU2006 license: 6 Test date: May-2010
Test sponsor: Oracle Corporation Hardware Availability: Jun-2010
Tested by: Oracle Corporation Software Availability: Jun-2010

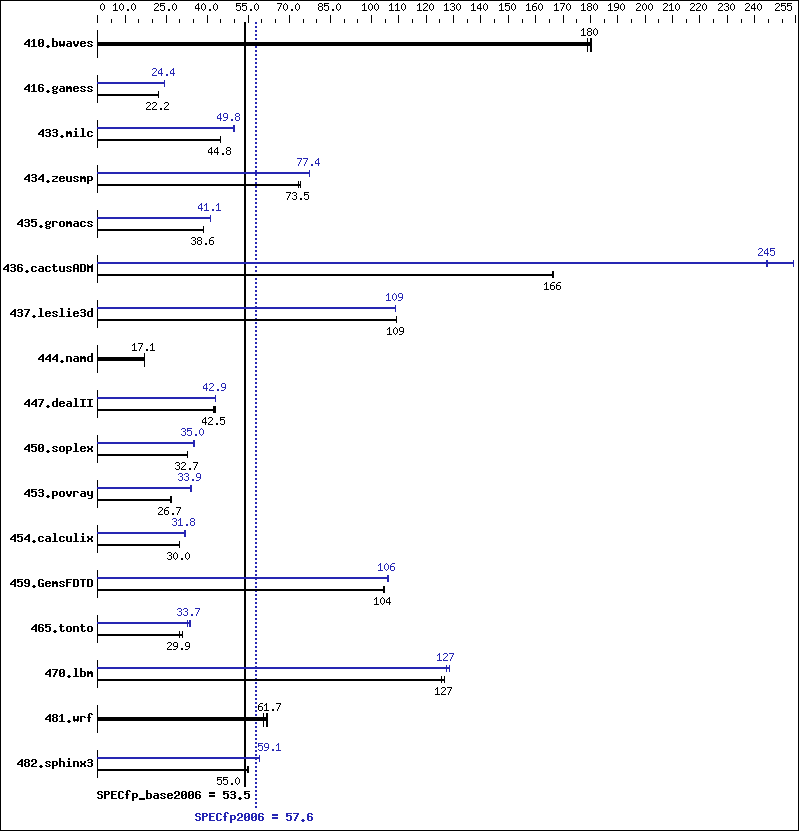

Benchmark results graph
Hardware
CPU Name: Intel Xeon X5670
CPU Characteristics: Intel Turbo Boost Technology up to 3.33 GHz
CPU MHz: 2933
FPU: Integrated
CPU(s) enabled: 12 cores, 2 chips, 6 cores/chip, 2 threads/core
CPU(s) orderable: 1 or 2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 12 MB I+D on chip per chip
Other Cache: None
Memory: 48 GB (12 x 4 GB DDR3-1333 CL9, 2 Rank, ECC)
Disk Subsystem: 1 x 300 GB, SAS, 10000 RPM
Other Hardware: None
Software
Operating System: Oracle Solaris 10 10/09
Compiler: Oracle Solaris Studio Express 6/10
Auto Parallel: Yes
File System: zfs
System State: Default
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: Apache C++ Standard Library V4.2.1

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 75.9 179   75.5 180   75.3 181   75.9 179   75.5 180   75.3 181
416.gamess 882   22.2 882   22.2 882   22.2 804   24.3 804   24.4 804   24.4
433.milc 205   44.9 205   44.8 205   44.8 185   49.7 184   49.8 184   50.0
434.zeusmp 124   73.5 124   73.4 123   74.0 118   77.4 118   77.4 118   77.3
435.gromacs 185   38.6 185   38.5 185   38.6 174   41.1 173   41.2 174   41.0
436.cactusADM 71.9 166   71.8 166   71.8 166   48.9 244   47.0 254   48.8 245
437.leslie3d 86.1 109   86.1 109   86.0 109   86.5 109   86.4 109   86.5 109
444.namd 468   17.1 468   17.1 468   17.1 468   17.1 468   17.1 468   17.1
447.dealII 269   42.5 270   42.4 267   42.8 267   42.9 267   42.9 267   42.9
450.soplex 253   32.9 255   32.7 255   32.7 237   35.2 238   35.0 239   34.9
453.povray 199   26.7 199   26.7 199   26.8 157   33.9 157   33.9 155   34.3
454.calculix 275   30.0 275   30.0 276   29.8 259   31.9 260   31.8 259   31.8
459.GemsFDTD 101   105   102   104   102   104   100   106   100   106   100   106
465.tonto 317   31.0 329   29.9 329   29.9 292   33.7 292   33.7 299   32.9
470.lbm 109   126   109   127   109   127   107   128   108   127   108   127
481.wrf 181   61.8 185   60.4 181   61.7 181   61.8 185   60.4 181   61.7
482.sphinx3 355   55.0 354   55.0 356   54.8 330   59.1 330   59.1 329   59.2

Compiler Invocation Notes

 The Apache C++ Standard Library V4.2.1 was installed from
 http://stdcxx.apache.org/download.html using:
     alias gmake=specmake
     gmake BUILDTYPE=8D CONFIG=sunpro.config

Operating System Notes

 ulimit -s unlimited  (shell)

 /etc/system parameters
    tune_t_fsflushr=10
    autoup=900
    zfs:zfs_arc_max = 0x10000000
    lpg_alloc_prefer=1

Platform Notes


   Default BIOS settings used except:
     C-State                 : Disabled
     Data Reuse Optimization : Disabled

General Notes

Environment variables set by runspec before the start of the run:
OMP_NUM_THREADS = "12"
SUNW_MP_PROCBIND = "23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0"
SUNW_MP_THR_IDLE = "SPIN"

447.dealII (peak): "apache_stdcxx_4_2_1" src.alt was used.

447.dealII (base): "apache_stdcxx_4_2_1" src.alt was used.

Base Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Fortran benchmarks:

 f90

Benchmarks using both Fortran and C:

 cc   f90

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64
436.cactusADM:  -DSPEC_CPU_LP64
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_WORDS_LITTLEENDIAN
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -fast   -xipo=2   -m64   -xautopar   -xreduction

C++ benchmarks:

 -fast   -xipo=2   -m64   -xalias_level=compatible   -library=no%Cstd   -I/data1/stdcxx-4.2.1/include   -I/data1/stdcxx-4.2.1/build/include   -L/data1/stdcxx-4.2.1/build/lib   -R/data1/stdcxx-4.2.1/build/lib   -lstd8D

Fortran benchmarks:

 -fast   -xipo=2   -m64   -xautopar   -xreduction

Benchmarks using both Fortran and C:

 -fast(cc)   -xipo=2   -m64   -xautopar   -xreduction   -fast(f90)

Base Other Flags

C benchmarks:

 -V   -#   -xjobs=24

C++ benchmarks:

 -verbose=diags,version   -xjobs=24

Fortran benchmarks:

 -V   -v   -xjobs=24

Benchmarks using both Fortran and C:

 -V   -#   -xjobs=24   -v

Peak Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Fortran benchmarks:

 f90

Benchmarks using both Fortran and C:

 cc   f90

Peak Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
436.cactusADM:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_WORDS_LITTLEENDIAN

Peak Optimization Flags

C benchmarks:

433.milc:  -fast   -xipo=2   -m64   -xpagesize=2M   -xalias_level=std
470.lbm:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m64   -xpagesize=2M   -xautopar   -xreduction   -L/data1/SmartHeap_9/lib -R/data1/SmartHeap_9/lib -lsmartheap_mt64
482.sphinx3:  -fast   -xipo=2   -m64   -xpagesize=2M   -xalias_level=std   -xrestrict   -xprefetch=no%auto   -xautopar   -xreduction

C++ benchmarks:

444.namd:  basepeak = yes
447.dealII:  -fast   -xipo=2   -m64   -xpagesize=2M   -xalias_level=compatible   -library=no%Cstd   -I/data1/stdcxx-4.2.1/include   -I/data1/stdcxx-4.2.1/build/include   -L/data1/stdcxx-4.2.1/build/lib   -R/data1/stdcxx-4.2.1/build/lib   -lstd8D
450.soplex:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -xpagesize=2M   -xalias_level=compatible   -library=stlport4   -m64
453.povray:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m64   -xpagesize=2M   -xvector=no%simd   -xalias_level=compatible   -library=stlport4   -qoption iropt -Atile:skewp   -qoption iropt -Ainline:cs=700

Fortran benchmarks:

410.bwaves:  basepeak = yes
416.gamess:  -fast   -xipo=2   -m64   -xpagesize=2M   -xunroll=1   -xvector=no%simd
434.zeusmp:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m64   -xautopar   -xreduction
437.leslie3d:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m64   -Qoption ube -xprefetch_mult=2   -xautopar   -xreduction
459.GemsFDTD:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m64   -xpagesize=2M   -xautopar   -xreduction
465.tonto:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m64   -xpagesize=2M   -xautopar   -xreduction   -xprefetch=no%auto   -stackvar   -xalias   -lumem

Benchmarks using both Fortran and C:

435.gromacs:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast(cc)   -fast(f90)   -xvector=no%simd   -xipo=2   -m64   -xpagesize=2M   -Qoption ube -fsimple=3   -xautopar   -xreduction
436.cactusADM:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -m64   -fast(cc)   -fast(f90)   -xipo=0   -xpagesize=2M   -xprefetch_level=2   -W2,-Aparallel:nthreads=24   -Qoption iropt -Aparallel:nthreads=24   -xautopar   -xreduction   -lumem   -lmvec
454.calculix:  -fast(cc)   -fast(f90)   -xipo=2   -m64   -xpagesize=2M   -xunroll=3   -xprefetch_level=2   -xprefetch_auto_type=indirect_array_access
481.wrf:  basepeak = yes

Peak Other Flags

C benchmarks:

 -V   -#   -xjobs=24

C++ benchmarks:

 -verbose=diags,version   -xjobs=24

Fortran benchmarks:

 -V   -v   -xjobs=24

Benchmarks using both Fortran and C:

 -V   -#   -xjobs=24   -v

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Oracle-Solaris-Studio-x86_64.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Oracle-Solaris-Studio-x86_64.xml.

SPEC and SPECfp are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.1.
Report generated on Wed Jul 23 13:24:46 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 8 July 2010.
