SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Oracle Corporation

Sun Fire X2270 M2 (Intel Xeon X5670 2.93GHz)

CPU2006 license: 6 Test date: Mar-2010
Test sponsor: Oracle Corporation Hardware Availability: May-2010
Tested by: Oracle Corporation Software Availability: Jun-2010

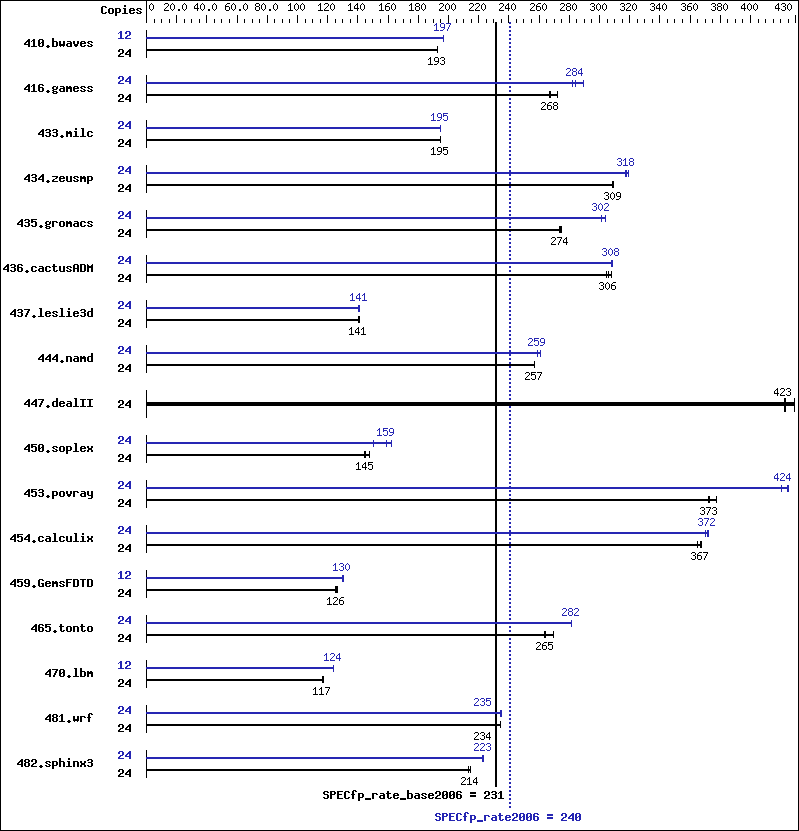

Benchmark results graph
Hardware
CPU Name: Intel Xeon X5670
CPU Characteristics: Intel Turbo Boost Technology up to 3.33 GHz
CPU MHz: 2933
FPU: Integrated
CPU(s) enabled: 12 cores, 2 chips, 6 cores/chip, 2 threads/core
CPU(s) orderable: 1 or 2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 12 MB I+D on chip per chip
Other Cache: None
Memory: 48 GB (12 x 4 GB DDR3-1333 CL9, 2 Rank, ECC)
Disk Subsystem: 1 x 1 TB, SATA, 7200 RPM
Other Hardware: None
Software
Operating System: Oracle Solaris 10 10/09
Compiler: Oracle Solaris Studio Express 6/10
Auto Parallel: No
File System: zfs
System State: Default
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: Apache C++ Standard Library V4.2.1

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 24 1695 192 1693 193 1693 193 12 828 197 829 197 828 197
416.gamess 24 1724 273 1754 268 1762 267 24 1623 289 1655 284 1664 282
433.milc 24 1133 194 1132 195 1133 195 24 1132 195 1132 195 1131 195
434.zeusmp 24 706 309 707 309 708 308 24 684 319 687 318 689 317
435.gromacs 24 623 275 625 274 627 273 24 564 304 568 302 568 302
436.cactusADM 24 938 306 932 308 942 305 24 932 308 932 308 929 309
437.leslie3d 24 1601 141 1603 141 1605 141 24 1601 141 1599 141 1603 141
444.namd 24 749 257 749 257 749 257 24 737 261 743 259 744 259
447.dealII 24 649 423 649 423 640 429 24 649 423 649 423 640 429
450.soplex 24 1356 148 1380 145 1388 144 24 1261 159 1331 150 1233 162
453.povray 24 342 373 338 377 343 373 24 300 425 301 424 304 420
454.calculix 24 539 368 540 367 543 365 24 533 372 532 372 535 370
459.GemsFDTD 24 2018 126 2028 126 2029 125 12 980 130 977 130 983 130
465.tonto 24 893 265 876 270 896 264 24 839 281 839 282 838 282
470.lbm 24 2812 117 2822 117 2825 117 12 1330 124 1328 124 1330 124
481.wrf 24 1144 234 1145 234 1156 232 24 1142 235 1141 235 1140 235
482.sphinx3 24 2193 213 2181 214 2181 215 24 2098 223 2100 223 2097 223

Compiler Invocation Notes

 The Apache C++ Standard Library V4.2.1 was installed from
 http://stdcxx.apache.org/download.html using:
     alias gmake=specmake
     gmake BUILDTYPE=8D CONFIG=sunpro.config

Submit Notes

The config file option 'submit' was used.

Operating System Notes

 ulimit -s unlimited  (shell)

 /etc/system parameters
    tune_t_fsflushr=10
    autoup=900
    zfs:zfs_arc_max = 0x10000000
    lpg_alloc_prefer=1

Platform Notes


   Default BIOS settings used.

General Notes

447.dealII (peak): "apache_stdcxx_4_2_1" src.alt was used.

447.dealII (base): "apache_stdcxx_4_2_1" src.alt was used.

Base Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Fortran benchmarks:

 f90

Benchmarks using both Fortran and C:

 cc   f90

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64
436.cactusADM:  -DSPEC_CPU_LP64
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_WORDS_LITTLEENDIAN
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -fast   -xtarget=nehalem   -xipo=2   -m64   -xpagesize=2M   -xalias_level=std

C++ benchmarks:

 -fast   -xtarget=nehalem   -xipo=2   -m64   -xpagesize=2M   -xalias_level=compatible   -library=no%Cstd   -I/data1/stdcxx-4.2.1/include   -I/data1/stdcxx-4.2.1/build/include   -L/data1/stdcxx-4.2.1/build/lib   -R/data1/stdcxx-4.2.1/build/lib   -lstd8D

Fortran benchmarks:

 -fast   -xtarget=nehalem   -xipo=2   -m64   -xpagesize=2M

Benchmarks using both Fortran and C:

 -fast(cc)   -xtarget=nehalem   -xipo=2   -m64   -xpagesize=2M   -xalias_level=std   -fast(f90)

Base Other Flags

C benchmarks:

 -V   -#   -xjobs=24

C++ benchmarks:

 -verbose=diags,version   -xjobs=24

Fortran benchmarks:

 -V   -v   -xjobs=24

Benchmarks using both Fortran and C:

 -V   -#   -xjobs=24   -v

Peak Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Fortran benchmarks:

 f90

Benchmarks using both Fortran and C:

 cc   f90

Peak Portability Flags

436.cactusADM:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_WORDS_LITTLEENDIAN

Peak Optimization Flags

C benchmarks:

433.milc:  -fast   -xtarget=nehalem   -xipo=2   -m64   -xpagesize=2M   -xalias_level=std
470.lbm:  -fast   -xtarget=nehalem   -xipo=2   -m64   -lbsdmalloc
482.sphinx3:  -fast   -xtarget=nehalem   -xipo=2   -m64   -xpagesize=2M   -xalias_level=std   -xunroll=3   -xprefetch=no%auto

C++ benchmarks:

444.namd:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xtarget=nehalem   -xipo=2   -m64   -xpagesize=2M   -xalias_level=compatible   -library=stlport4
447.dealII:  basepeak = yes
450.soplex:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xtarget=nehalem   -xipo=2   -xpagesize=2M   -xalias_level=compatible   -library=stlport4   -m32   -qoption iropt -Rujam   -qoption iropt -Rtile
453.povray:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xtarget=nehalem   -xipo=2   -m64   -xpagesize=2M   -xvector=no%simd   -xalias_level=compatible   -library=stlport4

Fortran benchmarks:

410.bwaves:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xtarget=nehalem   -xipo=2   -m64   -xpagesize=2M
416.gamess:  -fast   -xtarget=nehalem   -xipo=2   -m64   -xpagesize=2M   -xunroll=1   -xvector=no%simd
434.zeusmp:  Same as 410.bwaves
437.leslie3d:  -fast   -xtarget=nehalem   -xipo=2   -m64   -xpagesize=2M   -Qoption ube -xprefetch_mult=2
459.GemsFDTD:  Same as 410.bwaves
465.tonto:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xtarget=nehalem   -xipo=2   -m64   -xvector=lib   -xalias   -xdepend   -lbsdmalloc

Benchmarks using both Fortran and C:

435.gromacs:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast(cc)   -fast(f90)   -xtarget=nehalem   -xipo=2   -m64   -xpagesize=2M   -Qoption ube -fsimple=3
436.cactusADM:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -m64   -fast(cc)   -fast(f90)   -xtarget=nehalem   -xipo=0   -xpagesize=2M   -xprefetch_level=2   -lumem
454.calculix:  -fast(cc)   -fast(f90)   -xtarget=nehalem   -xipo=2   -m64   -xpagesize=2M   -xunroll=3   -xprefetch_level=2   -xprefetch_auto_type=indirect_array_access
481.wrf:  -fast(cc)   -fast(f90)   -xtarget=nehalem   -xipo=2   -m64   -xpagesize=2M

Peak Other Flags

C benchmarks:

 -V   -#   -xjobs=24

C++ benchmarks:

 -verbose=diags,version   -xjobs=24

Fortran benchmarks:

 -V   -v   -xjobs=24

Benchmarks using both Fortran and C:

 -V   -#   -xjobs=24   -v

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Oracle-Solaris-Studio-x86_64.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Oracle-Solaris-Studio-x86_64.xml.

SPEC and SPECfp are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.1.
Report generated on Wed Jul 23 13:11:20 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 8 July 2010.
