CPU2006 license: | 001176 | Test date: | May-2010 |
---|---|---|---|
Test sponsor: | Supermicro | Hardware Availability: | Apr-2010 |
Tested by: | Supermicro | Software Availability: | Jan-2010 |
Hardware | |
---|---|
CPU Name: | Intel Xeon L3426 |
CPU Characteristics: | Intel Turbo Boost Technology up to 3.20 GHz |
CPU MHz: | 1867 |
FPU: | Integrated |
CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip, 2 threads/core |
CPU(s) orderable: | 1 chip |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
L3 Cache: | 8 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 16 GB (4 x 4 GB 2Rx8 DDR3-1333 RDIMM, ECC, CL9) |
Disk Subsystem: | 1 x 160 GB SATA II, 7200 RPM |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SUSE Linux Enterprise Server 11 (x86_64) Kernel 2.6.27.19-5-default |
Compiler: | Intel C++ Professional Compiler for IA32 and Intel 64, Version 11.1 Build 20091130 Package ID: l_cproc_p_11.1.064 |
Auto Parallel: | No |
File System: | ext3 |
System State: | Run level 3 (multi-user) |
Base Pointers: | 32-bit |
Peak Pointers: | 32/64-bit |
Other Software: | Microquill SmartHeap V8.1 |

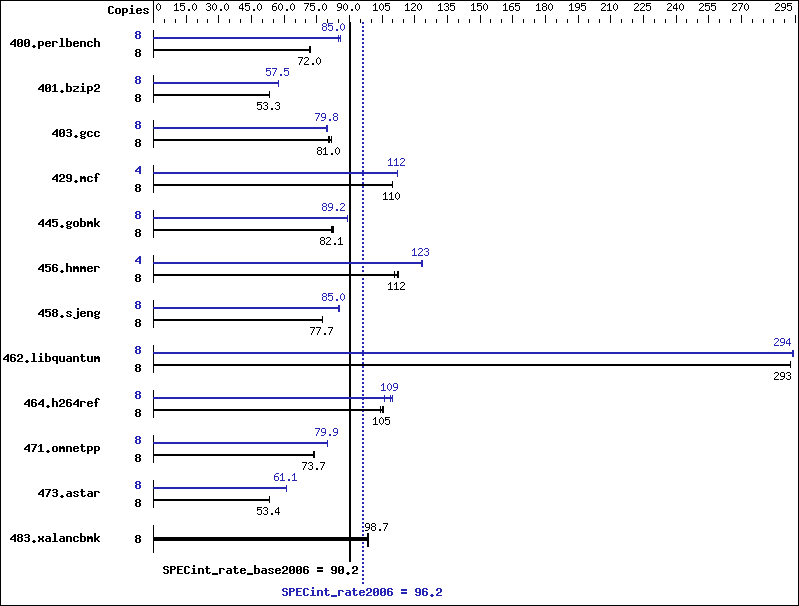

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
400.perlbench | 8 | 1090 | 71.7 | 1086 | 72.0 | 1081 | 72.3 | 8 | 912 | 85.7 | 919 | 85.0 | 919 | 85.0 |
401.bzip2 | 8 | 1446 | 53.4 | 1448 | 53.3 | 1452 | 53.2 | 8 | 1343 | 57.5 | 1340 | 57.6 | 1349 | 57.2 |
403.gcc | 8 | 795 | 81.0 | 786 | 81.9 | 800 | 80.5 | 8 | 808 | 79.7 | 805 | 80.0 | 807 | 79.8 |
429.mcf | 8 | 664 | 110 | 664 | 110 | 664 | 110 | 4 | 326 | 112 | 326 | 112 | 326 | 112 |
445.gobmk | 8 | 1023 | 82.1 | 1024 | 81.9 | 1014 | 82.8 | 8 | 940 | 89.3 | 941 | 89.1 | 941 | 89.2 |
456.hmmer | 8 | 665 | 112 | 673 | 111 | 666 | 112 | 4 | 303 | 123 | 303 | 123 | 303 | 123 |
458.sjeng | 8 | 1246 | 77.7 | 1246 | 77.7 | 1247 | 77.6 | 8 | 1138 | 85.0 | 1135 | 85.3 | 1138 | 85.0 |
462.libquantum | 8 | 567 | 293 | 566 | 293 | 567 | 293 | 8 | 564 | 294 | 565 | 294 | 565 | 293 |
464.h264ref | 8 | 1675 | 106 | 1684 | 105 | 1701 | 104 | 8 | 1670 | 106 | 1612 | 110 | 1626 | 109 |
471.omnetpp | 8 | 678 | 73.7 | 678 | 73.7 | 678 | 73.8 | 8 | 626 | 79.9 | 626 | 79.9 | 626 | 79.9 |
473.astar | 8 | 1053 | 53.3 | 1051 | 53.4 | 1052 | 53.4 | 8 | 919 | 61.1 | 920 | 61.1 | 919 | 61.1 |
483.xalancbmk | 8 | 560 | 98.7 | 560 | 98.7 | 560 | 98.5 | 8 | 560 | 98.7 | 560 | 98.7 | 560 | 98.5 |
The config file option 'submit' was used. numactl was used to bind copies to the cores
'ulimit -s unlimited' was used to set the stack size to unlimited prior to run
Fan speed set to Full Speed in BIOS Setup. As tested, the system used a Supermicro CSE-815TQ-330UB chassis. The chassis is bundled with a PWS-333-1H20 power supply, a SNK-P0046P heatsink, and 4 FAN-0086L4 cooling fans.
Binaries were compiled on SLES 10 with Binutils 2.18.50.0.7.20080502
400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
462.libquantum: | -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
-xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch |
-xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-32bit -lsmartheap |
icc -m32 | |
401.bzip2: | icc -m64 |
456.hmmer: | icc -m64 |
458.sjeng: | icc -m64 |
462.libquantum: | icc -m64 |
icpc -m32 | |
473.astar: | icpc -m64 |
400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
401.bzip2: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
458.sjeng: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
473.astar: | -DSPEC_CPU_LP64 |
483.xalancbmk: | -DSPEC_CPU_LINUX |
400.perlbench: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -ansi-alias |
401.bzip2: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -opt-prefetch -ansi-alias -auto-ilp32 |
403.gcc: | -xSSE4.2 -ipo -O3 -no-prec-div -static |
429.mcf: | -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch |
445.gobmk: | -xSSE4.2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -O2 -ipo -no-prec-div -ansi-alias |
456.hmmer: | -xSSE4.2 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias -auto-ilp32 |
458.sjeng: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 |
462.libquantum: | -xSSE4.2 -ipo -O3 -no-prec-div -static -auto-ilp32 -opt-prefetch |
464.h264ref: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-32bit -lsmartheap |
473.astar: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-64bit -lsmartheap64 |
483.xalancbmk: | basepeak = yes |
