SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Dell Inc.

PowerEdge M910 (Intel Xeon L7545, 1.87 GHz)

CPU2006 license: 55 Test date: May-2010
Test sponsor: Dell Inc. Hardware Availability: Mar-2010
Tested by: Dell Inc. Software Availability: Dec-2009

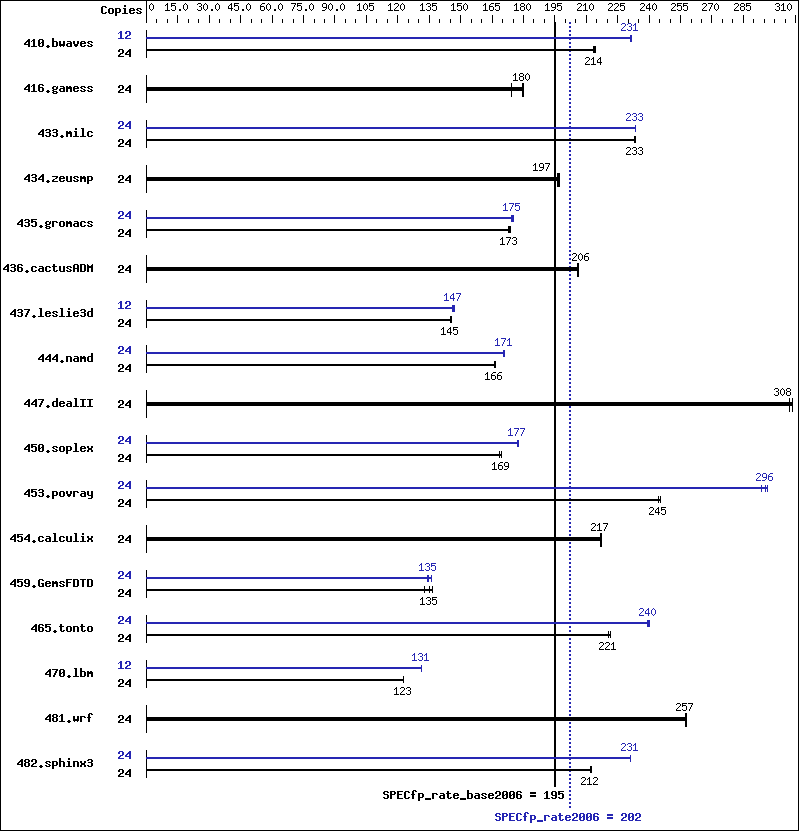

Benchmark results graph
Hardware
CPU Name: Intel Xeon L7545
CPU Characteristics: Intel Turbo Boost Technology up to 2.53 GHz
CPU MHz: 1867
FPU: Integrated
CPU(s) enabled: 12 cores, 2 chips, 6 cores/chip, 2 threads/core
CPU(s) orderable: 2,4 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 18 MB I+D on chip per chip
Other Cache: None
Memory: 128 GB (32 x 4 GB DDR3-1066 QR RDIMM, CL7, ECC,
downclocked to
978 MHz)
Disk Subsystem: 1 x 146 GB 15000 RPM SAS
Other Hardware: None
Software
Operating System: SUSE Linux Enterprise Server 11 (x86_64), Kernel
2.6.27.19-5-smp
Compiler: Intel C++ and Fortran Professional Compiler for
IA32 and Intel 64, Version 11.1
Build 20091130 Package ID: l_cproc_p_11.1.064,
l_cprof_p_11.1.064
Auto Parallel: No
File System: ext3
System State: Run level 3 (multi-user)
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 24 1522 214 1525 214 1528 214 12 704 232 706 231 705 231
416.gamess 24 2611 180 2616 180 2696 174 24 2611 180 2616 180 2696 174
433.milc 24 944 233 944 233 945 233 24 944 233 944 233 944 233
434.zeusmp 24 1112 196 1111 197 1108 197 24 1112 196 1111 197 1108 197
435.gromacs 24 990 173 988 173 987 174 24 980 175 978 175 982 175
436.cactusADM 24 1392 206 1389 206 1394 206 24 1392 206 1389 206 1394 206
437.leslie3d 24 1552 145 1552 145 1554 145 12 771 146 767 147 769 147
444.namd 24 1154 167 1158 166 1160 166 24 1126 171 1127 171 1128 171
447.dealII 24 890 309 894 307 890 308 24 890 309 894 307 890 308
450.soplex 24 1181 169 1189 168 1181 169 24 1127 178 1129 177 1129 177
453.povray 24 522 245 520 246 522 245 24 430 297 435 294 432 296
454.calculix 24 913 217 913 217 912 217 24 913 217 913 217 912 217
459.GemsFDTD 24 1864 137 1888 135 1918 133 24 1895 134 1874 136 1891 135
465.tonto 24 1072 220 1071 221 1066 222 24 984 240 988 239 984 240
470.lbm 24 2682 123 2682 123 2684 123 12 1255 131 1256 131 1256 131
481.wrf 24 1042 257 1040 258 1042 257 24 1042 257 1040 258 1042 257
482.sphinx3 24 2205 212 2206 212 2202 212 24 2026 231 2026 231 2025 231

Submit Notes

The config file option 'submit' was used.
 numactl was used to bind copies to the cores

Operating System Notes

'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run

Platform Notes

 vm.zone_reclaim_mode = 1 in /etc/sysctl.conf file
 BIOS Settings:
 Power Management = Maximum Performance (Default = Active Power Controller)

General Notes

 Binaries were compiled on SLES 10 with Binutils 2.18.50.0.7.20080502

Base Compiler Invocation

C benchmarks:

 icc -m64

C++ benchmarks:

 icpc -m64

Fortran benchmarks:

 ifort -m64

Benchmarks using both Fortran and C:

 icc -m64   ifort -m64

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -xSSE4.2   -ipo   -O3   -no-prec-div   -static

C++ benchmarks:

 -xSSE4.2   -ipo   -O3   -no-prec-div   -static

Fortran benchmarks:

 -xSSE4.2   -ipo   -O3   -no-prec-div   -static

Benchmarks using both Fortran and C:

 -xSSE4.2   -ipo   -O3   -no-prec-div   -static

Peak Compiler Invocation

C benchmarks (except as noted below):

 icc -m64
482.sphinx3:  icc -m32

C++ benchmarks (except as noted below):

 icpc -m64
450.soplex:  icpc -m32

Fortran benchmarks:

 ifort -m64

Benchmarks using both Fortran and C:

 icc -m64   ifort -m64

Peak Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

433.milc:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -static(pass 2)   -prof-use(pass 2)   -fno-alias   -opt-prefetch
470.lbm:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -static(pass 2)   -prof-use(pass 2)   -opt-malloc-options=3   -ansi-alias   -auto-ilp32
482.sphinx3:  -xSSE4.2   -ipo   -O3   -no-prec-div   -static   -unroll2

C++ benchmarks:

444.namd:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -static(pass 2)   -prof-use(pass 2)   -fno-alias   -auto-ilp32
447.dealII:  basepeak = yes
450.soplex:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -static(pass 2)   -prof-use(pass 2)   -opt-malloc-options=3
453.povray:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -static(pass 2)   -prof-use(pass 2)   -unroll4   -ansi-alias

Fortran benchmarks:

410.bwaves:  -xSSE4.2   -ipo   -O3   -no-prec-div   -static   -opt-prefetch
416.gamess:  basepeak = yes
434.zeusmp:  basepeak = yes
437.leslie3d:  -xSSE4.2   -ipo   -O3   -no-prec-div   -static
459.GemsFDTD:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -static(pass 2)   -prof-use(pass 2)   -unroll2   -Ob0
465.tonto:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -static(pass 2)   -prof-use(pass 2)   -unroll4   -auto   -inline-calloc   -opt-malloc-options=3

Benchmarks using both Fortran and C:

435.gromacs:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -static(pass 2)   -prof-use(pass 2)   -opt-prefetch   -auto-ilp32
436.cactusADM:  basepeak = yes
454.calculix:  basepeak = yes
481.wrf:  basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic11.1-linux64-revE.20100330.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic11.1-linux64-revE.20100330.xml.
