| CPU2006 license: | 9006 | Test date: | May-2010 |
|---|---|---|---|
| Test sponsor: | NEC Corporation | Hardware Availability: | Jan-2010 |
| Tested by: | NEC Corporation | Software Availability: | Dec-2009 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon L5520 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 2.53 GHz |
| CPU MHz: | 2267 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 8 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 24 GB (3 x 8 GB PC3-10600R, 2 rank, CL9, ECC, running at 1066 MHz) |
| Disk Subsystem: | 1x160 GB SATA, 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 11 (x86_64), Kernel 2.6.27.19-5-default |
| Compiler: | Intel C++ Professional Compiler for IA32 and Intel 64, Version 11.1 Build 20091130 Package ID: l_cproc_p_11.1.064 |
| Auto Parallel: | No |
| File System: | ext3 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V8.1 |

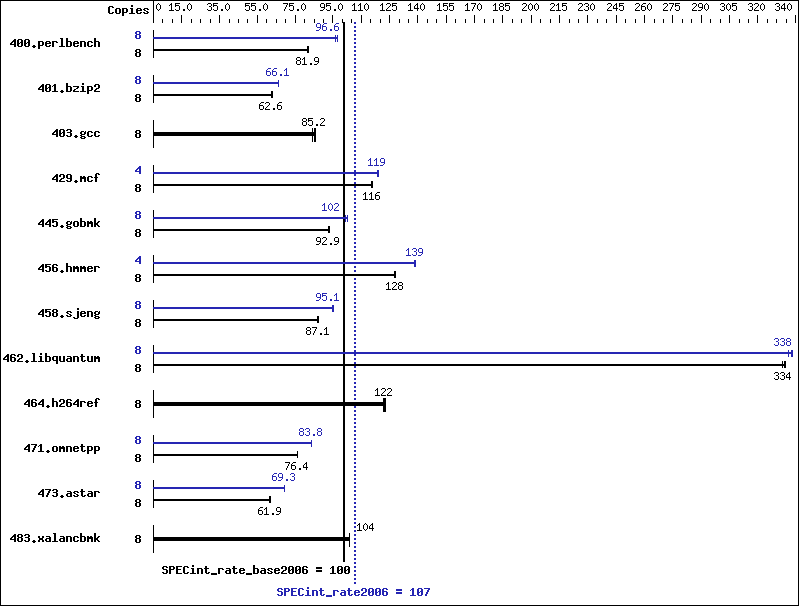

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 8 | 953 | 82.1 | 955 | 81.9 | 956 | 81.8 | 8 | 804 | 97.3 | 809 | 96.6 | 810 | 96.4 |
| 401.bzip2 | 8 | 1233 | 62.6 | 1229 | 62.8 | 1233 | 62.6 | 8 | 1167 | 66.2 | 1169 | 66.1 | 1170 | 66.0 |
| 403.gcc | 8 | 756 | 85.2 | 763 | 84.4 | 750 | 85.8 | 8 | 756 | 85.2 | 763 | 84.4 | 750 | 85.8 |
| 429.mcf | 8 | 630 | 116 | 632 | 115 | 630 | 116 | 4 | 307 | 119 | 307 | 119 | 307 | 119 |
| 445.gobmk | 8 | 903 | 92.9 | 899 | 93.3 | 905 | 92.7 | 8 | 825 | 102 | 818 | 103 | 826 | 102 |
| 456.hmmer | 8 | 584 | 128 | 582 | 128 | 585 | 128 | 4 | 269 | 139 | 270 | 138 | 269 | 139 |
| 458.sjeng | 8 | 1111 | 87.1 | 1111 | 87.1 | 1113 | 87.0 | 8 | 1018 | 95.1 | 1015 | 95.4 | 1020 | 94.9 |
| 462.libquantum | 8 | 496 | 334 | 495 | 335 | 498 | 333 | 8 | 490 | 338 | 490 | 338 | 493 | 336 |
| 464.h264ref | 8 | 1443 | 123 | 1455 | 122 | 1446 | 122 | 8 | 1443 | 123 | 1455 | 122 | 1446 | 122 |
| 471.omnetpp | 8 | 655 | 76.4 | 654 | 76.4 | 655 | 76.3 | 8 | 597 | 83.8 | 597 | 83.7 | 596 | 83.9 |
| 473.astar | 8 | 907 | 61.9 | 906 | 62.0 | 912 | 61.6 | 8 | 809 | 69.4 | 810 | 69.3 | 810 | 69.3 |
| 483.xalancbmk | 8 | 532 | 104 | 533 | 104 | 532 | 104 | 8 | 532 | 104 | 533 | 104 | 532 | 104 |
Submit Notes
The config file option 'submit' was used. numactl was used to bind copies to the cores
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
Platform Notes
Default BIOS settings were used.
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/opt/SmartHeap_8.1/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 | |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
| 462.libquantum: | icc -m64 |
C++ benchmarks (except as noted below):
| icpc -m32 | |
| 473.astar: | icpc -m64 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -ansi-alias |
| 401.bzip2: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -opt-prefetch -ansi-alias -auto-ilp32 |
| 403.gcc: | basepeak = yes |
| 429.mcf: | -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch |
| 445.gobmk: | -xSSE4.2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -xSSE4.2 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias -auto-ilp32 |
| 458.sjeng: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 |
| 462.libquantum: | -xSSE4.2 -ipo -O3 -no-prec-div -static -auto-ilp32 -opt-prefetch |
| 464.h264ref: | basepeak = yes |
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/opt/SmartHeap_8.1/lib -lsmartheap |
| 473.astar: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/opt/SmartHeap_8.1/lib64 -lsmartheap64 |
| 483.xalancbmk: | basepeak = yes |
