CPU2006 license: | 13 | Test date: | Mar-2010 |
---|---|---|---|
Test sponsor: | Intel Corporation | Hardware Availability: | Mar-2010 |
Tested by: | Intel Corporation | Software Availability: | Jan-2010 |
Hardware | |
---|---|
CPU Name: | Intel Xeon E5640 |
CPU Characteristics: | Intel Turbo Boost Technology up to 2.93 GHz |
CPU MHz: | 2666 |
FPU: | Integrated |
CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip, 2 threads/core |
CPU(s) orderable: | 1, 2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
L3 Cache: | 12 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 48 GB (12 x 4GB DDR3-1066, CL7) |
Disk Subsystem: | 1 x 150 GB SATA, 10000RPM |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SuSe Linux SLES11 |
Compiler: | Intel C++ Professional Compiler for IA32 and Intel 64, Version 11.1 Build 20091130 Package ID: l_cproc_p_11.1.064 |
Auto Parallel: | No |
File System: | ext3 |
System State: | Run level 3 (multi-user) |
Base Pointers: | 32-bit |
Peak Pointers: | 32/64-bit |
Other Software: | Microquill SmartHeap V8.1 Binutils 2.18.50.0.7.20080502 |

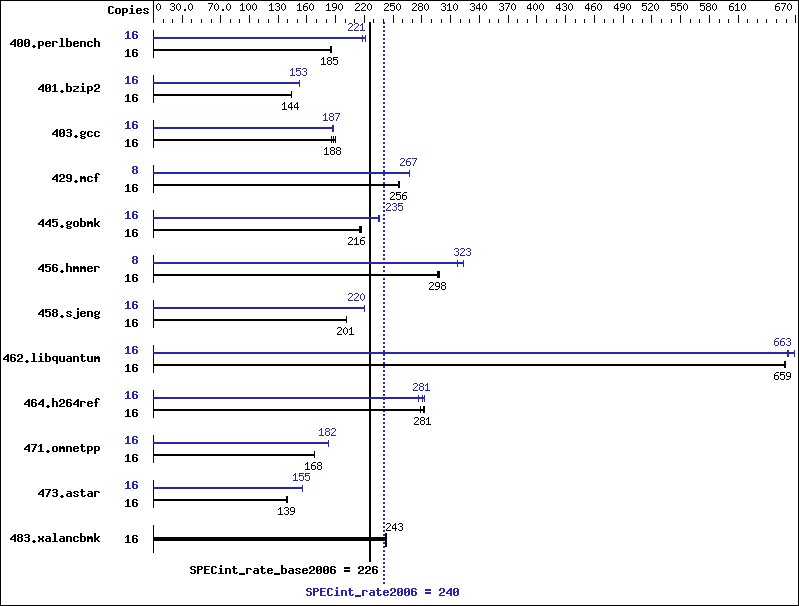

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
400.perlbench | 16 | 847 | 185 | 841 | 186 | 846 | 185 | 16 | 716 | 218 | 706 | 222 | 707 | 221 |
401.bzip2 | 16 | 1070 | 144 | 1070 | 144 | 1070 | 144 | 16 | 1011 | 153 | 1011 | 153 | 1014 | 152 |
403.gcc | 16 | 679 | 190 | 692 | 186 | 685 | 188 | 16 | 685 | 188 | 689 | 187 | 691 | 186 |
429.mcf | 16 | 568 | 257 | 569 | 256 | 571 | 256 | 8 | 273 | 267 | 274 | 267 | 273 | 267 |
445.gobmk | 16 | 780 | 215 | 775 | 217 | 778 | 216 | 16 | 713 | 235 | 714 | 235 | 715 | 235 |
456.hmmer | 16 | 500 | 298 | 502 | 298 | 504 | 296 | 8 | 231 | 324 | 236 | 317 | 231 | 323 |
458.sjeng | 16 | 963 | 201 | 963 | 201 | 964 | 201 | 16 | 881 | 220 | 881 | 220 | 881 | 220 |
462.libquantum | 16 | 504 | 658 | 503 | 659 | 503 | 659 | 16 | 501 | 661 | 496 | 668 | 500 | 663 |
464.h264ref | 16 | 1269 | 279 | 1258 | 281 | 1251 | 283 | 16 | 1261 | 281 | 1283 | 276 | 1252 | 283 |
471.omnetpp | 16 | 596 | 168 | 595 | 168 | 596 | 168 | 16 | 549 | 182 | 548 | 183 | 549 | 182 |
473.astar | 16 | 805 | 140 | 809 | 139 | 805 | 139 | 16 | 724 | 155 | 722 | 156 | 723 | 155 |
483.xalancbmk | 16 | 455 | 243 | 455 | 243 | 455 | 243 | 16 | 455 | 243 | 455 | 243 | 455 | 243 |
The config file option 'submit' was used. numactl was used to bind copies to the cores
Bios settings: LRU hint: Disabled Fan Speed: Full speed
400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
462.libquantum: | -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
-xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch |
-xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-32bit -lsmartheap |
icc -m32 | |
401.bzip2: | icc -m64 |
456.hmmer: | icc -m64 |
458.sjeng: | icc -m64 |
462.libquantum: | icc -m64 |
icpc -m32 | |
473.astar: | icpc -m64 |
400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
401.bzip2: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
458.sjeng: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
473.astar: | -DSPEC_CPU_LP64 |
483.xalancbmk: | -DSPEC_CPU_LINUX |
400.perlbench: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -ansi-alias |
401.bzip2: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -opt-prefetch -ansi-alias -auto-ilp32 |
403.gcc: | -xSSE4.2 -ipo -O3 -no-prec-div -static |
429.mcf: | -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch |
445.gobmk: | -xSSE4.2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -O2 -ipo -no-prec-div -ansi-alias |
456.hmmer: | -xSSE4.2 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias -auto-ilp32 |
458.sjeng: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 |
462.libquantum: | -xSSE4.2 -ipo -O3 -no-prec-div -static -auto-ilp32 -opt-prefetch |
464.h264ref: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-32bit -lsmartheap |
473.astar: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-64bit -lsmartheap64 |
483.xalancbmk: | basepeak = yes |
