SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Intel Corporation

Asus P5E3 Pro motherboard (Intel Core 2 Extreme
QX9770)

SPECint®2006 = 28.4

CPU2006 license: 13 Test date: Feb-2010
Test sponsor: Intel Corporation Hardware Availability: Jun-2009
Tested by: Intel Corporation Software Availability: Oct-2009

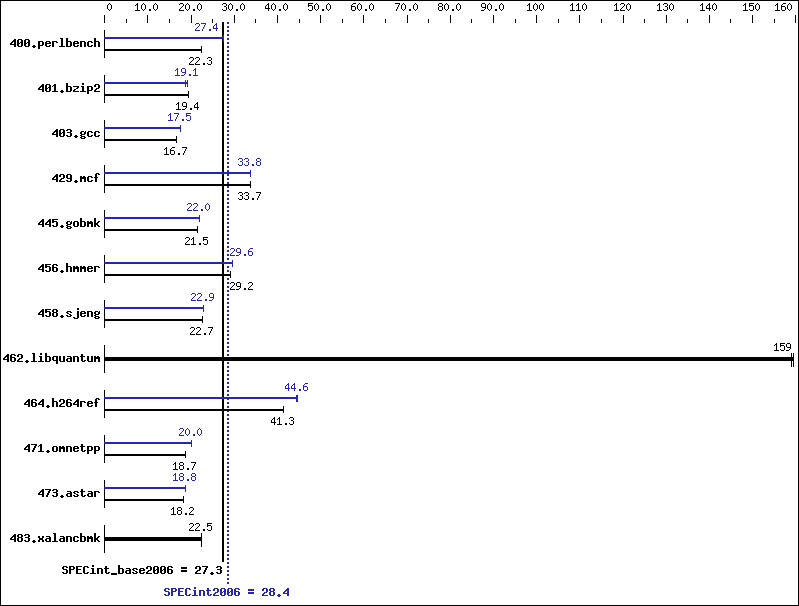

Benchmark results graph
Hardware
CPU Name: Intel Core 2 Extreme QX9770
CPU Characteristics:
CPU MHz: 3200
FPU: Integrated
CPU(s) enabled: 4 cores, 1 chip, 4 cores/chip
CPU(s) orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 12 MB I+D on chip per chip, 6 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 4 GB (2x2GB Micron MT16JTF25664AZ-1G4 DDR3-1333
CL9)
Disk Subsystem: Intel X25-M 80GB SSD
Other Hardware: None
Software
Operating System: Windows Vista Ultimate w/ SP1 (64-bit)
Compiler: Intel C++ Compiler Professional 11.1 for Intel 64
Build 20090903 Package ID: w_cproc_p_11.1.045
Microsoft Visual Studio 2008 Professional SP1
(for libraries)
Auto Parallel: Yes
File System: NTFS
System State: Default
Base Pointers: 64-bit
Peak Pointers: 64-bit
Other Software: None
SmartHeap Library Version 8.1 from
http://www.microquill.com/

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 438 22.3 438 22.3 438 22.3 356 27.5 356 27.4 356 27.4
401.bzip2 499 19.4 494 19.5 497 19.4 506 19.1 515 18.8 506 19.1
403.gcc 481 16.7 481 16.7 481 16.7 461 17.5 461 17.5 461 17.5
429.mcf 270 33.7 270 33.7 270 33.8 270 33.8 270 33.8 271 33.7
445.gobmk 488 21.5 488 21.5 489 21.4 477 22.0 477 22.0 477 22.0
456.hmmer 319 29.2 319 29.2 319 29.2 315 29.6 315 29.6 315 29.6
458.sjeng 533 22.7 533 22.7 533 22.7 528 22.9 528 22.9 528 22.9
462.libquantum 130 159   130 159   130 160   130 159   130 159   130 160
464.h264ref 536 41.3 536 41.3 536 41.3 497 44.6 497 44.5 497 44.6
471.omnetpp 335 18.7 334 18.7 335 18.6 312 20.1 313 20.0 312 20.0
473.astar 385 18.2 386 18.2 386 18.2 373 18.8 373 18.8 373 18.8
483.xalancbmk 307 22.5 306 22.5 306 22.5 307 22.5 306 22.5 306 22.5

General Notes

 Tested systems can be used with Shin-G ATX case,
 PC Power and Cooling 1200W power supply
 OMP_NUM_THREADS set to number of processors cores
 KMP_AFFINITY set to granularity=fine,scatter
 System was configured with an ATI 5970 discrete graphics card

Base Compiler Invocation

C benchmarks:

 icl -Qvc9   -Qstd=c99

C++ benchmarks:

 icl -Qvc9

Base Portability Flags

400.perlbench:  -DSPEC_CPU_P64   -DSPEC_CPU_WIN64_X64   -DSPEC_CPU_NO_NEED_VA_COPY
401.bzip2:  -DSPEC_CPU_P64
403.gcc:  -DSPEC_CPU_P64   -DSPEC_CPU_WIN64
429.mcf:  -DSPEC_CPU_P64
445.gobmk:  -DSPEC_CPU_P64
456.hmmer:  -DSPEC_CPU_P64
458.sjeng:  -DSPEC_CPU_P64
462.libquantum:  -DSPEC_CPU_P64
464.h264ref:  -DSPEC_CPU_P64   -DWIN32   -DSPEC_CPU_NO_INTTYPES
471.omnetpp:  -DSPEC_CPU_P64   -DSPEC_CPU_WIN64
473.astar:  -DSPEC_CPU_P64
483.xalancbmk:  -DSPEC_CPU_P64   -Qoption,cpp,--no_wchar_t_keyword

Base Optimization Flags

C benchmarks:

 -QxSSE4.1   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   -Qparallel   -Qauto-ilp32   /F512000000

C++ benchmarks:

 -QxSSE4.1   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   -Qcxx-features   -Qauto-ilp32   /F512000000   shlW64M.lib    -link /FORCE:MULTIPLE

Base Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

Peak Compiler Invocation

C benchmarks:

 icl -Qvc9   -Qstd=c99

C++ benchmarks:

 icl -Qvc9

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

400.perlbench:  -QxSSE4.1(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qansi-alias   -Qopt-prefetch   -Qauto-ilp32   /F512000000   shlW64M.lib    -link /FORCE:MULTIPLE
401.bzip2:  -QxSSE4.1(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   -Qansi-alias   -Qauto-ilp32   /F512000000
403.gcc:  -QxSSE4.1(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qauto-ilp32   /F512000000
429.mcf:  -QxSSE4.1   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   -Qauto-ilp32   /F512000000
445.gobmk:  -QxSSE4.1(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O2   -Qprec-div-   -Qansi-alias   -Qauto-ilp32   /F512000000
456.hmmer:  -QxSSE4.1   -Qipo   -O3   -Qprec-div-   -Qunroll2   -Qansi-alias   -Qauto-ilp32   /F512000000
458.sjeng:  -QxSSE4.1(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll4   -Qauto-ilp32   /F512000000
462.libquantum:  basepeak = yes
464.h264ref:  -QxSSE4.1(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll2   -Qansi-alias   -Qauto-ilp32   /F512000000

C++ benchmarks:

471.omnetpp:  -QxSSE4.1(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qansi-alias   -Qopt-ra-region-strategy=block   -Qauto-ilp32   /F512000000   shlW64M.lib    -link /FORCE:MULTIPLE
473.astar:  -QxSSE4.1(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qansi-alias   -Qopt-ra-region-strategy=routine   -Qauto-ilp32   /F512000000   shlW64M.lib    -link /FORCE:MULTIPLE
483.xalancbmk:  basepeak = yes

Peak Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic11.0-winx64-revA.20100302.01.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic11.0-winx64-revA.20100302.01.xml.
