SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Hewlett-Packard Company

HP Integrity BL860c i2 (1.73 GHz/24MB
Quad-Core Intel Itanium 9350)

CPU2006 license: 03 Test date: Jan-2010
Test sponsor: Hewlett-Packard Company Hardware Availability: May-2010
Tested by: Hewlett-Packard Company Software Availability: Mar-2010

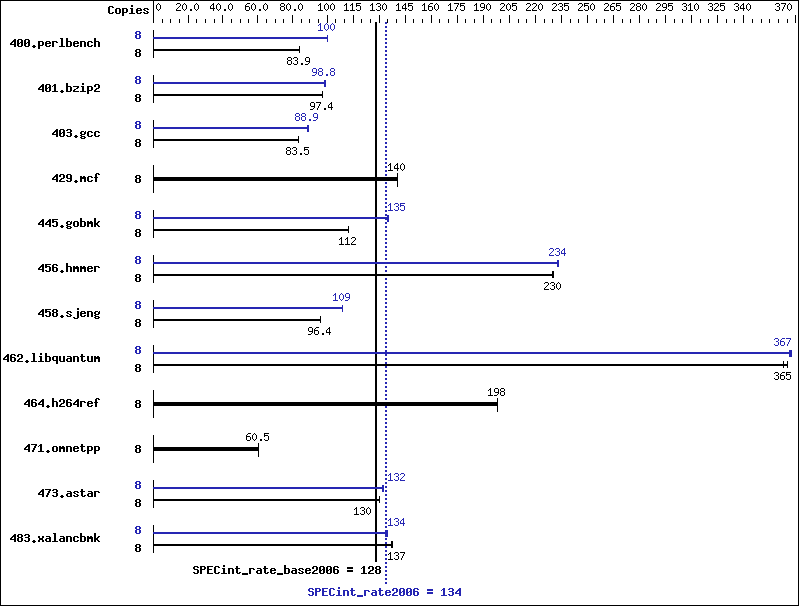

Benchmark results graph
Hardware
CPU Name: Intel Itanium 9350
CPU Characteristics: Intel Turbo Boost Technology up to 1.86 GHz
CPU MHz: 1730
FPU: Integrated
CPU(s) enabled: 8 cores, 2 chips, 4 cores/chip, 2 threads/core
CPU(s) orderable: 1-2 chips
Primary Cache: 16 KB I + 16 KB D on chip per core
Secondary Cache: 512 KB I + 256 KB D on chip per core
L3 Cache: 6 MB I+D on chip per core
Other Cache: None
Memory: 32 GB (16 x 2GB 2Rx8 PC3-10600R)
Disk Subsystem: 1 x 73 GB 15K RPM SAS
Other Hardware: None
Software
Operating System: HP-UX 11i v3 Data Center Operating Environment
B.11.31.1003
Compiler: HP C/aC++ Developer's Bundle C.11.31.05
Auto Parallel: No
File System: vxfs
System State: Multi-user
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: MallocNextGen B.11.31.0903.02

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 8 932 83.9 930 84.1 932 83.9 8 780 100   779 100   781 100
401.bzip2 8 793 97.4 793 97.3 792 97.5 8 782 98.8 781 98.9 782 98.7
403.gcc 8 771 83.5 772 83.5 771 83.5 8 725 88.9 723 89.1 726 88.7
429.mcf 8 520 140   518 141   519 140   8 520 140   518 141   519 140
445.gobmk 8 748 112   747 112   749 112   8 622 135   621 135   621 135
456.hmmer 8 324 231   324 230   325 230   8 321 233   320 234   320 234
458.sjeng 8 1004 96.4 1005 96.3 1004 96.4 8 891 109   891 109   888 109
462.libquantum 8 454 365   457 363   454 365   8 451 367   453 366   451 368
464.h264ref 8 894 198   894 198   894 198   8 894 198   894 198   894 198
471.omnetpp 8 827 60.5 826 60.5 824 60.7 8 827 60.5 826 60.5 824 60.7
473.astar 8 431 130   431 130   432 130   8 425 132   426 132   424 132
483.xalancbmk 8 402 137   402 137   402 137   8 412 134   412 134   410 135

Submit Notes

The config file option 'submit' was used.

Operating System Notes


   The following kernel tunables were set, in addition to the
   defaults set by the Base Operating Environment:

   filecache_max=25%
   filecache_min=25%
   maxdsiz=3221225472
   fcache_fb_policy=1
   base_pagesize=64
   pagezero_daemon_enabled=0
   vxfs_ifree_timelag=-1
   maxssiz=0x17f00000
   lcpu_attr=0

Platform Notes

 Use of Hardware Threading by the OS was disabled via kctune
 The following config file entry was used to bind
 processes to cores using the HP-UX "mpsched" utility:
 submit = let "MYCPU=\$SPECCOPYNUM*2" ;mpsched -c \$MYCPU $command

Base Compiler Invocation

C benchmarks:

 /opt/ansic/bin/cc -AC99

C++ benchmarks:

 /opt/aCC/bin/aCC -Aa

Base Portability Flags

400.perlbench:  -DSPEC_CPU_HPUX_IA64
403.gcc:  -DSPEC_CPU_HPUX
462.libquantum:  -DSPEC_CPU_HPUX
483.xalancbmk:  -DSPEC_CPU_HPUX_IA64

Base Optimization Flags

C benchmarks:

 +Ofaster   +Otype_safety=ansi   -Wl,-aarchive_shared   -Wl,+pd,64M   -Wl,+pi,64K   -Wl,-N

C++ benchmarks:

 +Ofaster   +Otype_safety=ansi   -Wl,-aarchive_shared   -Wl,+pd,64M   -Wl,+pi,64K   -Wl,-N   -lmallocng

Peak Compiler Invocation

C benchmarks:

 /opt/ansic/bin/cc -AC99

C++ benchmarks:

 /opt/aCC/bin/aCC -Aa

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_HPUX_IA64
403.gcc:  -DSPEC_CPU_HPUX
462.libquantum:  -DSPEC_CPU_HPUX
483.xalancbmk:  -DSPEC_CPU_HPUX_IA64

Peak Optimization Flags

C benchmarks:

400.perlbench:  +Oprofile=collect:all(pass 1)   +Oprofile=use(pass 2)   +Ofaster   +Otype_safety=ansi   -Wl,-a,archive_shared   -Wl,+pd,64M   -Wl,+pi,64M   -Wl,-N
401.bzip2:  Same as 400.perlbench
403.gcc:  Same as 400.perlbench
429.mcf:  basepeak = yes
445.gobmk:  +Oprofile=collect:all(pass 1)   +Oprofile=use(pass 2)   +Ofaster   +Otype_safety=ansi   -Wl,-a,archive_shared   -Wl,+pd,64M   -Wl,+pi,64M   +Odataprefetch=direct   -Wl,-N
456.hmmer:  Same as 400.perlbench
458.sjeng:  Same as 445.gobmk
462.libquantum:  Same as 400.perlbench
464.h264ref:  basepeak = yes

C++ benchmarks:

471.omnetpp:  basepeak = yes
473.astar:  +Ofaster   +Otype_safety=ansi   -Wl,-a,archive_shared   -Wl,+pd,64M   -Wl,+pi,64M   +Onoparmsoverlap   -Wl,-N   -lmallocng
483.xalancbmk:  +Oprofile=collect:all(pass 1)   +Oprofile=use(pass 2)   +Ofaster   +Otype_safety=ansi   -Wl,-a,archive_shared   -Wl,+pd,64M   -Wl,+pi,64M   +Onoparmsoverlap   -Wl,-N   -lmallocng

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Itanium-HPUX-1003-flags.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Itanium-HPUX-1003-flags.xml.
