SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Sun Microsystems

Sun SPARC Enterprise M3000

SPECfp®2006 = 15.9

CPU2006 license: 6 Test date: Oct-2009
Test sponsor: Sun Microsystems Hardware Availability: Jan-2010
Tested by: Fujitsu Software Availability: Oct-2009

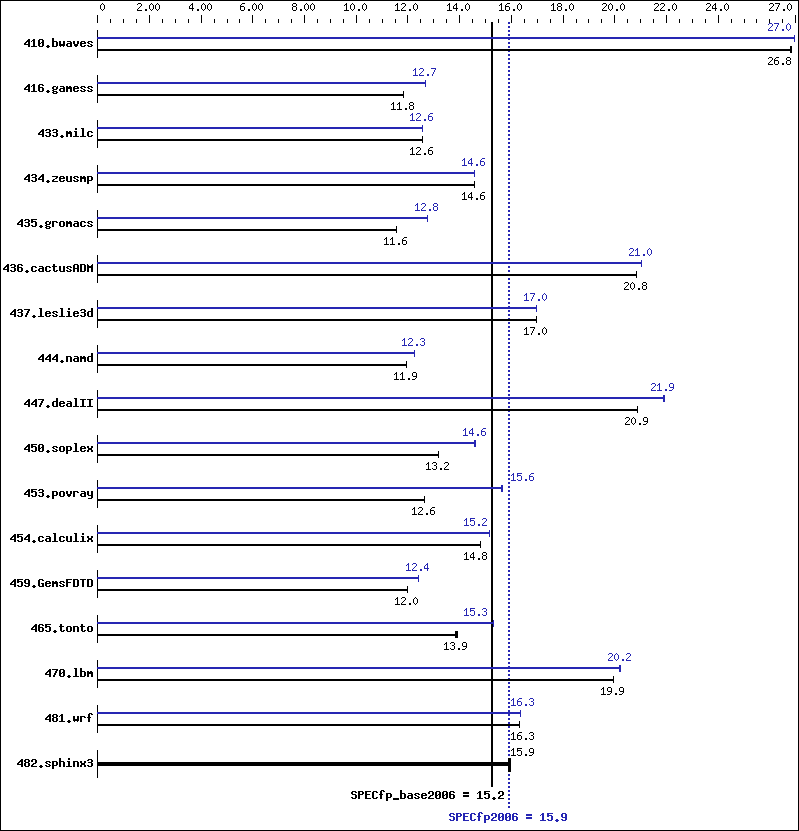

Benchmark results graph
Hardware
CPU Name: SPARC64 VII
CPU Characteristics:
CPU MHz: 2750
FPU: Integrated
CPU(s) enabled: 4 cores, 1 chip, 4 cores/chip, 2 threads/core
CPU(s) orderable: 1 chip
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 5 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 16 GB (8 x 2 GB), 2-way interleaved
Disk Subsystem: 1 x Seagate Savvio 10K.2 (146 GB 10,000 RPM SAS)
Other Hardware: None
Software
Operating System: Solaris 10 10/09 with patch 119963-18
Compiler: Sun Studio 12 Update 1
Auto Parallel: No
File System: ufs
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: Apache C++ Standard Library V4.2.1

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 507 26.8 506 26.8 507 26.8 504 27.0 504 27.0 504 26.9
416.gamess 1655 11.8 1655 11.8 1655 11.8 1546 12.7 1546 12.7 1546 12.7
433.milc 731 12.6 731 12.6 731 12.6 730 12.6 731 12.6 730 12.6
434.zeusmp 625 14.6 625 14.6 625 14.6 624 14.6 624 14.6 624 14.6
435.gromacs 617 11.6 618 11.6 617 11.6 560 12.7 560 12.8 560 12.8
436.cactusADM 574 20.8 574 20.8 574 20.8 568 21.0 568 21.0 568 21.0
437.leslie3d 554 17.0 554 17.0 553 17.0 553 17.0 554 17.0 554 17.0
444.namd 671 11.9 672 11.9 672 11.9 654 12.3 654 12.3 654 12.3
447.dealII 548 20.9 548 20.9 548 20.9 522 21.9 522 21.9 523 21.9
450.soplex 633 13.2 632 13.2 632 13.2 571 14.6 572 14.6 571 14.6
453.povray 421 12.6 421 12.6 421 12.6 340 15.7 340 15.6 340 15.6
454.calculix 558 14.8 558 14.8 558 14.8 544 15.2 544 15.2 544 15.2
459.GemsFDTD 885 12.0 884 12.0 885 12.0 856 12.4 856 12.4 855 12.4
465.tonto 708 13.9 708 13.9 711 13.8 643 15.3 643 15.3 643 15.3
470.lbm 689 19.9 689 19.9 689 19.9 680 20.2 680 20.2 680 20.2
481.wrf 685 16.3 685 16.3 685 16.3 683 16.3 683 16.3 683 16.3
482.sphinx3 1223 15.9 1222 16.0 1228 15.9 1223 15.9 1222 16.0 1228 15.9

Compiler Invocation Notes

Sun Studio compiler patches are available at
   http://developers.sun.com/sunstudio/downloads/patches/ss12u1_patches.jsp

The Apache C++ Standard Library V4.2.1 was installed from
   http://stdcxx.apache.org/download.html using:
     alias gmake=specmake
     gmake BUILDTYPE=8d CONFIG=sunpro.config

Submit Notes

The config file option 'submit' was used.  Processes were assigned to
specific processors using 'pbind' commands.  The list of processors to use
was provided in the 'BIND' variable, to generate the pbind commands.
(For details, please see the config file.)

Operating System Notes


Shell Environments:

    ulimit -s 131072 was used to limit the space consumed
    by the stack.(making more space available for the heap)

System Tunables:
(/etc/system parameters)

    tune_t_fsflushr=10
       Controls how many seconds elapse between runs of the
       page flush daemon, fsflush.
    autoup=600
       Causes pages older than the listed number of seconds to
       be written by fsflush.
    bufhwm=3000
       Memory byte limit for caching I/O buffers.
    segmap_percent=1
       Set maximum percent memory for file system cache.

Other System Settings:

    The webconsole service was turned off using svcadm disable webconsole.

Platform Notes


 Memory is 2-way interleaved by filling all slots with the same
 capacity DIMMs.

 This result is measured on a Fujitsu SPARC Enterprise M3000 Server.
 Note that the Fujitsu SPARC Enterprise M3000 and Sun SPARC Enterprise
 M3000 are electrically equivalent.

General Notes

447.dealII (peak): "apache_stdcxx_4_2_1" src.alt was used.

447.dealII (base): "apache_stdcxx_4_2_1" src.alt was used.

Base Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Fortran benchmarks:

 f90

Benchmarks using both Fortran and C:

 cc   f90

Base Optimization Flags

C benchmarks:

 -fast   -fma=fused   -xipo=2   -xpagesize=4M   -xprefetch_level=2   -xalias_level=std   -xprefetch_auto_type=indirect_array_access   -xprefetch=latx:2   -M /usr/lib/ld/map.bssalign   -ll2amm

C++ benchmarks:

 -xdepend   -fast   -fma=fused   -xipo=2   -xpagesize=4M   -xprefetch_level=2   -xalias_level=compatible   -xprefetch_level=3   -library=no%Cstd   -I/export/cpu2006-v1.1/stdcxx-4.2.1/include   -I/export/cpu2006-v1.1/stdcxx-4.2.1/build/include   -M /usr/lib/ld/map.bssalign   -L/export/cpu2006-v1.1/stdcxx-4.2.1/build/lib   -R/export/cpu2006-v1.1/stdcxx-4.2.1/build/lib   -lstd8d

Fortran benchmarks:

 -fast   -fma=fused   -xipo=2   -xpagesize=4M   -xprefetch_level=2   -xprefetch=latx:2   -M /usr/lib/ld/map.bssalign   -ll2amm

Benchmarks using both Fortran and C:

 -fast(cc)   -fast(f90)   -fma=fused   -xipo=2   -xpagesize=4M   -xprefetch_level=2   -xalias_level=std   -xprefetch_auto_type=indirect_array_access   -xprefetch=latx:2   -M /usr/lib/ld/map.bssalign   -ll2amm

Base Other Flags

C benchmarks:

 -xjobs=2   -V   -#

C++ benchmarks:

 -xjobs=2   -verbose=diags,version

Fortran benchmarks:

 -xjobs=2   -V   -v

Benchmarks using both Fortran and C:

 -xjobs=2   -V   -#   -v

Peak Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Fortran benchmarks:

 f90

Benchmarks using both Fortran and C:

 cc   f90

Peak Optimization Flags

C benchmarks:

433.milc:  -fast   -fma=fused   -xpagesize=4M   -xipo=2   -xprefetch_level=2   -xprefetch=latx:2   -fsimple=1   -xprefetch_auto_type=indirect_array_access   -W2,-Ainline:rs=400   -xalias_level=std   -ll2amm
470.lbm:  -fast   -fma=fused   -xpagesize=4M   -xipo=2   -xarch=generic   -xvector   -xprefetch_level=3
482.sphinx3:  basepeak = yes

C++ benchmarks:

444.namd:  -xdepend   -fast   -fma=fused   -xpagesize=4M   -xalias_level=compatible   -library=stlport4   -xalias_level=any
447.dealII:  -xdepend   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -fma=fused   -xpagesize=4M   -xalias_level=compatible   -library=no%Cstd   -I/export/cpu2006-v1.1/stdcxx-4.2.1/include   -I/export/cpu2006-v1.1/stdcxx-4.2.1/build/include   -xipo=2   -xprefetch_level=2   -xrestrict   -L/export/cpu2006-v1.1/stdcxx-4.2.1/build/lib   -R/export/cpu2006-v1.1/stdcxx-4.2.1/build/lib   -lstd8d   -ll2amm
450.soplex:  -xdepend   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -xprefetch=latx:0.7   -xprefetch_level=2   -xprefetch_auto_type=indirect_array_access   -Qoption cg -Qlp-ol=1   -Qoption cg -Qlp-it=3   -Qoption cg -Qlp-imb=1   -Qoption iropt -Apf:pdl=3   -xalias_level=simple   -xrestrict   -library=stlport4
453.povray:  -xdepend   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -fma=fused   -xpagesize=4M   -xalias_level=compatible   -library=stlport4   -xipo=2   -xlinkopt=2   -xprefetch=latx:4

Fortran benchmarks:

410.bwaves:  -fast   -fma=fused   -xipo=2   -xpagesize=4M   -xprefetch_level=2   -xprefetch=latx:4
416.gamess:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -fma=fused   -xpagesize=4M   -xipo=2   -xprefetch_level=3   -xprefetch=latx:1.8
434.zeusmp:  -fast   -fma=fused   -xpagesize=4M   -M /usr/lib/ld/map.bssalign   -xipo=2   -xprefetch_level=3   -xprefetch=latx:2   -ll2amm
437.leslie3d:  -fast   -fma=fused   -xpagesize=4M   -M /usr/lib/ld/map.bssalign   -xipo=2   -xprefetch=latx:2   -ll2amm
459.GemsFDTD:  -fast   -fma=fused   -xpagesize=4M   -xipo=2   -fsimple=1   -xprefetch=latx:2
465.tonto:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -fma=fused   -xpagesize=4M   -xipo=2   -lfast

Benchmarks using both Fortran and C:

435.gromacs:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast(cc)   -fast(f90)   -fma=fused   -xpagesize=4M   -xipo=2   -xinline=   -xchip=generic   -fsimple=0   -xprefetch=latx:1.2
436.cactusADM:  -fast(cc)   -fast(f90)   -fma=fused   -xipo=2   -xpagesize=4M   -xprefetch_level=2   -xalias_level=std   -xprefetch_level=3   -xprefetch_auto_type=indirect_array_access   -fsimple=1
454.calculix:  -fast(cc)   -fast(f90)   -fma=fused   -xpagesize=4M   -xipo=2   -xprefetch_level=1   -xprefetch=latx:3.0   -xalias_level=std   -xprefetch_auto_type=indirect_array_access
481.wrf:  -fast(cc)   -fast(f90)   -fma=fused   -xipo=2   -xpagesize=4M   -xprefetch_level=2   -xprefetch=latx:1.8   -xalias_level=std   -xprefetch_auto_type=indirect_array_access

Peak Other Flags

C benchmarks:

 -xjobs=2   -V   -#

C++ benchmarks:

 -xjobs=2   -verbose=diags,version

Fortran benchmarks:

 -xjobs=2   -V   -v

Benchmarks using both Fortran and C:

 -xjobs=2   -V   -#   -v

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Sun-Solaris-Studio12-12u1-and-gccfss4.2.r4.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Sun-Solaris-Studio12-12u1-and-gccfss4.2.r4.xml.
