SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Sun Microsystems

Sun SPARC Enterprise M3000

CPU2006 license: 6 Test date: Nov-2009
Test sponsor: Sun Microsystems Hardware Availability: Jan-2010
Tested by: Fujitsu Software Availability: Oct-2009

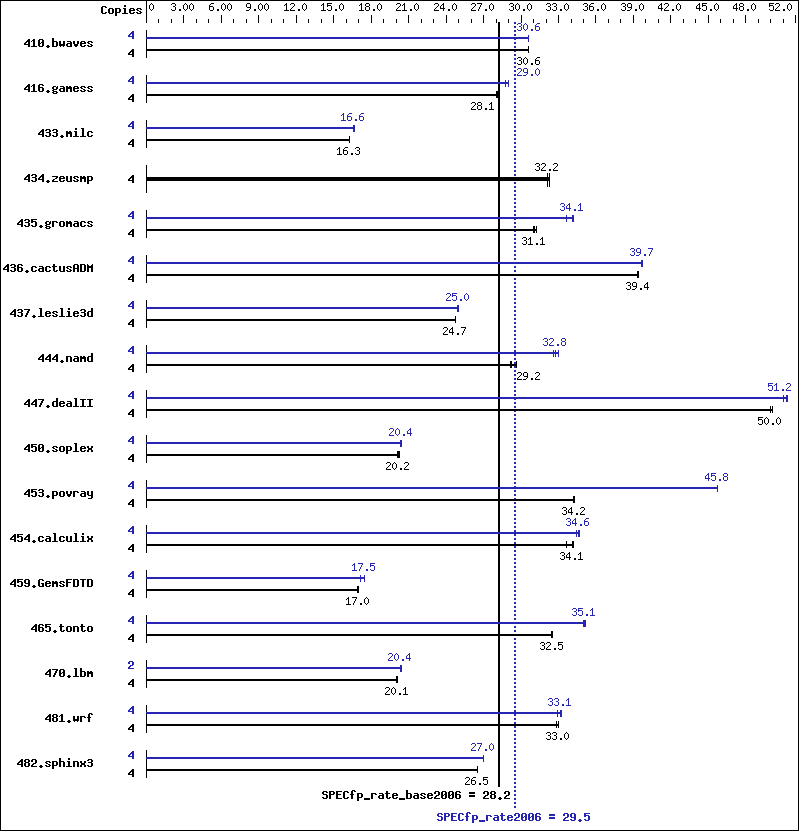

Benchmark results graph
Hardware
CPU Name: SPARC64 VII
CPU Characteristics: 2 cores
CPU MHz: 2750
FPU: Integrated
CPU(s) enabled: 2 cores, 1 chip, 2 cores/chip, 2 threads/core
CPU(s) orderable: 1 chip
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 5 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 16 GB (8 x 2 GB), 2-way interleaved
Disk Subsystem: 1 x Seagate Savvio 10K.2 (146 GB 10,000 RPM SAS)
Other Hardware: None
Software
Operating System: Solaris 10 10/09 with patch 119963-18
Compiler: Sun Studio 12 Update 1
Auto Parallel: No
File System: ufs
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: Apache C++ Standard Library V4.2.1

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 4 1779 30.6 1778 30.6 1776 30.6 4 1777 30.6 1776 30.6 1776 30.6
416.gamess 4 2781 28.2 2783 28.1 2793 28.0 4 2698 29.0 2724 28.8 2701 29.0
433.milc 4 2263 16.2 2256 16.3 2255 16.3 4 2213 16.6 2208 16.6 2210 16.6
434.zeusmp 4 1135 32.1 1132 32.2 1128 32.3 4 1135 32.1 1132 32.2 1128 32.3
435.gromacs 4 915 31.2 918 31.1 921 31.0 4 848 33.7 838 34.1 836 34.2
436.cactusADM 4 1214 39.4 1215 39.4 1213 39.4 4 1205 39.7 1204 39.7 1203 39.7
437.leslie3d 4 1520 24.7 1519 24.8 1521 24.7 4 1507 25.0 1507 25.0 1508 24.9
444.namd 4 1083 29.6 1101 29.1 1098 29.2 4 971 33.0 985 32.6 979 32.8
447.dealII 4 915 50.0 916 50.0 913 50.1 4 898 51.0 893 51.2 892 51.3
450.soplex 4 1657 20.1 1654 20.2 1647 20.3 4 1637 20.4 1635 20.4 1634 20.4
453.povray 4 621 34.2 622 34.2 620 34.3 4 465 45.8 465 45.8 465 45.7
454.calculix 4 965 34.2 968 34.1 981 33.6 4 958 34.5 954 34.6 953 34.6
459.GemsFDTD 4 2504 17.0 2512 16.9 2502 17.0 4 2431 17.5 2476 17.1 2427 17.5
465.tonto 4 1210 32.5 1214 32.4 1209 32.5 4 1122 35.1 1125 35.0 1120 35.2
470.lbm 4 2740 20.1 2735 20.1 2733 20.1 2 1348 20.4 1348 20.4 1349 20.4
481.wrf 4 1355 33.0 1355 33.0 1359 32.9 4 1349 33.1 1358 32.9 1343 33.3
482.sphinx3 4 2942 26.5 2942 26.5 2943 26.5 4 2887 27.0 2888 27.0 2885 27.0

Compiler Invocation Notes

Sun Studio compiler patches are available at
   http://developers.sun.com/sunstudio/downloads/patches/ss12u1_patches.jsp

The Apache C++ Standard Library V4.2.1 was installed from
   http://stdcxx.apache.org/download.html using:
     alias gmake=specmake
     gmake BUILDTYPE=8d CONFIG=sunpro.config

Submit Notes

The config file option 'submit' was used.  Processes were assigned to
specific processors using 'pbind' commands.  The list of processors to use
was provided in the 'BIND' variable, to generate the pbind commands.
(For details, please see the config file.)

Operating System Notes


Shell Environments:

    ulimit -s 131072 was used to limit the space consumed
    by the stack.(making more space available for the heap)

System Tunables:
(/etc/system parameters)

    tune_t_fsflushr=10
       Controls how many seconds elapse between runs of the
       page flush daemon, fsflush.
    autoup=600
       Causes pages older than the listed number of seconds to
       be written by fsflush.
    bufhwm=3000
       Memory byte limit for caching I/O buffers.
    segmap_percent=1
       Set maximum percent memory for file system cache.

Other System Settings:

    The webconsole service was turned off using svcadm disable webconsole.

Platform Notes


 Memory is 2-way interleaved by filling all slots with the same
 capacity DIMMs.

 This result is measured on a Fujitsu SPARC Enterprise M3000 Server.
 Note that the Fujitsu SPARC Enterprise M3000 and Sun SPARC Enterprise
 M3000 are electrically equivalent.

General Notes

447.dealII (peak): "apache_stdcxx_4_2_1" src.alt was used.

447.dealII (base): "apache_stdcxx_4_2_1" src.alt was used.

Base Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Fortran benchmarks:

 f90

Benchmarks using both Fortran and C:

 cc   f90

Base Optimization Flags

C benchmarks:

 -fast   -fma=fused   -xipo=2   -xpagesize=4M   -xalias_level=std   -xprefetch_auto_type=indirect_array_access   -xprefetch_level=3   -M /usr/lib/ld/map.bssalign   -ll2amm

C++ benchmarks:

 -xdepend   -fast   -fma=fused   -xipo=2   -xpagesize=4M   -xalias_level=compatible   -xprefetch=latx:0.5   -library=no%Cstd   -I/export/cpu2006-v1.1/stdcxx-4.2.1/include   -I/export/cpu2006-v1.1/stdcxx-4.2.1/build/include   -M /usr/lib/ld/map.bssalign   -L/export/cpu2006-v1.1/stdcxx-4.2.1/build/lib   -R/export/cpu2006-v1.1/stdcxx-4.2.1/build/lib   -lstd8d

Fortran benchmarks:

 -fast   -fma=fused   -xipo=2   -xpagesize=4M   -xprefetch_level=2   -M /usr/lib/ld/map.bssalign   -ll2amm

Benchmarks using both Fortran and C:

 -fast(cc)   -fast(f90)   -fma=fused   -xipo=2   -xpagesize=4M   -xalias_level=std   -xprefetch_auto_type=indirect_array_access   -xprefetch_level=3   -xprefetch_level=2   -M /usr/lib/ld/map.bssalign   -ll2amm

Base Other Flags

C benchmarks:

 -xjobs=2   -V   -#

C++ benchmarks:

 -xjobs=2   -verbose=diags,version

Fortran benchmarks:

 -xjobs=2   -V   -v

Benchmarks using both Fortran and C:

 -xjobs=2   -V   -#   -v

Peak Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Fortran benchmarks:

 f90

Benchmarks using both Fortran and C:

 cc   f90

Peak Optimization Flags

C benchmarks:

433.milc:  -fast   -fma=fused   -xpagesize=4M   -xipo=2   -xprefetch_level=2   -fsimple=1   -xprefetch_auto_type=indirect_array_access   -W2,-Ainline:rs=400   -xalias_level=std
470.lbm:  -fast   -fma=fused   -xpagesize=4M   -xipo=2   -xarch=generic   -xvector   -xprefetch_level=3
482.sphinx3:  -fast   -fma=fused   -xpagesize=4M   -xipo=2   -xprefetch_level=1   -xalias_level=std   -xprefetch_auto_type=indirect_array_access

C++ benchmarks:

444.namd:  -xdepend   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -fma=fused   -xpagesize=4M   -xalias_level=compatible   -library=stlport4   -xipo=1   -xprefetch=no%auto   -xlinkopt=2   -xunroll=2
447.dealII:  -xdepend   -fast   -fma=fused   -xpagesize=4M   -xalias_level=compatible   -library=no%Cstd   -I/export/cpu2006-v1.1/stdcxx-4.2.1/include   -I/export/cpu2006-v1.1/stdcxx-4.2.1/build/include   -xipo=2   -xprefetch_level=2   -xprefetch=latx:0.5   -L/export/cpu2006-v1.1/stdcxx-4.2.1/build/lib   -R/export/cpu2006-v1.1/stdcxx-4.2.1/build/lib   -lstd8d
450.soplex:  -xdepend   -fast   -fma=fused   -xpagesize=4M   -xalias_level=compatible   -library=stlport4   -xipo=2   -xprefetch=latx:0.5
453.povray:  -xdepend   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -fma=fused   -xpagesize=4M   -xalias_level=compatible   -library=stlport4   -xipo=2   -xlinkopt=2   -xprefetch=latx:4   -xunroll=4   -lfast

Fortran benchmarks:

410.bwaves:  -fast   -fma=fused   -xpagesize=4M   -xipo=2   -xprefetch_level=2
416.gamess:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -fma=fused   -xpagesize=4M
434.zeusmp:  basepeak = yes
437.leslie3d:  -fast   -fma=fused   -xpagesize=4M   -xipo=2   -xprefetch_level=1
459.GemsFDTD:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -fma=fused   -xpagesize=4M   -xipo=1   -fsimple=1
465.tonto:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=1   -fsimple=1   -lfast

Benchmarks using both Fortran and C:

435.gromacs:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast(cc)   -fast(f90)   -fma=fused   -xpagesize=4M   -xipo=2   -xinline=   -xchip=generic   -fsimple=0   -xprefetch=latx:1.2   -xunroll=5
436.cactusADM:  -fast(cc)   -fast(f90)   -fma=fused   -xpagesize=4M   -xipo=2   -xalias_level=std   -xprefetch_auto_type=indirect_array_access   -xprefetch_level=3   -xprefetch_level=2   -ll2amm
454.calculix:  -fast(cc)   -fast(f90)   -fma=fused   -xpagesize=4M   -xipo=2   -xprefetch_level=1   -xprefetch=latx:3.0   -xalias_level=std   -xprefetch_auto_type=indirect_array_access
481.wrf:  -fast(cc)   -fast(f90)   -fma=fused   -xpagesize=4M   -xipo=1   -xprefetch_level=3   -xalias_level=std   -xprefetch_auto_type=indirect_array_access   -ll2amm

Peak Other Flags

C benchmarks:

 -xjobs=2   -V   -#

C++ benchmarks:

 -xjobs=2   -verbose=diags,version

Fortran benchmarks:

 -xjobs=2   -V   -v

Benchmarks using both Fortran and C:

 -xjobs=2   -V   -#   -v

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Sun-Solaris-Studio12-12u1-and-gccfss4.2.r4.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Sun-Solaris-Studio12-12u1-and-gccfss4.2.r4.xml.
