| CPU2006 license: | 3175 | Test date: | Dec-2009 |
|---|---|---|---|
| Test sponsor: | Huawei | Hardware Availability: | Aug-2009 |
| Tested by: | Huawei | Software Availability: | Dec-2009 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X5570 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.33 GHz |
| CPU MHz: | 2933 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1, 2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 8 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 24 GB (6 x 4GB DDR3-1333, CL9) |
| Disk Subsystem: | 146 GB SAS, 10000RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 10 (x86_64) SP2, Kernel 2.6.16.60-0.21-smp |
| Compiler: | Intel C++ Professional Compiler for IA32 and Intel 64, Version 11.1 Build 20091012 Package ID: l_cproc_p_11.1.059 |
| Auto Parallel: | Yes |
| File System: | ReiserFS |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V8.1 Binutils 2.18.50.0.7.20080502 |

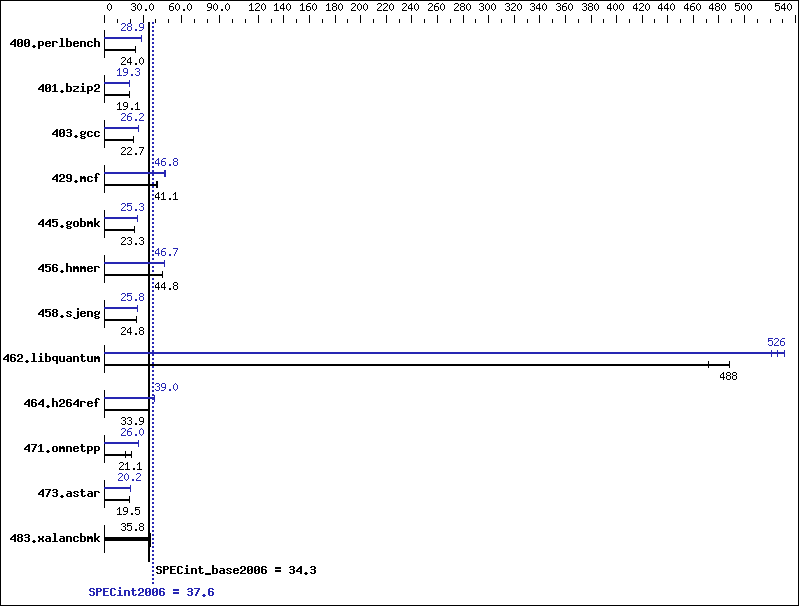

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 408 | 23.9 | 407 | 24.0 | 408 | 24.0 | 338 | 28.9 | 337 | 29.0 | 341 | 28.7 |
| 401.bzip2 | 504 | 19.1 | 505 | 19.1 | 506 | 19.1 | 500 | 19.3 | 499 | 19.3 | 500 | 19.3 |
| 403.gcc | 354 | 22.7 | 355 | 22.7 | 354 | 22.8 | 307 | 26.2 | 307 | 26.2 | 308 | 26.2 |
| 429.mcf | 227 | 40.2 | 222 | 41.1 | 222 | 41.1 | 195 | 46.8 | 196 | 46.6 | 194 | 47.1 |
| 445.gobmk | 452 | 23.2 | 451 | 23.3 | 450 | 23.3 | 415 | 25.3 | 414 | 25.3 | 414 | 25.3 |
| 456.hmmer | 208 | 44.8 | 208 | 44.8 | 207 | 45.1 | 200 | 46.7 | 200 | 46.7 | 200 | 46.7 |
| 458.sjeng | 487 | 24.8 | 487 | 24.8 | 486 | 24.9 | 468 | 25.8 | 468 | 25.8 | 469 | 25.8 |
| 462.libquantum | 42.5 | 488 | 43.9 | 472 | 42.5 | 488 | 39.8 | 521 | 39.0 | 531 | 39.4 | 526 |
| 464.h264ref | 653 | 33.9 | 653 | 33.9 | 654 | 33.8 | 568 | 39.0 | 567 | 39.0 | 567 | 39.0 |
| 471.omnetpp | 296 | 21.1 | 296 | 21.1 | 381 | 16.4 | 240 | 26.0 | 240 | 26.0 | 240 | 26.0 |
| 473.astar | 361 | 19.4 | 361 | 19.5 | 360 | 19.5 | 347 | 20.2 | 348 | 20.2 | 348 | 20.2 |
| 483.xalancbmk | 192 | 35.9 | 193 | 35.8 | 193 | 35.7 | 192 | 35.9 | 193 | 35.8 | 193 | 35.7 |
General Notes
OMP_NUM_THREADS set to number of cores KMP_AFFINITY set to granularity=fine,scatter
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 429.mcf: | -DSPEC_CPU_LP64 |
| 445.gobmk: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -DSPEC_CPU_LP64 |
| 471.omnetpp: | -DSPEC_CPU_LP64 |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -static -parallel -par-runtime-control -opt-prefetch |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-64bit -lsmartheap64 |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m64 | |
| 400.perlbench: | icc -m32 |
| 429.mcf: | icc -m32 |
| 445.gobmk: | icc -m32 |
| 464.h264ref: | icc -m32 |
C++ benchmarks (except as noted below):
| icpc -m64 | |
| 471.omnetpp: | icpc -m32 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-32bit -lsmartheap |
| 473.astar: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-64bit -lsmartheap64 |
| 483.xalancbmk: | basepeak = yes |
