SPEC® CINT2006 Result

ACTION S.A.

ACTINA SOLAR 200 X3 (Intel Xeon E5540)

Hardware
CPU Name:	Intel Xeon E5540
CPU Characteristics:	Intel Turbo Boost Technology up to 2.8 GHz
CPU MHz:	2533
FPU:	Integrated
CPU(s) enabled:	8 cores, 2 chips, 4 cores/chip, 2 threads/core
CPU(s) orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	256 KB I+D on chip per core
L3 Cache:	8 MB I+D on chip per chip
Other Cache:	None
Memory:	24 GB (6 x 4 GB PC3-8500, 1066 MHz, DDR3, ECC)
Disk Subsystem:	160 GB SATA, 7200 RPM
Other Hardware:	None

Software
Operating System:	SuSe Linux Enterprise Server 10 (x86_64) with SP2, kernel 2.6.16.60-0.21-smp
Compiler:	Intel C++ Compiler 11.0 for Linux Build 20080930 Package ID: l_cproc_p_11.0.066
Auto Parallel:	No
File System:	ReiserFS
System State:	Run level 3 (multi-user)
Base Pointers:	32-bit
Peak Pointers:	32/64-bit
Other Software:	Binutils 2.18.50.0.7.20080502 Microquill SmartHeap V8.1

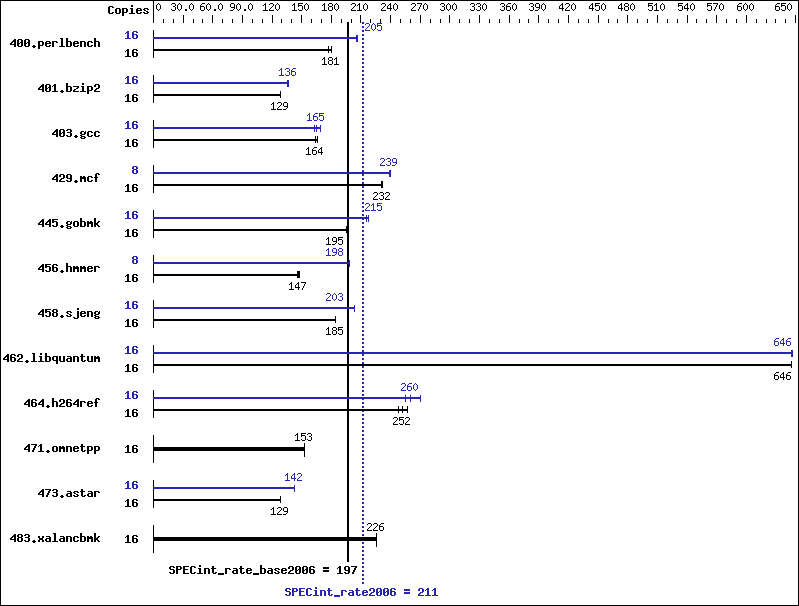

Results Table

Benchmark	Base							Peak
Benchmark	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench	16	881	177	866	181	866	181	16	762	205	761	205	756	207
401.bzip2	16	1197	129	1199	129	1197	129	16	1143	135	1131	137	1132	136
403.gcc	16	775	166	786	164	787	164	16	764	169	781	165	790	163
429.mcf	16	628	232	629	232	633	231	8	305	239	305	239	305	239
445.gobmk	16	860	195	855	196	859	195	16	772	217	779	215	780	215
456.hmmer	16	1013	147	1014	147	1023	146	8	377	198	377	198	377	198
458.sjeng	16	1049	185	1052	184	1049	185	16	953	203	951	204	953	203
462.libquantum	16	513	646	513	646	513	646	16	513	646	513	646	513	646
464.h264ref	16	1378	257	1425	248	1406	252	16	1311	270	1388	255	1360	260
471.omnetpp	16	655	153	656	153	656	152	16	655	153	656	153	656	152
473.astar	16	873	129	873	129	872	129	16	789	142	790	142	788	143
483.xalancbmk	16	490	225	489	226	489	226	16	490	225	489	226	489	226

The config file option 'submit' was used.

 'numactl' was used to bind copies to the cores
 'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run

icc

icpc

403.gcc:

	icc
401.bzip2:	/opt/intel/Compiler/11.0/080/bin/intel64/icc
456.hmmer:	/opt/intel/Compiler/11.0/080/bin/intel64/icc
458.sjeng:	/opt/intel/Compiler/11.0/080/bin/intel64/icc

	icpc
473.astar:	/opt/intel/Compiler/11.0/080/bin/intel64/icpc

400.perlbench:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -ansi-alias -opt-prefetch
401.bzip2:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -opt-prefetch -ansi-alias -auto-ilp32
403.gcc:	-xSSE4.2 -ipo -O3 -no-prec-div -static -inline-calloc -opt-malloc-options=3
429.mcf:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -opt-prefetch
445.gobmk:	-xSSE4.2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -O2 -ipo -no-prec-div -ansi-alias
456.hmmer:	-xSSE4.2 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias -auto-ilp32
458.sjeng:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32
462.libquantum:	-xSSE4.2 -ipo -O3 -no-prec-div -static -opt-malloc-options=3 -opt-prefetch
464.h264ref:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias

471.omnetpp:	basepeak = yes
473.astar:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=routine -auto-ilp32 -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap64
483.xalancbmk:	basepeak = yes

403.gcc:

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic11.0-int-linux64-revA.xml.
