SPEC® CINT2006 Result

Hewlett-Packard Company

ProLiant DL160 G6
(2.93 GHz, Intel Xeon X5570)

Hardware
CPU Name:	Intel Xeon X5570
CPU Characteristics:	Intel Turbo Boost Technology up to 3.33 GHz
CPU MHz:	2933
FPU:	Integrated
CPU(s) enabled:	8 cores, 2 chips, 4 cores/chip, 2 threads/core
CPU(s) orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	256 KB I+D on chip per core
L3 Cache:	8 MB I+D on chip per chip
Other Cache:	None
Memory:	24 GB (6x4 GB DDR3-10600R CL9)
Disk Subsystem:	1x250 GB 7.2 K 3.5" SATA
Other Hardware:	None

Software
Operating System:	Red Hat Enterprise Linux Server release 5.3 Kernel 2.6.18-128.el5
Compiler:	Intel C++ Compiler 11.1 for Linux Build 20090827 Package ID: l_cproc_p_11.1.056
Auto Parallel:	No
File System:	ext3
System State:	Run level 3 (multi-user)
Base Pointers:	32-bit
Peak Pointers:	32/64-bit
Other Software:	Microquill SmartHeap V8.1 Binutils 2.17.50.0.18

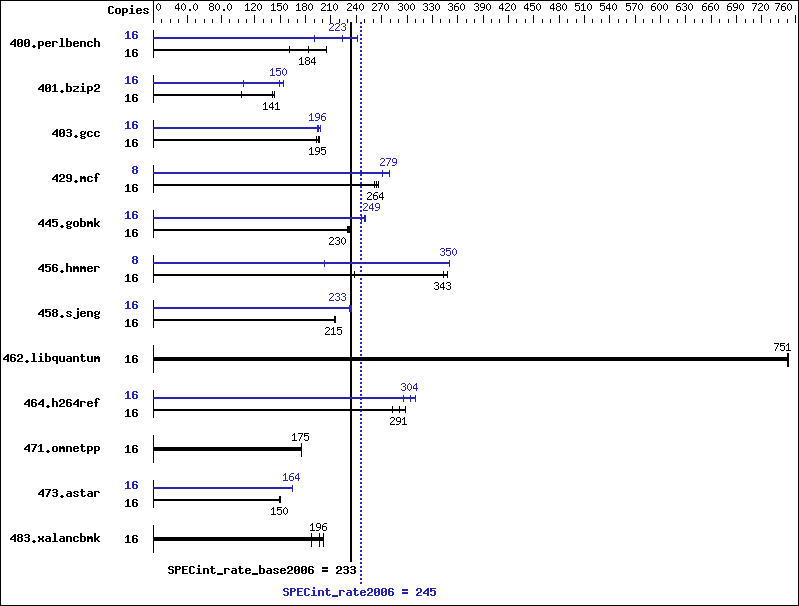

Results Table

Benchmark	Base							Peak
Benchmark	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench	16	851	184	968	161	762	205	16	822	190	700	223	646	242
401.bzip2	16	1077	143	1491	104	1099	141	16	1456	106	1032	150	1006	153
403.gcc	16	656	196	669	192	660	195	16	665	194	658	196	652	197
429.mcf	16	552	264	559	261	547	267	8	262	279	269	271	261	279
445.gobmk	16	730	230	722	232	728	230	16	670	250	681	247	673	249
456.hmmer	16	435	343	628	238	430	348	8	213	350	369	202	213	350
458.sjeng	16	901	215	902	215	903	214	16	830	233	834	232	828	234
462.libquantum	16	441	751	442	750	442	751	16	441	751	442	750	442	751
464.h264ref	16	1252	283	1186	299	1217	291	16	1141	310	1163	304	1197	296
471.omnetpp	16	572	175	571	175	571	175	16	572	175	571	175	571	175
473.astar	16	753	149	750	150	750	150	16	685	164	684	164	684	164
483.xalancbmk	16	592	186	548	201	564	196	16	592	186	548	201	564	196

The config file option 'submit' was used.
 numactl was used to bind copies to the cores

 'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run

BIOS configuration:
  Power Efficiency Mode set to Performance

icc

icpc

403.gcc:

	icc
401.bzip2:	/opt/intel/Compiler/11.1/056/bin/intel64/icc
456.hmmer:	/opt/intel/Compiler/11.1/056/bin/intel64/icc
458.sjeng:	/opt/intel/Compiler/11.1/056/bin/intel64/icc

icpc

400.perlbench:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -ansi-alias -opt-prefetch
401.bzip2:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -opt-prefetch -ansi-alias -auto-ilp32
403.gcc:	-xSSE4.2 -ipo -O3 -no-prec-div -static -inline-calloc -opt-malloc-options=3
429.mcf:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -opt-prefetch
445.gobmk:	-xSSE4.2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -O2 -ipo -no-prec-div -ansi-alias
456.hmmer:	-xSSE4.2 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias -auto-ilp32
458.sjeng:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32
462.libquantum:	basepeak = yes
464.h264ref:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias

471.omnetpp:	basepeak = yes
473.astar:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/cpu2006/SmartHeap_8.1/lib -lsmartheap
483.xalancbmk:	basepeak = yes

403.gcc:
