| CPU2006 license: | 19 | Test date: | Sep-2009 |
|---|---|---|---|
| Test sponsor: | Fujitsu | Hardware Availability: | Jun-2009 |
| Tested by: | Fujitsu | Software Availability: | Feb-2009 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X5560 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.20 GHz |
| CPU MHz: | 2800 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 8 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 24 GB (3x8 GB PC3-10600R, 2 rank, CL9-9-9, ECC) |
| Disk Subsystem: | 1 x SATA, 250 GB, 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 10 (x86_64) SP2, Kernel 2.6.16.60-0.21-smp |
| Compiler: | Intel C++ Compiler 11.0 for Linux Build 20090131 Package ID: l_cproc_p_11.0.080 |
| Auto Parallel: | No |
| File System: | ext3 |
| System State: | Multi-User Run Level 3 |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V8.1 Binutils 2.18.50.0.7.20080502 |

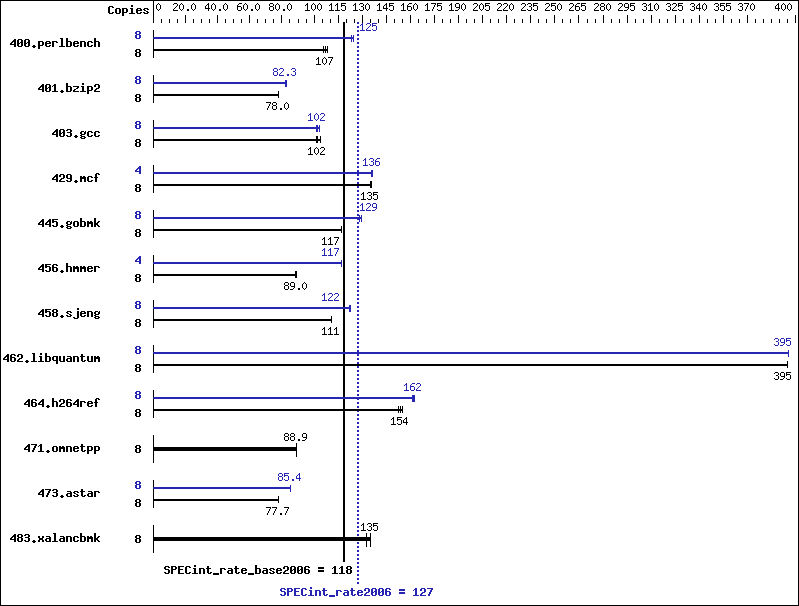

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 8 | 723 | 108 | 736 | 106 | 730 | 107 | 8 | 628 | 125 | 626 | 125 | 635 | 123 |
| 401.bzip2 | 8 | 990 | 78.0 | 995 | 77.6 | 988 | 78.1 | 8 | 939 | 82.2 | 935 | 82.5 | 938 | 82.3 |
| 403.gcc | 8 | 618 | 104 | 634 | 102 | 632 | 102 | 8 | 633 | 102 | 622 | 104 | 631 | 102 |
| 429.mcf | 8 | 539 | 135 | 540 | 135 | 536 | 136 | 4 | 268 | 136 | 268 | 136 | 268 | 136 |
| 445.gobmk | 8 | 716 | 117 | 718 | 117 | 718 | 117 | 8 | 653 | 129 | 647 | 130 | 655 | 128 |
| 456.hmmer | 8 | 844 | 88.5 | 838 | 89.0 | 839 | 89.0 | 4 | 318 | 117 | 318 | 117 | 318 | 117 |
| 458.sjeng | 8 | 872 | 111 | 872 | 111 | 875 | 111 | 8 | 792 | 122 | 793 | 122 | 791 | 122 |
| 462.libquantum | 8 | 420 | 395 | 420 | 395 | 420 | 395 | 8 | 419 | 395 | 419 | 395 | 419 | 395 |
| 464.h264ref | 8 | 1143 | 155 | 1159 | 153 | 1152 | 154 | 8 | 1098 | 161 | 1090 | 162 | 1092 | 162 |
| 471.omnetpp | 8 | 562 | 89.0 | 563 | 88.9 | 563 | 88.9 | 8 | 562 | 89.0 | 563 | 88.9 | 563 | 88.9 |
| 473.astar | 8 | 723 | 77.6 | 723 | 77.7 | 722 | 77.8 | 8 | 658 | 85.3 | 658 | 85.4 | 657 | 85.4 |
| 483.xalancbmk | 8 | 416 | 133 | 409 | 135 | 408 | 135 | 8 | 416 | 133 | 409 | 135 | 408 | 135 |
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
General Notes
For information about Fujitsu please visit: http://www.fujitsu.com
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -static -inline-calloc -opt-malloc-options=3 -opt-prefetch |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc | |
| 401.bzip2: | /opt/intel/Compiler/11.0/080/bin/intel64/icc |
| 456.hmmer: | /opt/intel/Compiler/11.0/080/bin/intel64/icc |
| 458.sjeng: | /opt/intel/Compiler/11.0/080/bin/intel64/icc |
C++ benchmarks (except as noted below):
| icpc | |
| 473.astar: | /opt/intel/Compiler/11.0/080/bin/intel64/icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
C++ benchmarks:
| 471.omnetpp: | basepeak = yes |
| 473.astar: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=routine -auto-ilp32 -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap64 |
| 483.xalancbmk: | basepeak = yes |
