SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Dell Inc.

Dell Precision T7500 (Intel Xeon W5590, 3.33 GHz)

CPU2006 license: 55 Test date: Aug-2009
Test sponsor: Dell Inc. Hardware Availability: Aug-2009
Tested by: Dell Inc. Software Availability: Feb-2009

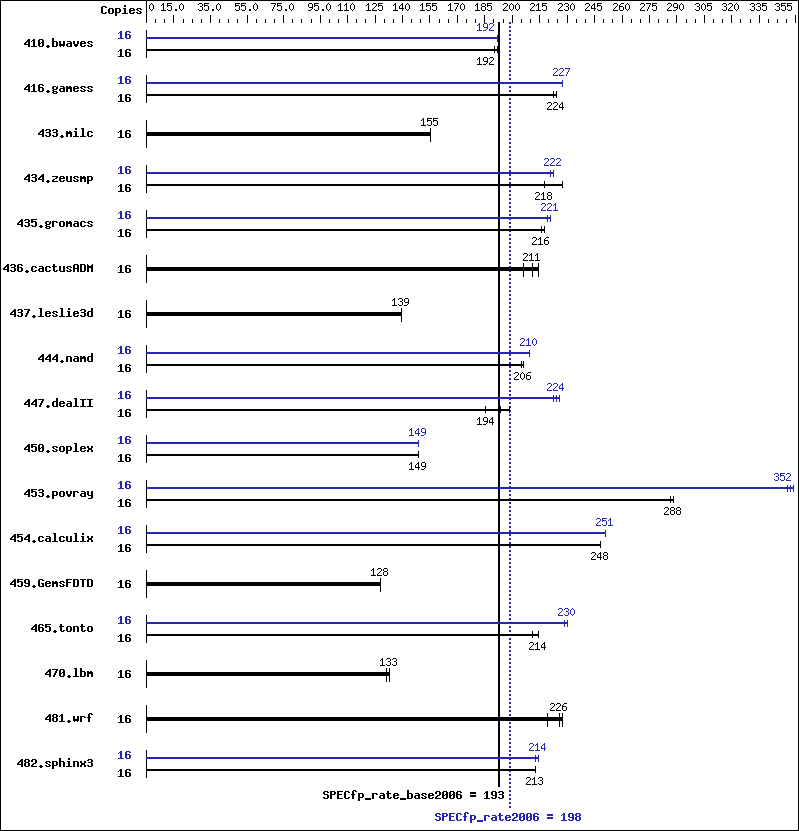

Benchmark results graph
Hardware
CPU Name: Intel Xeon W5590
CPU Characteristics: Intel Turbo Boost Technology up to 3.60 GHz
CPU MHz: 3333
FPU: Integrated
CPU(s) enabled: 8 cores, 2 chips, 4 cores/chip, 2 threads/core
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory: 48 GB (12x4 GB PC3-10600R)
Disk Subsystem: 1 x 146 GB SAS 15000 RPM
Other Hardware: None
Software
Operating System: Windows Vista Business SP1 (64-bit)
Compiler: Intel C++ Compiler for Intel 64, Version 11.0
Build 20090131 Package ID: w_cproc_p_11.0.072
Intel Visual Fortran Compiler for Intel 64,
Version 11.0
Build 20090131 Package ID: w_cprof_p_11.0.072
Microsoft Visual Studio 2008 SP1
Auto Parallel: No
File System: NTFS
System State: Default
Base Pointers: 32/64-bit
Peak Pointers: 32/64-bit
Other Software: MicroQuill SmartHeap Library 8.1 for x64

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 16 1145 190 1130 192 1130 192 16 1130 192 1130 192 1130 192
416.gamess 16 1407 222 1402 224 1400 224 16 1380 227 1384 227 1379 227
433.milc 16 944 155 945 155 945 155 16 944 155 945 155 945 155
434.zeusmp 16 669 218 667 218 642 227 16 656 222 658 221 656 222
435.gromacs 16 528 216 527 218 528 216 16 519 221 519 221 519 219
436.cactusADM 16 903 211 892 214 927 206 16 903 211 892 214 927 206
437.leslie3d 16 1080 139 1082 139 1080 139 16 1080 139 1082 139 1080 139
444.namd 16 624 206 624 206 624 205 16 611 210 612 210 612 210
447.dealII 16 988 186 923 198 943 194 16 811 226 824 222 820 224
450.soplex 16 897 149 898 149 898 149 16 895 149 895 149 895 149
453.povray 16 296 286 296 288 296 288 16 240 354 242 352 243 350
454.calculix 16 533 248 533 248 532 248 16 526 251 527 251 527 251
459.GemsFDTD 16 1321 128 1324 128 1322 128 16 1321 128 1324 128 1322 128
465.tonto 16 744 211 733 214 734 214 16 690 229 683 230 682 230
470.lbm 16 1671 131 1664 133 1655 133 16 1671 131 1664 133 1655 133
481.wrf 16 814 219 790 226 787 227 16 814 219 790 226 787 227
482.sphinx3 16 1463 213 1466 213 1466 213 16 1461 213 1459 214 1460 214

Submit Notes

The config file option 'submit' was used.

Platform Notes

 BIOS Settings
   Memory Node Interleaving: NUMA
   Hyper-Threading: ENABLE

Base Compiler Invocation

C benchmarks:

 icl   -Qvc9   -Qstd=c99

C++ benchmarks:

 icl   -Qvc9

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl   -Qvc9   -Qstd=c99   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_P64   /assume:underscore
416.gamess:  -DSPEC_CPU_P64
433.milc:  -DSPEC_CPU_P64
434.zeusmp:  -DSPEC_CPU_P64
435.gromacs:  -DSPEC_CPU_P64
436.cactusADM:  -DSPEC_CPU_P64   -Qlowercase   /assume:underscore
437.leslie3d:  -DSPEC_CPU_P64
444.namd:  -DSPEC_CPU_P64   /TP
447.dealII:  -DSPEC_CPU_P64   -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG
450.soplex:  -DSPEC_CPU_P64
453.povray:  -DSPEC_CPU_P64   -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -DSPEC_CPU_P64   -DSPEC_CPU_NOZMODIFIER   -Qlowercase
459.GemsFDTD:  -DSPEC_CPU_P64
465.tonto:  -DSPEC_CPU_P64
470.lbm:  -DSPEC_CPU_P64
481.wrf:  -DSPEC_CPU_P64   -DSPEC_CPU_WINDOWS_ICL
482.sphinx3:  -DSPEC_CPU_P64

Base Optimization Flags

C benchmarks:

 -QxSSE4.2   -Qauto-ilp32   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F512000000

C++ benchmarks:

 -QxSSE4.2   -Qauto-ilp32   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   -Qcxx_features   /F512000000   shlw64mt.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

 -QxSSE4.2   -Qauto-ilp32   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F1000000000

Benchmarks using both Fortran and C:

 -QxSSE4.2   -Qauto-ilp32   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F1000000000

Peak Compiler Invocation

C benchmarks:

 icl   -Qvc9   -Qstd=c99

C++ benchmarks:

 icl   -Qvc9

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl   -Qvc9   -Qstd=c99   ifort

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

433.milc:  basepeak = yes
470.lbm:  basepeak = yes
482.sphinx3:  -QxSSE4.2   -Qauto-ilp32   -Qipo   -O3   -Qprec-div-   -Qunroll2   /F512000000

C++ benchmarks:

444.namd:  -Qprof_gen(pass 1)   -QxSSE4.2(pass 2)   -Qauto-ilp32(pass 2)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Oa   /F512000000   shlw64mt.lib    -link /FORCE:MULTIPLE
447.dealII:  -Qprof_gen(pass 1)   -QxSSE4.2(pass 2)   -Qauto-ilp32(pass 2)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll2   -Qansi-alias   -Qscalar-rep-   /F512000000   shlw64mt.lib    -link /FORCE:MULTIPLE
450.soplex:  -Qprof_gen(pass 1)   -QxSSE4.2   -Qauto-ilp32   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   /F512000000   shlw64mt.lib    -link /FORCE:MULTIPLE
453.povray:  -Qprof_gen(pass 1)   -QxSSE4.2(pass 2)   -Qauto-ilp32(pass 2)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll4   -Qansi-alias   /F512000000   shlw64mt.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

410.bwaves:  -QxSSE4.2   -Qauto-ilp32   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F1000000000
416.gamess:  -Qprof_gen(pass 1)   -QxSSE4.2(pass 2)   -Qauto-ilp32(pass 2)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll2   -Ob0   -Qansi-alias   -Qscalar-rep-   /F1000000000
434.zeusmp:  -Qprof_gen(pass 1)   -QxSSE4.2   -Qauto-ilp32   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   /F1000000000
437.leslie3d:  basepeak = yes
459.GemsFDTD:  basepeak = yes
465.tonto:  -Qprof_gen(pass 1)   -QxSSE4.2(pass 2)   -Qauto-ilp32(pass 2)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll4   -Qauto   /F1000000000

Benchmarks using both Fortran and C:

435.gromacs:  -Qprof_gen(pass 1)   -QxSSE4.2(pass 2)   -Qauto-ilp32(pass 2)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F1000000000
436.cactusADM:  basepeak = yes
454.calculix:  -QxSSE4.2   -Qauto-ilp32   -Qipo   -O3   -Qprec-div-   /F1000000000
481.wrf:  basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/dell.flags.ic11.0.win.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/dell.flags.ic11.0.win.xml.
