| CPU2006 license: | 2929 | Test date: | Aug-2009 |
|---|---|---|---|
| Test sponsor: | ScaleMP | Hardware Availability: | Apr-2009 |
| Tested by: | ScaleMP | Software Availability: | Apr-2009 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X5570 |
| CPU Characteristics: | Intel Turbo Boost Technology is not-enabled |
| CPU MHz: | 2933 |
| FPU: | Integrated |
| CPU(s) enabled: | 128 cores, 32 chips, 4 cores/chip, 2 threads/core |
| CPU(s) orderable: | 8,16,24,32,40,48,56,64,96,128 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 8 MB I+D on chip per chip |
| Other Cache: | 92 GB I+D off chip per system |
| Memory: | 768 GB (16 x 2 x 6 x 4 GB DDR3-1066R, ECC, CL9) |
| Disk Subsystem: | 16 x 160 GB SATA, 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Red Hat Enterprise Linux Server release 5.3 (Tikanga) Kernel: 2.6.21.7-16.vSMP.nomc |
| Compiler: | Intel C++ and Fortran Compiler 11.0 for Linux Build 20081105 Package ID: l_cproc_p_11.0.074, l_fproc_p_11.0.074 |
| Auto Parallel: | No |
| File System: | xfs |
| System State: | Multi-user, run level 3 |
| Base Pointers: | 64-bit |
| Peak Pointers: | Not Applicable |
| Other Software: | ScaleMP vSMP Foundation 2.0.65.35 |

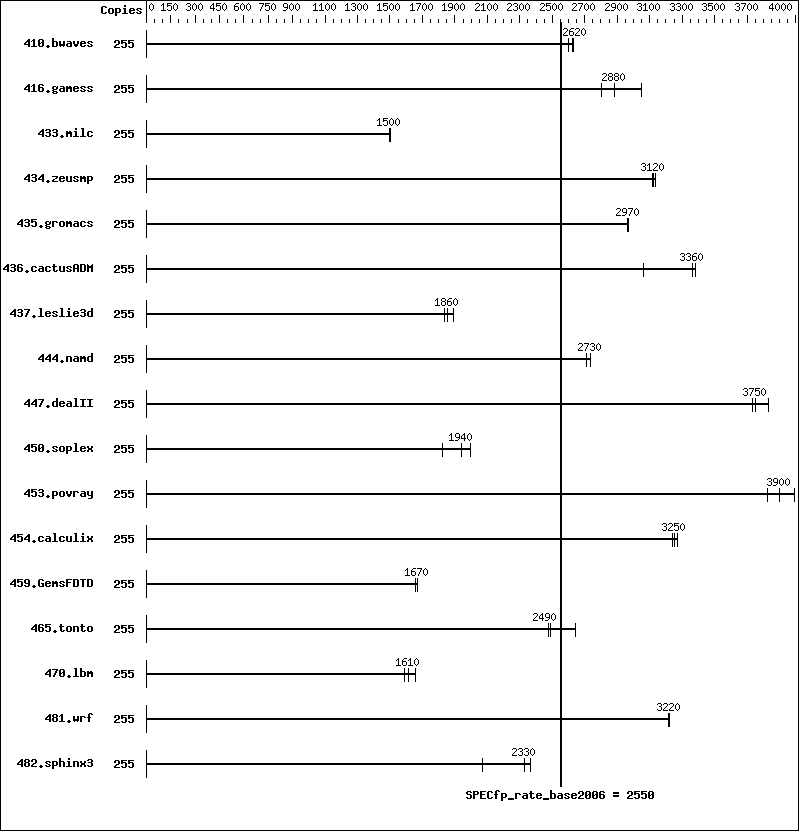

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 410.bwaves | 255 | 1322 | 2620 | 1319 | 2630 | 1332 | 2600 | |||||||
| 416.gamess | 255 | 1639 | 3050 | 1733 | 2880 | 1781 | 2800 | |||||||
| 433.milc | 255 | 1565 | 1500 | 1557 | 1500 | 1562 | 1500 | |||||||
| 434.zeusmp | 255 | 743 | 3120 | 740 | 3140 | 745 | 3110 | |||||||
| 435.gromacs | 255 | 615 | 2960 | 613 | 2970 | 613 | 2970 | |||||||
| 436.cactusADM | 255 | 996 | 3060 | 906 | 3360 | 901 | 3380 | |||||||
| 437.leslie3d | 255 | 1292 | 1860 | 1269 | 1890 | 1307 | 1830 | |||||||
| 444.namd | 255 | 754 | 2710 | 748 | 2730 | 748 | 2730 | |||||||
| 447.dealII | 255 | 762 | 3830 | 777 | 3750 | 781 | 3730 | |||||||
| 450.soplex | 255 | 1165 | 1830 | 1065 | 2000 | 1094 | 1940 | |||||||
| 453.povray | 255 | 355 | 3830 | 348 | 3900 | 340 | 3990 | |||||||
| 454.calculix | 255 | 643 | 3270 | 649 | 3240 | 647 | 3250 | |||||||
| 459.GemsFDTD | 255 | 1619 | 1670 | 1619 | 1670 | 1635 | 1650 | |||||||
| 465.tonto | 255 | 949 | 2650 | 1012 | 2480 | 1007 | 2490 | |||||||
| 470.lbm | 255 | 2116 | 1660 | 2173 | 1610 | 2208 | 1590 | |||||||
| 481.wrf | 255 | 885 | 3220 | 884 | 3220 | 885 | 3220 | |||||||
| 482.sphinx3 | 255 | 2101 | 2370 | 2404 | 2070 | 2131 | 2330 | |||||||
Submit Notes
The config file option 'submit' was used. numactl was used to bind copies to the cores
Platform Notes
ScaleMP
vSMP Foundation: 2.0.65.35
Other Cache:
ScaleMP vSMP Foundation manages cache coherency between the
InfiniBand-connected systems via multiple concurrent memory
coherency mechanisms, on a per-block basis, based on
real-time memory activity access patterns.
This mechanism reserves 92 GB of the main memory across all
boards (distributed), which is used as a 4th level cache.
Hardware Details:
System was aggregated using 16 X Dell PowerEdge M610.
The servers were connected with Melanox InfiniBand QDR and a
QDR switch.
CPU Characteristics: Intel Turbo Boost Technology not-enabled:
As the prerequisites listed below for enablement of this
technology did not exist.
The prerequisites for Turbo Boost Technology are:
- Hardware: Enabling Turbo Boost Technology require BIOS setting.
- Software: OS needs to be ACPI-aware and set P0 power state.
Base Compiler Invocation
C benchmarks:
| icc |
C++ benchmarks:
| icpc |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icc ifort |
Base Portability Flags
| 410.bwaves: | -DSPEC_CPU_LP64 |
| 416.gamess: | -DSPEC_CPU_LP64 |
| 433.milc: | -DSPEC_CPU_LP64 |
| 434.zeusmp: | -DSPEC_CPU_LP64 |
| 435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
| 436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
| 437.leslie3d: | -DSPEC_CPU_LP64 |
| 444.namd: | -DSPEC_CPU_LP64 |
| 447.dealII: | -DSPEC_CPU_LP64 |
| 450.soplex: | -DSPEC_CPU_LP64 |
| 453.povray: | -DSPEC_CPU_LP64 |
| 454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
| 459.GemsFDTD: | -DSPEC_CPU_LP64 |
| 465.tonto: | -DSPEC_CPU_LP64 |
| 470.lbm: | -DSPEC_CPU_LP64 |
| 481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
| 482.sphinx3: | -DSPEC_CPU_LP64 |
