SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

GIGA-BYTE Technology Co. Ltd. (Test Sponsor: Intel Corporation)

Gigabyte MA78GM-S2H Motherboard (AMD Phenom II X4
955)

CPU2006 license: 13 Test date: May-2009
Test sponsor: Intel Corporation Hardware Availability: Apr-2009
Tested by: Intel Corporation Software Availability: Nov-2008

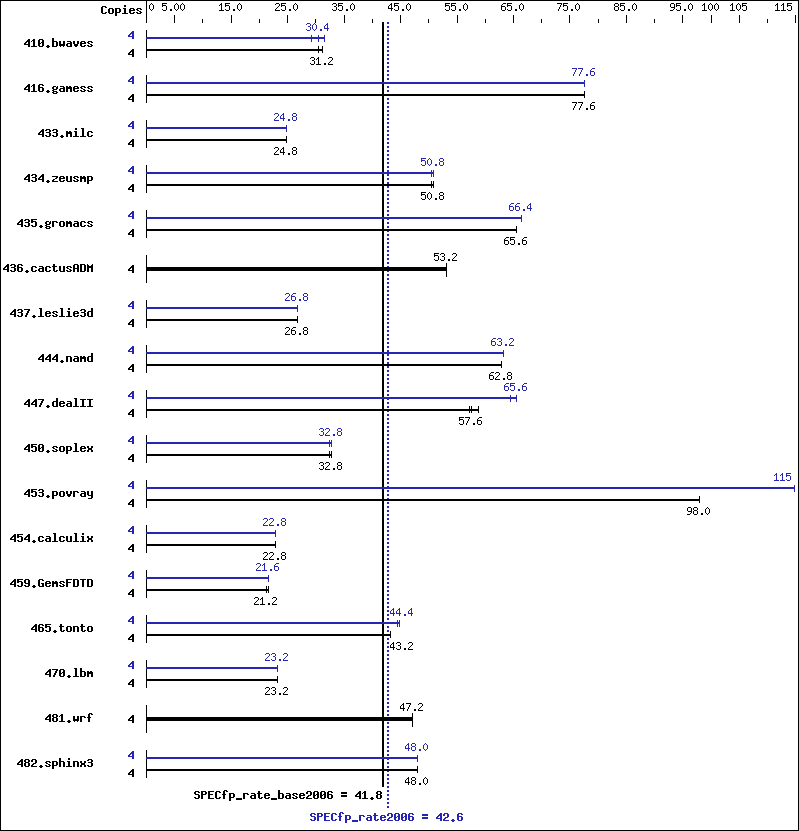

Benchmark results graph
Hardware
CPU Name: AMD Phenom II X4 955
CPU Characteristics:
CPU MHz: 3200
FPU: Integrated
CPU(s) enabled: 4 cores, 1 chip, 4 cores/chip
CPU(s) orderable: 1 chip
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
L3 Cache: 6 MB I+D on chip per chip
Other Cache: None
Memory: 4 GB (4x1GB DDR2-800 CL5)
Disk Subsystem: Seagate 320 GB SATA, 7200RPM
Other Hardware: None
Software
Operating System: Windows Vista Ultimate w/ SP1 (64-bit)
Compiler: Intel C++ Compiler Professional 11.0 for IA32
Build 20080930 Package ID: w_cproc_p_11.0.054
Intel Visual Fortran Compiler Professional 11.0
for IA32
Build 20080930 Package ID: w_cprof_p_11.0.054
Microsoft Visual Studio 2008 (for libraries)
Auto Parallel: No
File System: NTFS
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: SmartHeap Library Version 8.1 from
http://www.microquill.com/

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 4 1798 30.4 1748 31.2 1749 31.2 4 1714 31.6 1868 29.2 1792 30.4
416.gamess 4 1009 77.6 1008 77.6 1009 77.6 4 1010 77.6 1010 77.6 1010 77.6
433.milc 4 1486 24.8 1486 24.8 1487 24.8 4 1486 24.8 1485 24.8 1485 24.8
434.zeusmp 4 716 50.8 725 50.4 717 50.8 4 715 50.8 718 50.8 723 50.4
435.gromacs 4 436 65.6 436 65.6 436 65.6 4 431 66.4 431 66.4 430 66.4
436.cactusADM 4 896 53.2 897 53.2 896 53.2 4 896 53.2 897 53.2 896 53.2
437.leslie3d 4 1397 26.8 1398 26.8 1397 26.8 4 1398 26.8 1397 26.8 1398 26.8
444.namd 4 511 62.8 511 62.8 510 62.8 4 507 63.2 508 63.2 507 63.2
447.dealII 4 796 57.6 800 57.2 780 58.8 4 698 65.6 697 65.6 712 64.4
450.soplex 4 1023 32.8 1024 32.4 1021 32.8 4 1014 32.8 1026 32.4 1014 32.8
453.povray 4 217 98.0 217 98.0 217 98.0 4 185 115   186 115   185 115
454.calculix 4 1447 22.8 1448 22.8 1445 22.8 4 1448 22.8 1444 22.8 1447 22.8
459.GemsFDTD 4 1984 21.2 1982 21.6 1995 21.2 4 1975 21.6 1983 21.6 1967 21.6
465.tonto 4 913 43.2 912 43.2 915 43.2 4 885 44.4 883 44.4 882 44.8
470.lbm 4 2384 23.2 2384 23.2 2383 23.2 4 2383 23.2 2383 23.2 2383 23.2
481.wrf 4 943 47.2 943 47.2 943 47.2 4 943 47.2 943 47.2 943 47.2
482.sphinx3 4 1627 48.0 1629 48.0 1625 48.0 4 1627 48.0 1627 48.0 1624 48.0

Submit Notes

The config file option 'submit' was used.

General Notes

 Tested systems can be used with Shin-G ATX case, Antec NeoPower 480W power supply
 Binaries were built on Windows Vista Ultimate (32-bit)

Base Compiler Invocation

C benchmarks:

 icl -Qvc9   -Qc99

C++ benchmarks:

 icl -Qvc9

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl -Qvc9   -Qc99   ifort

Base Portability Flags

436.cactusADM:  -Qlowercase   /assume:underscore
444.namd:  -TP
447.dealII:  -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG
453.povray:  -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -DSPEC_CPU_NOZMODIFIER   -Qlowercase
481.wrf:  -DSPEC_CPU_WINDOWS_ICL

Base Optimization Flags

C benchmarks:

 /arch:SSE2   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F1000000000

C++ benchmarks:

 /arch:SSE2   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   -Qcxx-features   /F1000000000   shlw32m.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

 /arch:SSE2   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F1000000000

Benchmarks using both Fortran and C:

 /arch:SSE2   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F1000000000

Peak Compiler Invocation

C benchmarks:

 icl -Qvc9   -Qc99

C++ benchmarks:

 icl -Qvc9

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl -Qvc9   -Qc99   ifort

Peak Portability Flags

436.cactusADM:  -Qlowercase   /assume:underscore
444.namd:  -TP
447.dealII:  -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG
453.povray:  -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -DSPEC_CPU_NOZMODIFIER   -Qlowercase
481.wrf:  -DSPEC_CPU_WINDOWS_ICL

Peak Optimization Flags

C benchmarks:

433.milc:  /arch:SSE2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Oa   /F1000000000
470.lbm:  /arch:SSE2   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F1000000000
482.sphinx3:  /arch:SSE2   -Qipo   -O3   -Qprec-div-   -Qunroll2   /F1000000000

C++ benchmarks:

444.namd:  /arch:SSE2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Oa   /F1000000000   shlw32m.lib    -link /FORCE:MULTIPLE
447.dealII:  /arch:SSE2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll2   -Qansi-alias   -Qscalar-rep-   /F1000000000   shlw32m.lib    -link /FORCE:MULTIPLE
450.soplex:  /arch:SSE2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   /F1000000000   shlw32m.lib    -link /FORCE:MULTIPLE
453.povray:  /arch:SSE2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll4   -Qansi-alias   /F1000000000   shlw32m.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

410.bwaves:  /arch:SSE2   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F1000000000
416.gamess:  /arch:SSE2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll2   -Ob0   -Qansi-alias   -Qscalar-rep-   /F1000000000
434.zeusmp:  /arch:SSE2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   /F1000000000
437.leslie3d:  /arch:SSE2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F1000000000
459.GemsFDTD:  /arch:SSE2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll2   -Ob0   -Qopt-prefetch   /F1000000000
465.tonto:  /arch:SSE2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll4   -Qauto   /F1000000000

Benchmarks using both Fortran and C:

435.gromacs:  /arch:SSE2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F1000000000
436.cactusADM:  basepeak = yes
454.calculix:  /arch:SSE2   -Qipo   -O3   -Qprec-div-   /F1000000000
481.wrf:  basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic11.0-win32-revA.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic11.0-win32-revA.xml.
