CPU2006 license: | 3 | Test date: | May-2009 |
---|---|---|---|
Test sponsor: | Hewlett-Packard Company | Hardware Availability: | Jun-2009 |
Tested by: | Hewlett-Packard Company | Software Availability: | May-2009 |
Hardware | |
---|---|
CPU Name: | AMD Opteron 8435 |
CPU Characteristics: | |
CPU MHz: | 2600 |
FPU: | Integrated |
CPU(s) enabled: | 12 cores, 2 chips, 6 cores/chip |
CPU(s) orderable: | 2,4 chips |
Primary Cache: | 64 KB I + 64 KB D on chip per core |
Secondary Cache: | 512 KB I+D on chip per core |
L3 Cache: | 6 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 32 GB (8x4 GB, PC2-6400P CL5) |
Disk Subsystem: | 1x146 GB 10 K SAS |
Other Hardware: | None |
Software | |
---|---|
Operating System: | Red Hat Enterprise Linux Server release 5.3, Advanced Platform, Kernel 2.6.18-128.el5 |
Compiler: | PGI Server Complete Version 8.0 PathScale Compiler Suite Version 3.2 |
Auto Parallel: | Yes |
File System: | ext3 |
System State: | Run level 3 (multi-user) |
Base Pointers: | 32/64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | binutils 2.18 32-bit and 64-bit libhugetlbfs libraries SmartHeap 8.1 32-bit Library for Linux |

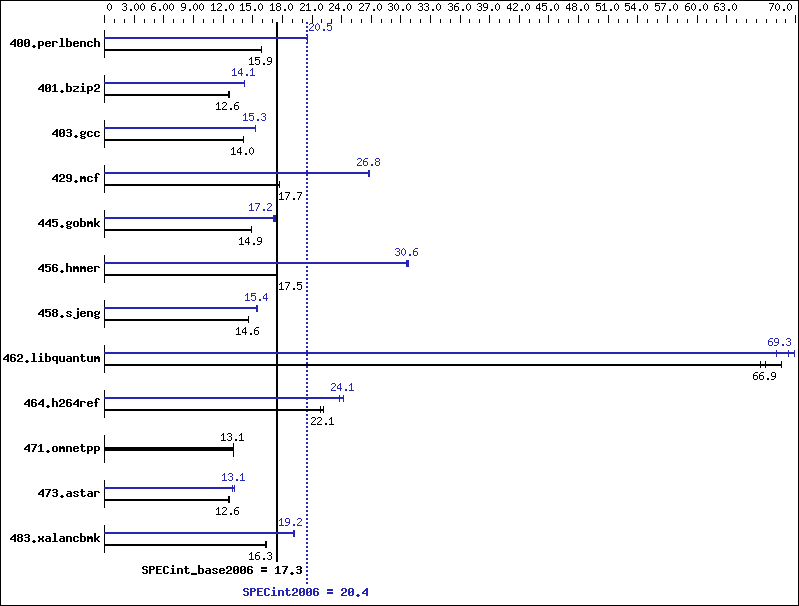

Benchmark | Base | Peak | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
400.perlbench | 616 | 15.9 | 616 | 15.9 | 616 | 15.9 | 476 | 20.5 | 475 | 20.5 | 477 | 20.5 |
401.bzip2 | 764 | 12.6 | 767 | 12.6 | 768 | 12.6 | 682 | 14.1 | 682 | 14.1 | 680 | 14.2 |
403.gcc | 574 | 14.0 | 574 | 14.0 | 574 | 14.0 | 526 | 15.3 | 526 | 15.3 | 526 | 15.3 |
429.mcf | 516 | 17.7 | 516 | 17.7 | 516 | 17.7 | 341 | 26.7 | 340 | 26.8 | 341 | 26.8 |
445.gobmk | 706 | 14.9 | 706 | 14.9 | 706 | 14.9 | 608 | 17.2 | 610 | 17.2 | 613 | 17.1 |
456.hmmer | 534 | 17.5 | 536 | 17.4 | 534 | 17.5 | 304 | 30.7 | 305 | 30.6 | 305 | 30.6 |
458.sjeng | 830 | 14.6 | 831 | 14.6 | 831 | 14.6 | 780 | 15.5 | 783 | 15.4 | 789 | 15.3 |
462.libquantum | 302 | 68.5 | 312 | 66.5 | 310 | 66.9 | 296 | 69.9 | 305 | 68.0 | 299 | 69.3 |
464.h264ref | 1012 | 21.9 | 999 | 22.1 | 999 | 22.2 | 916 | 24.1 | 931 | 23.8 | 915 | 24.2 |
471.omnetpp | 478 | 13.1 | 479 | 13.1 | 478 | 13.1 | 478 | 13.1 | 479 | 13.1 | 478 | 13.1 |
473.astar | 557 | 12.6 | 559 | 12.6 | 558 | 12.6 | 534 | 13.1 | 541 | 13.0 | 533 | 13.2 |
483.xalancbmk | 422 | 16.4 | 422 | 16.3 | 423 | 16.3 | 359 | 19.2 | 360 | 19.2 | 360 | 19.2 |
'ulimit -s unlimited' was used to set environment stack size 'ulimit -l 2457600' was used to set environment locked pages in memory limit The libhugetlbfs libraries were installed using the installation rpms that came with the distribution. PGI_HUGE_PAGES set to 450. Total number of huge pages available is 5400. NCPUS set to number of cores
BIOS configuration: Power Regulator set to Static High Performance Mode
Environment variables set by runspec before the start of the run: HUGETLB_MORECORE = "yes" NCPUS = "12"
400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
401.bzip2: | -DSPEC_CPU_LP64 |
403.gcc: | -DSPEC_CPU_LP64 |
429.mcf: | -DSPEC_CPU_LP64 |
445.gobmk: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
458.sjeng: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
464.h264ref: | -DSPEC_CPU_LP64 |
483.xalancbmk: | -DSPEC_CPU_LINUX |
-Mvect=cachesize:6291456 -fastsse -Msmartalloc=huge -Mconcur=innermost -Mfprelaxed -Mipa=fast -Mipa=inline -tp barcelona-64 -Bstatic_pgi |
-Mvect=cachesize:6291456 -fastsse -Msmartalloc=huge -Mfprelaxed --zc_eh -Mipa=fast -Mipa=inline:6 -tp barcelona-32 -Bstatic_pgi |
pathcc | |
456.hmmer: | pgcc |
462.libquantum: | pgcc |
pgcpp | |
483.xalancbmk: | pathCC |
400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
401.bzip2: | -DSPEC_CPU_LP64 |
445.gobmk: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
458.sjeng: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
464.h264ref: | -DSPEC_CPU_LP64 |
483.xalancbmk: | -DSPEC_CPU_LINUX |
471.omnetpp: | basepeak = yes |
473.astar: | -Mpfi(pass 1) -Mpfo(pass 2) -Mipa=fast(pass 2) -Mipa=inline:6(pass 2) -Mvect=cachesize:6291456 -fastsse -O4 -Msmartalloc=huge -Msafeptr=global -Mfprelaxed --zc_eh -tp barcelona-32 -Bstatic_pgi |
483.xalancbmk: | -march=barcelona -Ofast -INLINE:aggressive=on -m32 -L/cpu2006/SmartHeap_8.1/lib -lsmartheap |
456.hmmer: | -Mipa=jobs:11 |
462.libquantum: | -Mipa=jobs:11 |
-Mipa=jobs:11(pass 2) | |
483.xalancbmk: | No flags used |
