SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Hewlett-Packard Company

ProLiant DL385 G6
(2.6 GHz AMD Opteron 2435)

CPU2006 license: 3 Test date: Jun-2009
Test sponsor: Hewlett-Packard Company Hardware Availability: Jun-2009
Tested by: Hewlett-Packard Company Software Availability: Apr-2009

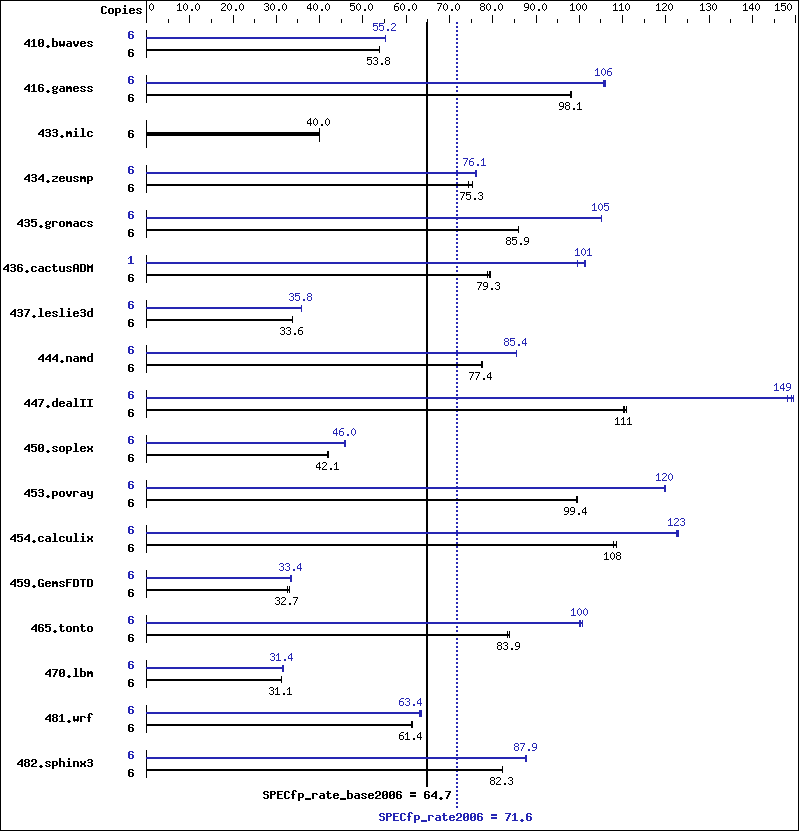

Benchmark results graph
Hardware
CPU Name: AMD Opteron 2435
CPU Characteristics:
CPU MHz: 2600
FPU: Integrated
CPU(s) enabled: 6 cores, 1 chip, 6 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
L3 Cache: 6 MB I+D on chip per chip
Other Cache: None
Memory: 16 GB (4x4 GB, PC2-6400P CL5)
Disk Subsystem: 1 x 120 GB SFF SATA, 5400 RPM
Other Hardware: None
Software
Operating System: Red Hat Enterprise Linux Server release 5.3,
Kernel 2.6.18-128.el5
Compiler: PGI Server Complete Version 8.0
x86 Open64 4.2.2 Compiler Suite
Auto Parallel: Yes
File System: ext3
System State: Run level 3 (multi-user)
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: binutils 2.18

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 6 1516 53.8 1518 53.7 1516 53.8 6 1478 55.2 1476 55.2 1479 55.1
416.gamess 6 1196 98.2 1200 97.9 1197 98.1 6 1108 106   1112 106   1109 106
433.milc 6 1378 40.0 1378 40.0 1377 40.0 6 1378 40.0 1378 40.0 1377 40.0
434.zeusmp 6 724 75.4 733 74.5 725 75.3 6 718 76.1 718 76.1 716 76.2
435.gromacs 6 499 85.9 499 85.9 499 85.8 6 407 105   408 105   408 105
436.cactusADM 6 902 79.5 904 79.3 910 78.8 1 118 101   120 99.5 118 102
437.leslie3d 6 1677 33.6 1677 33.6 1677 33.6 6 1578 35.7 1575 35.8 1577 35.8
444.namd 6 621 77.5 622 77.4 621 77.4 6 563 85.4 563 85.5 563 85.4
447.dealII 6 623 110   620 111   621 111   6 461 149   464 148   459 150
450.soplex 6 1193 41.9 1189 42.1 1188 42.1 6 1094 45.7 1086 46.1 1089 46.0
453.povray 6 321 99.4 321 99.4 321 99.6 6 267 120   266 120   266 120
454.calculix 6 456 109   459 108   459 108   6 403 123   404 122   404 123
459.GemsFDTD 6 1948 32.7 1948 32.7 1929 33.0 6 1914 33.3 1906 33.4 1905 33.4
465.tonto 6 704 83.9 707 83.5 703 83.9 6 586 101   591 99.9 589 100
470.lbm 6 2652 31.1 2641 31.2 2649 31.1 6 2622 31.4 2610 31.6 2629 31.4
481.wrf 6 1092 61.4 1091 61.4 1093 61.3 6 1061 63.2 1056 63.5 1058 63.4
482.sphinx3 6 1423 82.2 1421 82.3 1421 82.3 6 1330 87.9 1335 87.6 1331 87.9

Submit Notes

The config file option 'submit' was used.
 'numactl' was used to bind copies to the cores
 See the configuration file for details.

Operating System Notes

 'ulimit -s unlimited' was used to set environment stack size
 'ulimit -l 2097152'  was used to set environment locked pages in memory limit

 Set vm/nr_hugepages=2700 in /etc/sysctl.conf
 mount -t hugetlbfs nodev /mnt/hugepages

Platform Notes

BIOS configuration:
  Power Regulator set to HP Static High Performance Mode
  Memory channel mode set to Independent

General Notes

Environment variables set by runspec before the start of the run:
HUGETLB_LIMIT = "450"
LD_LIBRARY_PATH = "/cpu2006/amd0905is-libs/64:/cpu2006/amd0905is-libs/32"
NCPUS = "6"
PGI_HUGE_PAGES = "450"

The x86 Open64 Compiler Suite is only available from (and supported by) AMD at
http://developer.amd.com/cpu/open64.

Base Compiler Invocation

C benchmarks:

 pgcc

C++ benchmarks:

 pgcpp

Fortran benchmarks:

 pgf95

Benchmarks using both Fortran and C:

 pgcc   pgf95

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -Mnomain
436.cactusADM:  -DSPEC_CPU_LP64   -Mnomain
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -Mnomain
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -fastsse   -Msmartalloc=huge   -Mfprelaxed   -Mipa=fast   -Mipa=inline   -tp shanghai-64   -Bstatic_pgi

C++ benchmarks:

 -fastsse   -Msmartalloc=huge   -Mfprelaxed   --zc_eh   -Mipa=fast   -Mipa=inline   -tp shanghai-64   -Bstatic_pgi

Fortran benchmarks:

 -fastsse   -Msmartalloc=huge   -Mfprelaxed   -Mvect=short   -Mipa=fast   -Mipa=inline   -tp shanghai-64   -Bstatic_pgi

Benchmarks using both Fortran and C:

 -fastsse   -Msmartalloc=huge   -Mfprelaxed   -Mipa=fast   -Mipa=inline   -tp shanghai-64   -Mvect=short   -Bstatic_pgi

Base Other Flags

C benchmarks:

 -Mipa=jobs:4

C++ benchmarks:

 -Mipa=jobs:4

Fortran benchmarks:

 -Mipa=jobs:4

Benchmarks using both Fortran and C:

 -Mipa=jobs:4

Peak Compiler Invocation

C benchmarks:

 pgcc

C++ benchmarks (except as noted below):

 openCC
444.namd:  pgcpp

Fortran benchmarks (except as noted below):

 openf95
410.bwaves:  pgf95
434.zeusmp:  pgf95
437.leslie3d:  pgf95

Benchmarks using both Fortran and C (except as noted below):

 pgcc   pgf95
435.gromacs:  opencc   openf95

Peak Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64
436.cactusADM:  -DSPEC_CPU_LP64   -Mnomain
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -Mnomain
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Peak Optimization Flags

C benchmarks:

433.milc:  basepeak = yes
470.lbm:  -fastsse   -Msmartalloc=huge   -Mprefetch=t0   -Mloop32   -Mfprelaxed   -Mipa=fast   -Mipa=inline   -tp shanghai-64   -Bstatic_pgi
482.sphinx3:  -Mpfi=indirect(pass 1)   -Mpfo=indirect(pass 2)   -Mipa=fast(pass 2)   -Mipa=inline(pass 2)   -fastsse   -Mfprelaxed   -Msmartalloc   -tp shanghai-64   -Bstatic_pgi

C++ benchmarks:

444.namd:  -Mpfi(pass 1)   -Mpfo(pass 2)   -Mipa=fast(pass 2)   -Mipa=inline(pass 2)   -fastsse   -Munroll=n:4   -Munroll=m:8   -Msmartalloc=huge   -Mnodepchk   -Mfprelaxed   --zc_eh   -tp shanghai-64   -Bstatic_pgi
447.dealII:  -march=barcelona   -Ofast   -static   -INLINE:aggressive=on   -LNO:opt=0   -Wf,-fno-exceptions   -m32   -OPT:unroll_times_max=8   -OPT:unroll_size=256   -OPT:unroll_level=2   -HP:bdt=2m:heap=2m   -GRA:unspill=on   -CG:cmp_peep=on   -TENV:frame_pointer=off
450.soplex:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -INLINE:aggressive=on   -OPT:IEEE_arith=3   -OPT:IEEE_NaN_Inf=off   -OPT:fold_unsigned_relops=on   -OPT:malloc_alg=1   -CG:load_exe=0   -fno-exceptions   -m32   -HP:bdt=2m
453.povray:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -INLINE:aggressive=on   -HP:bdt=2m:heap=2m

Fortran benchmarks:

410.bwaves:  -fastsse   -Msmartalloc   -Mprefetch=nta   -Mfprelaxed   -Mipa=fast   -Mipa=inline   -tp shanghai-64   -Bstatic_pgi
416.gamess:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O2   -OPT:Ofast   -OPT:ro=3   -OPT:unroll_size=256   -HP:bdt=2m:heap=2m
434.zeusmp:  -fastsse   -Mfprelaxed   -Mprefetch=distance:8   -Mprefetch=t0   -Msmartalloc=huge   -Msmartalloc=hugebss   -Mipa=fast   -Mipa=inline   -tp shanghai-64   -Bstatic_pgi
437.leslie3d:  -Mpfi=indirect(pass 1)   -Mpfo=indirect(pass 2)   -Mipa=fast(pass 2)   -Mipa=inline(pass 2)   -fastsse   -Mvect=fuse   -Msmartalloc=huge   -Mprefetch=distance:8   -Mprefetch=t0   -Mfprelaxed   -tp shanghai-64   -Bstatic_pgi
459.GemsFDTD:  -march=barcelona   -Ofast   -LNO:fission=2   -LNO:simd=2   -LNO:prefetch_ahead=1   -CG:load_exe=0   -HP
465.tonto:  -march=barcelona   -Ofast   -OPT:alias=no_f90_pointer_alias   -LNO:blocking=off   -CG:load_exe=1   -IPA:plimit=525   -HP

Benchmarks using both Fortran and C:

435.gromacs:  -march=barcelona   -Ofast   -OPT:rsqrt=2   -HP:bdt=2m:heap=2m
436.cactusADM:  -fastsse   -Mconcur   -Msmartalloc=huge   -Mfprelaxed   -Mipa=fast   -Mipa=inline   -tp shanghai-64   -Bstatic_pgi
454.calculix:  -Mpfi=indirect(pass 1)   -Mpfo=indirect(pass 2)   -Mipa=fast(pass 2)   -Mipa=inline(pass 2)   -fastsse   -Mvect=short   -Msmartalloc=huge   -Mprefetch=t0   -Mpre   -Mfprelaxed   -tp shanghai-64   -Bstatic_pgi
481.wrf:  -fastsse   -Mvect=noaltcode   -Msmartalloc=huge   -Mprefetch=distance:8   -Mfprelaxed   -tp shanghai-64   -Bstatic_pgi

Peak Other Flags

C benchmarks:

 -Mipa=jobs:4(pass 2)

C++ benchmarks:

444.namd:  -Mipa=jobs:4(pass 2)

Fortran benchmarks:

410.bwaves:  -Mipa=jobs:4
434.zeusmp:  -Mipa=jobs:4
437.leslie3d:  -Mipa=jobs:4(pass 2)

Benchmarks using both Fortran and C:

436.cactusADM:  -Mipa=jobs:4
454.calculix:  -Mipa=jobs:4(pass 2)

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/pgi80_linux_flags.html,
http://www.spec.org/cpu2006/flags/amd-platform-amd909gh.20090710.00.html,
http://www.spec.org/cpu2006/flags/x86-open64-4.2.2-flags.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/pgi80_linux_flags.xml,
http://www.spec.org/cpu2006/flags/amd-platform-amd909gh.20090710.00.xml,
http://www.spec.org/cpu2006/flags/x86-open64-4.2.2-flags.xml.

SPEC and SPECfp are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.1.
Report generated on Wed Jul 23 01:21:05 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 23 June 2009.
