SPEC® CINT2006 Result

IBM Corporation

IBM System x iDataPlex dx360 (Intel Xeon E5462)

Hardware
CPU Name:	Intel Xeon E5462
CPU Characteristics:	1600MHz system bus
CPU MHz:	2800
FPU:	Integrated
CPU(s) enabled:	8 cores, 2 chips, 4 cores/chip
CPU(s) orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	12 MB I+D on chip per chip, 6 MB shared / 2 cores
L3 Cache:	None
Other Cache:	None
Memory:	16 GB (8 x 2 GB DDR2-6400F ECC)
Disk Subsystem:	1 x 250 GB SATA, 7200 RPM
Other Hardware:	None

Software
Operating System:	SuSE Linux Enterprise Server 10(x86_64) SP2, Kernel 2.6.16.60-0.21-smp
Compiler:	Intel C++ Compiler 11.0 for Linux Build 20080930 Package ID: l_cproc_p_11.0.066
Auto Parallel:	Yes
File System:	ReiserFS
System State:	Run level 3 (multi-user)
Base Pointers:	32-bit
Peak Pointers:	32/64-bit
Other Software:	Microquill SmartHeap V8.1 Binutils 2.18.50.0.7.20080502

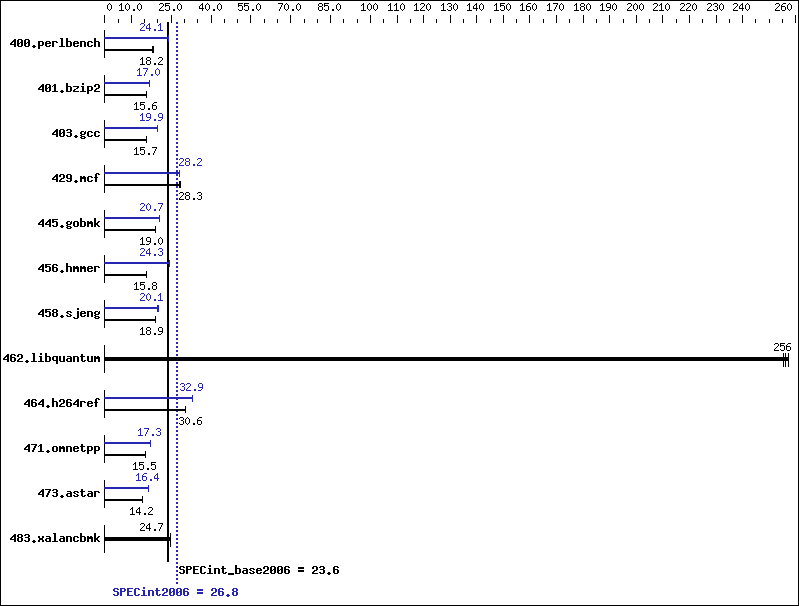

Results Table

Benchmark	Base						Peak
Benchmark	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench	537	18.2	542	18.0	537	18.2	405	24.1	405	24.1	404	24.2
401.bzip2	616	15.7	619	15.6	617	15.6	569	17.0	569	17.0	570	16.9
403.gcc	510	15.8	511	15.7	513	15.7	404	19.9	404	19.9	404	19.9
429.mcf	323	28.2	321	28.4	322	28.3	323	28.3	323	28.2	323	28.2
445.gobmk	552	19.0	552	19.0	553	19.0	508	20.7	507	20.7	508	20.7
456.hmmer	590	15.8	590	15.8	590	15.8	384	24.3	384	24.3	384	24.3
458.sjeng	634	19.1	639	18.9	640	18.9	603	20.1	605	20.0	602	20.1
462.libquantum	80.9	256	80.5	257	81.1	255	80.9	256	80.5	257	81.1	255
464.h264ref	724	30.6	724	30.6	726	30.5	672	32.9	672	32.9	672	32.9
471.omnetpp	404	15.5	406	15.4	404	15.5	360	17.3	360	17.4	360	17.3
473.astar	494	14.2	495	14.2	497	14.1	428	16.4	431	16.3	428	16.4
483.xalancbmk	279	24.7	279	24.7	280	24.6	279	24.7	279	24.7	280	24.6

 Hardware Sector Prefetch Enable and Adjacent Sector Prefetch Enable
 OMP_NUM_THREADS set to number of processors
 KMP_AFFINITY set to "physical,0"

icc

icpc

403.gcc:

	icc
401.bzip2:	/opt/intel/Compiler/11.0/066/bin/intel64/icc
456.hmmer:	/opt/intel/Compiler/11.0/066/bin/intel64/icc

icpc

400.perlbench:	-prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -ansi-alias -opt-prefetch
401.bzip2:	-prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -auto-ilp32 -opt-prefetch -ansi-alias
403.gcc:	-xSSE4.1 -ipo -O3 -no-prec-div -static -inline-calloc -opt-malloc-options=3
429.mcf:	-xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch
445.gobmk:	-prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -O2 -ipo -no-prec-div -ansi-alias
456.hmmer:	-xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias -auto-ilp32
458.sjeng:	-prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll4
462.libquantum:	basepeak = yes
464.h264ref:	-prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias

471.omnetpp:	-prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap
473.astar:	-prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap
483.xalancbmk:	basepeak = yes

403.gcc:
