CPU2006 license: | 4 | Test date: | Apr-2009 |
---|---|---|---|
Test sponsor: | SGI | Hardware Availability: | Mar-2009 |
Tested by: | SGI | Software Availability: | Feb-2009 |
Hardware | |
---|---|
CPU Name: | Intel Xeon X5570 |
CPU Characteristics: | Quad Core, 2.93 GHz Intel Turbo Boost Technology up to 3.33 GHz |
CPU MHz: | 2934 |
FPU: | Integrated |
CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip, 2 threads/core |
CPU(s) orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
L3 Cache: | 8 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 24 GB (6*4GB DDR3-1333 CL9 RDIMMs) |
Disk Subsystem: | 3 TB RAID 0 6 x 500 GB SATA (Seagate Barracuda 7200 rpm) |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SUSE Linux Enterprise Server 10 (x86_64) SP2, Kernel 2.6.16.60-0.30-smp |
Compiler: | Intel C++ and Fortran Compiler 11.0 for Linux Build 20090131 Package ID: l_cproc_p_11.0.080, l_cprof_p_11.0.080 |
Auto Parallel: | Yes |
File System: | xfs |
System State: | Multi-user, run level 3 |
Base Pointers: | 64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | Binutils 2.18.50.0.7.20080502 |

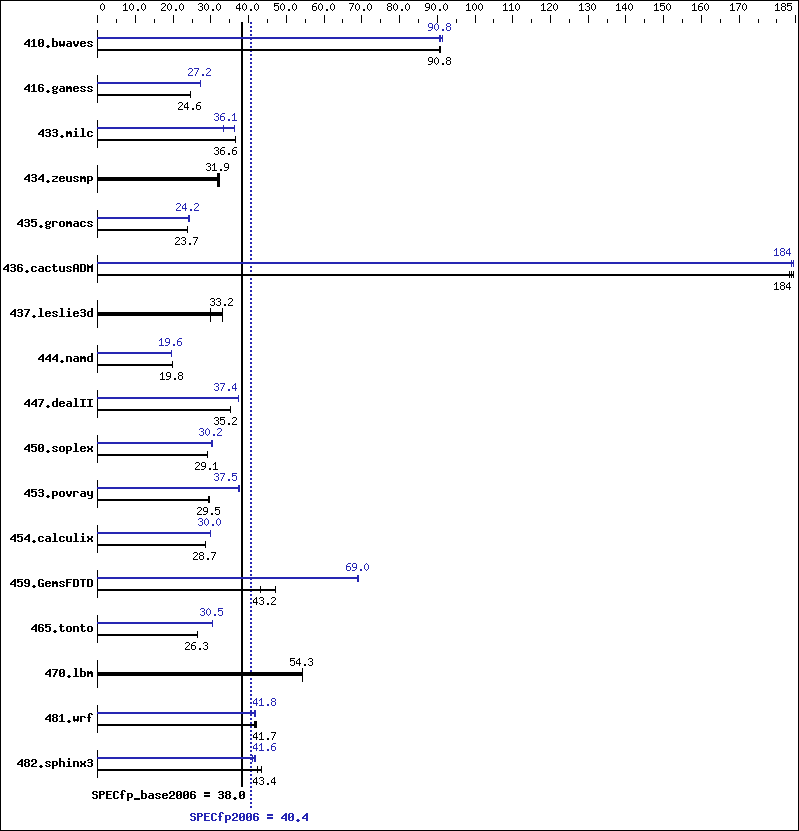

Benchmark | Base | Peak | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
410.bwaves | 150 | 90.8 | 150 | 90.7 | 150 | 90.8 | 150 | 90.7 | 150 | 90.8 | 149 | 91.3 |
416.gamess | 798 | 24.5 | 797 | 24.6 | 797 | 24.6 | 720 | 27.2 | 720 | 27.2 | 721 | 27.2 |
433.milc | 251 | 36.6 | 251 | 36.6 | 251 | 36.6 | 274 | 33.5 | 254 | 36.1 | 254 | 36.1 |
434.zeusmp | 287 | 31.7 | 285 | 31.9 | 282 | 32.3 | 287 | 31.7 | 285 | 31.9 | 282 | 32.3 |
435.gromacs | 301 | 23.7 | 301 | 23.7 | 300 | 23.8 | 295 | 24.2 | 297 | 24.0 | 296 | 24.2 |
436.cactusADM | 65.2 | 183 | 65.0 | 184 | 64.8 | 184 | 64.8 | 184 | 64.8 | 184 | 65.0 | 184 |
437.leslie3d | 283 | 33.2 | 283 | 33.2 | 314 | 30.0 | 283 | 33.2 | 283 | 33.2 | 314 | 30.0 |
444.namd | 405 | 19.8 | 405 | 19.8 | 406 | 19.8 | 409 | 19.6 | 410 | 19.6 | 409 | 19.6 |
447.dealII | 325 | 35.2 | 326 | 35.1 | 325 | 35.2 | 306 | 37.3 | 306 | 37.4 | 306 | 37.4 |
450.soplex | 287 | 29.1 | 287 | 29.1 | 287 | 29.1 | 275 | 30.3 | 277 | 30.2 | 276 | 30.2 |
453.povray | 180 | 29.5 | 180 | 29.5 | 181 | 29.5 | 142 | 37.5 | 143 | 37.3 | 141 | 37.7 |
454.calculix | 289 | 28.5 | 288 | 28.7 | 288 | 28.7 | 275 | 30.0 | 275 | 30.0 | 275 | 29.9 |
459.GemsFDTD | 246 | 43.2 | 246 | 43.1 | 225 | 47.2 | 154 | 68.9 | 154 | 69.0 | 154 | 69.0 |
465.tonto | 374 | 26.3 | 374 | 26.3 | 374 | 26.3 | 323 | 30.5 | 323 | 30.4 | 323 | 30.5 |
470.lbm | 253 | 54.3 | 253 | 54.3 | 253 | 54.3 | 253 | 54.3 | 253 | 54.3 | 253 | 54.3 |
481.wrf | 268 | 41.7 | 268 | 41.6 | 266 | 42.0 | 267 | 41.8 | 267 | 41.9 | 268 | 41.6 |
482.sphinx3 | 449 | 43.4 | 461 | 42.3 | 449 | 43.4 | 468 | 41.6 | 465 | 41.9 | 474 | 41.1 |
SGI ProPack 6 for Linux Service Pack 2 installed Adjacent cacheline prefetch enabled OMP_NUM_THREADS set to number of physical cores KMP_AFFINITY set to "granularity=fine,scatter" KMP_STACKSIZE set to 200M
icc |
icpc |
ifort |
icc ifort |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
450.soplex: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
482.sphinx3: | -DSPEC_CPU_LP64 |
-xSSE4.2 -ipo -O3 -no-prec-div -static -parallel -opt-prefetch |
-xSSE4.2 -ipo -O3 -no-prec-div -static -parallel -opt-prefetch |
-xSSE4.2 -ipo -O3 -no-prec-div -static -parallel -opt-prefetch |
-xSSE4.2 -ipo -O3 -no-prec-div -static -parallel -opt-prefetch |
icc | |
482.sphinx3: | icc -m32 |
icpc | |
450.soplex: | icpc -m32 |
ifort |
icc ifort |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
433.milc: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -fno-alias |
470.lbm: | basepeak = yes |
482.sphinx3: | -xSSE4.2 -ipo -O3 -no-prec-div -static -unroll2 |
444.namd: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -fno-alias -auto-ilp32 |
447.dealII: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias -scalar-rep- -opt-prefetch |
450.soplex: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -opt-malloc-options=3 |
453.povray: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll4 -ansi-alias |
410.bwaves: | -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch -parallel |
416.gamess: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -Ob0 -ansi-alias -scalar-rep- |
434.zeusmp: | basepeak = yes |
437.leslie3d: | basepeak = yes |
459.GemsFDTD: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -Ob0 -opt-prefetch -parallel |
465.tonto: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll4 -auto |
435.gromacs: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -opt-prefetch -auto-ilp32 |
436.cactusADM: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -opt-prefetch -parallel -auto-ilp32 |
454.calculix: | -xSSE4.2 -ipo -O3 -no-prec-div -static -auto-ilp32 |
481.wrf: | -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch -parallel -auto-ilp32 |
