SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

IBM Corporation

IBM Power 520 (4.7 GHz, 4 core)

SPECfp®_rate2006 = 105

CPU2006 license: 11 Test date: Apr-2009
Test sponsor: IBM Corporation Hardware Availability: May-2009
Tested by: IBM Corporation Software Availability: May-2009

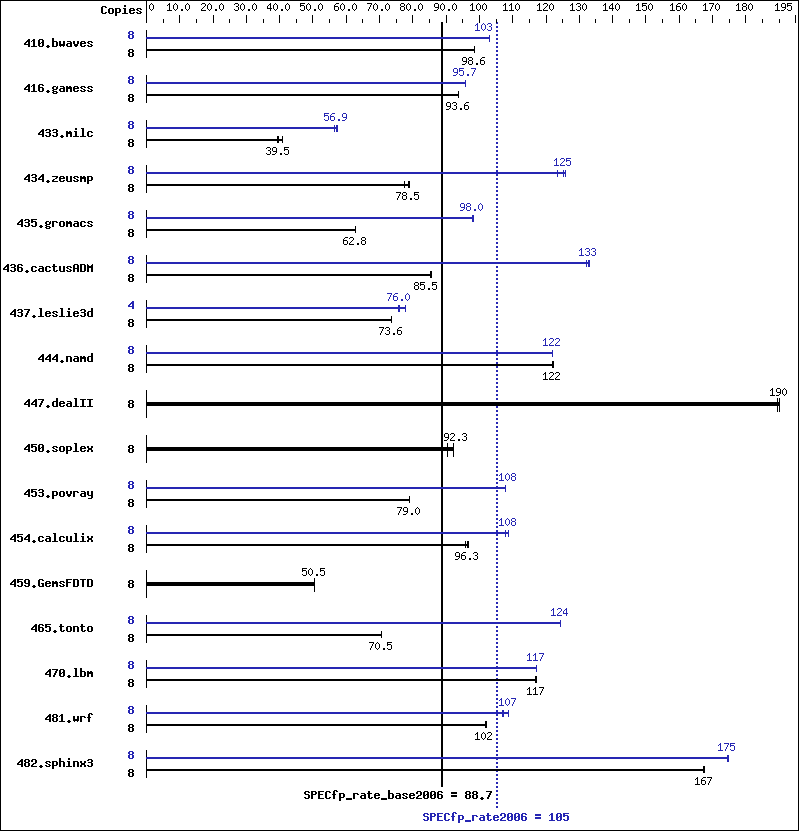

Benchmark results graph
Hardware
CPU Name: POWER6+
CPU Characteristics:
CPU MHz: 4700
FPU: Integrated
CPU(s) enabled: 4 cores, 2 chips, 2 cores/chip, 2 threads/core
CPU(s) orderable: 2,4 cores
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 4 MB I+D on chip per core
L3 Cache: 32 MB I+D off chip per chip
Other Cache: None
Memory: 32 GB (8x4 GB) DDR2 667 MHz
Disk Subsystem: 2x146 GB SAS 15K RPM
Other Hardware: None
Software
Operating System: IBM AIX V6.1
with the 6100-03 Technology Level
Compiler: XL C/C++ Enterprise Edition V10.1.0.2 for AIX
XL Fortran Enterprise Edition V12.1.0.3 for AIX
Auto Parallel: No
File System: AIX/JFS2
System State: Multi-user
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 8 1102 98.6 1102 98.6 1102 98.6 8 1056 103   1056 103   1057 103
416.gamess 8 1673 93.6 1673 93.6 1672 93.7 8 1636 95.7 1635 95.8 1636 95.7
433.milc 8 1858 39.5 1871 39.3 1804 40.7 8 1290 56.9 1299 56.5 1277 57.5
434.zeusmp 8 922 78.9 939 77.5 927 78.5 8 590 123   578 126   581 125
435.gromacs 8 909 62.8 910 62.8 909 62.9 8 583 98.0 582 98.2 583 98.0
436.cactusADM 8 1120 85.4 1118 85.5 1118 85.5 8 724 132   720 133   719 133
437.leslie3d 8 1020 73.7 1022 73.5 1022 73.6 4 497 75.6 483 77.8 495 76.0
444.namd 8 526 122   525 122   526 122   8 526 122   526 122   526 122
447.dealII 8 483 190   482 190   481 190   8 483 190   482 190   481 190
450.soplex 8 723 92.3 723 92.3 738 90.5 8 723 92.3 723 92.3 738 90.5
453.povray 8 539 79.0 539 79.0 539 79.0 8 395 108   395 108   395 108
454.calculix 8 685 96.3 690 95.7 683 96.6 8 606 109   612 108   613 108
459.GemsFDTD 8 1687 50.3 1682 50.5 1679 50.6 8 1687 50.3 1682 50.5 1679 50.6
465.tonto 8 1116 70.5 1116 70.5 1116 70.6 8 633 124   633 124   632 124
470.lbm 8 940 117   939 117   940 117   8 939 117   939 117   939 117
481.wrf 8 878 102   876 102   877 102   8 822 109   834 107   836 107
482.sphinx3 8 931 168   931 167   932 167   8 893 175   894 174   893 175

Peak Tuning Notes

 fdpr binary optimization tool used for 410.bwaves
  with options -bf -bp -ece -lap -las -nop -nopr -pto
  -RC -RD -rmte -so -tlo -A 64 -lu 6 -rt 0.10 -ihf 60
  -sdpla 32 -sdpms 32 -shci 10 -si -siht 15 -lun 32
 fdpr binary optimization tool used for 433.milc
 435.gromacs 437.leslie3d 453.povray
 454.calculix 481.wrf 482.sphinx3
  with options -O4 -vrox -pbsi
 fdpr binary optimization tool used for 434.zeusmp 470.lbm
  with options -O3 -vrox -sdp 9

Submit Notes

 The config file option 'submit' was used
 to assign benchmark copy to specific kernel thread using
 the "bindprocessor" command (see flags file for details).

Operating System Notes

 all ulimits set to unlimited.
 1000 16M large pages defined with vmo command

Platform Notes

 System set to "Enhanced" mode when defining partition on HMC.

General Notes

Environment variables set by runspec before the start of the run:
MALLOCOPTIONS = "pool"
MEMORY_AFFINITY = "MCM"
XLFRTEOPTS = "intrinthds=1"

 See the flags file for details on settings.

Base Compiler Invocation

C benchmarks:

 /usr/vac/bin/xlc   -qlanglvl=extc99

C++ benchmarks:

 /usr/vacpp/bin/xlC

Fortran benchmarks:

 /usr/bin/xlf95

Benchmarks using both Fortran and C:

 /usr/vac/bin/xlc   -qlanglvl=extc99   /usr/bin/xlf95

Base Portability Flags

410.bwaves:  -qfixed
416.gamess:  -qfixed
434.zeusmp:  -qfixed
435.gromacs:  -qfixed   -qextname
436.cactusADM:  -qfixed   -qextname
437.leslie3d:  -qfixed
454.calculix:  -qfixed   -qextname
481.wrf:  -DSPEC_CPU_AIX   -DNOUNDERSCORE
482.sphinx3:  -qchars=signed

Base Optimization Flags

C benchmarks:

 -bmaxdata:0x40000000   -O5   -qlargepage   -D_ILS_MACROS   -blpdata

C++ benchmarks:

 -bmaxdata:0x50000000   -O5   -qlargepage   -D_ILS_MACROS   -qrtti=all   -D__IBM_FAST_VECTOR   -D__IBM_FAST_SET_MAP_ITERATOR   -blpdata

Fortran benchmarks:

 -bmaxdata:0x60000000   -O5   -qlargepage   -qsmallstack=dynlenonheap   -qalias=nostd   -blpdata

Benchmarks using both Fortran and C:

 -bmaxdata:0x60000000   -O5   -qlargepage   -D_ILS_MACROS   -qsmallstack=dynlenonheap   -qalias=nostd   -blpdata

Base Other Flags

C benchmarks:

 -qipa=threads   -qipa=noobject   -qsuppress=1500-036

C++ benchmarks:

 -qipa=threads   -qipa=noobject   -qsuppress=1500-036

Fortran benchmarks:

 -qipa=threads   -qipa=noobject   -qsuppress=1500-010   -qsuppress=cmpmsg   -qsuppress=1500-036

Benchmarks using both Fortran and C:

 -qipa=threads   -qipa=noobject   -qsuppress=1500-010   -qsuppress=cmpmsg   -qsuppress=1500-036

Peak Compiler Invocation

C benchmarks:

 /usr/vac/bin/xlc   -qlanglvl=extc99

C++ benchmarks:

 /usr/vacpp/bin/xlC

Fortran benchmarks:

 /usr/bin/xlf95

Benchmarks using both Fortran and C:

 /usr/vac/bin/xlc   -qlanglvl=extc99   /usr/bin/xlf95

Peak Portability Flags

410.bwaves:  -qfixed
416.gamess:  -qfixed
434.zeusmp:  -qfixed
435.gromacs:  -qfixed   -qextname
436.cactusADM:  -qfixed   -qextname
437.leslie3d:  -qfixed
454.calculix:  -qfixed   -qextname
481.wrf:  -DSPEC_CPU_AIX   -DNOUNDERSCORE
482.sphinx3:  -qchars=signed

Peak Optimization Flags

C benchmarks:

433.milc:  -bmaxdata:0x40000000   -O5   -qlargepage   -D_ILS_MACROS   -qalign=natural   -qfdpr   -blpdata
470.lbm:  -qpdf1(pass 1)   -qpdf2(pass 2)   -O3   -qarch=auto   -qtune=auto   -qlargepage   -q64   -D_ILS_MACROS   -qfdpr   -blpdata
482.sphinx3:  -qpdf1(pass 1)   -qpdf2(pass 2)   -O4   -qlargepage   -D_ILS_MACROS   -qfdpr   -blpdata

C++ benchmarks:

444.namd:  -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qlargepage   -D_ILS_MACROS   -blpdata
447.dealII:  basepeak = yes
450.soplex:  basepeak = yes
453.povray:  -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -D_ILS_MACROS   -qalign=natural   -qfdpr   -btextpsize:64K

Fortran benchmarks:

410.bwaves:  -bmaxdata:0x50000000   -O5   -qlargepage   -qenablevmx   -qvecnvol   -qfdpr   -qsmallstack=dynlenonheap   -blpdata
416.gamess:  -bmaxdata:0x40000000   -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qlargepage   -qalias=nostd   -blpdata
434.zeusmp:  -bmaxdata:0x40000000   -qpdf1(pass 1)   -qpdf2(pass 2)   -O3   -qarch=auto   -qtune=auto   -qlargepage   -qenablevmx   -qvecnvol   -qxlf90=nosignedzero   -qfdpr   -blpdata
437.leslie3d:  -O5   -qlargepage   -qenablevmx   -qvecnvol   -qfdpr   -blpdata
459.GemsFDTD:  basepeak = yes
465.tonto:  -bmaxdata:0x50000000   -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -bdatapsize:64K   -bstackpsize:64K   -btextpsize:64K

Benchmarks using both Fortran and C:

435.gromacs:  -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -D_ILS_MACROS   -qfdpr
436.cactusADM:  -bmaxdata:0x60000000   -qpdf1(pass 1)   -qpdf2(pass 2)   -O2   -qarch=auto   -qtune=auto   -qenablevmx   -qvecnvol   -D_ILS_MACROS   -qfdpr   -qnostrict   -bdatapsize:64K   -bstackpsize:64K   -btextpsize:64K
454.calculix:  -O4   -qlargepage   -q64   -D_ILS_MACROS   -qfdpr   -blpdata
481.wrf:  -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qlargepage   -q64   -D_ILS_MACROS   -qfdpr   -blpdata

Peak Other Flags

C benchmarks:

 -qipa=threads   -qipa=noobject   -qsuppress=1500-036

C++ benchmarks:

 -qipa=threads   -qipa=noobject   -qsuppress=1500-036

Fortran benchmarks:

 -qipa=threads   -qipa=noobject   -qsuppress=1500-010   -qsuppress=cmpmsg   -qsuppress=1500-036

Benchmarks using both Fortran and C:

 -qipa=threads   -qipa=noobject   -qsuppress=1500-010   -qsuppress=cmpmsg   -qsuppress=1500-036

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/IBM-XL.html,
http://www.spec.org/cpu2006/flags/IBM-AIX.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/IBM-XL.xml,
http://www.spec.org/cpu2006/flags/IBM-AIX.xml.
