CPU2006 license: | 19 | Test date: | Feb-2009 |
---|---|---|---|
Test sponsor: | Fujitsu | Hardware Availability: | May-2009 |
Tested by: | Fujitsu | Software Availability: | Feb-2009 |
Hardware | |
---|---|
CPU Name: | Intel Xeon E5506 |
CPU Characteristics: | |
CPU MHz: | 2133 |
FPU: | Integrated |
CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
CPU(s) orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
L3 Cache: | 4 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 36 GB (9x4 GB PC3-10600R, 2 rank, CL9-9-9, ECC, see add'l detail in notes) |
Disk Subsystem: | 1 x SAS, 73 GB, 10000 RPM |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SUSE Linux Enterprise Server 10 (x86_64) SP2, Kernel 2.6.16.60-0.21-smp |
Compiler: | Intel C++ and Fortran Compiler 11.0 for Linux Build 20090131 Package ID: l_cproc_p_11.0.080, l_cprof_p_11.0.080 |
Auto Parallel: | No |
File System: | ext3 |
System State: | Multi-User Run Level 3 |
Base Pointers: | 64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | Binutils 2.18.50.0.7.20080502 |

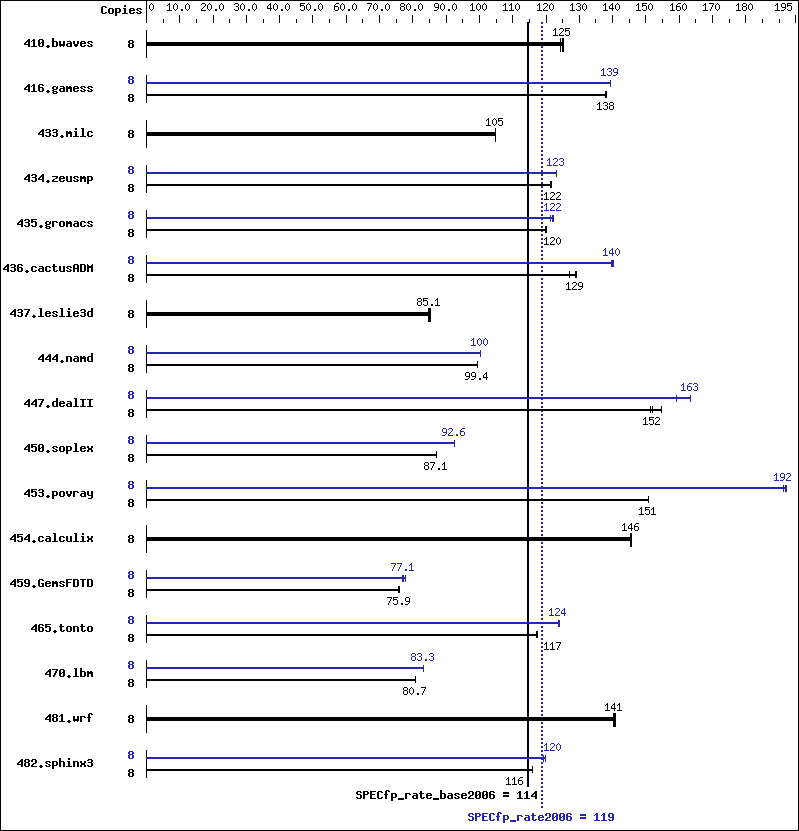

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
410.bwaves | 8 | 874 | 124 | 869 | 125 | 870 | 125 | 8 | 874 | 124 | 869 | 125 | 870 | 125 |
416.gamess | 8 | 1134 | 138 | 1135 | 138 | 1135 | 138 | 8 | 1123 | 139 | 1125 | 139 | 1124 | 139 |
433.milc | 8 | 701 | 105 | 701 | 105 | 702 | 105 | 8 | 701 | 105 | 701 | 105 | 702 | 105 |
434.zeusmp | 8 | 598 | 122 | 599 | 122 | 600 | 121 | 8 | 591 | 123 | 591 | 123 | 591 | 123 |
435.gromacs | 8 | 476 | 120 | 477 | 120 | 476 | 120 | 8 | 467 | 122 | 469 | 122 | 470 | 121 |
436.cactusADM | 8 | 741 | 129 | 753 | 127 | 740 | 129 | 8 | 685 | 140 | 682 | 140 | 683 | 140 |
437.leslie3d | 8 | 884 | 85.1 | 882 | 85.3 | 887 | 84.8 | 8 | 884 | 85.1 | 882 | 85.3 | 887 | 84.8 |
444.namd | 8 | 645 | 99.4 | 646 | 99.3 | 645 | 99.5 | 8 | 639 | 100 | 639 | 100 | 639 | 100 |
447.dealII | 8 | 592 | 155 | 604 | 151 | 602 | 152 | 8 | 560 | 163 | 574 | 159 | 560 | 163 |
450.soplex | 8 | 766 | 87.1 | 765 | 87.2 | 766 | 87.1 | 8 | 721 | 92.6 | 721 | 92.6 | 722 | 92.5 |
453.povray | 8 | 282 | 151 | 282 | 151 | 282 | 151 | 8 | 223 | 191 | 222 | 192 | 221 | 192 |
454.calculix | 8 | 454 | 146 | 453 | 146 | 454 | 145 | 8 | 454 | 146 | 453 | 146 | 454 | 145 |
459.GemsFDTD | 8 | 1118 | 75.9 | 1119 | 75.8 | 1118 | 75.9 | 8 | 1093 | 77.6 | 1101 | 77.1 | 1103 | 77.0 |
465.tonto | 8 | 671 | 117 | 670 | 117 | 672 | 117 | 8 | 634 | 124 | 636 | 124 | 637 | 124 |
470.lbm | 8 | 1361 | 80.7 | 1362 | 80.7 | 1362 | 80.7 | 8 | 1319 | 83.3 | 1319 | 83.3 | 1319 | 83.3 |
481.wrf | 8 | 635 | 141 | 637 | 140 | 635 | 141 | 8 | 635 | 141 | 637 | 140 | 635 | 141 |
482.sphinx3 | 8 | 1344 | 116 | 1345 | 116 | 1344 | 116 | 8 | 1302 | 120 | 1301 | 120 | 1306 | 119 |
The config file option 'submit' was used. numactl was used to bind copies to the cores
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
The system automatically configures the memory to run at 800 MHz.
For information about Fujitsu please visit: http://www.fujitsu.com
icc |
icpc |
ifort |
icc ifort |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
450.soplex: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
482.sphinx3: | -DSPEC_CPU_LP64 |
-xSSE4.2 -ipo -O3 -no-prec-div -static |
-xSSE4.2 -ipo -O3 -no-prec-div -static |
-xSSE4.2 -ipo -O3 -no-prec-div -static |
-xSSE4.2 -ipo -O3 -no-prec-div -static |
icc | |
482.sphinx3: | icc -m32 |
icpc | |
450.soplex: | icpc -m32 |
ifort |
icc ifort |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
433.milc: | basepeak = yes |
470.lbm: | -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch -auto-ilp32 |
482.sphinx3: | -xSSE4.2 -ipo -O3 -no-prec-div -static -unroll2 |
444.namd: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -fno-alias -auto-ilp32 |
447.dealII: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias -scalar-rep- |
450.soplex: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -opt-malloc-options=3 |
453.povray: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll4 -ansi-alias |
410.bwaves: | basepeak = yes |
416.gamess: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -Ob0 -ansi-alias -scalar-rep- |
434.zeusmp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) |
437.leslie3d: | basepeak = yes |
459.GemsFDTD: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -Ob0 -opt-prefetch |
465.tonto: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll4 -auto |
435.gromacs: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -opt-prefetch -auto-ilp32 |
436.cactusADM: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -opt-prefetch -auto-ilp32 |
454.calculix: | basepeak = yes |
481.wrf: | basepeak = yes |
