CPU2006 license: | 001176 | Test date: | Feb-2009 |
---|---|---|---|
Test sponsor: | Supermicro | Hardware Availability: | Nov-2008 |
Tested by: | Supermicro | Software Availability: | Nov-2008 |
Hardware | |
---|---|
CPU Name: | Intel Xeon E5440 |
CPU Characteristics: | Quad Core, 2.83 GHz, 1333 MHz System Bus |
CPU MHz: | 2833 |
FPU: | Integrated |
CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
CPU(s) orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
L3 Cache: | None |
Other Cache: | None |
Memory: | 16 GB (8 x 2GB DDR2-667 ECC Reg CL5, FBDIMM) |
Disk Subsystem: | 80 GB SATA, 7200RPM |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SuSE Linux Enterprise Server 10 (x86_64) SP2, Kernel 2.6.16.60-0.21-smp |
Compiler: | Intel C++ and Fortran Compiler 11.0 for Linux Build 20080930 Package ID: l_cproc_p_11.0.066, l_cprof_p_11.0.066 |
Auto Parallel: | Yes |
File System: | ReiserFS |
System State: | Run level 3 (multi-user) |
Base Pointers: | 64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | Binutils 2.18.50.0.7.20080502 |

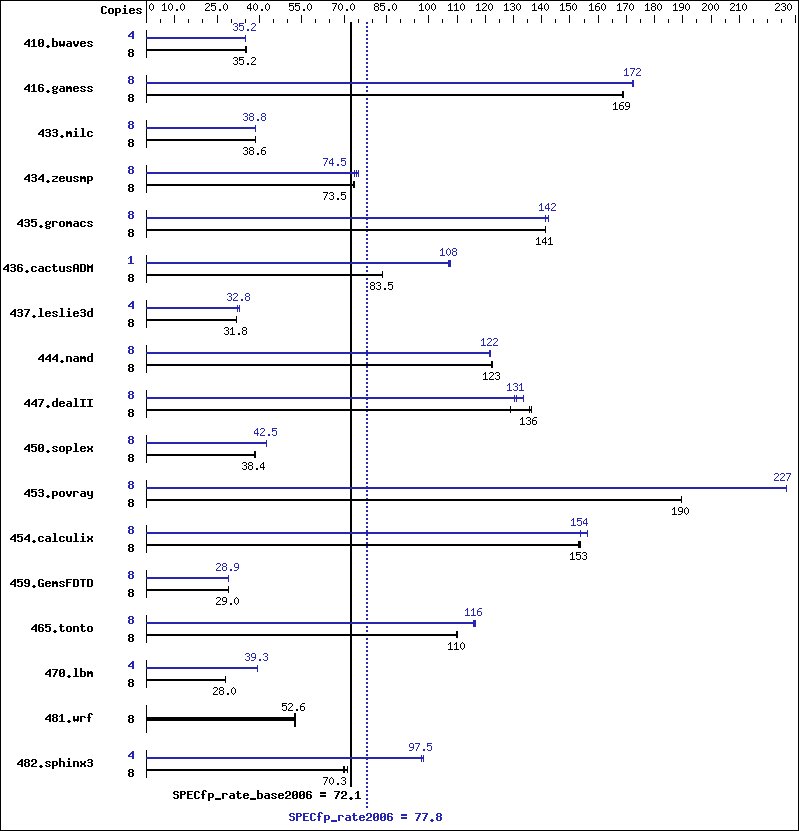

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
410.bwaves | 8 | 3072 | 35.4 | 3085 | 35.2 | 3086 | 35.2 | 4 | 1545 | 35.2 | 1545 | 35.2 | 1544 | 35.2 |
416.gamess | 8 | 928 | 169 | 929 | 169 | 930 | 168 | 8 | 908 | 173 | 909 | 172 | 909 | 172 |
433.milc | 8 | 1900 | 38.6 | 1900 | 38.6 | 1901 | 38.6 | 8 | 1894 | 38.8 | 1894 | 38.8 | 1895 | 38.8 |
434.zeusmp | 8 | 991 | 73.5 | 991 | 73.5 | 989 | 73.6 | 8 | 977 | 74.5 | 989 | 73.6 | 971 | 74.9 |
435.gromacs | 8 | 404 | 141 | 405 | 141 | 404 | 141 | 8 | 404 | 141 | 401 | 142 | 401 | 143 |
436.cactusADM | 8 | 1146 | 83.4 | 1145 | 83.5 | 1144 | 83.5 | 1 | 112 | 107 | 111 | 108 | 111 | 108 |
437.leslie3d | 8 | 2361 | 31.8 | 2368 | 31.8 | 2371 | 31.7 | 4 | 1147 | 32.8 | 1143 | 32.9 | 1170 | 32.1 |
444.namd | 8 | 524 | 123 | 524 | 122 | 523 | 123 | 8 | 526 | 122 | 526 | 122 | 527 | 122 |
447.dealII | 8 | 674 | 136 | 709 | 129 | 671 | 136 | 8 | 685 | 134 | 702 | 130 | 699 | 131 |
450.soplex | 8 | 1736 | 38.4 | 1737 | 38.4 | 1732 | 38.5 | 8 | 1570 | 42.5 | 1571 | 42.5 | 1567 | 42.6 |
453.povray | 8 | 225 | 189 | 224 | 190 | 225 | 190 | 8 | 188 | 227 | 188 | 227 | 188 | 227 |
454.calculix | 8 | 430 | 154 | 431 | 153 | 430 | 153 | 8 | 429 | 154 | 429 | 154 | 422 | 156 |
459.GemsFDTD | 8 | 2924 | 29.0 | 2922 | 29.1 | 2926 | 29.0 | 8 | 2933 | 28.9 | 2934 | 28.9 | 2934 | 28.9 |
465.tonto | 8 | 716 | 110 | 715 | 110 | 713 | 110 | 8 | 679 | 116 | 678 | 116 | 675 | 117 |
470.lbm | 8 | 3931 | 28.0 | 3931 | 28.0 | 3930 | 28.0 | 4 | 1398 | 39.3 | 1397 | 39.3 | 1397 | 39.3 |
481.wrf | 8 | 1705 | 52.4 | 1690 | 52.9 | 1700 | 52.6 | 8 | 1705 | 52.4 | 1690 | 52.9 | 1700 | 52.6 |
482.sphinx3 | 8 | 2219 | 70.3 | 2190 | 71.2 | 2235 | 69.8 | 4 | 796 | 98.0 | 800 | 97.5 | 800 | 97.4 |
The config file option 'submit' was used. taskset was used to bind processes to cores except for 436.cactusADM peak
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
OMP_NUM_THREADS set to number of processors KMP_AFFINITY set to "physical,0" KMP_STACKSIZE set to 64M Hardware Prefetcher = disabled (Default = enabled) Tested system can be used with CSE-161M-320B. To ensure system stability, SBE-710E-D28 - Enclosure chassis with two 1400W power supplies are required. Products description can be obtained at http://www.supermicro.com/servers/blade/module/SBI-7125B-T1.cfm http://www.supermicro.com/servers/blade/enclosure/
icc |
icpc |
ifort |
icc ifort |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
450.soplex: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
482.sphinx3: | -DSPEC_CPU_LP64 |
-xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch |
-xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch |
-xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch |
-xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch |
icc | |
482.sphinx3: | icc -m32 |
icpc | |
450.soplex: | icpc -m32 |
ifort | |
437.leslie3d: | ifort -m32 |
icc ifort |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
433.milc: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -fno-alias |
470.lbm: | -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch -auto-ilp32 |
482.sphinx3: | -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 |
444.namd: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -fno-alias -auto-ilp32 |
447.dealII: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias -scalar-rep- |
450.soplex: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-malloc-options=3 |
453.povray: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll4 -ansi-alias |
410.bwaves: | -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch |
416.gamess: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -Ob0 -ansi-alias -scalar-rep- |
434.zeusmp: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static |
437.leslie3d: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-malloc-options=3 -opt-prefetch |
459.GemsFDTD: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -Ob0 -opt-prefetch |
465.tonto: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll4 -auto |
435.gromacs: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch -auto-ilp32 |
436.cactusADM: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -opt-prefetch -parallel -auto-ilp32 |
454.calculix: | -xSSE4.1 -ipo -O3 -no-prec-div -static -auto-ilp32 |
481.wrf: | basepeak = yes |
