| CPU2006 license: | 55 | Test date: | Mar-2009 |
|---|---|---|---|
| Test sponsor: | Dell Inc. | Hardware Availability: | Apr-2009 |
| Tested by: | Dell Inc. | Software Availability: | Feb-2009 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon W5580 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.46 GHz |
| CPU MHz: | 3200 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 8 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 24 GB (6x4 GB DDR3-1333R, ECC, CL9) |
| Disk Subsystem: | 1 x 146 GB SAS 15000 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Windows Vista Business SP1 (64-bit) |
| Compiler: | Intel C++ Compiler for IA-32, Version 11.0 Build 20090131 Package ID: w_cproc_p_11.0.072 Microsoft Visual Studio 2008 SP1 |
| Auto Parallel: | Yes |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32-bit |
| Other Software: | MicroQuill SmartHeap Library 8.1 |

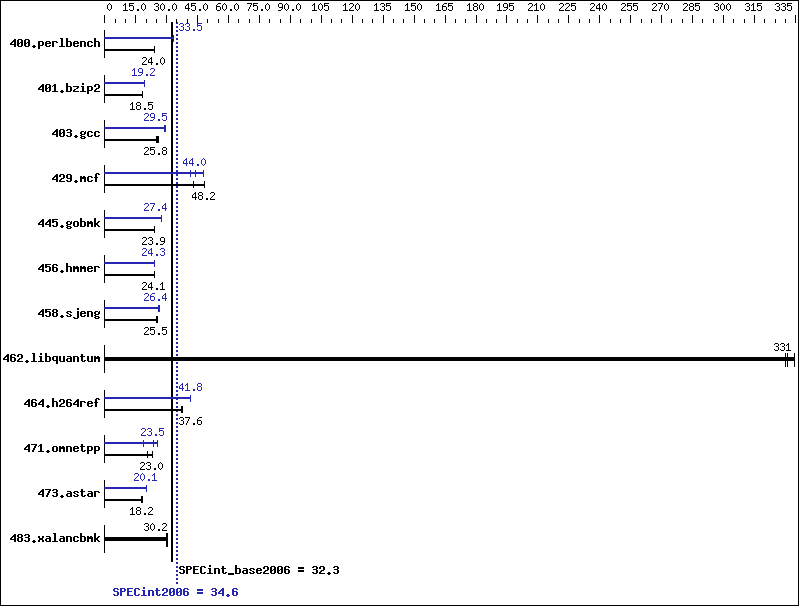

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 406 | 24.1 | 407 | 24.0 | 407 | 24.0 | 291 | 33.5 | 291 | 33.5 | 291 | 33.5 |
| 401.bzip2 | 522 | 18.5 | 522 | 18.5 | 522 | 18.5 | 502 | 19.2 | 501 | 19.3 | 502 | 19.2 |
| 403.gcc | 319 | 25.3 | 312 | 25.8 | 310 | 26.0 | 278 | 28.9 | 272 | 29.6 | 273 | 29.5 |
| 429.mcf | 213 | 42.9 | 189 | 48.2 | 188 | 48.4 | 207 | 44.0 | 190 | 48.1 | 220 | 41.5 |
| 445.gobmk | 438 | 23.9 | 438 | 23.9 | 438 | 24.0 | 385 | 27.3 | 382 | 27.4 | 382 | 27.4 |
| 456.hmmer | 388 | 24.1 | 387 | 24.1 | 388 | 24.1 | 384 | 24.3 | 383 | 24.3 | 384 | 24.3 |
| 458.sjeng | 487 | 24.9 | 475 | 25.5 | 475 | 25.5 | 458 | 26.4 | 456 | 26.6 | 462 | 26.2 |
| 462.libquantum | 62.8 | 330 | 62.0 | 334 | 62.6 | 331 | 62.8 | 330 | 62.0 | 334 | 62.6 | 331 |
| 464.h264ref | 592 | 37.4 | 589 | 37.6 | 589 | 37.6 | 530 | 41.8 | 529 | 41.8 | 531 | 41.7 |
| 471.omnetpp | 272 | 23.0 | 304 | 20.6 | 272 | 23.0 | 266 | 23.5 | 247 | 25.4 | 333 | 18.8 |
| 473.astar | 387 | 18.2 | 391 | 18.0 | 386 | 18.2 | 349 | 20.1 | 349 | 20.1 | 349 | 20.1 |
| 483.xalancbmk | 229 | 30.2 | 230 | 30.0 | 228 | 30.2 | 229 | 30.2 | 230 | 30.0 | 228 | 30.2 |
Platform Notes
BIOS Settings Memory Node Interleaving set to NUMA.
General Notes
Binaries were built on Windows Vista Business (64-bit)
Base Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DSPEC_CPU_NO_INTTYPES -DWIN32 |
| 483.xalancbmk: | -Qoption,cpp,--no_wchar_t_keyword |
Base Optimization Flags
C benchmarks:
| -QxSSE4.2 -Qipo -O3 -Qprec-div- -Qopt-prefetch -Qparallel -Qpar-runtime-control -Qvec-guard-write /F512000000 |
C++ benchmarks:
| -QxSSE4.2 -Qipo -O3 -Qprec-div- -Qopt-prefetch -Qcxx_features /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
Peak Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DSPEC_CPU_NO_INTTYPES -DWIN32 |
| 483.xalancbmk: | -Qoption,cpp,--no_wchar_t_keyword |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -Qprof_gen(pass 1) -QxSSE4.2 -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-prefetch /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 401.bzip2: | -Qprof_gen(pass 1) -QxSSE4.2(pass 2) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-prefetch /F512000000 |
| 403.gcc: | -Qprof_gen(pass 1) -QxSSE4.2 -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- /F512000000 |
| 429.mcf: | -QxSSE4.2 -Qipo -O3 -Qprec-div- -Qopt-prefetch /F512000000 |
| 445.gobmk: | -Qprof_gen(pass 1) -QxSSE4.2(pass 2) -Qprof_use(pass 2) -Qipo -O2 -Qprec-div- -Qansi-alias /F512000000 |
| 456.hmmer: | -QxSSE4.2 -Qipo -O3 -Qprec-div- -Qunroll2 -Qansi-alias /F512000000 |
| 458.sjeng: | -Qprof_gen(pass 1) -QxSSE4.2(pass 2) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll4 /F512000000 |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | -Qprof_gen(pass 1) -QxSSE4.2(pass 2) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll2 -Qansi-alias /F512000000 |
C++ benchmarks:
| 471.omnetpp: | -Qprof_gen(pass 1) -QxSSE4.2(pass 2) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-ra-region-strategy=block /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 473.astar: | -Qprof_gen(pass 1) -QxSSE4.2(pass 2) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-ra-region-strategy=routine /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 483.xalancbmk: | basepeak = yes |
