SPEC® CFP2006 Result

Dell Inc.

PowerEdge M905 (AMD Opteron 8374 HE, 2.20 GHz)

SPECfp®2006 = 19.5

SPECfp_base2006 = 15.6

CPU2006 license:	55	Test date:	Dec-2008
Test sponsor:	Dell Inc.	Hardware Availability:	Feb-2009
Tested by:	Dell Inc.	Software Availability:	Oct-2008

Hardware
CPU Name:	AMD Opteron 8374 HE
CPU Characteristics:
CPU MHz:	2200
FPU:	Integrated
CPU(s) enabled:	16 cores, 4 chips, 4 cores/chip
CPU(s) orderable:	4 chips
Primary Cache:	64 KB I + 64 KB D on chip per core
Secondary Cache:	512 KB I+D on chip per core
L3 Cache:	6 MB I+D on chip per chip
Other Cache:	None
Memory:	64 GB (16 x 4 GB DDR2-800)
Disk Subsystem:	1 x 73 GB 10000 RPM SAS
Other Hardware:	None

Software
Operating System:	SUSE Linux Enterprise Server 10 (x86_64) SP2, Kernel 2.6.16.60-0.21-smp
Compiler:	PGI Server Complete Version 7.2 PathScale Compiler Suite Version 3.2
Auto Parallel:	Yes
File System:	ReiserFS
System State:	Run level 3 (multi-user)
Base Pointers:	64-bit
Peak Pointers:	32/64-bit
Other Software:	binutils 2.18 32-bit and 64-bit libhugetlbfs libraries

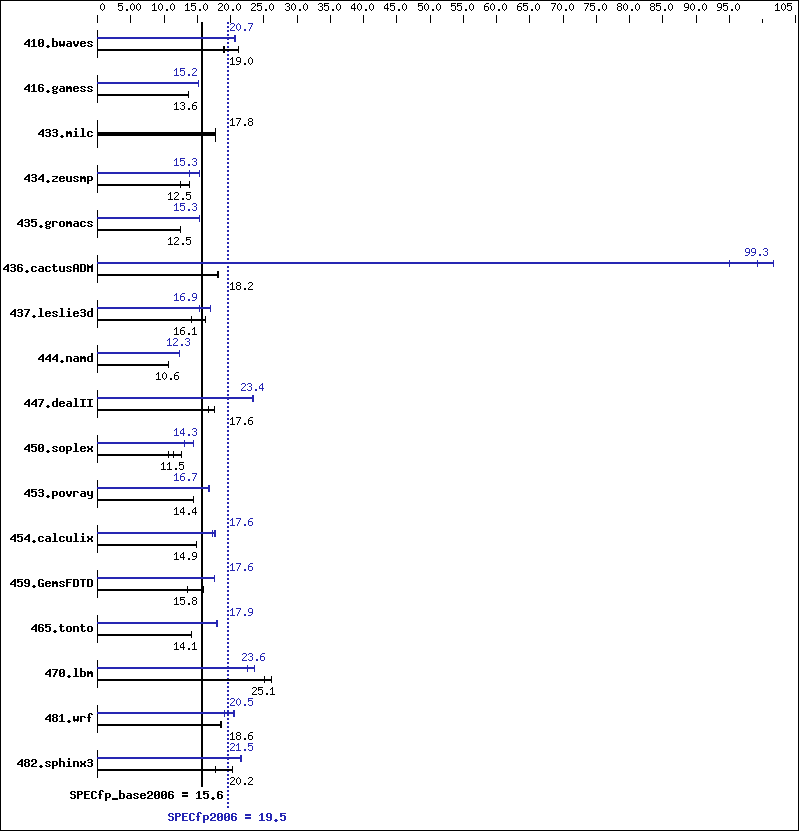

Results Table

Benchmark	Base						Peak
Benchmark	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves	640	21.2	715	19.0	718	18.9	659	20.6	655	20.8	657	20.7
416.gamess	1436	13.6	1436	13.6	1435	13.6	1287	15.2	1286	15.2	1288	15.2
433.milc	517	17.8	517	17.8	517	17.8	517	17.8	517	17.8	517	17.8
434.zeusmp	657	13.8	727	12.5	727	12.5	593	15.3	658	13.8	595	15.3
435.gromacs	573	12.5	573	12.5	574	12.4	466	15.3	466	15.3	467	15.3
436.cactusADM	658	18.2	661	18.1	656	18.2	126	95.0	120	99.3	118	102
437.leslie3d	664	14.2	581	16.2	582	16.1	556	16.9	614	15.3	556	16.9
444.namd	758	10.6	758	10.6	758	10.6	654	12.3	654	12.3	654	12.3
447.dealII	649	17.6	689	16.6	650	17.6	490	23.3	490	23.4	489	23.4
450.soplex	727	11.5	658	12.7	783	10.7	643	13.0	580	14.4	582	14.3
453.povray	369	14.4	369	14.4	370	14.4	318	16.7	317	16.8	319	16.7
454.calculix	555	14.9	555	14.9	554	14.9	468	17.6	476	17.3	464	17.8
459.GemsFDTD	671	15.8	789	13.4	667	15.9	605	17.6	602	17.6	602	17.6
465.tonto	696	14.1	695	14.2	696	14.1	549	17.9	548	18.0	549	17.9
470.lbm	549	25.0	548	25.1	526	26.1	583	23.6	610	22.5	583	23.6
481.wrf	602	18.6	602	18.6	604	18.5	543	20.6	585	19.1	546	20.5
482.sphinx3	1097	17.8	965	20.2	963	20.2	905	21.5	906	21.5	904	21.6

Submit Notes

The config file option 'submit' was used.
 'numactl' was used to bind copies to the cores

Operating System Notes

 The libhugetlbfs libraries were installed using the
 installation rpms that came with the distribution.

 'ulimit -s unlimited' was used to set environment stack size
 'ulimit -l 2097152'  was used to set environment locked pages in memory limit

 Set vm/nr_hugepages=14336 in /etc/sysctl.conf
 mount -t hugetlbfs nodev /mnt/hugepages

General Notes

Environment variables set by runspec before the start of the run:
HUGETLB_MORECORE = "yes"
LD_LIBRARY_PATH = "/root/cpu2006-1.1/amd909gh-libs/64:/root/cpu2006-1.1/amd909gh-libs/32"
NCPUS = "8"

Base Compiler Invocation

C benchmarks:

pgcc

C++ benchmarks:

pgcpp

Fortran benchmarks:

pgf95

Benchmarks using both Fortran and C:

pgcc pgf95

Base Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
433.milc:	-DSPEC_CPU_LP64
434.zeusmp:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64 -Mnomain
436.cactusADM:	-DSPEC_CPU_LP64 -Mnomain
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
447.dealII:	-DSPEC_CPU_LP64
450.soplex:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64 -Mnomain
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
470.lbm:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX
482.sphinx3:	-DSPEC_CPU_LP64

Base Optimization Flags

Base Other Flags

C benchmarks:

-Mipa=jobs:4

C++ benchmarks:

-Mipa=jobs:4

Fortran benchmarks:

-Mipa=jobs:4

Benchmarks using both Fortran and C:

-Mipa=jobs:4

Peak Compiler Invocation

C benchmarks:

pgcc

C++ benchmarks (except as noted below):

	pathCC
444.namd:	pgcpp

Fortran benchmarks (except as noted below):

	pathf95
410.bwaves:	pgf95
434.zeusmp:	pgf95
437.leslie3d:	pgf95

Benchmarks using both Fortran and C (except as noted below):

	pgcc pgf95
435.gromacs:	pathcc pathf95
481.wrf:	pathcc pathf95

Peak Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
433.milc:	-DSPEC_CPU_LP64
434.zeusmp:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64
436.cactusADM:	-DSPEC_CPU_LP64 -Mnomain
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64 -Mnomain
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
470.lbm:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX -fno-second-underscore
482.sphinx3:	-DSPEC_CPU_LP64

Peak Optimization Flags

C benchmarks:

433.milc:	basepeak = yes
470.lbm:	-Mvect=cachesize:6291456 -fastsse -Msmartalloc=huge -Mprefetch=t0 -Mloop32 -Mfprelaxed -Mipa=fast -Mipa=inline -tp barcelona-64 -Bstatic_pgi
482.sphinx3:	-Mpfi=indirect(pass 1) -Mpfo=indirect(pass 2) -Mipa=fast(pass 2) -Mipa=inline(pass 2) -Mvect=cachesize:6291456 -fastsse -Mfprelaxed -Msmartalloc -tp barcelona-64 -Bstatic_pgi

C++ benchmarks:

444.namd:	-Mpfi(pass 1) -Mpfo(pass 2) -Mipa=fast(pass 2) -Mipa=inline(pass 2) -Mvect=cachesize:6291456 -fastsse -Munroll=n:4 -Munroll=m:8 -Msmartalloc=huge -Mnodepchk -Mfprelaxed --zc_eh -tp barcelona-64 -Bstatic_pgi
447.dealII:	-march=barcelona -Ofast -static -INLINE:aggressive=on -fno-exceptions -m32
450.soplex:	-march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -L/usr/lib -lhugetlbfs(pass 2) -O3 -INLINE:aggressive=on -OPT:IEEE_arith=3 -OPT:IEEE_NaN_Inf=off -OPT:fold_unsigned_relops=on -OPT:malloc_alg=1 -CG:load_exe=0 -fno-exceptions -m32
453.povray:	-march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -INLINE:aggressive=on

Fortran benchmarks:

410.bwaves:	-Mvect=cachesize:6291456 -fastsse -Msmartalloc -Mprefetch=nta -Mfprelaxed -Mipa=fast -Mipa=inline -tp barcelona-64 -Bstatic_pgi
416.gamess:	-march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Wl,-T/usr/share/libhugetlbfs/ldscripts/elf_x86_64.xBDT(pass 2) -L/usr/lib64 -lhugetlbfs(pass 2) -O2 -OPT:Ofast -OPT:ro=3 -OPT:unroll_size=256
434.zeusmp:	-Mvect=cachesize:6291456 -fastsse -Mfprelaxed -Mprefetch=distance:8 -Mprefetch=t0 -Msmartalloc=huge -Msmartalloc=hugebss -Mipa=fast -Mipa=inline -tp barcelona-64 -Bstatic_pgi
437.leslie3d:	-Mpfi=indirect(pass 1) -Mpfo=indirect(pass 2) -Mipa=fast(pass 2) -Mipa=inline(pass 2) -Mvect=cachesize:6291456 -fastsse -Mvect=fuse -Msmartalloc=huge -Mprefetch=distance:8 -Mprefetch=t0 -Mfprelaxed -tp barcelona-64 -Bstatic_pgi
459.GemsFDTD:	-march=barcelona -Ofast -LNO:fission=2 -LNO:simd=2 -LNO:prefetch_ahead=1 -CG:load_exe=0 -CG:prefer_lru_reg=off -OPT:malloc_alg=1 -Wl,-T/usr/share/libhugetlbfs/ldscripts/elf_x86_64.xBDT -L/usr/lib64 -lhugetlbfs
465.tonto:	-march=barcelona -Ofast -OPT:alias=no_f90_pointer_alias -LNO:blocking=off -CG:load_exe=1 -IPA:plimit=525 -OPT:malloc_alg=1 -Wl,-T/usr/share/libhugetlbfs/ldscripts/elf_x86_64.xBDT -L/usr/lib64 -lhugetlbfs

Benchmarks using both Fortran and C:

435.gromacs:	-march=barcelona -Ofast -OPT:rsqrt=2 -OPT:malloc_alg=1 -Wl,-T/usr/share/libhugetlbfs/ldscripts/elf_x86_64.xBDT -L/usr/lib64 -lhugetlbfs
436.cactusADM:	-Mvect=cachesize:6291456 -fastsse -Mconcur -Msmartalloc=huge -Mfprelaxed -Mipa=fast -Mipa=inline -tp barcelona-64 -Bstatic_pgi
454.calculix:	-Mpfi=indirect(pass 1) -Mpfo=indirect(pass 2) -Mipa=fast(pass 2) -Mipa=inline(pass 2) -Mvect=cachesize:6291456 -fastsse -Msmartalloc=huge -Mprefetch=t0 -Mpre -Mfprelaxed -tp barcelona-64 -Bstatic_pgi
481.wrf:	-march=barcelona -Ofast -LNO:blocking=off -LNO:prefetch_ahead=10 -LANG:copyinout=off -IPA:callee_limit=5000 -GRA:prioritize_by_density=on -OPT:malloc_alg=1 -m3dnow -Wl,-T/usr/share/libhugetlbfs/ldscripts/elf_x86_64.xBDT -L/usr/lib64 -lhugetlbfs

Peak Other Flags

C benchmarks:

-Mipa=jobs:4(pass 2)

C++ benchmarks:

444.namd:

-Mipa=jobs:4(pass 2)

Fortran benchmarks (except as noted below):

	-Mipa=jobs:4(pass 2)
416.gamess:	No flags used
459.GemsFDTD:	No flags used
465.tonto:	No flags used

Benchmarks using both Fortran and C (except as noted below):

	-Mipa=jobs:4(pass 2)
435.gromacs:	No flags used
481.wrf:	No flags used

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/pgi72_linux_flags.20090713.html,
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090710.html,
http://www.spec.org/cpu2006/flags/amd-platform-amd909gh.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/pgi72_linux_flags.20090713.xml,
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090710.xml,
http://www.spec.org/cpu2006/flags/amd-platform-amd909gh.xml.
