| CPU2006 license: | 9006 | Test date: | Dec-2008 |
|---|---|---|---|
| Test sponsor: | NEC Corporation | Hardware Availability: | Dec-2008 |
| Tested by: | NEC Corporation | Software Availability: | Nov-2008 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5205 |
| CPU Characteristics: | 1066 MHz system bus |
| CPU MHz: | 1867 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 2 chips, 2 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 6 MB I+D on chip per chip |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 16 GB (8x2 GB PC2-5300F, 2 rank, CL5-5-5, ECC) |
| Disk Subsystem: | 1x73.2 GB SAS, 10000 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 10 (x86_64) SP2, Kernel 2.6.16.60-0.21-smp |
| Compiler: | Intel C++ Compiler 11.0 for Linux Build 20081105 Package ID: l_cproc_p_11.0.074 |
| Auto Parallel: | Yes |
| File System: | ReiserFS |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | MicroQuill SmartHeap Library 8.1 Binutils 2.18.50.0.7.20080502 |

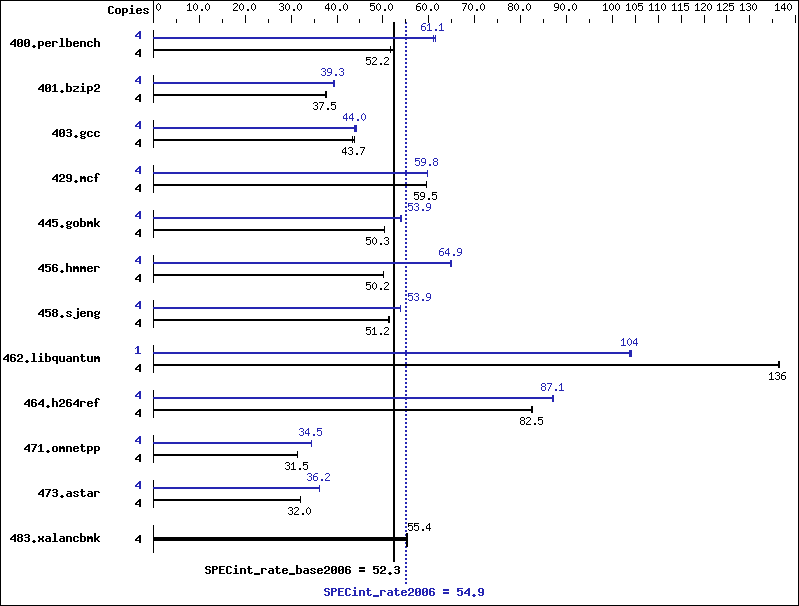

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 4 | 747 | 52.3 | 756 | 51.7 | 748 | 52.2 | 4 | 640 | 61.1 | 637 | 61.4 | 641 | 61.0 |
| 401.bzip2 | 4 | 1024 | 37.7 | 1028 | 37.5 | 1031 | 37.4 | 4 | 982 | 39.3 | 981 | 39.3 | 976 | 39.5 |
| 403.gcc | 4 | 741 | 43.5 | 736 | 43.7 | 734 | 43.9 | 4 | 729 | 44.2 | 732 | 44.0 | 734 | 43.9 |
| 429.mcf | 4 | 613 | 59.5 | 613 | 59.5 | 612 | 59.6 | 4 | 610 | 59.8 | 611 | 59.7 | 610 | 59.8 |
| 445.gobmk | 4 | 834 | 50.3 | 832 | 50.4 | 834 | 50.3 | 4 | 778 | 53.9 | 776 | 54.0 | 779 | 53.9 |
| 456.hmmer | 4 | 744 | 50.2 | 743 | 50.2 | 743 | 50.2 | 4 | 575 | 64.9 | 575 | 64.9 | 576 | 64.8 |
| 458.sjeng | 4 | 943 | 51.3 | 946 | 51.2 | 945 | 51.2 | 4 | 899 | 53.8 | 899 | 53.9 | 898 | 53.9 |
| 462.libquantum | 4 | 608 | 136 | 608 | 136 | 607 | 136 | 1 | 199 | 104 | 200 | 104 | 199 | 104 |
| 464.h264ref | 4 | 1072 | 82.5 | 1073 | 82.5 | 1072 | 82.6 | 4 | 1016 | 87.1 | 1016 | 87.1 | 1016 | 87.1 |
| 471.omnetpp | 4 | 794 | 31.5 | 794 | 31.5 | 794 | 31.5 | 4 | 724 | 34.5 | 724 | 34.5 | 725 | 34.5 |
| 473.astar | 4 | 877 | 32.0 | 877 | 32.0 | 879 | 31.9 | 4 | 776 | 36.2 | 776 | 36.2 | 777 | 36.1 |
| 483.xalancbmk | 4 | 498 | 55.4 | 500 | 55.2 | 498 | 55.4 | 4 | 498 | 55.4 | 500 | 55.2 | 498 | 55.4 |
Submit Notes
The config file option 'submit' was used. taskset was used to bind processes to cores except for 462.libquantum peak
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run OMP_NUM_THREADS set to number of cores KMP_AFFINITY set to "physical,0" KMP_STACKSIZE set to 64M
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.1 -ipo -O3 -no-prec-div -static -inline-calloc -opt-malloc-options=3 -opt-prefetch |
C++ benchmarks:
| -xSSE4.1 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/opt/SmartHeap_8.1/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -ansi-alias -opt-prefetch |
| 401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch -ansi-alias |
| 403.gcc: | -xSSE4.1 -ipo -O3 -no-prec-div -static -inline-calloc -opt-malloc-options=3 |
| 429.mcf: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll4 |
| 462.libquantum: | -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-malloc-options=3 -parallel -par-runtime-control -opt-prefetch |
| 464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/opt/SmartHeap_8.1/lib -lsmartheap |
| 473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/opt/SmartHeap_8.1/lib -lsmartheap |
| 483.xalancbmk: | basepeak = yes |
