| CPU2006 license: | 9013 | Test date: | Dec-2008 |
|---|---|---|---|
| Test sponsor: | NTT System S. A. | Hardware Availability: | Dec-2008 |
| Tested by: | NTT System S. A. | Software Availability: | Dec-2008 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X3360 |
| CPU Characteristics: | 2.83 GHz, 2x6 MB P2 shared, 1333 MHz System Bus |
| CPU MHz: | 2833 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 8 GB (4x2GB) |
| Disk Subsystem: | 400 GB SATA, 7200RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SuSe Linux SLES10 SP1, Kernel 2.6.16.60-0.21-smp |
| Compiler: | Intel C++ Compiler 11.0 for Linux Build 20080930 Package ID: l_cproc_p_11.0.066 |
| Auto Parallel: | Yes |
| File System: | ReiserFS |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V8.1 Binutils 2.18.50.0.7.20080502 |

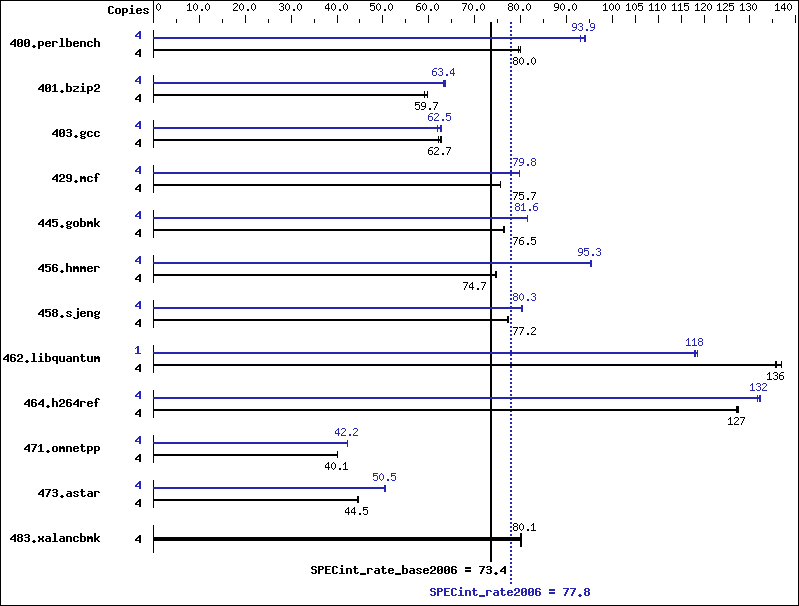

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 4 | 492 | 79.5 | 489 | 80.0 | 489 | 80.0 | 4 | 420 | 93.1 | 416 | 93.9 | 415 | 94.1 |
| 401.bzip2 | 4 | 654 | 59.0 | 647 | 59.7 | 645 | 59.8 | 4 | 611 | 63.2 | 607 | 63.6 | 608 | 63.4 |
| 403.gcc | 4 | 518 | 62.2 | 513 | 62.7 | 514 | 62.7 | 4 | 520 | 61.9 | 514 | 62.7 | 516 | 62.5 |
| 429.mcf | 4 | 483 | 75.6 | 482 | 75.7 | 482 | 75.7 | 4 | 457 | 79.8 | 457 | 79.8 | 458 | 79.7 |
| 445.gobmk | 4 | 549 | 76.5 | 549 | 76.4 | 549 | 76.5 | 4 | 515 | 81.6 | 514 | 81.6 | 515 | 81.5 |
| 456.hmmer | 4 | 500 | 74.7 | 500 | 74.7 | 500 | 74.6 | 4 | 391 | 95.3 | 392 | 95.2 | 391 | 95.5 |
| 458.sjeng | 4 | 627 | 77.2 | 626 | 77.3 | 628 | 77.1 | 4 | 603 | 80.3 | 602 | 80.4 | 603 | 80.2 |
| 462.libquantum | 4 | 611 | 136 | 610 | 136 | 606 | 137 | 1 | 175 | 118 | 175 | 119 | 176 | 118 |
| 464.h264ref | 4 | 697 | 127 | 695 | 127 | 694 | 128 | 4 | 673 | 132 | 671 | 132 | 669 | 132 |
| 471.omnetpp | 4 | 623 | 40.1 | 624 | 40.1 | 624 | 40.1 | 4 | 592 | 42.2 | 592 | 42.2 | 592 | 42.2 |
| 473.astar | 4 | 631 | 44.5 | 632 | 44.5 | 630 | 44.6 | 4 | 555 | 50.6 | 556 | 50.5 | 557 | 50.4 |
| 483.xalancbmk | 4 | 345 | 80.0 | 345 | 80.1 | 344 | 80.2 | 4 | 345 | 80.0 | 345 | 80.1 | 344 | 80.2 |
Submit Notes
The config file option 'submit' was used. taskset was used to bind processes to cores except for 462.libquantum peak OMP_NUM_THREADS set to number of processors KMP_AFFINITY set to "physical,0" KMP_STACKSIZE set to 64M
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSSE3 -ipo -O3 -no-prec-div -static -inline-calloc -opt-malloc-options=3 -opt-prefetch |
C++ benchmarks:
| -xSSSE3 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc | |
| 401.bzip2: | /opt/intel/Compiler/11.0/066/bin/intel64/icc |
| 456.hmmer: | /opt/intel/Compiler/11.0/066/bin/intel64/icc |
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -xSSSE3 -ipo -O3 -no-prec-div -static -ansi-alias -opt-prefetch |
| 401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -xSSSE3 -ipo -O3 -no-prec-div -static -opt-prefetch -ansi-alias |
| 403.gcc: | -xSSSE3 -ipo -O3 -no-prec-div -static -inline-calloc -opt-malloc-options=3 |
| 429.mcf: | -prof-gen(pass 1) -prof-use(pass 2) -xSSSE3 -ipo -O3 -no-prec-div -static -opt-prefetch |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xSSSE3 -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -xSSSE3 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -xSSSE3 -ipo -O3 -no-prec-div -static -unroll4 |
| 462.libquantum: | -xSSSE3 -ipo -O3 -no-prec-div -static -opt-malloc-options=3 -parallel -par-runtime-control -opt-prefetch |
| 464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -xSSSE3 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xSSSE3 -ipo -O3 -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
| 473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -xSSSE3 -ipo -O3 -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
| 483.xalancbmk: | basepeak = yes |
