SPEC® CINT2006 Result

IBM Corporation

IBM BladeCenter LS42 (AMD Opteron 8380)

SPECint®_rate2006 = 227

SPECint_rate_base2006 = 188

CPU2006 license:	11	Test date:	Nov-2008
Test sponsor:	IBM Corporation	Hardware Availability:	Nov-2008
Tested by:	IBM Corporation	Software Availability:	Jun-2008

Hardware
CPU Name:	AMD Opteron 8380
CPU Characteristics:
CPU MHz:	2500
FPU:	Integrated
CPU(s) enabled:	16 cores, 4 chips, 4 cores/chip
CPU(s) orderable:	1,2,3,4 chips
Primary Cache:	64 KB I + 64 KB D on chip per core
Secondary Cache:	512 KB I+D on chip per core
L3 Cache:	6 MB I+D on chip per chip
Other Cache:	None
Memory:	64 GB (16 x 4 GB DDR2-6400 ECC)
Disk Subsystem:	1 x 73 GB SAS, 10000 RPM
Other Hardware:	None

Software
Operating System:	SuSE Linux Enterprise Server 10 (x86_64) SP2, Kernel 2.6.16.60-0.21-smp
Compiler:	PGI Server Complete Version 7.2 PathScale Compiler Suite Version 3.2
Auto Parallel:	No
File System:	ReiserFS
System State:	Run level 3 (Full multiuser with network)
Base Pointers:	32/64-bit
Peak Pointers:	32/64-bit
Other Software:	binutils 2.18 32-bit and 64-bit libhugetlbfs libraries SmartHeap 8.1 32-bit Library for Linux

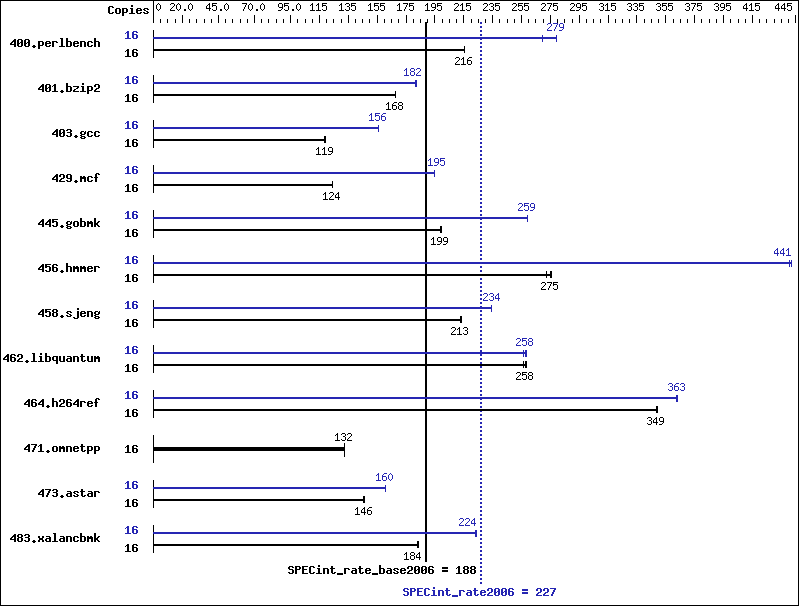

Results Table

Benchmark	Base							Peak
Benchmark	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench	16	725	216	726	215	725	216	16	559	279	581	269	560	279
401.bzip2	16	921	168	922	168	920	168	16	846	183	849	182	847	182
403.gcc	16	1078	119	1085	119	1080	119	16	825	156	827	156	828	156
429.mcf	16	1176	124	1175	124	1175	124	16	750	195	749	195	750	195
445.gobmk	16	842	199	843	199	843	199	16	648	259	648	259	648	259
456.hmmer	16	548	272	543	275	542	275	16	338	442	339	441	339	441
458.sjeng	16	910	213	908	213	910	213	16	826	235	828	234	827	234
462.libquantum	16	1292	257	1287	258	1281	259	16	1282	259	1286	258	1293	256
464.h264ref	16	1016	348	1016	349	1014	349	16	976	363	976	363	975	363
471.omnetpp	16	757	132	756	132	756	132	16	757	132	756	132	756	132
473.astar	16	769	146	770	146	768	146	16	699	161	700	160	700	160
483.xalancbmk	16	601	184	603	183	601	184	16	493	224	493	224	494	223

Submit Notes

The config file option 'submit' was used.
 'numactl' was used to bind copies to the cores

General Notes

 The libhugetlbfs libraries were installed using the
 installation rpms that came with the distribution.

 'ulimit -s unlimited' was used to set environment stack size
 'ulimit -l 2097152'  was used to set environment locked pages in memory limit

 Set vm/nr_hugepages=14336 in /etc/sysctl.conf
 mount -t hugetlbfs nodev /mnt/hugepages

Environment variables set by runspec before the start of the run:
HUGETLB_MORECORE = "yes"
LD_LIBRARY_PATH = "/cpu2006/amd909gh-libs/64:/cpu2006/amd909gh-libs/32"

Processor Performance States Disabled in BIOS
Memory ChipKill Disabled in BIOS

Base Compiler Invocation

C benchmarks:

pgcc

C++ benchmarks:

pgcpp

Base Portability Flags

400.perlbench:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64
401.bzip2:	-DSPEC_CPU_LP64
403.gcc:	-DSPEC_CPU_LP64
429.mcf:	-DSPEC_CPU_LP64
445.gobmk:	-DSPEC_CPU_LP64
456.hmmer:	-DSPEC_CPU_LP64
458.sjeng:	-DSPEC_CPU_LP64
462.libquantum:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX
464.h264ref:	-DSPEC_CPU_LP64
483.xalancbmk:	-DSPEC_CPU_LINUX

Base Other Flags

C benchmarks:

-Mipa=jobs:4

C++ benchmarks:

-Mipa=jobs:4

Peak Compiler Invocation

C benchmarks (except as noted below):

	pathcc
456.hmmer:	pgcc
462.libquantum:	pgcc

C++ benchmarks (except as noted below):

	pgcpp
483.xalancbmk:	pathCC

Peak Portability Flags

400.perlbench:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64
401.bzip2:	-DSPEC_CPU_LP64
445.gobmk:	-DSPEC_CPU_LP64
456.hmmer:	-DSPEC_CPU_LP64
458.sjeng:	-DSPEC_CPU_LP64
462.libquantum:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX
464.h264ref:	-DSPEC_CPU_LP64
483.xalancbmk:	-DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:	-march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Wl,-T/usr/share/libhugetlbfs/ldscripts/elf_x86_64.xBDT(pass 2) -L/usr/lib64 -lhugetlbfs(pass 2) -Ofast -IPA:plimit=20000 -IPA:field_reorder=on -LNO:opt=0 -WOPT:if_conv=0 -CG:local_sched_alg=1
401.bzip2:	-march=barcelona -O3 -OPT:alias=disjoint -OPT:Ofast -OPT:goto=off -INLINE:aggressive=on -CG:local_sched_alg=1 -m3dnow -Wl,-T/usr/share/libhugetlbfs/ldscripts/elf_x86_64.xBDT -L/usr/lib64 -lhugetlbfs
403.gcc:	-march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -OPT:malloc_alg=1 -LNO:trip_count=256 -LNO:prefetch_ahead=10 -CG:prefer_lru_reg=off -m32
429.mcf:	-march=barcelona -O3 -ipa -INLINE:aggressive=on -CG:gcm=off -GRA:prioritize_by_density=on -m32 -L/usr/lib -lhugetlbfs
445.gobmk:	-march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Wl,-T/usr/share/libhugetlbfs/ldscripts/elf_x86_64.xBDT(pass 2) -L/usr/lib64 -lhugetlbfs(pass 2) -O3 -OPT:alias=restrict -LNO:prefetch=1 -LNO:ignore_feedback=off -CG:p2align=on
456.hmmer:	-Mvect=cachesize:6291456 -fastsse -Mvect=partial -Munroll=n:8 -Msmartalloc=huge -Msafeptr -Mprefetch=t0 -Mfprelaxed -Mipa=const -Mipa=ptr -Mipa=arg -Mipa=inline -tp barcelona-64 -Bstatic_pgi
458.sjeng:	-march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Wl,-T/usr/share/libhugetlbfs/ldscripts/elf_x86_64.xBDT(pass 2) -L/usr/lib64 -lhugetlbfs(pass 2) -O3 -ipa -LNO:ignore_feedback=off -LNO:full_unroll=10 -LNO:fusion=0 -LNO:fission=2 -IPA:pu_reorder=2 -CG:ptr_load_use=0 -OPT:unroll_times_max=8 -INLINE:aggressive=on
462.libquantum:	-Mvect=cachesize:6291456 -fastsse -Munroll=m:8 -Msmartalloc=huge -Mprefetch=distance:4 -Mfprelaxed -Mipa=fast -Mipa=inline -Mipa=noarg -tp barcelona-64 -Bstatic_pgi
464.h264ref:	-march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Wl,-T/usr/share/libhugetlbfs/ldscripts/elf_x86_64.xBDT(pass 2) -L/usr/lib64 -lhugetlbfs(pass 2) -O3 -IPA:plimit=20000 -OPT:alias=disjoint -LNO:prefetch=0 -CG:ptr_load_use=0 -CG:push_pop_int_saved_regs=off -CG:prefer_lru_reg=off

C++ benchmarks:

471.omnetpp:	basepeak = yes
473.astar:	-Mpfi(pass 1) -Mpfo(pass 2) -Mipa=fast(pass 2) -Mipa=inline:6(pass 2) -Mvect=cachesize:6291456 -fastsse -O4 -Msmartalloc=huge -Msafeptr=global -Mfprelaxed --zc_eh -tp barcelona-32 -Bstatic_pgi
483.xalancbmk:	-march=barcelona -Ofast -INLINE:aggressive=on -m32 -L/root/work/libraries/SmartHeap_8.1/lib -lsmartheap

Peak Other Flags

C benchmarks:

456.hmmer:	-Mipa=jobs:4
462.libquantum:	-Mipa=jobs:4

C++ benchmarks (except as noted below):

	-Mipa=jobs:4(pass 2)
483.xalancbmk:	No flags used

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/pgi72_linux_flags.html,
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090710.html,
http://www.spec.org/cpu2006/flags/amd-platform-amd909gh.20090713.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/pgi72_linux_flags.xml,
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090710.xml,
http://www.spec.org/cpu2006/flags/amd-platform-amd909gh.20090713.xml.
