CPU2006 license: | 9008 | Test date: | Nov-2008 |
---|---|---|---|
Test sponsor: | ACTION S.A. | Hardware Availability: | Jan-2008 |
Tested by: | ACTION S.A. | Software Availability: | Nov-2008 |
Hardware | |
---|---|
CPU Name: | Intel Xeon X3330 |
CPU Characteristics: | 2.66 GHz, 1333 MHz System Bus |
CPU MHz: | 2660 |
FPU: | Integrated |
CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip |
CPU(s) orderable: | 1 chip |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 6 MB I+D on chip per chip, 3 MB shared / 2 cores |
L3 Cache: | None |
Other Cache: | None |
Memory: | 8 GB (4x 2 GB DDR2 ECC, PC-6400) |
Disk Subsystem: | 1x 500 GB SATA, 7200 RPM |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SuSe Linux Enterprise Server (x86_64) SP2, Kernel 2.6.16.60-0.21-smp |
Compiler: | Intel C++ and Fortran Compiler 11.0 for Linux Build 20080730 Package ID: l_cproc_b_11.0.042, l_cprof_b_11.0.042 |
Auto Parallel: | Yes |
File System: | ReiserFS |
System State: | Run level 3 (multi-user) |
Base Pointers: | 64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | Binutils 2.18.50.0.7.20080502 |

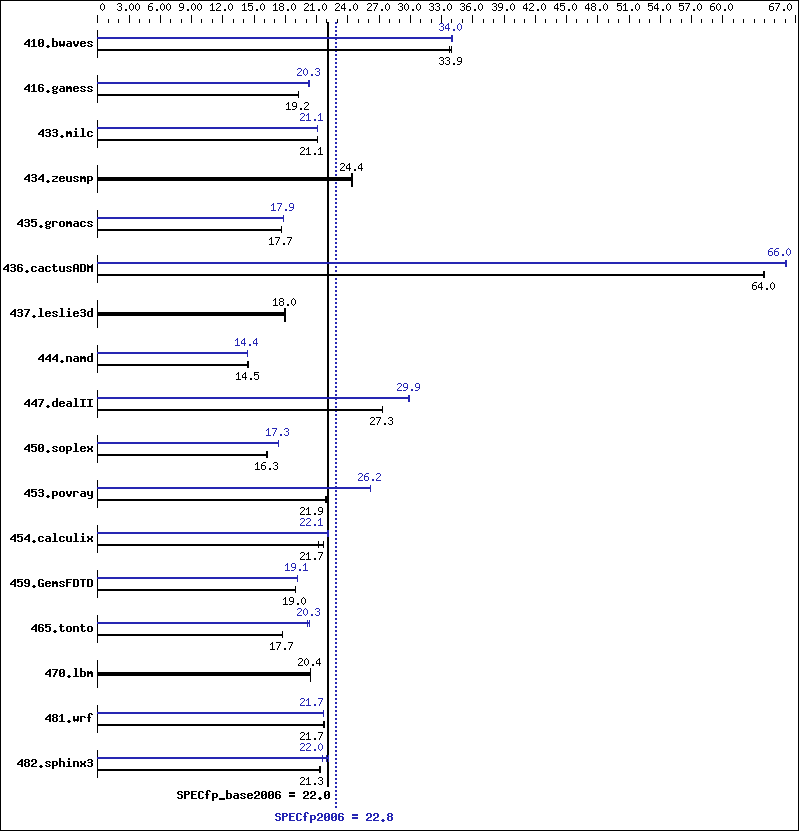

Benchmark | Base | Peak | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
410.bwaves | 401 | 33.9 | 400 | 34.0 | 402 | 33.8 | 401 | 33.9 | 399 | 34.0 | 400 | 34.0 |
416.gamess | 1016 | 19.3 | 1017 | 19.2 | 1017 | 19.2 | 964 | 20.3 | 966 | 20.3 | 964 | 20.3 |
433.milc | 434 | 21.1 | 435 | 21.1 | 435 | 21.1 | 435 | 21.1 | 436 | 21.1 | 436 | 21.1 |
434.zeusmp | 373 | 24.4 | 372 | 24.4 | 372 | 24.5 | 373 | 24.4 | 372 | 24.4 | 372 | 24.5 |
435.gromacs | 404 | 17.7 | 406 | 17.6 | 404 | 17.7 | 400 | 17.8 | 400 | 17.9 | 400 | 17.9 |
436.cactusADM | 187 | 64.0 | 187 | 64.0 | 187 | 63.9 | 181 | 66.0 | 181 | 66.2 | 181 | 66.0 |
437.leslie3d | 522 | 18.0 | 522 | 18.0 | 524 | 18.0 | 522 | 18.0 | 522 | 18.0 | 524 | 18.0 |
444.namd | 553 | 14.5 | 556 | 14.4 | 553 | 14.5 | 557 | 14.4 | 557 | 14.4 | 557 | 14.4 |
447.dealII | 419 | 27.3 | 419 | 27.3 | 418 | 27.3 | 382 | 29.9 | 382 | 30.0 | 383 | 29.9 |
450.soplex | 511 | 16.3 | 513 | 16.3 | 514 | 16.2 | 482 | 17.3 | 480 | 17.4 | 481 | 17.3 |
453.povray | 243 | 21.9 | 244 | 21.8 | 243 | 21.9 | 203 | 26.2 | 203 | 26.2 | 203 | 26.2 |
454.calculix | 380 | 21.7 | 381 | 21.7 | 390 | 21.2 | 373 | 22.1 | 373 | 22.1 | 373 | 22.1 |
459.GemsFDTD | 559 | 19.0 | 558 | 19.0 | 559 | 19.0 | 555 | 19.1 | 554 | 19.2 | 555 | 19.1 |
465.tonto | 554 | 17.8 | 555 | 17.7 | 556 | 17.7 | 489 | 20.1 | 484 | 20.3 | 485 | 20.3 |
470.lbm | 673 | 20.4 | 673 | 20.4 | 674 | 20.4 | 673 | 20.4 | 673 | 20.4 | 674 | 20.4 |
481.wrf | 516 | 21.7 | 514 | 21.7 | 514 | 21.7 | 515 | 21.7 | 515 | 21.7 | 515 | 21.7 |
482.sphinx3 | 914 | 21.3 | 912 | 21.4 | 915 | 21.3 | 886 | 22.0 | 882 | 22.1 | 903 | 21.6 |
OMP_NUM_THREADS set to number of processors KMP_AFFINITY set to "physical,0" KMP_STACKSIZE set to 200M TASKSET command was used to bind processes to CPUs.
icc |
icpc |
ifort |
icc ifort |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
450.soplex: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
482.sphinx3: | -DSPEC_CPU_LP64 |
-xSSE4.1 -ipo -O3 -no-prec-div -static -parallel -opt-prefetch |
-xSSE4.1 -ipo -O3 -no-prec-div -static -parallel -opt-prefetch |
-xSSE4.1 -ipo -O3 -no-prec-div -static -parallel -opt-prefetch |
-xSSE4.1 -ipo -O3 -no-prec-div -static -parallel -opt-prefetch |
icc | |
482.sphinx3: | /opt/intel/Compiler/11.0/042/bin/ia32/icc -L/opt/intel/Compiler/11.0/042/ipp/ia32/lib -I/opt/intel/Compiler/11.0/042/ipp/ia32/include |
icpc | |
450.soplex: | /opt/intel/Compiler/11.0/042/bin/ia32/icpc -L/opt/intel/Compiler/11.0/042/ipp/ia32/lib -I/opt/intel/Compiler/11.0/042/ipp/ia32/include |
ifort |
icc ifort |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
433.milc: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -fno-alias |
470.lbm: | basepeak = yes |
482.sphinx3: | -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 |
444.namd: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -fno-alias -auto-ilp32 |
447.dealII: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias -scalar-rep- -opt-prefetch |
450.soplex: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-malloc-options=3 |
453.povray: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll4 -ansi-alias |
410.bwaves: | -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch -parallel |
416.gamess: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -Ob0 -ansi-alias -scalar-rep- |
434.zeusmp: | basepeak = yes |
437.leslie3d: | basepeak = yes |
459.GemsFDTD: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -Ob0 -opt-prefetch -parallel |
465.tonto: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll4 -auto |
435.gromacs: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch -auto-ilp32 |
436.cactusADM: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -opt-prefetch -parallel -auto-ilp32 |
454.calculix: | -xSSE4.1 -ipo -O3 -no-prec-div -static -auto-ilp32 |
481.wrf: | -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch -parallel -auto-ilp32 |
