SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

IBM Corporation

IBM BladeCenter LS42 (AMD Opteron 8384)

SPECfp®2006 = 22.6

CPU2006 license: 11 Test date: Nov-2008
Test sponsor: IBM Corporation Hardware Availability: Nov-2008
Tested by: IBM Corporation Software Availability: May-2008

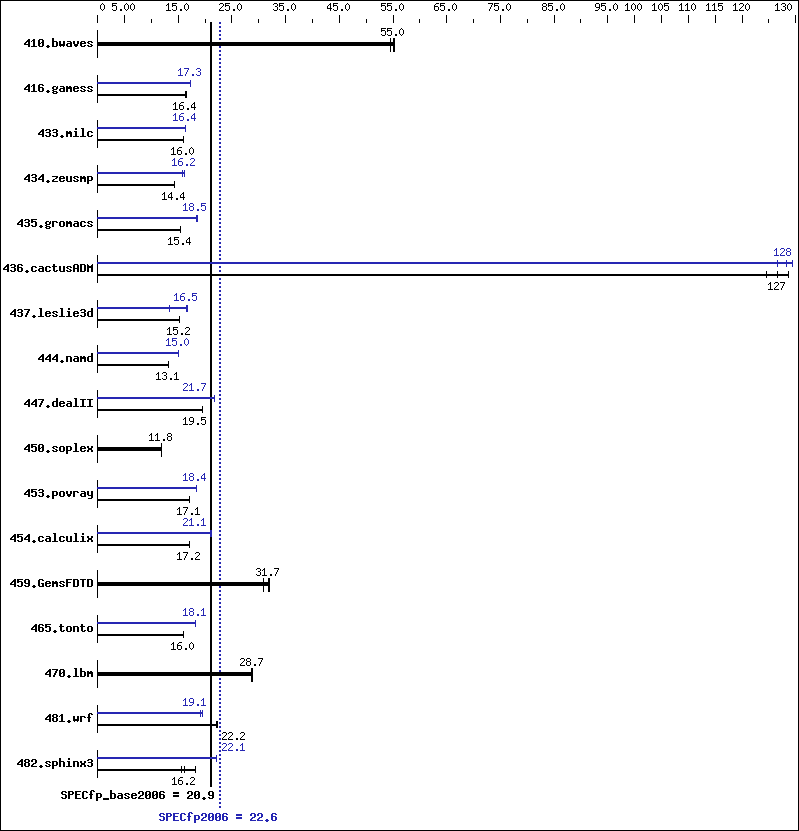

Benchmark results graph
Hardware
CPU Name: AMD Opteron 8384
CPU Characteristics:
CPU MHz: 2700
FPU: Integrated
CPU(s) enabled: 16 cores, 4 chips, 4 cores/chip
CPU(s) orderable: 1,2,3,4 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
L3 Cache: 6 MB I+D on chip per chip
Other Cache: None
Memory: 64 GB (16 x 4 GB DDR2-6400 ECC)
Disk Subsystem: 1 x 73 GB SAS, 10000 RPM
Other Hardware: None
Software
Operating System: SuSE Linux Enterprise Server 10 (x86_64) SP2,
Kernel 2.6.16.60-0.21-smp
Compiler: PGI Server Complete Version 7.2
Auto Parallel: Yes
File System: ReiserFS
System State: Run level 3 (Full multiuser with network)
Base Pointers: 32/64-bit
Peak Pointers: 64-bit
Other Software: binutils 2.18
32-bit and 64-bit libhugetlbfs libraries

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 249   54.5 247   55.0 246   55.3 249   54.5 247   55.0 246   55.3
416.gamess 1199   16.3 1191   16.4 1191   16.4 1129   17.3 1130   17.3 1130   17.3
433.milc 573   16.0 573   16.0 574   16.0 561   16.4 561   16.4 561   16.4
434.zeusmp 634   14.4 633   14.4 634   14.3 560   16.2 574   15.8 560   16.2
435.gromacs 465   15.3 464   15.4 464   15.4 385   18.5 386   18.5 387   18.4
436.cactusADM 95.9 125   94.4 127   92.9 129   93.1 128   92.4 129   94.4 127
437.leslie3d 618   15.2 617   15.2 617   15.2 702   13.4 568   16.5 563   16.7
444.namd 611   13.1 612   13.1 612   13.1 533   15.0 534   15.0 533   15.1
447.dealII 587   19.5 589   19.4 586   19.5 527   21.7 527   21.7 527   21.7
450.soplex 707   11.8 707   11.8 703   11.9 707   11.8 707   11.8 703   11.9
453.povray 312   17.1 312   17.1 312   17.1 289   18.4 289   18.4 289   18.4
454.calculix 481   17.2 481   17.2 483   17.1 389   21.2 390   21.1 391   21.1
459.GemsFDTD 344   30.9 334   31.7 332   32.0 344   30.9 334   31.7 332   32.0
465.tonto 618   15.9 617   16.0 616   16.0 543   18.1 543   18.1 543   18.1
470.lbm 479   28.7 478   28.7 478   28.8 479   28.7 478   28.7 478   28.8
481.wrf 503   22.2 504   22.2 506   22.1 574   19.5 584   19.1 584   19.1
482.sphinx3 1203   16.2 1243   15.7 1065   18.3 880   22.1 879   22.2 881   22.1

Submit Notes

The config file option 'submit' was used.
 'numactl' was used to bind copies to the cores

General Notes

 The libhugetlbfs libraries were installed using the
 installation rpms that came with the distribution.

 'ulimit -s unlimited' was used to set environment stack size
 'ulimit -l 2097152'  was used to set environment locked pages in memory limit

 Set vm/nr_hugepages=14336 in /etc/sysctl.conf
 mount -t hugetlbfs nodev /mnt/hugepages

Environment variables set by runspec before the start of the run:
LD_LIBRARY_PATH to "/cpu2006/pgi72/linux_lib32:/cpu2006/pgi72/linux_lib64"
PGI_HUGE_PAGES = "14336"
SPEC_DIR = "/cpu2006"
NCPUS = "16"

Processor Performance States Disabled in BIOS
Memory ChipKill Disabled in BIOS

Base Compiler Invocation

C benchmarks:

 pgcc

C++ benchmarks:

 pgcpp

Fortran benchmarks:

 pgf95

Benchmarks using both Fortran and C:

 pgcc   pgf95

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -Mnomain
436.cactusADM:  -DSPEC_CPU_LP64   -Mnomain
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -Mnomain
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -Mvect=cachesize:6291456   -fastsse   -Msmartalloc=huge   -Mconcur   -Mfprelaxed   -Mipa=fast   -Mipa=inline   -tp barcelona-64   -Bstatic_pgi

C++ benchmarks:

 -Mvect=cachesize:6291456   -fastsse   -Msmartalloc=huge   -Mfprelaxed   -Mconcur   --zc_eh   -Mipa=fast   -Mipa=inline   -tp barcelona-64   -Bstatic_pgi

Fortran benchmarks:

 -Mvect=cachesize:6291456   -fastsse   -Mfprelaxed   -Msmartalloc=huge   -Mconcur   -Mipa=fast   -Mipa=inline   -tp barcelona-64   -Bstatic_pgi

Benchmarks using both Fortran and C:

 -Mvect=cachesize:6291456   -fastsse   -Msmartalloc=huge   -Mconcur   -Mfprelaxed   -Mipa=fast   -Mipa=inline   -tp barcelona-64   -Bstatic_pgi

Base Other Flags

C benchmarks:

 -Mipa=jobs:8

C++ benchmarks:

 -Mipa=jobs:8

Fortran benchmarks:

 -Mipa=jobs:8

Benchmarks using both Fortran and C:

 -Mipa=jobs:8

Peak Compiler Invocation

C benchmarks:

 pgcc

C++ benchmarks:

 pgcpp

Fortran benchmarks:

 pgf95

Benchmarks using both Fortran and C:

 pgcc   pgf95

Peak Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -Mnomain
436.cactusADM:  -DSPEC_CPU_LP64   -Mnomain
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -Mnomain
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Peak Optimization Flags

C benchmarks:

433.milc:  -Mvect=cachesize:6291456   -fastsse   -Msmartalloc=huge   -Msafeptr   -Mconcur   -Mfprelaxed   -Mipa=inline   -Mipa=arg   -Mipa=const   -Mipa=ptr   -Mipa=shape   -tp barcelona-64   -Bstatic_pgi
470.lbm:  basepeak = yes
482.sphinx3:  -Mpfi(pass 1)   -Mpfo(pass 2)   -Mipa=fast(pass 2)   -Mipa=inline(pass 2)   -Mvect=cachesize:6291456   -fastsse   -Mfprelaxed   -Msmartalloc   -tp barcelona-64   -Bstatic_pgi

C++ benchmarks:

444.namd:  -Mpfi(pass 1)   -Mpfo(pass 2)   -Mipa=fast(pass 2)   -Mipa=inline(pass 2)   -Mvect=cachesize:6291456   -fastsse   -Munroll=n:4   -Munroll=m:8   -Msmartalloc=huge   -Mnodepchk   -Mfprelaxed   --zc_eh   -tp barcelona-64   -Bstatic_pgi
447.dealII:  -Mvect=cachesize:6291456   -fastsse   -alias=ansi   -Msmartalloc=huge   -Mprefetch=t0   -Mnovect   -Mfprelaxed   --zc_eh   -Mipa=fast   -Mipa=inline   -tp barcelona-32   -Bstatic_pgi
450.soplex:  basepeak = yes
453.povray:  -Mpfi=indirect(pass 1)   -Mpfo=indirect(pass 2)   -Mipa=fast(pass 2)   -Mipa=inlinenopfo:3(pass 2)   -Mipa=staticfunc(pass 2)   -Mvect=cachesize:6291456   -fastsse   -Msmartalloc=huge   -Mprefetch=t0   -Mfprelaxed   -tp barcelona-64   -Bstatic_pgi

Fortran benchmarks:

410.bwaves:  basepeak = yes
416.gamess:  -Mpfi(pass 1)   -Mpfo(pass 2)   -Mipa=fast(pass 2)   -Mipa=inline(pass 2)   -Mvect=cachesize:6291456   -fastsse   -Msmartalloc=huge   -Mvect=noaltcode   -Mprefetch=t0   -Mfprelaxed   -tp barcelona-64   -Bstatic_pgi
434.zeusmp:  -Mvect=cachesize:6291456   -fastsse   -Mfprelaxed   -Mconcur   -Mprefetch=distance:8   -Mprefetch=t0   -Msmartalloc=huge   -Msmartalloc=hugebss   -Mipa=fast   -Mipa=inline   -tp barcelona-64   -Bstatic_pgi
437.leslie3d:  -Mpfi=indirect(pass 1)   -Mpfo=indirect(pass 2)   -Mconcur=noaltcode(pass 2)   -Mipa=fast(pass 2)   -Mipa=inline(pass 2)   -Mvect=cachesize:6291456   -fastsse   -Mvect=fuse   -Msmartalloc=huge   -Mprefetch=distance:8   -Mprefetch=t0   -Mfprelaxed   -tp barcelona-64   -Bstatic_pgi
459.GemsFDTD:  basepeak = yes
465.tonto:  -Mvect=cachesize:6291456   -fastsse   -O4   -Mvect=noaltcode   -Msmartalloc=huge   -Mprefetch=distance:8   -Mprefetch=t0   -Mfprelaxed   -Mipa=fast   -Mipa=inline   -tp barcelona-64   -Bstatic_pgi

Benchmarks using both Fortran and C:

435.gromacs:  -Mvect=cachesize:6291456   -fastsse   -Msmartalloc=huge   -Mfprelaxed   -Mconcur   -Mfpapprox=rsqrt   -Mipa=fast   -Mipa=inline   -tp barcelona-64   -Bstatic_pgi
436.cactusADM:  -Mvect=cachesize:6291456   -fastsse   -Msmartalloc=huge   -Mfprelaxed   -Mconcur   -Mdse   -Mipa=fast   -Mipa=inline   -tp barcelona-64   -Bstatic_pgi
454.calculix:  -Mpfi=indirect(pass 1)   -Mpfo=indirect(pass 2)   -Mipa=fast(pass 2)   -Mipa=inline(pass 2)   -Mvect=cachesize:6291456   -fastsse   -Msmartalloc=huge   -Mloop32   -Mprefetch=t0   -Mpre   -Mfprelaxed   -tp barcelona-64   -Bstatic_pgi
481.wrf:  -Mvect=cachesize:6291456   -fastsse   -Mvect=noaltcode   -Msmartalloc=huge   -Mprefetch=distance:8   -Mconcur=noaltcode   -Mfprelaxed   -tp barcelona-64   -Bstatic_pgi

Peak Other Flags

C benchmarks:

 -Mipa=jobs:8(pass 2)

C++ benchmarks:

 -Mipa=jobs:8(pass 2)

Fortran benchmarks:

 -Mipa=jobs:8

Benchmarks using both Fortran and C (except as noted below):

 -Mipa=jobs:8(pass 2)
481.wrf:  No flags used

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/pgi72_linux_flags.20090713.00.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/pgi72_linux_flags.20090713.00.xml.

SPEC and SPECfp are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.1.
Report generated on Tue Jul 22 21:05:35 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 9 December 2008.
