CPU2006 license: | 55 | Test date: | Nov-2008 |
---|---|---|---|
Test sponsor: | Dell Inc. | Hardware Availability: | Sep-2008 |
Tested by: | Dell Inc. | Software Availability: | Nov-2008 |
Hardware | |
---|---|
CPU Name: | Intel Xeon E5450 |
CPU Characteristics: | |
CPU MHz: | 3000 |
FPU: | Integrated |
CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
CPU(s) orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
L3 Cache: | None |
Other Cache: | None |
Memory: | 16 GB (8 x 2 GB 667 MHz ECC CL5 FB-DIMM) |
Disk Subsystem: | 2 x 73 GB 15000 RPM SAS |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SUSE Linux Enterprise Server 10 (x86_64) SP2, Kernel 2.6.16-60.0.21-smp |
Compiler: | Intel C++ and Fortran Compiler 11.0 for Linux Build 20080730 Package ID: l_cproc_b_11.0.042, l_fproc_b_11.0.042 |
Auto Parallel: | Yes |
File System: | ReiserFS |
System State: | Run level 3 (multi-user) |
Base Pointers: | 64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | Binutils 2.18.50.0.7.20080502 |

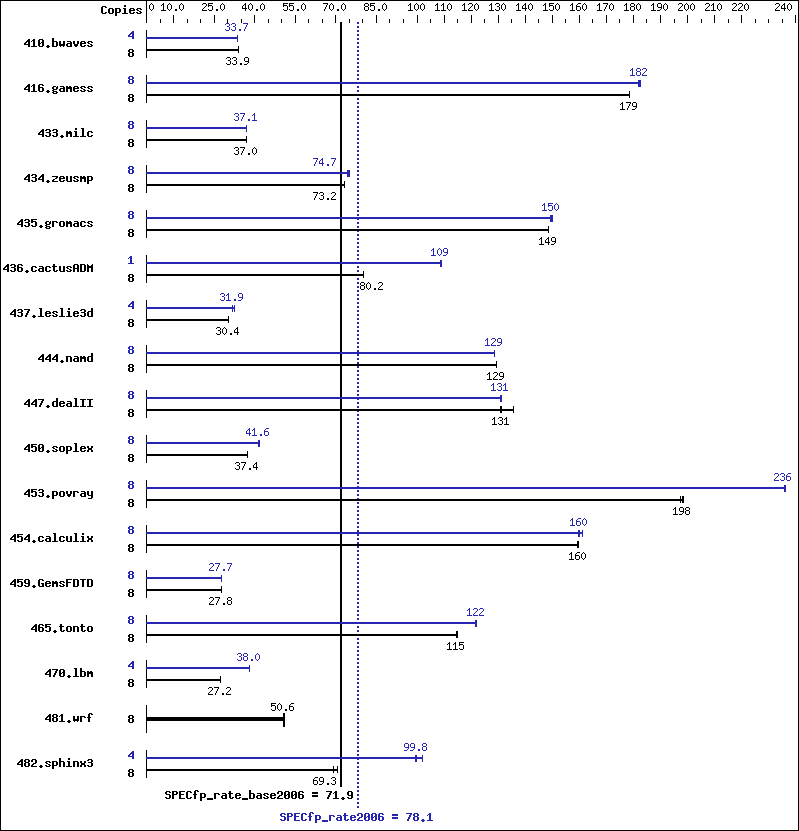

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
410.bwaves | 8 | 3206 | 33.9 | 3204 | 33.9 | 3208 | 33.9 | 4 | 1615 | 33.7 | 1613 | 33.7 | 1613 | 33.7 |
416.gamess | 8 | 877 | 179 | 877 | 179 | 878 | 178 | 8 | 859 | 182 | 861 | 182 | 858 | 183 |
433.milc | 8 | 1986 | 37.0 | 1987 | 37.0 | 1987 | 37.0 | 8 | 1980 | 37.1 | 1980 | 37.1 | 1980 | 37.1 |
434.zeusmp | 8 | 994 | 73.2 | 996 | 73.1 | 992 | 73.4 | 8 | 975 | 74.7 | 979 | 74.3 | 971 | 74.9 |
435.gromacs | 8 | 384 | 149 | 384 | 149 | 385 | 149 | 8 | 381 | 150 | 381 | 150 | 383 | 149 |
436.cactusADM | 8 | 1192 | 80.2 | 1190 | 80.3 | 1193 | 80.2 | 1 | 110 | 109 | 110 | 109 | 110 | 109 |
437.leslie3d | 8 | 2473 | 30.4 | 2475 | 30.4 | 2481 | 30.3 | 4 | 1180 | 31.9 | 1161 | 32.4 | 1179 | 31.9 |
444.namd | 8 | 496 | 129 | 496 | 129 | 496 | 129 | 8 | 499 | 129 | 499 | 129 | 499 | 129 |
447.dealII | 8 | 699 | 131 | 698 | 131 | 674 | 136 | 8 | 699 | 131 | 697 | 131 | 699 | 131 |
450.soplex | 8 | 1779 | 37.5 | 1782 | 37.4 | 1784 | 37.4 | 8 | 1604 | 41.6 | 1605 | 41.6 | 1607 | 41.5 |
453.povray | 8 | 216 | 197 | 215 | 198 | 215 | 198 | 8 | 180 | 236 | 180 | 236 | 181 | 236 |
454.calculix | 8 | 414 | 159 | 413 | 160 | 413 | 160 | 8 | 413 | 160 | 409 | 161 | 412 | 160 |
459.GemsFDTD | 8 | 3052 | 27.8 | 3053 | 27.8 | 3053 | 27.8 | 8 | 3066 | 27.7 | 3067 | 27.7 | 3067 | 27.7 |
465.tonto | 8 | 686 | 115 | 687 | 115 | 685 | 115 | 8 | 646 | 122 | 645 | 122 | 646 | 122 |
470.lbm | 8 | 4038 | 27.2 | 4037 | 27.2 | 4037 | 27.2 | 4 | 1446 | 38.0 | 1447 | 38.0 | 1446 | 38.0 |
481.wrf | 8 | 1765 | 50.6 | 1756 | 50.9 | 1766 | 50.6 | 8 | 1765 | 50.6 | 1756 | 50.9 | 1766 | 50.6 |
482.sphinx3 | 8 | 2208 | 70.6 | 2251 | 69.3 | 2250 | 69.3 | 4 | 765 | 102 | 781 | 99.8 | 785 | 99.3 |
The config file option 'submit' was used.
'ulimit -s unlimited' was used to set the stack size to unlimited prior to run
BIOS Settings: Hardware Prefetcher = Disabled (Default = Enabled) Adjacent Cache Line Prefetch = Disabled (Default = Enabled)
taskset was used to bind processes to cores except for 436.cactusADM peak OMP_NUM_THREADS set to number of processors KMP_AFFINITY set to "physical,0" KMP_STACKSIZE set to 64M
icc |
icpc |
ifort |
icc ifort |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
450.soplex: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
482.sphinx3: | -DSPEC_CPU_LP64 |
-xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch |
-xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch |
-xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch |
-xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch |
icc | |
482.sphinx3: | /opt/intel/Compiler/11.0/042/bin/ia32/icc -L/opt/intel/Compiler/11.0/042/ipp/ia32/lib -I/opt/intel/Compiler/11.0/042/ipp/ia32/include |
icpc | |
450.soplex: | /opt/intel/Compiler/11.0/042/bin/ia32/icpc -L/opt/intel/Compiler/11.0/042/ipp/ia32/lib -I/opt/intel/Compiler/11.0/042/ipp/ia32/include |
ifort | |
437.leslie3d: | /opt/intel/Compiler/11.0/042/bin/ia32/ifort -L/opt/intel/Compiler/11.0/042/ipp/ia32/lib -I/opt/intel/Compiler/11.0/042/ipp/ia32/include |
icc ifort |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
433.milc: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -fno-alias |
470.lbm: | -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch -auto-ilp32 |
482.sphinx3: | -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 |
444.namd: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -fno-alias -auto-ilp32 |
447.dealII: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias -scalar-rep- |
450.soplex: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-malloc-options=3 |
453.povray: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll4 -ansi-alias |
410.bwaves: | -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch |
416.gamess: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -Ob0 -ansi-alias -scalar-rep- |
434.zeusmp: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static |
437.leslie3d: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-malloc-options=3 -opt-prefetch |
459.GemsFDTD: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -Ob0 -opt-prefetch |
465.tonto: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll4 -auto |
435.gromacs: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch -auto-ilp32 |
436.cactusADM: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -opt-prefetch -parallel -auto-ilp32 |
454.calculix: | -xSSE4.1 -ipo -O3 -no-prec-div -static -auto-ilp32 |
481.wrf: | basepeak = yes |
