SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

IBM Corporation

IBM System x iDataPlex dx360 (Intel Xeon E5472)

CPU2006 license: 11 Test date: Oct-2008
Test sponsor: IBM Corporation Hardware Availability: Nov-2008
Tested by: IBM Corporation Software Availability: Nov-2008

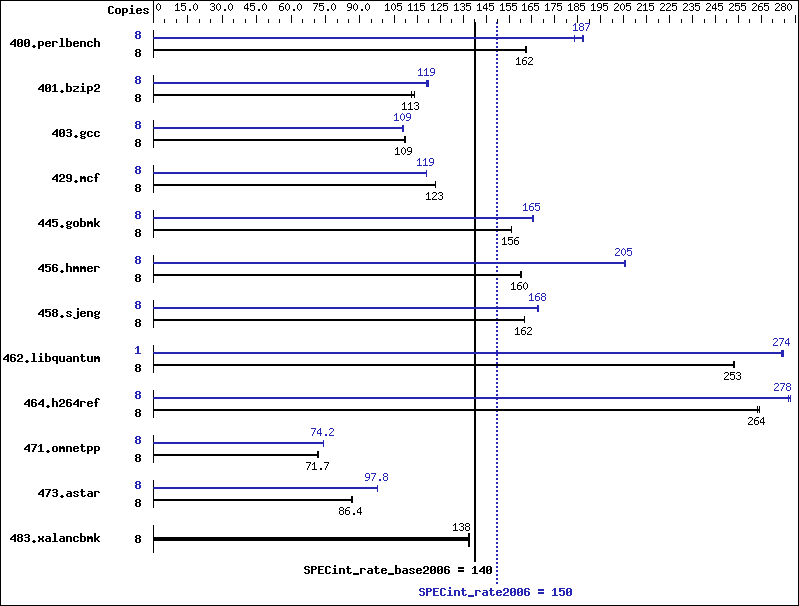

Benchmark results graph
Hardware
CPU Name: Intel Xeon E5472
CPU Characteristics: 1600MHz system bus
CPU MHz: 3000
FPU: Integrated
CPU(s) enabled: 8 cores, 2 chips, 4 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 12 MB I+D on chip per chip, 6 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 16 GB (8 x 2 GB DDR2-6400F ECC)
Disk Subsystem: 1 x 250 GB SATA, 7200 RPM
Other Hardware: None
Software
Operating System: SuSE Linux Enterprise Server 10 (x86_64) SP1,
Kernel 2.6.16.46-0.12-smp
Compiler: Intel C++ Compiler 11.0 for Linux
Build 20080730 Package ID: l_cproc_b_11.0.042
Auto Parallel: Yes
File System: ReiserFS
System State: Run level 3 (multi-user)
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: Microquill SmartHeap V8.1
Binutils 2.18.50.0.7.20080502

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 8 482 162   482 162   481 162   8 417   187   426   184   418   187
401.bzip2 8 686 113   685 113   679 114   8 647   119   648   119   643   120
403.gcc 8 589 109   585 110   588 109   8 593   109   590   109   591   109
429.mcf 8 594 123   594 123   593 123   8 614   119   613   119   613   119
445.gobmk 8 538 156   538 156   538 156   8 507   165   508   165   508   165
456.hmmer 8 466 160   465 160   467 160   8 363   206   364   205   363   205
458.sjeng 8 599 162   598 162   598 162   8 577   168   578   168   577   168
462.libquantum 8 656 253   655 253   655 253   1 75.4 275   75.6 274   75.6 274
464.h264ref 8 670 264   672 263   672 264   8 638   278   639   277   638   278
471.omnetpp 8 697 71.7 697 71.8 697 71.7 8 673   74.3 674   74.2 674   74.2
473.astar 8 650 86.4 651 86.3 647 86.8 8 574   97.8 574   97.8 575   97.6
483.xalancbmk 8 400 138   401 138   401 138   8 400   138   401   138   401   138

Submit Notes

The config file option 'submit' was used.
 taskset was used to bind processes to cores except for 462.libquantum peak

General Notes

 OMP_NUM_THREADS set to number of processors
 KMP_AFFINITY set to "physical,0"
 KMP_STACKSIZE set to 64M
 Hardware Prefetch Enabled and Adjacent Sector Prefetch Disabled
 'ulimit -s unlimited' was used to set the stack size to unlimited prior to run

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_IA32
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -inline-calloc   -opt-malloc-options=3   -opt-prefetch

C++ benchmarks:

 -xSSE4.1   -ipo   -O3   -no-prec-div   -opt-prefetch   -Wl,-z,muldefs   -L/spec/cpu2006.1.1/lib -lsmartheap

Base Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

Peak Compiler Invocation

C benchmarks (except as noted below):

 icc
401.bzip2:  /opt/intel/Compiler/11.0/042/bin/intel64/icc   -L/opt/intel/Compiler/11.0/042/ipp/em64t/lib   -I/opt/intel/Compiler/11.0/042/ipp/em64t/include
456.hmmer:  /opt/intel/Compiler/11.0/042/bin/intel64/icc   -L/opt/intel/Compiler/11.0/042/ipp/em64t/lib   -I/opt/intel/Compiler/11.0/042/ipp/em64t/include

C++ benchmarks:

 icpc

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_IA32
401.bzip2:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -ansi-alias   -opt-prefetch
401.bzip2:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -opt-prefetch   -ansi-alias
403.gcc:  -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -inline-calloc   -opt-malloc-options=3
429.mcf:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -opt-prefetch
445.gobmk:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -O2   -ipo   -no-prec-div   -ansi-alias
456.hmmer:  -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -unroll2   -ansi-alias
458.sjeng:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -unroll4
462.libquantum:  -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -opt-malloc-options=3   -parallel   -par-runtime-control   -opt-prefetch
464.h264ref:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -ipo   -O3   -no-prec-div   -static   -unroll2   -ansi-alias

C++ benchmarks:

471.omnetpp:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -ipo   -O3   -no-prec-div   -ansi-alias   -opt-ra-region-strategy=block   -Wl,-z,muldefs   -L/spec/cpu2006.1.1/lib -lsmartheap
473.astar:  -prof-gen(pass 1)   -prof-use(pass 2)   -xSSE4.1   -ipo   -O3   -no-prec-div   -ansi-alias   -opt-ra-region-strategy=routine   -Wl,-z,muldefs   -L/spec/cpu2006.1.1/lib -lsmartheap
483.xalancbmk:  basepeak = yes

Peak Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic11.0-int-linux64-revA.20090710.04.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic11.0-int-linux64-revA.20090710.04.xml.
