SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Bull SAS

NovaScale B240
(Intel Xeon E3113, 3.00 GHz)

CPU2006 license: 20 Test date: Oct-2008
Test sponsor: Bull SAS Hardware Availability: Jun-2008
Tested by: Bull SAS Software Availability: Nov-2007

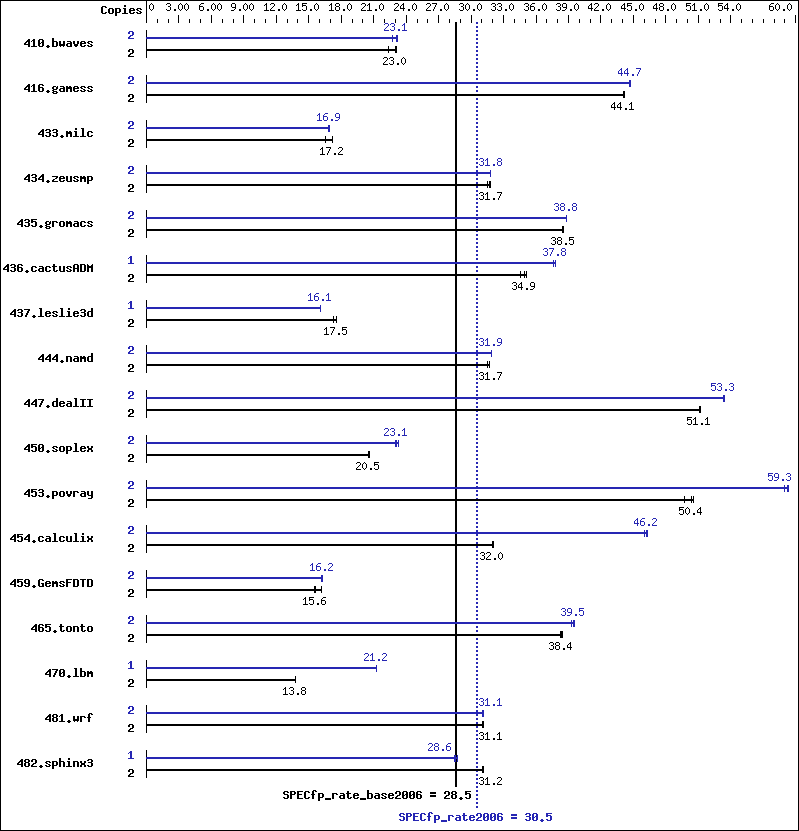

Benchmark results graph
Hardware
CPU Name: Intel Xeon E3113
CPU Characteristics: 1333 MHz system bus
CPU MHz: 3000
FPU: Integrated
CPU(s) enabled: 2 cores, 1 chip, 2 cores/chip
CPU(s) orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 6 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 8 GB (4x2 GB) FB-DIMM PC2-5300F ECC CL5
Disk Subsystem: 1x73 GB SAS, 15000 RPM
Other Hardware: None
Software
Operating System: SUSE LINUX Enterprise Server 10 (x86_64) SP1
Kernel 2.6.16.46-0.12-smp
Compiler: Intel C++ and Fortran Compiler 10.1 for Linux
Build 20070913 Package ID: l_cc_p_10.1.008,
l_fc_p_10.1.008
Auto Parallel: Yes
File System: ReiserFS
System State: Run level 3 (multi-user)
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: Binutils 2.17.50.0.15

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 2 1215 22.4 1183 23.0 1179 23.1 2 1175 23.1 1194 22.8 1170 23.2
416.gamess 2 889 44.1 887 44.2 888 44.1 2 877 44.7 876 44.7 876 44.7
433.milc 2 1111 16.5 1070 17.2 1068 17.2 2 1088 16.9 1089 16.9 1089 16.9
434.zeusmp 2 577 31.5 575 31.7 573 31.8 2 573 31.8 573 31.8 573 31.8
435.gromacs 2 371 38.5 371 38.4 371 38.5 2 368 38.8 368 38.8 368 38.8
436.cactusADM 2 692 34.5 685 34.9 680 35.1 1 318 37.6 316 37.8 316 37.8
437.leslie3d 2 1085 17.3 1072 17.5 1070 17.6 1 584 16.1 584 16.1 585 16.1
444.namd 2 506 31.7 509 31.5 506 31.7 2 503 31.9 504 31.8 503 31.9
447.dealII 2 448 51.1 447 51.1 447 51.2 2 428 53.4 429 53.3 429 53.3
450.soplex 2 811 20.6 814 20.5 812 20.5 2 725 23.0 722 23.1 715 23.3
453.povray 2 214 49.8 211 50.5 211 50.4 2 180 58.9 180 59.3 179 59.4
454.calculix 2 515 32.1 515 32.0 516 32.0 2 356 46.3 357 46.2 359 46.0
459.GemsFDTD 2 1369 15.5 1361 15.6 1315 16.1 2 1305 16.3 1306 16.2 1309 16.2
465.tonto 2 514 38.3 512 38.5 513 38.4 2 501 39.3 497 39.6 498 39.5
470.lbm 2 1996 13.8 1998 13.8 1998 13.8 1 648 21.2 647 21.2 648 21.2
481.wrf 2 719 31.1 718 31.1 718 31.1 2 718 31.1 719 31.1 719 31.1
482.sphinx3 2 1256 31.0 1251 31.2 1251 31.2 1 682 28.6 685 28.5 679 28.7

Submit Notes

The config file option 'submit' was used.
 taskset was used to bind processes to cores except
 for 436.cactusADM peak

Operating System Notes

 'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
 OMP_NUM_THREADS set to number of cores
 KMP_AFFINITY set to physical,0
 KMP_STACKSIZE set to 64M

Platform Notes

 BIOS Settings:
 Hardware Prefetcher = Enabled
 Adjacent Cache Line Prefetch = Enabled

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icc   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -fast

C++ benchmarks:

 -fast

Fortran benchmarks:

 -fast

Benchmarks using both Fortran and C:

 -fast

Peak Compiler Invocation

C benchmarks (except as noted below):

 /opt/intel/cc/10.1.008/bin/icc   -L/opt/intel/cc/10.1.008/lib   -I/opt/intel/cc/10.1.008/include
433.milc:  icc

C++ benchmarks (except as noted below):

 icpc
450.soplex:  /opt/intel/cc/10.1.008/bin/icpc   -L/opt/intel/cc/10.1.008/lib   -I/opt/intel/cc/10.1.008/include

Fortran benchmarks (except as noted below):

 ifort
437.leslie3d:  /opt/intel/fc/10.1.008/bin/ifort   -L/opt/intel/fc/10.1.008/lib   -I/opt/intel/fc/10.1.008/include

Benchmarks using both Fortran and C:

 icc   ifort

Peak Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

433.milc:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -fno-alias   -auto-ilp32
470.lbm:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -scalar-rep-   -prefetch   -opt-malloc-options=3
482.sphinx3:  -fast   -unroll2

C++ benchmarks:

444.namd:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -fno-alias   -auto-ilp32
447.dealII:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -ansi-alias   -scalar-rep-
450.soplex:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -opt-malloc-options=3
453.povray:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll4   -ansi-alias

Fortran benchmarks:

410.bwaves:  -fast   -prefetch
416.gamess:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -Ob0   -ansi-alias   -scalar-rep-
434.zeusmp:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast
437.leslie3d:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -prefetch   -opt-malloc-options=3
459.GemsFDTD:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -Ob0   -prefetch
465.tonto:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll4   -auto

Benchmarks using both Fortran and C:

435.gromacs:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -prefetch   -auto-ilp32
436.cactusADM:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -prefetch   -parallel   -auto-ilp32
454.calculix:  -fast   -unroll-aggressive   -auto-ilp32
481.wrf:  -fast   -auto-ilp32

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/EM64T_Intel101_fp_flags.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/EM64T_Intel101_fp_flags.xml.
