SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Dell Inc.

PowerEdge R900 (Intel Xeon E7220, 2.93 GHz)

CPU2006 license: 55 Test date: Sep-2008
Test sponsor: Dell Inc. Hardware Availability: Nov-2007
Tested by: Dell Inc. Software Availability: May-2008

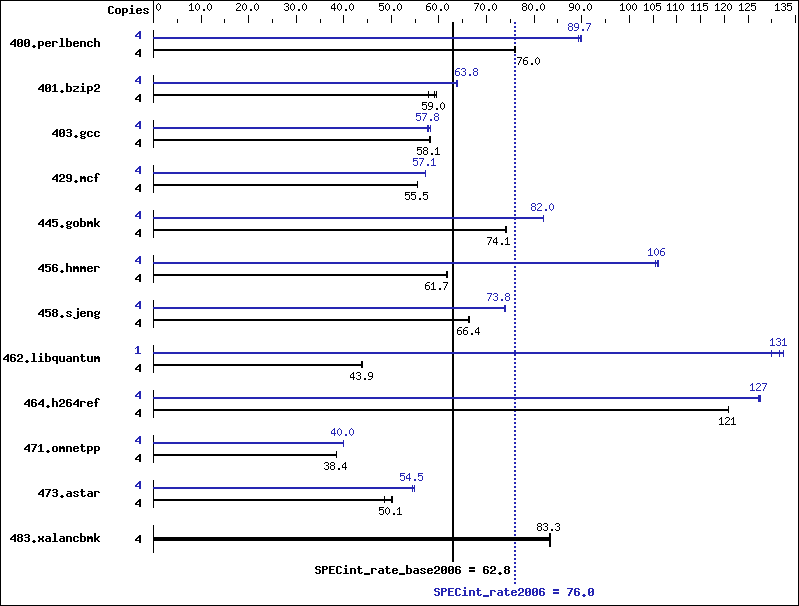

Benchmark results graph
Hardware
CPU Name: Intel Xeon E7220
CPU Characteristics:
CPU MHz: 2933
FPU: Integrated
CPU(s) enabled: 4 cores, 2 chips, 2 cores/chip
CPU(s) orderable: 2,4 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 4 MB I+D on chip per core
L3 Cache: None
Other Cache: None
Memory: 16 GB (16 x 1 GB 667 MHz ECC CL5 FB-DIMM)
Disk Subsystem: 2 x 300 GB 10000 RPM SAS (RAID-0)
Other Hardware: None
Software
Operating System: SUSE Linux Enterprise Server 10 (x86_64) SP2,
Kernel 2.6.16-60.0.21-smp
Compiler: Intel C++ Compiler 10.1 for Linux
Build 20080312 Package ID: l_cc_p_10.1.015
Auto Parallel: Yes
File System: ReiserFS
System State: Run level 3 (multi-user)
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: Microquill SmartHeap V8.1
Binutils 2.18.50.0.7.20080502

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 4 514 76.0 516 75.8 513 76.1 4 436 89.7 438 89.3 434 90.0
401.bzip2 4 649 59.5 655 59.0 667 57.8 4 604 63.9 606 63.7 605 63.8
403.gcc 4 554 58.1 554 58.2 555 58.0 4 559 57.6 554 58.1 557 57.8
429.mcf 4 657 55.5 657 55.5 658 55.4 4 639 57.1 639 57.1 638 57.2
445.gobmk 4 566 74.1 566 74.2 566 74.1 4 512 81.9 512 82.0 512 82.0
456.hmmer 4 605 61.7 605 61.7 605 61.7 4 351 106   352 106   354 105
458.sjeng 4 729 66.4 728 66.5 731 66.2 4 656 73.8 653 74.1 656 73.8
462.libquantum 4 1900 43.6 1886 43.9 1889 43.9 1 158 131   160 130   156 133
464.h264ref 4 732 121   732 121   732 121   4 694 128   695 127   696 127
471.omnetpp 4 651 38.4 651 38.4 650 38.4 4 625 40.0 625 40.0 625 40.0
473.astar 4 561 50.1 559 50.2 577 48.7 4 515 54.5 512 54.9 515 54.5
483.xalancbmk 4 331 83.3 331 83.3 331 83.4 4 331 83.3 331 83.3 331 83.4

Submit Notes

The config file option 'submit' was used.

Operating System Notes

 'ulimit -s unlimited' was used to set the stack size to unlimited prior to run

General Notes

 All benchmarks compiled in 32-bit mode except 401.bzip2 and 456.hmmer,
 for peak, are compiled in 64-bit mode
 taskset was used to bind processes to cores except
 for 462.libquantum peak
 OMP_NUM_THREADS set to number of processors
 KMP_AFFINITY set to "physical,0"
 KMP_STACKSIZE set to 64M

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_IA32
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -fast   -inline-calloc   -opt-malloc-options=3

C++ benchmarks:

 -xT   -ipo   -O3   -no-prec-div   -Wl,-z,muldefs   -L/spec/cpu2006.1.1/lib -lsmartheap

Base Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

Peak Compiler Invocation

C benchmarks (except as noted below):

 icc
401.bzip2:  /opt/intel/cce/10.1.015/bin/icc   -L/opt/intel/cce/10.1.015/lib   -I/opt/intel/cce/10.1.015/include
456.hmmer:  /opt/intel/cce/10.1.015/bin/icc   -L/opt/intel/cce/10.1.015/lib   -I/opt/intel/cce/10.1.015/include

C++ benchmarks:

 icpc

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_IA32
401.bzip2:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -ansi-alias   -prefetch
401.bzip2:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -prefetch
403.gcc:  -fast   -inline-calloc   -opt-malloc-options=3
429.mcf:  -fast   -prefetch
445.gobmk:  -prof-gen(pass 1)   -prof-use(pass 2)   -xT   -O2   -ipo   -no-prec-div   -ansi-alias
456.hmmer:  -fast   -unroll2   -ansi-alias   -opt-multi-version-aggressive
458.sjeng:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll4
462.libquantum:  -fast   -unroll4   -Ob0   -prefetch   -opt-streaming-stores always   -vec-guard-write   -opt-malloc-options=3   -parallel   -par-runtime-control
464.h264ref:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -ansi-alias

C++ benchmarks:

471.omnetpp:  -prof-gen(pass 1)   -prof-use(pass 2)   -xT   -O3   -ipo   -no-prec-div   -ansi-alias   -opt-ra-region-strategy=block   -Wl,-z,muldefs   -L/spec/cpu2006.1.1/lib -lsmartheap
473.astar:  -prof-gen(pass 1)   -prof-use(pass 2)   -xT   -O3   -ipo   -no-prec-div   -ansi-alias   -opt-ra-region-strategy=routine   -Wl,-z,muldefs   -L/spec/cpu2006.1.1/lib -lsmartheap
483.xalancbmk:  basepeak = yes

Peak Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic10.1-int-linux64-revD.html,
http://www.spec.org/cpu2006/flags/Intel-Linux64-Platform.20090713.07.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/Intel-ic10.1-int-linux64-revD.xml,
http://www.spec.org/cpu2006/flags/Intel-Linux64-Platform.20090713.07.xml.
