CPU2006 license: | 22 | Test date: | Sep-2008 |
---|---|---|---|
Test sponsor: | Fujitsu Siemens Computers | Hardware Availability: | Sep-2008 |
Tested by: | Fujitsu Siemens Computers | Software Availability: | Nov-2008 |
Hardware | |
---|---|
CPU Name: | Intel Xeon E7450 |
CPU Characteristics: | 1067 MHz system bus |
CPU MHz: | 2400 |
FPU: | Integrated |
CPU(s) enabled: | 24 cores, 4 chips, 6 cores/chip |
CPU(s) orderable: | 1,2,4 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 9 MB I+D on chip per chip, 3 MB shared / 2 cores |
L3 Cache: | 12 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 64 GB (16x4 GB PC2-5300F, 2 rank, CL5-5-5, ECC) |
Disk Subsystem: | 1x SAS, 36 GB, 10000 rpm |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SUSE Linux Enterprise Server 10 (x86_64) SP2, Kernel 2.6.16.60-0.21-smp |
Compiler: | Intel C++ and Fortran Compiler 11.0 for Linux Build 20080730 |
Auto Parallel: | Yes |
File System: | ext3 |
System State: | Multi-User Run Level 3 |
Base Pointers: | 64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | Binutils 2.18.50.0.7.20080502 |

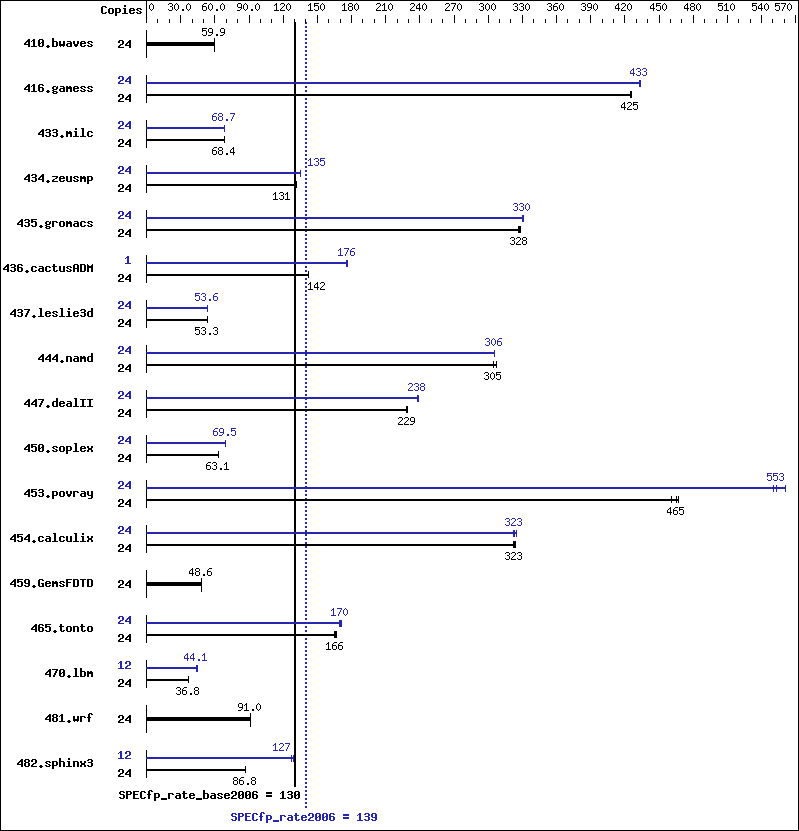

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
410.bwaves | 24 | 5450 | 59.9 | 5446 | 59.9 | 5446 | 59.9 | 24 | 5450 | 59.9 | 5446 | 59.9 | 5446 | 59.9 |
416.gamess | 24 | 1103 | 426 | 1106 | 425 | 1106 | 425 | 24 | 1086 | 433 | 1084 | 433 | 1085 | 433 |
433.milc | 24 | 3225 | 68.3 | 3220 | 68.4 | 3220 | 68.4 | 24 | 3207 | 68.7 | 3208 | 68.7 | 3207 | 68.7 |
434.zeusmp | 24 | 1669 | 131 | 1663 | 131 | 1665 | 131 | 24 | 1613 | 135 | 1620 | 135 | 1619 | 135 |
435.gromacs | 24 | 521 | 329 | 525 | 327 | 523 | 328 | 24 | 520 | 330 | 518 | 331 | 519 | 330 |
436.cactusADM | 24 | 2018 | 142 | 2016 | 142 | 2017 | 142 | 1 | 67.8 | 176 | 67.6 | 177 | 67.9 | 176 |
437.leslie3d | 24 | 4241 | 53.2 | 4233 | 53.3 | 4233 | 53.3 | 24 | 4209 | 53.6 | 4208 | 53.6 | 4206 | 53.6 |
444.namd | 24 | 632 | 305 | 631 | 305 | 626 | 308 | 24 | 630 | 306 | 629 | 306 | 630 | 306 |
447.dealII | 24 | 1202 | 228 | 1197 | 229 | 1197 | 229 | 24 | 1150 | 239 | 1152 | 238 | 1152 | 238 |
450.soplex | 24 | 3176 | 63.0 | 3172 | 63.1 | 3170 | 63.1 | 24 | 2883 | 69.4 | 2882 | 69.5 | 2881 | 69.5 |
453.povray | 24 | 277 | 460 | 274 | 465 | 274 | 467 | 24 | 232 | 550 | 228 | 561 | 231 | 553 |
454.calculix | 24 | 613 | 323 | 614 | 322 | 610 | 324 | 24 | 612 | 323 | 615 | 322 | 610 | 325 |
459.GemsFDTD | 24 | 5250 | 48.5 | 5240 | 48.6 | 5238 | 48.6 | 24 | 5250 | 48.5 | 5240 | 48.6 | 5238 | 48.6 |
465.tonto | 24 | 1416 | 167 | 1430 | 165 | 1424 | 166 | 24 | 1379 | 171 | 1390 | 170 | 1392 | 170 |
470.lbm | 24 | 8969 | 36.8 | 8959 | 36.8 | 8955 | 36.8 | 12 | 3686 | 44.7 | 3739 | 44.1 | 3741 | 44.1 |
481.wrf | 24 | 2949 | 90.9 | 2943 | 91.1 | 2945 | 91.0 | 24 | 2949 | 90.9 | 2943 | 91.1 | 2945 | 91.0 |
482.sphinx3 | 24 | 5384 | 86.9 | 5390 | 86.8 | 5401 | 86.6 | 12 | 1811 | 129 | 1840 | 127 | 1839 | 127 |
All binaries were built with 64-bit mode except: 437.leslie3d, 450.soplex and 482.sphinx3 in peak were built with 32-bit mode.
The config file option 'submit' was used. taskset has been used to bind processes to cores except for 436.cactusADM peak For peak modules using 1/2 the number of available cores, each copy was assigned to a single L2 cache using mysubmit.pl script. See the flags description file for mysubmit.pl details.
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run OMP_NUM_THREADS set to number of cores (default) KMP_AFFINITY set to "physical,0" KMP_STACKSIZE set to 64M
BIOS configuration: High Bandwidth option = Enable
For information about Fujitsu Siemens Computers please see: http://www.fujitsu-siemens.com
icc |
icpc |
ifort |
icc ifort |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
450.soplex: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
482.sphinx3: | -DSPEC_CPU_LP64 |
-xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch |
-xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch |
-xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch |
-xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch |
icc | |
482.sphinx3: | /opt/intel/Compiler/11.0/042/bin/ia32/icc -L/opt/intel/Compiler/11.0/042/ipp/ia32/lib -I/opt/intel/Compiler/11.0/042/ipp/ia32/include |
icpc | |
450.soplex: | /opt/intel/Compiler/11.0/042/bin/ia32/icpc -L/opt/intel/Compiler/11.0/042/ipp/ia32/lib -I/opt/intel/Compiler/11.0/042/ipp/ia32/include |
ifort | |
437.leslie3d: | /opt/intel/Compiler/11.0/042/bin/ia32/ifort -L/opt/intel/Compiler/11.0/042/ipp/ia32/lib -I/opt/intel/Compiler/11.0/042/ipp/ia32/include |
icc ifort |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
433.milc: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -fno-alias |
470.lbm: | -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch -auto-ilp32 |
482.sphinx3: | -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 |
444.namd: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -fno-alias -auto-ilp32 |
447.dealII: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias -scalar-rep- |
450.soplex: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-malloc-options=3 |
453.povray: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll4 -ansi-alias |
410.bwaves: | basepeak = yes |
416.gamess: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -Ob0 -ansi-alias -scalar-rep- |
434.zeusmp: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static |
437.leslie3d: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-malloc-options=3 -opt-prefetch |
459.GemsFDTD: | basepeak = yes |
465.tonto: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll4 -auto |
435.gromacs: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch -auto-ilp32 |
436.cactusADM: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -opt-prefetch -parallel -auto-ilp32 |
454.calculix: | -xSSE4.1 -ipo -O3 -no-prec-div -static -auto-ilp32 |
481.wrf: | basepeak = yes |
