| CPU2006 license: | 13 | Test date: | Nov-2007 |
|---|---|---|---|
| Test sponsor: | Intel Corporation | Hardware Availability: | Apr-2008 |
| Tested by: | Intel Corporation | Software Availability: | Nov-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Core 2 Extreme QX9770 |
| CPU Characteristics: | 3.20 GHz 1600 FSB |
| CPU MHz: | 3200 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 4 GB (4x1GB Corsair TWIN3X2048-1333C9DHX DDR3-1333 CL9) |
| Disk Subsystem: | Seagate 320GB NCQ SATA, 16MB cache, 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Windows Vista64 Ultimate |
| Compiler: | Intel C++ Compiler for IA32 version 10.1 Build 20070913 Package ID: w_cc_p_10.1.011 Intel Fortran Compiler for IA32 version 10.1 Build 20070913 Package ID: w_fc_p_10.1.011 Microsoft Visual Studio 2005 SP1 (for libraries) |
| Auto Parallel: | No |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32-bit |
| Other Software: | SmartHeap Library Version 8.1 from http://www.microquill.com/ |

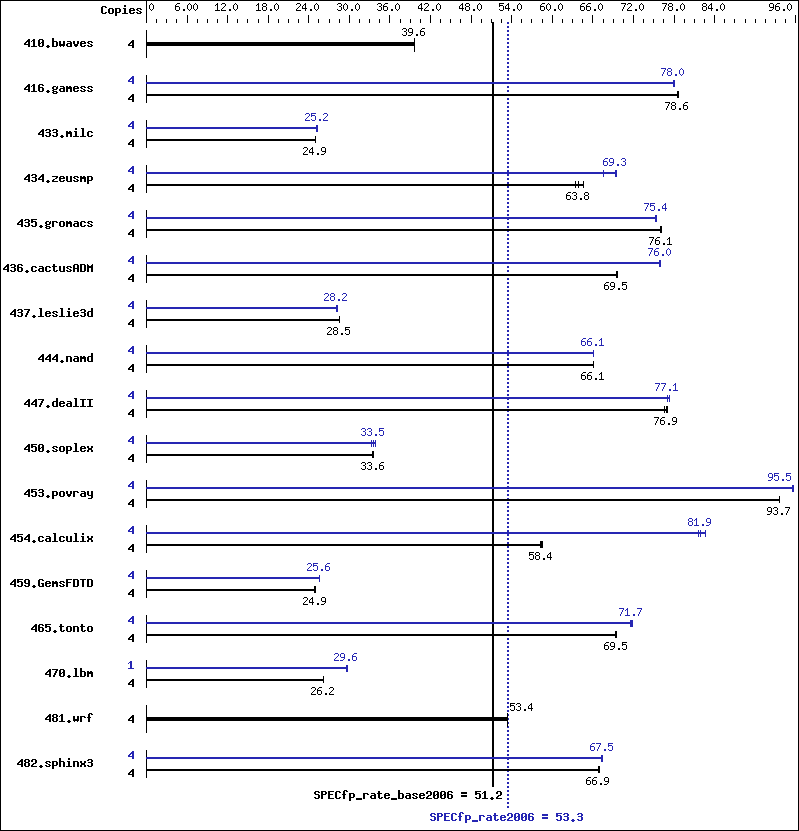

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 410.bwaves | 4 | 1373 | 39.6 | 1372 | 39.6 | 1371 | 39.6 | 4 | 1373 | 39.6 | 1372 | 39.6 | 1371 | 39.6 |
| 416.gamess | 4 | 997 | 78.6 | 997 | 78.6 | 996 | 78.6 | 4 | 1004 | 78.0 | 1004 | 78.0 | 1005 | 78.0 |
| 433.milc | 4 | 1474 | 24.9 | 1472 | 24.9 | 1473 | 24.9 | 4 | 1456 | 25.2 | 1456 | 25.2 | 1457 | 25.2 |
| 434.zeusmp | 4 | 570 | 63.8 | 574 | 63.4 | 564 | 64.6 | 4 | 525 | 69.3 | 524 | 69.5 | 539 | 67.5 |
| 435.gromacs | 4 | 375 | 76.1 | 375 | 76.1 | 376 | 76.0 | 4 | 379 | 75.4 | 379 | 75.3 | 379 | 75.4 |
| 436.cactusADM | 4 | 687 | 69.5 | 687 | 69.6 | 688 | 69.5 | 4 | 630 | 75.9 | 629 | 76.0 | 629 | 76.0 |
| 437.leslie3d | 4 | 1321 | 28.5 | 1317 | 28.6 | 1320 | 28.5 | 4 | 1330 | 28.3 | 1336 | 28.1 | 1335 | 28.2 |
| 444.namd | 4 | 485 | 66.1 | 485 | 66.1 | 485 | 66.1 | 4 | 485 | 66.1 | 485 | 66.1 | 486 | 66.1 |
| 447.dealII | 4 | 595 | 76.9 | 594 | 77.0 | 597 | 76.6 | 4 | 594 | 77.0 | 591 | 77.4 | 594 | 77.1 |
| 450.soplex | 4 | 992 | 33.6 | 994 | 33.6 | 998 | 33.4 | 4 | 983 | 33.9 | 1003 | 33.3 | 996 | 33.5 |
| 453.povray | 4 | 227 | 93.6 | 227 | 93.7 | 227 | 93.7 | 4 | 223 | 95.5 | 223 | 95.6 | 223 | 95.5 |
| 454.calculix | 4 | 564 | 58.5 | 565 | 58.4 | 566 | 58.3 | 4 | 404 | 81.7 | 403 | 81.9 | 399 | 82.6 |
| 459.GemsFDTD | 4 | 1704 | 24.9 | 1699 | 25.0 | 1702 | 24.9 | 4 | 1661 | 25.5 | 1661 | 25.6 | 1659 | 25.6 |
| 465.tonto | 4 | 567 | 69.5 | 566 | 69.5 | 568 | 69.4 | 4 | 549 | 71.7 | 548 | 71.8 | 549 | 71.6 |
| 470.lbm | 4 | 2098 | 26.2 | 2099 | 26.2 | 2098 | 26.2 | 1 | 463 | 29.7 | 464 | 29.6 | 464 | 29.6 |
| 481.wrf | 4 | 837 | 53.4 | 836 | 53.5 | 836 | 53.4 | 4 | 837 | 53.4 | 836 | 53.5 | 836 | 53.4 |
| 482.sphinx3 | 4 | 1163 | 67.0 | 1166 | 66.9 | 1167 | 66.8 | 4 | 1156 | 67.5 | 1155 | 67.5 | 1158 | 67.3 |
General Notes
Tested systems can be used with Shin-G ATX case, Antec NeoPower 480W power supply Product description located as of 9/2008: http://www.asus.com/products.aspx?modelmenu=1&model=2069&l1=3&l2=11&l3=640&l4=0 The system bus runs at 1600 MHz System was configured with Asus EN8800GTX discrete graphics card Binaries were built on Windows Vista32 The following VS 2005 SP1 updates were applied: KB926601 and KB932232
Base Compiler Invocation
C benchmarks:
| icl -Qvc8 -Qc99 |
C++ benchmarks:
| icl -Qvc8 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc8 -Qc99 ifort |
Base Portability Flags
| 436.cactusADM: | -Qlowercase /assume:underscore |
| 444.namd: | -TP |
| 447.dealII: | -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG |
| 453.povray: | -DSPEC_CPU_WINDOWS_ICL |
| 454.calculix: | -DSPEC_CPU_NOZMODIFIER -Qlowercase |
| 481.wrf: | -DSPEC_CPU_WINDOWS_ICL |
Base Optimization Flags
C benchmarks:
| -fast /F1000000000 |
C++ benchmarks:
| -fast -Qcxx_features /F1000000000 shlw32m.lib -link /FORCE:MULTIPLE |
Fortran benchmarks:
| -fast /F1000000000 |
Benchmarks using both Fortran and C:
| -fast /F1000000000 |
Peak Compiler Invocation
C benchmarks:
| icl -Qvc8 -Qc99 |
C++ benchmarks:
| icl -Qvc8 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc8 -Qc99 ifort |
Peak Portability Flags
| 436.cactusADM: | -Qlowercase /assume:underscore |
| 444.namd: | -TP |
| 447.dealII: | -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG |
| 453.povray: | -DSPEC_CPU_WINDOWS_ICL |
| 454.calculix: | -DSPEC_CPU_NOZMODIFIER -Qlowercase |
| 481.wrf: | -DSPEC_CPU_WINDOWS_ICL |
Peak Optimization Flags
C benchmarks:
| 433.milc: | -fast -Qunroll2 -Oa /F1000000000 |
| 470.lbm: | -fast -Qunroll2 -Qscalar-rep- -Qprefetch /F1000000000 |
| 482.sphinx3: | -fast -Qunroll2 /F1000000000 |
C++ benchmarks:
Fortran benchmarks:
| 410.bwaves: | basepeak = yes |
| 416.gamess: | -fast -Qunroll2 -Ob0 -Qansi-alias -Qscalar-rep- /F1000000000 |
| 434.zeusmp: | -QxT -O2 -Qprec-div- -Qunroll0 -Qscalar-rep- /F1000000000 |
| 437.leslie3d: | -fast -Qprefetch /F1000000000 |
| 459.GemsFDTD: | -fast -Qunroll2 -Ob0 -Qprefetch /F1000000000 |
| 465.tonto: | -fast -Qunroll4 -Qauto /F1000000000 |
Benchmarks using both Fortran and C:
| 435.gromacs: | -fast -Oa -Qprefetch /F1000000000 |
| 436.cactusADM: | -fast -Qunroll2 -Qprefetch /F1000000000 |
| 454.calculix: | -fast -Qunroll-aggressive /F1000000000 |
| 481.wrf: | basepeak = yes |
