SPEC® CFP2006 Result

Dell Inc.

PowerEdge M805 (AMD Opteron 2350, 2.0 GHz)

SPECfp®_rate2006 = 80.6

SPECfp_rate_base2006 = 73.4

CPU2006 license:	55	Test date:	Aug-2008
Test sponsor:	Dell Inc.	Hardware Availability:	Aug-2008
Tested by:	Dell Inc.	Software Availability:	May-2008

Hardware
CPU Name:	AMD Opteron 2350
CPU Characteristics:
CPU MHz:	2000
FPU:	Integrated
CPU(s) enabled:	8 cores, 2 chips, 4 cores/chip
CPU(s) orderable:	2 chips
Primary Cache:	64 KB I + 64 KB D on chip per core
Secondary Cache:	512 KB I+D on chip per core
L3 Cache:	2 MB I+D on chip per chip
Other Cache:	None
Memory:	16 GB (8x2GB, DDR2-667, CL5, Reg, Dual Rank)
Disk Subsystem:	1 x 73 SATA 15000 RPM
Other Hardware:	None

Software
Operating System:	SUSE Linux Enterprise Server 10 (x86_64) SP2, Kernel 2.6.16-60.0.21-smp
Compiler:	PGI Server Complete Version 7.2 PathScale Compiler Suite Version 3.1
Auto Parallel:	No
File System:	ReiserFS
System State:	Run level 3 (multi-user)
Base Pointers:	64-bit
Peak Pointers:	32/64-bit
Other Software:	None

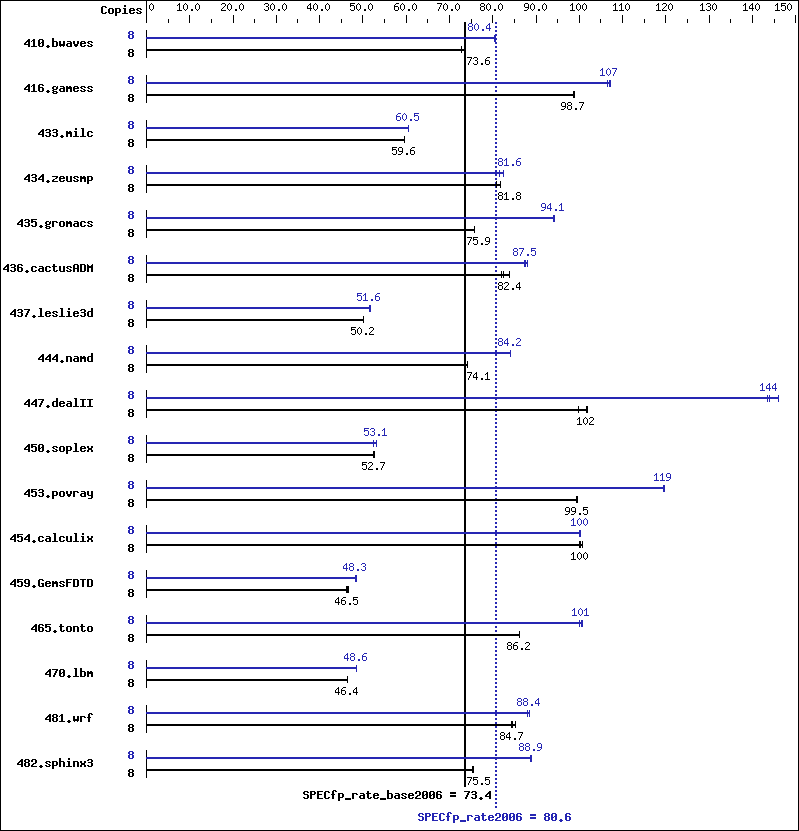

Results Table

Benchmark	Base							Peak
Benchmark	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves	8	1494	72.8	1475	73.7	1477	73.6	8	1352	80.4	1350	80.5	1354	80.3
416.gamess	8	1586	98.8	1586	98.7	1587	98.7	8	1463	107	1470	107	1462	107
433.milc	8	1232	59.6	1232	59.6	1233	59.6	8	1214	60.5	1214	60.5	1214	60.5
434.zeusmp	8	901	80.8	889	81.9	890	81.8	8	882	82.5	892	81.6	893	81.5
435.gromacs	8	753	75.9	753	75.9	753	75.8	8	608	94.0	607	94.1	607	94.1
436.cactusADM	8	1140	83.9	1161	82.4	1165	82.0	8	1085	88.1	1092	87.5	1094	87.4
437.leslie3d	8	1500	50.1	1499	50.2	1498	50.2	8	1451	51.8	1457	51.6	1460	51.5
444.namd	8	866	74.1	866	74.1	865	74.2	8	763	84.1	762	84.2	762	84.2
447.dealII	8	901	102	916	99.9	898	102	8	627	146	636	144	638	143
450.soplex	8	1273	52.4	1267	52.7	1267	52.7	8	1275	52.3	1256	53.1	1254	53.2
453.povray	8	428	99.5	428	99.6	428	99.3	8	357	119	356	120	356	119
454.calculix	8	655	101	658	100	660	100	8	658	100	659	100	660	99.9
459.GemsFDTD	8	1819	46.7	1834	46.3	1825	46.5	8	1751	48.5	1761	48.2	1757	48.3
465.tonto	8	913	86.2	913	86.2	912	86.3	8	782	101	786	100	783	101
470.lbm	8	2371	46.4	2367	46.4	2369	46.4	8	2261	48.6	2263	48.6	2264	48.5
481.wrf	8	1058	84.4	1047	85.3	1055	84.7	8	1010	88.5	1015	88.1	1011	88.4
482.sphinx3	8	2072	75.2	2067	75.5	2063	75.6	8	1752	89.0	1753	88.9	1756	88.8

Operating System Notes

 'numactl' was used to bind copies to the cores
 Environment variable PGI_HUGE_PAGES set to 150
 'ulimit -s unlimited' was used to set environment stack size
 'ulimit -l 2457600' was used to set environment locked pages in memory quantity
 Set vm/nr_hugepages = 1200 in /etc/sysctl.conf
 mount -t hugetlbfs nodev /mnt/hugepages

Base Compiler Invocation

C benchmarks:

pgcc

C++ benchmarks:

pgcpp

Fortran benchmarks:

pgf95

Benchmarks using both Fortran and C:

pgcc pgf95

Base Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
433.milc:	-DSPEC_CPU_LP64
434.zeusmp:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64 -Mnomain
436.cactusADM:	-DSPEC_CPU_LP64 -Mnomain
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
447.dealII:	-DSPEC_CPU_LP64
450.soplex:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64 -Mnomain
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
470.lbm:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX
482.sphinx3:	-DSPEC_CPU_LP64

Base Optimization Flags

Base Other Flags

C benchmarks:

-w -Mipa=jobs:4

C++ benchmarks:

-w -Mipa=jobs:4

Fortran benchmarks:

-w -Mipa=jobs:4

Benchmarks using both Fortran and C:

-w -Mipa=jobs:4

Peak Compiler Invocation

C benchmarks (except as noted below):

	pathcc
433.milc:	pgcc

C++ benchmarks (except as noted below):

	pathCC
444.namd:	pgcpp

Fortran benchmarks (except as noted below):

	pathf95
410.bwaves:	pgf95
434.zeusmp:	pgf95

Benchmarks using both Fortran and C (except as noted below):

	pgcc pgf95
436.cactusADM:	pathcc pathf95
481.wrf:	pathcc pathf95

Peak Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
433.milc:	-DSPEC_CPU_LP64
434.zeusmp:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64 -Mnomain
436.cactusADM:	-DSPEC_CPU_LP64 -fno-second-underscore
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64 -Mnomain
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
470.lbm:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX -fno-second-underscore
482.sphinx3:	-DSPEC_CPU_LP64

Peak Optimization Flags

C benchmarks:

433.milc:	-fastsse -Msmartalloc=huge:150 -Msafeptr -Mfprelaxed -Mipa=inline -Mipa=arg -Mipa=const -Mipa=ptr -Mipa=shape -tp barcelona-64 -Bstatic_pgi
470.lbm:	-march=barcelona -Ofast -m3dnow
482.sphinx3:	-march=barcelona -Ofast

C++ benchmarks:

444.namd:	-Mpfi(pass 1) -Mipa=fast(pass 2) -Mipa=inline(pass 2) -Mpfo(pass 2) -fast -Mfprelaxed -Msmartalloc=huge:150 --zc_eh -Mnodepchk -Munroll=n:4 -Munroll=m:8 -tp barcelona-64 -Bstatic_pgi
447.dealII:	-march=barcelona -Ofast -static -INLINE:aggressive=on -OPT:malloc_alg=1 -m32 -fno-exceptions
450.soplex:	-march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -m32 -O3 -TENV:frame_pointer=off -LNO:prefetch=1
453.povray:	-march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -CG:load_exe=0

Fortran benchmarks:

410.bwaves:	-Mpfi(pass 1) -Mipa=fast(pass 2) -Mipa=inline(pass 2) -Mpfo(pass 2) -fastsse -Mfprelaxed -Msmartalloc -Mprefetch=distance:12 -Mprefetch=nta -tp barcelona-64 -Bstatic_pgi
416.gamess:	-march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O2 -OPT:Ofast -OPT:ro=3 -OPT:unroll_size=256
434.zeusmp:	-fastsse -Mfprelaxed -Msmartalloc=huge:150 -Mipa=fast -Mipa=inline -tp barcelona-64 -Bstatic_pgi
437.leslie3d:	-march=barcelona -Ofast -m3dnow -OPT:unroll_size=256 -CG:load_exe=0 -OPT:malloc_alg=1
459.GemsFDTD:	-march=barcelona -Ofast -LNO:fission=2 -LNO:simd=2 -OPT:malloc_alg=1
465.tonto:	-march=barcelona -Ofast -OPT:malloc_alg=1 -OPT:alias=no_f90_pointer_alias -LNO:blocking=off -CG:load_exe=1 -IPA:plimit=525

Benchmarks using both Fortran and C:

435.gromacs:	-fast -Mfpapprox=rsqrt -Mipa=fast -Mipa=inline -Mfprelaxed -Msmartalloc=huge:150 -tp barcelona-64 -Bstatic_pgi
436.cactusADM:	-march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -WOPT:aggstr=0
454.calculix:	-fastsse -Mfprelaxed -Msmartalloc=huge:150 -Mipa=fast -Mipa=inline -tp barcelona-64 -Bstatic_pgi
481.wrf:	-march=barcelona -Ofast -LNO:blocking=off -LNO:prefetch_ahead=10 -OPT:malloc_alg=1 -m3dnow -LANG:copyinout=off -IPA:callee_limit=5000

Peak Other Flags

C benchmarks:

433.milc:

-w -Mipa=jobs:4

C++ benchmarks:

444.namd:

-w -Mipa=jobs:4(pass 2)

Fortran benchmarks:

410.bwaves:	-w -Mipa=jobs:4(pass 2)
434.zeusmp:	-w -Mipa=jobs:4

Benchmarks using both Fortran and C:

435.gromacs:	-w -Mipa=jobs:4
454.calculix:	-w -Mipa=jobs:4

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/amd123GH-flags.20090713.01.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/amd123GH-flags.20090713.01.xml.
