SPEC® CFP2006 Result

Dell Inc.

PowerEdge M905 (AMD Opteron 8354, 2.2 GHz)

SPECfp®_rate2006 = 150

SPECfp_rate_base2006 = 137

CPU2006 license:	55	Test date:	Jul-2008
Test sponsor:	Dell Inc.	Hardware Availability:	Aug-2008
Tested by:	Dell Inc.	Software Availability:	May-2008

Hardware
CPU Name:	AMD Opteron 8354
CPU Characteristics:
CPU MHz:	2200
FPU:	Integrated
CPU(s) enabled:	16 cores, 4 chips, 4 cores/chip
CPU(s) orderable:	4 chips
Primary Cache:	64 KB I + 64 KB D on chip per core
Secondary Cache:	512 KB I+D on chip per core
L3 Cache:	2 MB I+D on chip per chip
Other Cache:	None
Memory:	32 GB (16 x 2GB, DDR2-667, CL5, Reg, Dual Rank)
Disk Subsystem:	1 x 36 GB SAS 15000 RPM (OS), 1 x 73 GB SAS 10K RPM (CPU2006)
Other Hardware:	None

Software
Operating System:	SUSE Linux Enterprise Server 10 (x86_64) SP2, Kernel 2.6.16-60.0.21-smp
Compiler:	PGI Server Complete Version 7.2 PathScale Compiler Suite Version 3.1
Auto Parallel:	No
File System:	ReiserFS
System State:	Run level 3 (multi-user)
Base Pointers:	64-bit
Peak Pointers:	32/64-bit
Other Software:	None

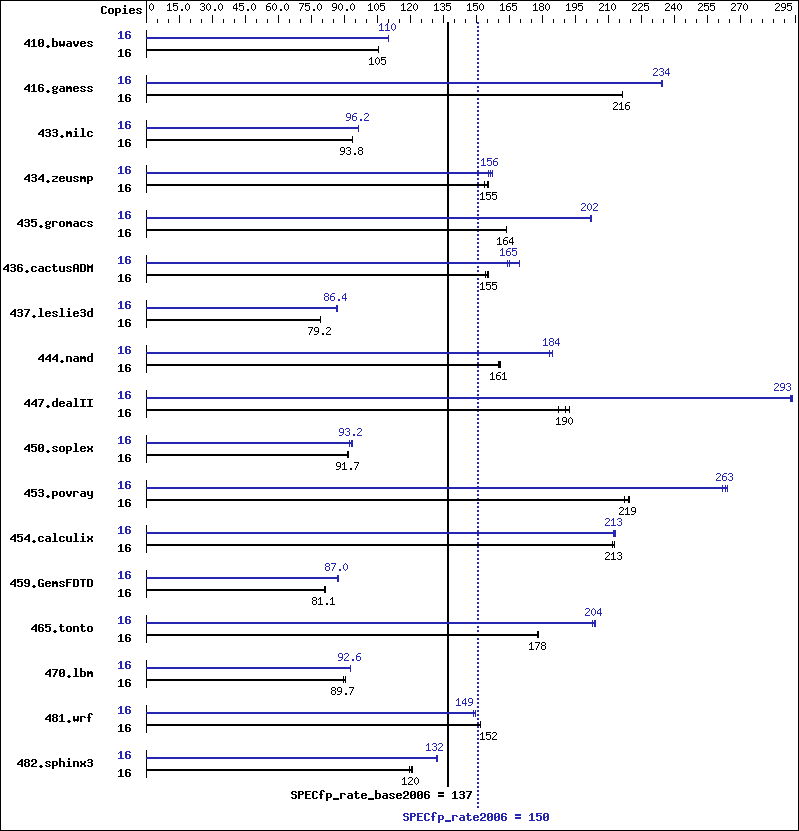

Results Table

Benchmark	Base							Peak
Benchmark	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves	16	2065	105	2064	105	2062	105	16	1974	110	1974	110	1976	110
416.gamess	16	1447	216	1447	216	1448	216	16	1338	234	1336	234	1336	234
433.milc	16	1567	93.8	1566	93.8	1566	93.8	16	1528	96.1	1528	96.2	1528	96.2
434.zeusmp	16	936	155	941	155	947	154	16	938	155	926	157	932	156
435.gromacs	16	698	164	698	164	698	164	16	566	202	565	202	566	202
436.cactusADM	16	1243	154	1229	156	1233	155	16	1127	170	1160	165	1166	164
437.leslie3d	16	1900	79.2	1901	79.1	1900	79.2	16	1741	86.4	1736	86.6	1742	86.3
444.namd	16	798	161	799	161	801	160	16	700	183	696	184	696	184
447.dealII	16	952	192	978	187	962	190	16	624	294	624	293	626	292
450.soplex	16	1465	91.1	1455	91.7	1450	92.0	16	1447	92.2	1429	93.4	1431	93.2
453.povray	16	388	219	392	217	389	219	16	325	262	323	263	323	264
454.calculix	16	620	213	623	212	621	213	16	620	213	622	212	620	213
459.GemsFDTD	16	2093	81.1	2094	81.1	2096	81.0	16	1952	87.0	1951	87.0	1951	87.0
465.tonto	16	885	178	887	177	884	178	16	772	204	777	203	773	204
470.lbm	16	2437	90.2	2452	89.7	2452	89.7	16	2374	92.6	2374	92.6	2374	92.6
481.wrf	16	1179	152	1177	152	1178	152	16	1201	149	1194	150	1197	149
482.sphinx3	16	2606	120	2592	120	2584	121	16	2359	132	2366	132	2363	132

Operating System Notes

 'numactl' was used to bind copies to the cores
 Environment variable PGI_HUGE_PAGES set to 150
 'ulimit -s unlimited' was used to set environment stack size
 mount -t hugetlbfs nodev /mnt/hugepages

Base Compiler Invocation

C benchmarks:

pgcc

C++ benchmarks:

pgcpp

Fortran benchmarks:

pgf95

Benchmarks using both Fortran and C:

pgcc pgf95

Base Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
433.milc:	-DSPEC_CPU_LP64
434.zeusmp:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64 -Mnomain
436.cactusADM:	-DSPEC_CPU_LP64 -Mnomain
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
447.dealII:	-DSPEC_CPU_LP64
450.soplex:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64 -Mnomain
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
470.lbm:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX
482.sphinx3:	-DSPEC_CPU_LP64

Base Optimization Flags

Base Other Flags

C benchmarks:

-w -Mipa=jobs:4

C++ benchmarks:

-w -Mipa=jobs:4

Fortran benchmarks:

-w -Mipa=jobs:4

Benchmarks using both Fortran and C:

-w -Mipa=jobs:4

Peak Compiler Invocation

C benchmarks (except as noted below):

	pathcc
433.milc:	pgcc

C++ benchmarks (except as noted below):

	pathCC
444.namd:	pgcpp

Fortran benchmarks (except as noted below):

	pathf95
410.bwaves:	pgf95
434.zeusmp:	pgf95

Benchmarks using both Fortran and C (except as noted below):

	pgcc pgf95
436.cactusADM:	pathcc pathf95
481.wrf:	pathcc pathf95

Peak Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
433.milc:	-DSPEC_CPU_LP64
434.zeusmp:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64 -Mnomain
436.cactusADM:	-DSPEC_CPU_LP64 -fno-second-underscore
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64 -Mnomain
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
470.lbm:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX -fno-second-underscore
482.sphinx3:	-DSPEC_CPU_LP64

Peak Optimization Flags

C benchmarks:

433.milc:	-fastsse -Msmartalloc=huge:150 -Msafeptr -Mfprelaxed -Mipa=inline -Mipa=arg -Mipa=const -Mipa=ptr -Mipa=shape -tp barcelona-64 -Bstatic_pgi
470.lbm:	-march=barcelona -Ofast -m3dnow
482.sphinx3:	-march=barcelona -Ofast

C++ benchmarks:

444.namd:	-Mpfi(pass 1) -Mipa=fast(pass 2) -Mipa=inline(pass 2) -Mpfo(pass 2) -fast -Mfprelaxed -Msmartalloc=huge:150 --zc_eh -Mnodepchk -Munroll=n:4 -Munroll=m:8 -tp barcelona-64 -Bstatic_pgi
447.dealII:	-march=barcelona -Ofast -static -INLINE:aggressive=on -OPT:malloc_alg=1 -m32 -fno-exceptions
450.soplex:	-march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -m32 -O3 -TENV:frame_pointer=off -LNO:prefetch=1
453.povray:	-march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -CG:load_exe=0

Fortran benchmarks:

410.bwaves:	-Mpfi(pass 1) -Mipa=fast(pass 2) -Mipa=inline(pass 2) -Mpfo(pass 2) -fastsse -Mfprelaxed -Msmartalloc -Mprefetch=distance:12 -Mprefetch=nta -tp barcelona-64 -Bstatic_pgi
416.gamess:	-march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O2 -OPT:Ofast -OPT:ro=3 -OPT:unroll_size=256
434.zeusmp:	-fastsse -Mfprelaxed -Msmartalloc=huge:150 -Mipa=fast -Mipa=inline -tp barcelona-64 -Bstatic_pgi
437.leslie3d:	-march=barcelona -Ofast -m3dnow -OPT:unroll_size=256 -CG:load_exe=0 -OPT:malloc_alg=1
459.GemsFDTD:	-march=barcelona -Ofast -LNO:fission=2 -LNO:simd=2 -OPT:malloc_alg=1
465.tonto:	-march=barcelona -Ofast -OPT:malloc_alg=1 -OPT:alias=no_f90_pointer_alias -LNO:blocking=off -CG:load_exe=1 -IPA:plimit=525

Benchmarks using both Fortran and C:

435.gromacs:	-fast -Mfpapprox=rsqrt -Mipa=fast -Mipa=inline -Mfprelaxed -Msmartalloc=huge:150 -tp barcelona-64 -Bstatic_pgi
436.cactusADM:	-march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -WOPT:aggstr=0
454.calculix:	-fastsse -Mfprelaxed -Msmartalloc=huge:150 -Mipa=fast -Mipa=inline -tp barcelona-64 -Bstatic_pgi
481.wrf:	-march=barcelona -Ofast -LNO:blocking=off -LNO:prefetch_ahead=10 -OPT:malloc_alg=1 -m3dnow -LANG:copyinout=off -IPA:callee_limit=5000

Peak Other Flags

C benchmarks:

433.milc:

-w -Mipa=jobs:4

C++ benchmarks:

444.namd:

-w -Mipa=jobs:4(pass 2)

Fortran benchmarks:

410.bwaves:	-w -Mipa=jobs:4(pass 2)
434.zeusmp:	-w -Mipa=jobs:4

Benchmarks using both Fortran and C:

435.gromacs:	-w -Mipa=jobs:4
454.calculix:	-w -Mipa=jobs:4

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/amd123GH-flags.20090713.01.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/amd123GH-flags.20090713.01.xml.
