SPEC® CINT2006 Result

Dell Inc.

PowerEdge M905 (AMD Opteron 8347 HE, 1.9 GHz)

SPECint®2006 = 12.0

SPECint_base2006 = 10.3

CPU2006 license:	55	Test date:	Jul-2008
Test sponsor:	Dell Inc.	Hardware Availability:	Aug-2008
Tested by:	Dell Inc.	Software Availability:	May-2008

Hardware
CPU Name:	AMD Opteron 8347 HE
CPU Characteristics:
CPU MHz:	1900
FPU:	Integrated
CPU(s) enabled:	16 cores, 4 chips, 4 cores/chip
CPU(s) orderable:	4 chips
Primary Cache:	64 KB I + 64 KB D on chip per core
Secondary Cache:	512 KB I+D on chip per core
L3 Cache:	2 MB I+D on chip per chip
Other Cache:	None
Memory:	32 GB (16 x 2 GB, DDR2-667, CL5, Reg, Dual Rank)
Disk Subsystem:	1 x 36 GB SAS 15000 RPM (OS), 1 x 73 GB SAS 10000 RPM (CPU2006)
Other Hardware:	None

Software
Operating System:	SUSE Linux Enterprise Server 10 (x86_64) SP2, Kernel 2.6.16-60.0.21-smp
Compiler:	PGI Server Complete Version 7.2 PathScale Compiler Suite Version 3.1
Auto Parallel:	No
File System:	ReiserFS
System State:	Run level 3 (multi-user)
Base Pointers:	32/64-bit
Peak Pointers:	32/64-bit
Other Software:	SmartHeap 8.0 32-bit Library for Linux

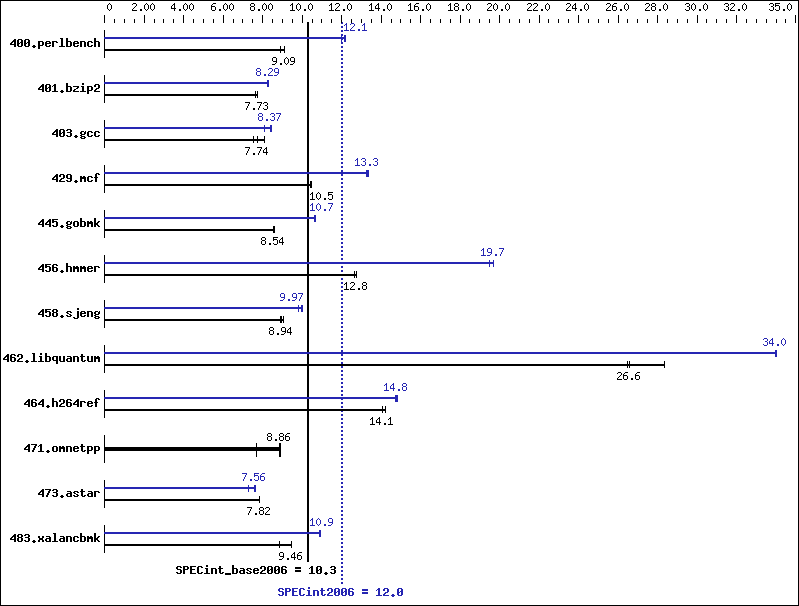

Results Table

Benchmark	Base						Peak
Benchmark	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench	1072	9.11	1096	8.92	1075	9.09	814	12.0	805	12.1	801	12.2
401.bzip2	1249	7.73	1262	7.65	1249	7.73	1163	8.29	1171	8.24	1163	8.30
403.gcc	1040	7.74	1071	7.51	997	8.07	992	8.11	962	8.37	956	8.42
429.mcf	872	10.5	872	10.5	876	10.4	684	13.3	688	13.3	685	13.3
445.gobmk	1228	8.54	1220	8.60	1228	8.54	985	10.6	981	10.7	982	10.7
456.hmmer	731	12.8	731	12.8	737	12.7	473	19.7	478	19.5	474	19.7
458.sjeng	1335	9.07	1356	8.93	1354	8.94	1207	10.0	1230	9.84	1213	9.97
462.libquantum	783	26.5	779	26.6	730	28.4	610	34.0	609	34.0	610	34.0
464.h264ref	1572	14.1	1572	14.1	1555	14.2	1498	14.8	1504	14.7	1494	14.8
471.omnetpp	815	7.67	701	8.92	705	8.86	815	7.67	701	8.92	705	8.86
473.astar	898	7.82	898	7.82	896	7.84	922	7.62	929	7.56	962	7.30
483.xalancbmk	781	8.84	728	9.48	729	9.46	631	10.9	631	10.9	634	10.9

Operating System Notes

 'numactl' was used to bind copies to the cores
 Environment variable PGI_HUGE_PAGES set to 150
 'ulimit -s unlimited' was used to set environment stack size
 'ulimit -l 4915200' was used to set environment locked pages in memory quantity
 Set vm/nr_hugepages=2400 in /etc/sysctl.conf
 mount -t hugetlbfs nodev /mnt/hugepages

Base Compiler Invocation

C benchmarks:

pgcc

C++ benchmarks:

pgcpp

Base Portability Flags

400.perlbench:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64
401.bzip2:	-DSPEC_CPU_LP64
403.gcc:	-DSPEC_CPU_LP64
429.mcf:	-DSPEC_CPU_LP64
445.gobmk:	-DSPEC_CPU_LP64
456.hmmer:	-DSPEC_CPU_LP64
458.sjeng:	-DSPEC_CPU_LP64
462.libquantum:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX
464.h264ref:	-DSPEC_CPU_LP64
483.xalancbmk:	-DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

-fast -Mipa=fast -Mipa=inline -Mfprelaxed -Msmartalloc=huge:150 -tp barcelona-64 -Bstatic_pgi

C++ benchmarks:

-fastsse -Mipa=fast -Mipa=inline -Mfprelaxed -Msmartalloc=huge:150 --zc_eh -tp barcelona -Bstatic_pgi

Base Other Flags

C benchmarks:

-w -Mipa=jobs:4

C++ benchmarks:

-w -Mipa=jobs:4

Peak Compiler Invocation

C benchmarks (except as noted below):

	pgcc
400.perlbench:	pathcc
403.gcc:	pathcc
445.gobmk:	pathcc

C++ benchmarks (except as noted below):

	pathCC
471.omnetpp:	pgcpp

Peak Portability Flags

400.perlbench:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64
401.bzip2:	-DSPEC_CPU_LP64
445.gobmk:	-DSPEC_CPU_LP64
456.hmmer:	-DSPEC_CPU_LP64
458.sjeng:	-DSPEC_CPU_LP64
462.libquantum:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX
464.h264ref:	-DSPEC_CPU_LP64
483.xalancbmk:	-DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:	-march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -IPA:plimit=20000 -LNO:opt=0 -WOPT:if_conv=0 -CG:local_sched_alg=1
401.bzip2:	-Mpfi(pass 1) -Mpfo(pass 2) -fast -O4 -Msmartalloc=huge:150 -Mnounroll -tp barcelona-64 -Bstatic_pgi
403.gcc:	-march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -m32 -O3 -OPT:Ofast
429.mcf:	-fastsse -Mipa=fast -Mipa=inline:1 -Msmartalloc=huge:150 -tp barcelona -Bstatic_pgi
445.gobmk:	-march=barcelona -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O3 -OPT:alias=restrict -LNO:opt=0 -CG:p2align=on
456.hmmer:	-fastsse -Munroll=n:8 -Msmartalloc=huge:150 -Mfprelaxed -Mvect=partial -Msafeptr -Mipa=const -Mipa=ptr -Mipa=arg -Mipa=inline -tp barcelona-64 -Bstatic_pgi
458.sjeng:	-Mpfi(pass 1) -Mipa=fast(pass 2) -Mipa=inline:1(pass 2) -Mipa=noarg(pass 2) -Mpfo(pass 2) -fastsse -Msmartalloc=huge:150 -Mfprelaxed -tp barcelona-64 -Bstatic_pgi
462.libquantum:	-fastsse -Mfprelaxed -Msmartalloc=huge:150 -Munroll=m:8 -Mipa=fast -Mipa=inline -Mipa=noarg -tp barcelona-64 -Bstatic_pgi
464.h264ref:	-Mpfi=indirect(pass 1) -Mipa=fast(pass 2) -Mipa=inline(pass 2) -Mpfo=indirect(pass 2) -fastsse -Msmartalloc=huge:150 -Mfprelaxed -tp barcelona-64 -Bstatic_pgi

C++ benchmarks:

471.omnetpp:	basepeak = yes
473.astar:	-march=barcelona -Ofast -TENV:frame_pointer=off -WOPT:if_conv=0 -GRA:optimize_boundary=on -IPA:plimit=525 -m32 -lsmartheap
483.xalancbmk:	-march=barcelona -Ofast -m32 -OPT:unroll_times_max=8 -CG:push_pop_int_saved_regs=off -CG:ptr_load_use=0 -lsmartheap

Peak Other Flags

C benchmarks (except as noted below):

	-w -Mipa=jobs:4(pass 2)
400.perlbench:	No flags used
401.bzip2:	-w
403.gcc:	No flags used
445.gobmk:	No flags used

C++ benchmarks (except as noted below):

	-L/root/work/cpu2006/amd123GH.libs/32
471.omnetpp:	-w -Mipa=jobs:4

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/amd123GH-flags.20090713.01.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/amd123GH-flags.20090713.01.xml.
