SPEC® CFP2006 Result

Copyright 2006-2016 Standard Performance Evaluation Corporation

Dell Inc.

PowerEdge M905 (AMD Opteron 8347 HE, 1.9 GHz)

CPU2006 license: 55 Test date: Jul-2008
Test sponsor: Dell Inc. Hardware Availability: Aug-2008
Tested by: Dell Inc. Software Availability: May-2008

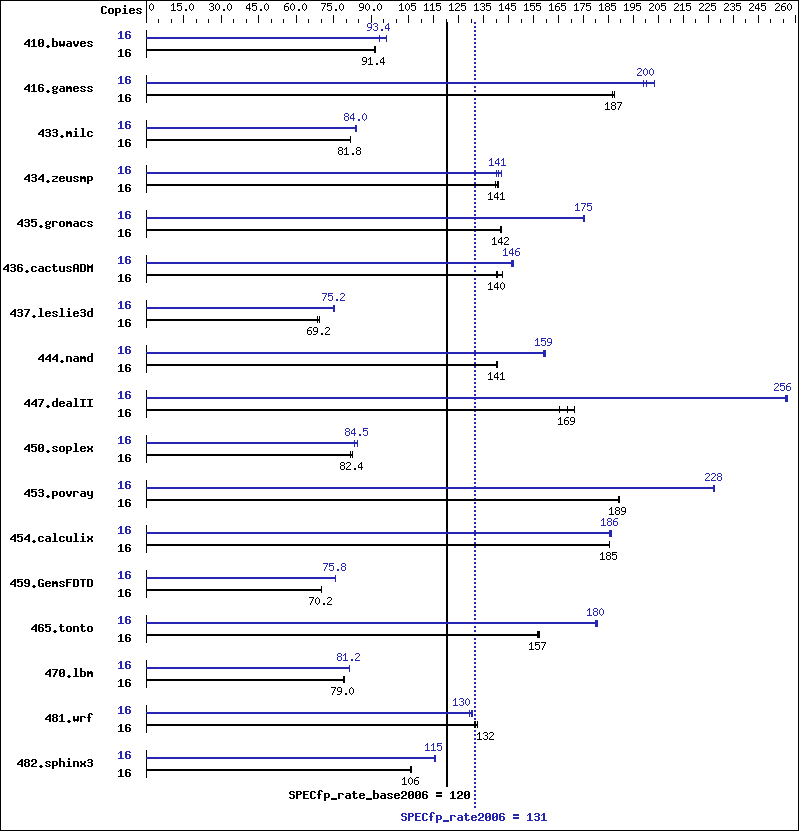

Benchmark results graph
Hardware
CPU Name: AMD Opteron 8347 HE
CPU Characteristics:
CPU MHz: 1900
FPU: Integrated
CPU(s) enabled: 16 cores, 4 chips, 4 cores/chip
CPU(s) orderable: 4 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
L3 Cache: 2 MB I+D on chip per chip
Other Cache: None
Memory: 32 GB (16 x 2 GB, DDR2-667, CL5, Reg, Dual Rank)
Disk Subsystem: 1 x 36 GB SAS 15000 RPM (OS), 1 x 73 GB SAS 10000
RPM (CPU2006)
Other Hardware: None
Software
Operating System: SUSE Linux Enterprise Server 10 (x86_64) SP2,
Kernel 2.6.16-60.0.21-smp
Compiler: PGI Server Complete Version 7.2
PathScale Compiler Suite Version 3.1
Auto Parallel: No
File System: ReiserFS
System State: Run level 3 (multi-user)
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 16 2378 91.4 2370 91.8 2378 91.4 16 2329 93.4 2259 96.3 2327 93.4
416.gamess 16 1677 187   1671 187   1672 187   16 1540 203   1566 200   1575 199
433.milc 16 1796 81.8 1797 81.8 1794 81.9 16 1749 84.0 1753 83.8 1743 84.3
434.zeusmp 16 1036 141   1033 141   1041 140   16 1025 142   1033 141   1040 140
435.gromacs 16 805 142   803 142   803 142   16 652 175   652 175   652 175
436.cactusADM 16 1362 140   1340 143   1363 140   16 1302 147   1308 146   1305 146
437.leslie3d 16 2174 69.2 2195 68.5 2172 69.2 16 2009 74.9 1999 75.2 1995 75.4
444.namd 16 914 140   912 141   913 141   16 806 159   803 160   805 159
447.dealII 16 1086 169   1068 171   1107 165   16 713 257   714 256   716 256
450.soplex 16 1631 81.8 1618 82.5 1619 82.4 16 1605 83.2 1578 84.6 1580 84.5
453.povray 16 450 189   449 190   450 189   16 375 227   374 228   374 228
454.calculix 16 711 186   713 185   712 185   16 709 186   710 186   712 185
459.GemsFDTD 16 2418 70.2 2418 70.2 2418 70.2 16 2246 75.6 2239 75.8 2240 75.8
465.tonto 16 1001 157   1002 157   1005 157   16 872 181   876 180   874 180
470.lbm 16 2769 79.4 2791 78.8 2784 79.0 16 2706 81.2 2708 81.2 2707 81.2
481.wrf 16 1356 132   1349 132   1361 131   16 1383 129   1369 131   1372 130
482.sphinx3 16 2937 106   2943 106   2945 106   16 2700 115   2694 116   2703 115

Operating System Notes

 'numactl' was used to bind copies to the cores
 Environment variable PGI_HUGE_PAGES set to 150
 'ulimit -s unlimited' was used to set environment stack size
 'ulimit -l 4915200' was used to set environment locked pages in memory quantity
 Set vm/nr_hugepages=2400 in /etc/sysctl.conf
 mount -t hugetlbfs nodev /mnt/hugepages

Base Compiler Invocation

C benchmarks:

 pgcc

C++ benchmarks:

 pgcpp

Fortran benchmarks:

 pgf95

Benchmarks using both Fortran and C:

 pgcc   pgf95

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -Mnomain
436.cactusADM:  -DSPEC_CPU_LP64   -Mnomain
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -Mnomain
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -fast   -Mipa=fast   -Mipa=inline   -Mfprelaxed   -Msmartalloc=huge:150   -tp barcelona-64   -Bstatic_pgi

C++ benchmarks:

 -fast   -Mipa=fast   -Mipa=inline   -Mfprelaxed   -Msmartalloc=huge:150   --zc_eh   -tp barcelona-64   -Bstatic_pgi

Fortran benchmarks:

 -fast   -Mipa=fast   -Mipa=inline   -Mfprelaxed   -Msmartalloc=huge:150   -tp barcelona-64   -Bstatic_pgi

Benchmarks using both Fortran and C:

 -fast   -Mipa=fast   -Mipa=inline   -Mfprelaxed   -Msmartalloc=huge:150   -tp barcelona-64   -Bstatic_pgi

Base Other Flags

C benchmarks:

 -w   -Mipa=jobs:4

C++ benchmarks:

 -w   -Mipa=jobs:4

Fortran benchmarks:

 -w   -Mipa=jobs:4

Benchmarks using both Fortran and C:

 -w   -Mipa=jobs:4

Peak Compiler Invocation

C benchmarks (except as noted below):

 pathcc
433.milc:  pgcc

C++ benchmarks (except as noted below):

 pathCC
444.namd:  pgcpp

Fortran benchmarks (except as noted below):

 pathf95
410.bwaves:  pgf95
434.zeusmp:  pgf95

Benchmarks using both Fortran and C (except as noted below):

 pgcc   pgf95
436.cactusADM:  pathcc   pathf95
481.wrf:  pathcc   pathf95

Peak Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -Mnomain
436.cactusADM:  -DSPEC_CPU_LP64   -fno-second-underscore
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -Mnomain
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX   -fno-second-underscore
482.sphinx3:  -DSPEC_CPU_LP64

Peak Optimization Flags

C benchmarks:

433.milc:  -fastsse   -Msmartalloc=huge:150   -Msafeptr   -Mfprelaxed   -Mipa=inline   -Mipa=arg   -Mipa=const   -Mipa=ptr   -Mipa=shape   -tp barcelona-64   -Bstatic_pgi
470.lbm:  -march=barcelona   -Ofast   -m3dnow
482.sphinx3:  -march=barcelona   -Ofast

C++ benchmarks:

444.namd:  -Mpfi(pass 1)   -Mipa=fast(pass 2)   -Mipa=inline(pass 2)   -Mpfo(pass 2)   -fast   -Mfprelaxed   -Msmartalloc=huge:150   --zc_eh   -Mnodepchk   -Munroll=n:4   -Munroll=m:8   -tp barcelona-64   -Bstatic_pgi
447.dealII:  -march=barcelona   -Ofast   -static   -INLINE:aggressive=on   -OPT:malloc_alg=1   -m32   -fno-exceptions
450.soplex:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -m32   -O3   -TENV:frame_pointer=off   -LNO:prefetch=1
453.povray:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -CG:load_exe=0

Fortran benchmarks:

410.bwaves:  -Mpfi(pass 1)   -Mipa=fast(pass 2)   -Mipa=inline(pass 2)   -Mpfo(pass 2)   -fastsse   -Mfprelaxed   -Msmartalloc   -Mprefetch=distance:12   -Mprefetch=nta   -tp barcelona-64   -Bstatic_pgi
416.gamess:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O2   -OPT:Ofast   -OPT:ro=3   -OPT:unroll_size=256
434.zeusmp:  -fastsse   -Mfprelaxed   -Msmartalloc=huge:150   -Mipa=fast   -Mipa=inline   -tp barcelona-64   -Bstatic_pgi
437.leslie3d:  -march=barcelona   -Ofast   -m3dnow   -OPT:unroll_size=256   -CG:load_exe=0   -OPT:malloc_alg=1
459.GemsFDTD:  -march=barcelona   -Ofast   -LNO:fission=2   -LNO:simd=2   -OPT:malloc_alg=1
465.tonto:  -march=barcelona   -Ofast   -OPT:malloc_alg=1   -OPT:alias=no_f90_pointer_alias   -LNO:blocking=off   -CG:load_exe=1   -IPA:plimit=525

Benchmarks using both Fortran and C:

435.gromacs:  -fast   -Mfpapprox=rsqrt   -Mipa=fast   -Mipa=inline   -Mfprelaxed   -Msmartalloc=huge:150   -tp barcelona-64   -Bstatic_pgi
436.cactusADM:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -WOPT:aggstr=0
454.calculix:  -fastsse   -Mfprelaxed   -Msmartalloc=huge:150   -Mipa=fast   -Mipa=inline   -tp barcelona-64   -Bstatic_pgi
481.wrf:  -march=barcelona   -Ofast   -LNO:blocking=off   -LNO:prefetch_ahead=10   -OPT:malloc_alg=1   -m3dnow   -LANG:copyinout=off   -IPA:callee_limit=5000

Peak Other Flags

C benchmarks:

433.milc:  -w   -Mipa=jobs:4

C++ benchmarks:

444.namd:  -w   -Mipa=jobs:4(pass 2)

Fortran benchmarks:

410.bwaves:  -w   -Mipa=jobs:4(pass 2)
434.zeusmp:  -w   -Mipa=jobs:4

Benchmarks using both Fortran and C:

435.gromacs:  -w   -Mipa=jobs:4
454.calculix:  -w   -Mipa=jobs:4

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/amd123GH-flags.20090713.01.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/amd123GH-flags.20090713.01.xml.
