| CPU2006 license: | 55 | Test date: | Aug-2008 |
|---|---|---|---|
| Test sponsor: | Dell Inc. | Hardware Availability: | Jan-2008 |
| Tested by: | Dell Inc. | Software Availability: | May-2008 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X5260 |
| CPU Characteristics: | |
| CPU MHz: | 3333 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 2 chips, 2 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 6 MB I+D on chip per chip |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 16 GB (8 x 2 GB 667 MHz ECC CL5 FB-DIMM) |
| Disk Subsystem: | 1 x 80 GB 5400 RPM SATA |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 10 (x86_64) SP2, Kernel 2.6.16-60.0.21-smp |
| Compiler: | Intel C++ Compiler 10.1 for Linux Build 20080312 Package ID: l_cc_p_10.1.015 |
| Auto Parallel: | Yes |
| File System: | ReiserFS |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V8.1 Binutils 2.18.50.0.7.20080502 |

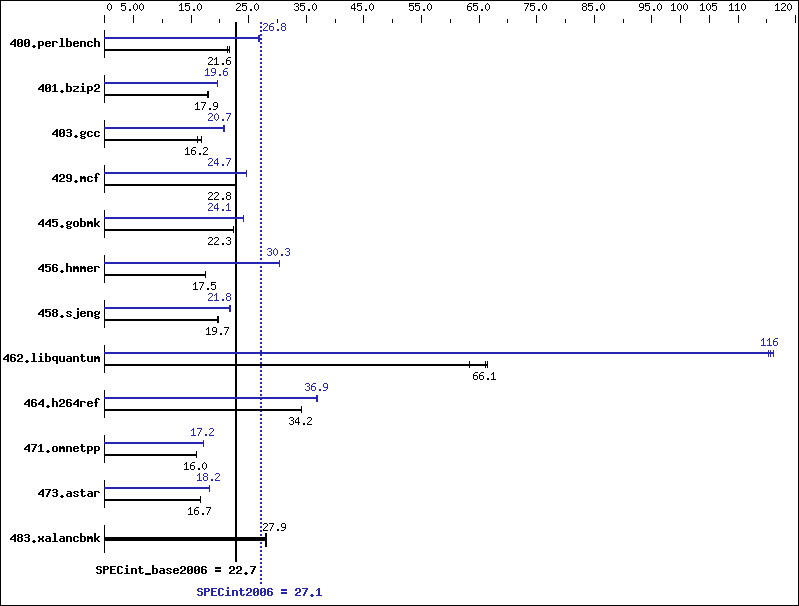

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 457 | 21.4 | 452 | 21.6 | 452 | 21.6 | 366 | 26.7 | 365 | 26.8 | 365 | 26.8 |
| 401.bzip2 | 539 | 17.9 | 535 | 18.0 | 540 | 17.9 | 493 | 19.6 | 493 | 19.6 | 495 | 19.5 |
| 403.gcc | 499 | 16.1 | 481 | 16.7 | 498 | 16.2 | 389 | 20.7 | 387 | 20.8 | 389 | 20.7 |
| 429.mcf | 400 | 22.8 | 399 | 22.8 | 399 | 22.8 | 370 | 24.7 | 370 | 24.6 | 369 | 24.7 |
| 445.gobmk | 470 | 22.3 | 470 | 22.3 | 470 | 22.3 | 435 | 24.1 | 435 | 24.1 | 435 | 24.1 |
| 456.hmmer | 534 | 17.5 | 534 | 17.5 | 534 | 17.5 | 308 | 30.3 | 308 | 30.3 | 307 | 30.3 |
| 458.sjeng | 619 | 19.6 | 614 | 19.7 | 615 | 19.7 | 556 | 21.8 | 555 | 21.8 | 557 | 21.7 |
| 462.libquantum | 327 | 63.3 | 312 | 66.4 | 314 | 66.1 | 178 | 116 | 180 | 115 | 179 | 116 |
| 464.h264ref | 648 | 34.2 | 648 | 34.2 | 648 | 34.2 | 601 | 36.8 | 599 | 36.9 | 598 | 37.0 |
| 471.omnetpp | 392 | 16.0 | 391 | 16.0 | 393 | 15.9 | 363 | 17.2 | 363 | 17.2 | 364 | 17.2 |
| 473.astar | 422 | 16.7 | 422 | 16.7 | 421 | 16.7 | 385 | 18.2 | 387 | 18.1 | 385 | 18.2 |
| 483.xalancbmk | 246 | 28.0 | 247 | 27.9 | 248 | 27.9 | 246 | 28.0 | 247 | 27.9 | 248 | 27.9 |
Operating System Notes
'ulimit -s unlimited' was used to set the stack size to unlimited prior to run
General Notes
All benchmarks compiled in 32-bit mode except 401.bzip2 and 456.hmmer, for peak, are compiled in 64-bit mode OMP_NUM_THREADS set to number of processors KMP_AFFINITY set to "physical,0"
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -fast -vec-guard-write -parallel -par-runtime-control |
C++ benchmarks:
| -xT -ipo -O3 -no-prec-div -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -fast -ansi-alias -prefetch |
| 401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -fast -prefetch -auto-ilp32 |
| 403.gcc: | -fast -inline-calloc -opt-malloc-options=3 |
| 429.mcf: | -fast -prefetch |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -fast -unroll2 -ansi-alias -opt-multi-version-aggressive -auto-ilp32 |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 |
| 462.libquantum: | -fast -unroll4 -Ob0 -prefetch -opt-streaming-stores always -vec-guard-write -opt-malloc-options=3 -parallel -par-runtime-control |
| 464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
| 473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
| 483.xalancbmk: | basepeak = yes |
