| CPU2006 license: | 11 | Test date: | Aug-2008 |
|---|---|---|---|
| Test sponsor: | IBM Corporation | Hardware Availability: | Sep-2008 |
| Tested by: | IBM Corporation | Software Availability: | May-2008 |
| Hardware | |
|---|---|
| CPU Name: | AMD Opteron 8347 HE |
| CPU Characteristics: | |
| CPU MHz: | 1900 |
| FPU: | Integrated |
| CPU(s) enabled: | 16 cores, 4 chips, 4 cores/chip |
| CPU(s) orderable: | 1,2,3,4 chips |
| Primary Cache: | 64 KB I + 64 KB D on chip per core |
| Secondary Cache: | 512 KB I+D on chip per core |
| L3 Cache: | 2 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 64 GB (16 x 4 GB DDR2-6400 ECC) |
| Disk Subsystem: | 1 x 73 GB SAS, 10000 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SuSE Linux Enterprise Server 10 (x86_64) SP1, Kernel 2.6.16.46-0.12-smp |
| Compiler: | PGI Server Complete Version 7.2 |
| Auto Parallel: | Yes |
| File System: | ReiserFS |
| System State: | Run level 3 (Full multiuser with network) |
| Base Pointers: | 32/64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | SmartHeap 8.1 32-bit Library for Linux binutils 2.18.50 |

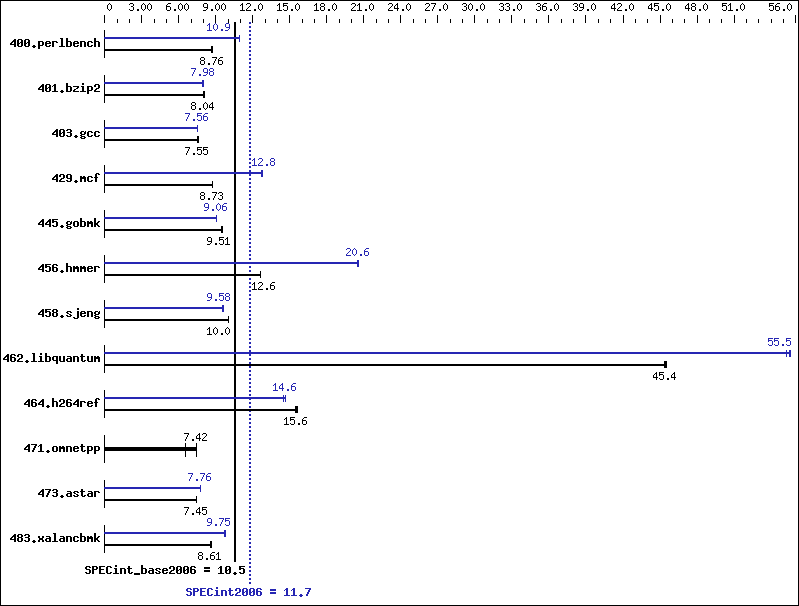

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 1130 | 8.65 | 1116 | 8.76 | 1116 | 8.76 | 894 | 10.9 | 896 | 10.9 | 894 | 10.9 |
| 401.bzip2 | 1198 | 8.06 | 1201 | 8.03 | 1201 | 8.04 | 1208 | 7.99 | 1213 | 7.96 | 1210 | 7.98 |
| 403.gcc | 1067 | 7.55 | 1065 | 7.56 | 1068 | 7.54 | 1065 | 7.56 | 1065 | 7.56 | 1065 | 7.56 |
| 429.mcf | 1043 | 8.74 | 1047 | 8.71 | 1044 | 8.73 | 713 | 12.8 | 714 | 12.8 | 717 | 12.7 |
| 445.gobmk | 1104 | 9.51 | 1105 | 9.50 | 1103 | 9.51 | 1157 | 9.06 | 1158 | 9.06 | 1157 | 9.07 |
| 456.hmmer | 739 | 12.6 | 740 | 12.6 | 737 | 12.7 | 456 | 20.5 | 453 | 20.6 | 453 | 20.6 |
| 458.sjeng | 1208 | 10.0 | 1210 | 10.0 | 1208 | 10.0 | 1263 | 9.58 | 1268 | 9.54 | 1261 | 9.60 |
| 462.libquantum | 457 | 45.4 | 456 | 45.4 | 455 | 45.6 | 373 | 55.6 | 375 | 55.2 | 373 | 55.5 |
| 464.h264ref | 1413 | 15.7 | 1433 | 15.4 | 1423 | 15.6 | 1507 | 14.7 | 1530 | 14.5 | 1512 | 14.6 |
| 471.omnetpp | 839 | 7.45 | 843 | 7.42 | 956 | 6.54 | 839 | 7.45 | 843 | 7.42 | 956 | 6.54 |
| 473.astar | 946 | 7.42 | 942 | 7.45 | 942 | 7.45 | 905 | 7.76 | 905 | 7.76 | 906 | 7.75 |
| 483.xalancbmk | 802 | 8.61 | 802 | 8.61 | 800 | 8.63 | 709 | 9.73 | 707 | 9.76 | 708 | 9.75 |
Submit Notes
The config file option 'submit' was used.
Operating System Notes
'numactl' was used to bind copies to the cores. Environment stack size set to 'unlimited'. 'ulimit -l 2097152' was used to set environment locked pages in memory quantity. NCPUS set to number of cores. PGI_HUGE_PAGES set to 896. Set vm/nr_hugepages=14336 in /etc/sysctl.conf mount -t hugetlbfs none /mnt/hugepages Processor Performance States Disabled in BIOS Memory ChipKill Disabled in BIOS
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 429.mcf: | -DSPEC_CPU_LP64 |
| 445.gobmk: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -fastsse -Msmartalloc=huge:896 -Mloop32 -Mconcur=innermost -Mfprelaxed -Mipa=fast -Mipa=inline -tp barcelona-64 -Bstatic_pgi |
C++ benchmarks:
| -fastsse -Msmartalloc=huge:896 -Mloop32 -Mfprelaxed --zc_eh -Mipa=fast -Mipa=inline -tp barcelona-32 -Bstatic_pgi |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 445.gobmk: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
C++ benchmarks:
| 471.omnetpp: | basepeak = yes |
| 473.astar: | -Mpfi(pass 1) -Mpfo(pass 2) -Mipa=fast(pass 2) -Mipa=inline:6(pass 2) -fastsse -O4 -Msmartalloc=huge:896 -Msafeptr=global -Mloop32 -Mfprelaxed --zc_eh -tp barcelona-32 -Bstatic_pgi |
| 483.xalancbmk: | --zc_eh -fastsse -O4 -Mfprelaxed -Msmartalloc -Mipa=fast -Mipa=inline -tp barcelona-32 -Bstatic_pgi -lsmartheap |
Peak Other Flags
C benchmarks (except as noted below):
| -Mipa=jobs:8(pass 2) | |
| 401.bzip2: | No flags used |
C++ benchmarks (except as noted below):
| -Mipa=jobs:8(pass 2) | |
| 483.xalancbmk: | -Mipa=jobs:8 -L/proj/qa/smartheap/SmartHeap_8.1/lib |
